Type G Cable 2 kV Portable Mining Power Cable
Type G Cable is a 2,000 V portable power cable for stated industrial and mining applications requiring grounding.
- Дирижеры: flexible stranded bare or tin-coated copper
- Изоляция: colour-coded 90°C EPDM
- Ground wires: green EPDM-insulated copper
- Куртка: flame-retardant, oil- and sunlight-resistant CPE
- Диапазон размеров: 8 AWG to 500 MCM
Request Type G Mining Cable pricing with the conductor count, gauge, length and application details.
Type G Cable 2 kV portable mining power cable
TEBAOFLEX Type G Cable is a 2,000 V portable power cable for three- and four-wire AC systems requiring grounding. The supplied Type G Mining Cable information identifies industrial and mining uses, including mining equipment, cranes, conveyors, mobile equipment, electromagnets and oil-drilling equipment. Its stated design combines flexible annealed stranded copper conductors, colour-coded EPDM insulation, multiple insulated grounding conductors and a reinforced thermoset CPE jacket.
The Type G Cable configuration uses the same number of ground wires as primary conductors. The supplied information states that the total ground-wire cross-sectional area is roughly equal to that of the primary conductors. This arrangement, along with the supplied EPDM insulation and CPE outer jacket, is intended for portable cable duties exposed to heat, acids, oil, moisture and demanding environmental conditions.
- Номинальное напряжение: 2,000 V.
- Диапазон температур: −40°C to +90°C.
- Available construction: three or four pure stranded copper phase conductors with three or four green ground wires.
- Диапазон размеров: 8 AWG to 500 MCM.
For the final Type G Mining Cable selection, confirm conductor count, size, equipment connection, route, ambient conditions, required approvals, length and documentation. Explore the Ассортимент кабелей для горнодобывающей и туннельной промышленности for related portable cable constructions.
Type G Cable construction

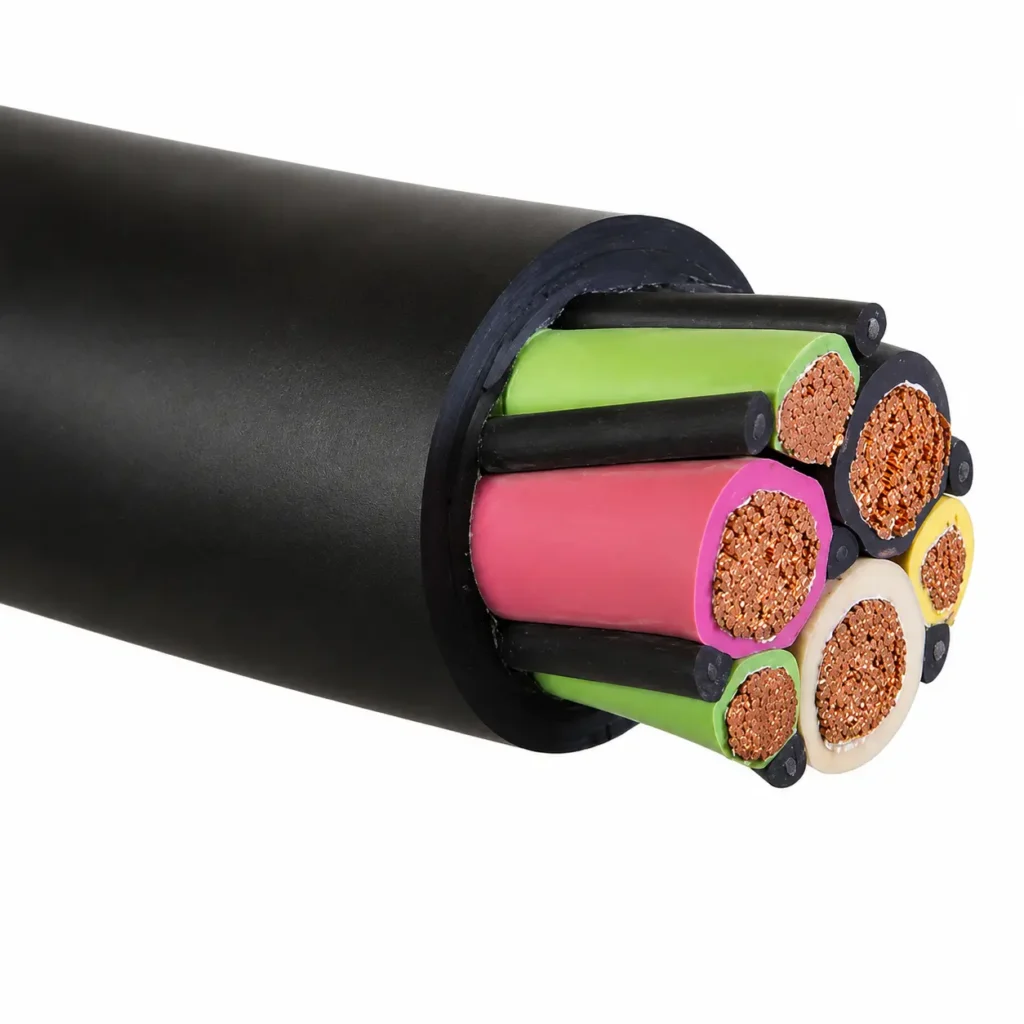

The supplied Type G Cable design uses flexible copper phase conductors and matching green grounding conductors within EPDM insulation and a reinforced CPE outer jacket.
| Строительный элемент | Supplied Type G Mining Cable reference |
|---|---|
| Фазовые проводники | Fully annealed stranded bare or tin-coated copper; rope-lay stranding for flexibility |
| Изоляция | Premium-grade colour-coded 90°C ethylene-propylene-diene monomer (EPDM) |
| Ground conductors | Green EPDM-insulated bare or tinned copper stranding; same number as primary conductors |
| Ground-wire area | Total area stated as roughly equal to the primary-conductor cross-sectional area |
| Наружная оболочка | Flame-retardant, oil- and sunlight-resistant chlorinated polyethylene (CPE), rated 90°C |
| Options | Other sizes, colours and custom designs on request; EPR available on request |
Применения

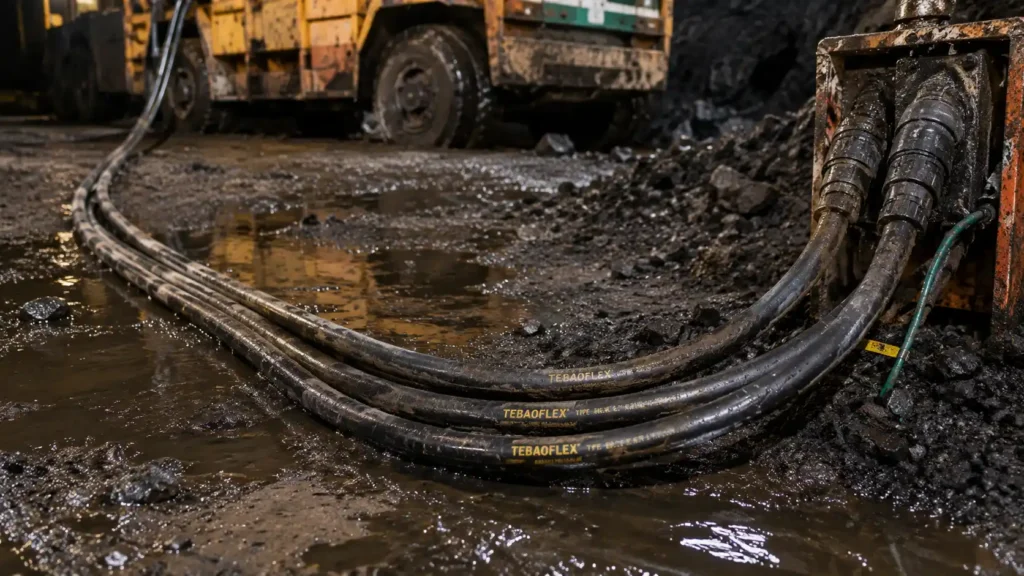

Type G Mining Cable is supplied for portable power duties on three- and four-wire AC systems requiring grounding. The supplied applications include mining equipment, cranes, conveyors, mobile equipment, electromagnets and oil-drilling equipment. Type G Cable is also described for temporary power supply duty in industrial and mining use.
Selection checks
- Confirm whether a three- or four-conductor Type G Cable configuration is required, together with the grounding arrangement.
- Check the conductor size against load, voltage drop, route, protective device and installation conditions.
- Review exposure to impact, abrasion, heat, acids, oil, moisture and weather with the actual site engineering requirements.
- Specify the required length, colour code, jacket option, approvals and documentation with the enquiry.
The supplied Type G Cable construction is not interchangeable with Type G-GC or Type GC cable arrangements: confirm the required ground and ground-check functions before final selection.
Type G Cable specifications
The following nominal four-conductor Type G Cable data is transcribed from the supplied information. All dimensions are nominal and subject to normal manufacturing tolerance.
| Размер проводника | No. of conductors | Скрутка | Ground conductor | Толщина изоляции | Approx. diameter | Net weight |
|---|---|---|---|---|---|---|
| 8 AWG | 4 | 133 | 4 × 12 AWG | 1.520 mm (0.060 in) | 26.540 mm (1.045 in) | 945 kg/km (635 lb/MFT) |
| 6 AWG | 4 | 259 | 4 × 12 AWG | 1.520 mm (0.060 in) | 28.580 mm (1.125 in) | 1,339 kg/km (900 lb/MFT) |
| 4 AWG | 4 | 259 | 4 × 10 AWG | 1.520 mm (0.060 in) | 30.730 mm (1.210 in) | 1,905 kg/km (1,280 lb/MFT) |
| 2 AWG | 4 | 259 | 4 × 9 AWG | 2.030 mm (0.080 in) | 36.450 mm (1.435 in) | 2,976 kg/km (2,000 lb/MFT) |
| 1/0 AWG | 4 | 259 | 4 × 7 AWG | 2.030 mm (0.080 in) | 43.69 mm (1.720 in) | 4,672 kg/km (3,140 lb/MFT) |
| 2/0 AWG | 4 | 259 | 4 × 6 AWG | 2.030 mm (0.080 in) | 47.240 mm (1.860 in) | 5,625 kg/km (3,780 lb/MFT) |
| 3/0 AWG | 4 | 259 | 4 × 5 AWG | 2.030 mm (0.080 in) | 52.710 mm (2.075 in) | 6,696 kg/km (4,500 lb/MFT) |
| 4/0 AWG | 4 | 259 | 4 × 5 AWG | 2.030 mm (0.080 in) | 54.740 mm (2.155 in) | 8,214 kg/km (5,520 lb/MFT) |
| 500 МСМ | 4 | 1,235 | 4 × 1/0 AWG | 2.413 mm (0.095 in) | 86.400 mm (3.400 in) | 16,008 kg/km (10,758 lb/MFT) |
Additional supplied size references
| Размер проводника | Скрутка | Ground conductor | Толщина изоляции | Внешний диаметр | Material weight |
|---|---|---|---|---|---|
| 250 ксмил | 427 | 4 × 3 AWG | 0.095 in | 2.77 in | 7,143 lb/M |
| 350 ксм | 888 | 4 × 2 AWG | 0.095 in | 3.10 in | 6,567 lb/M |
For shared sizes, source tables supplied for this page show differing nominal weights and dimensions. Confirm the approved manufacturing drawing and final quotation data before ordering.
Standards and supplied approval references
The supplied Type G Cable information lists the following standards and approval/compliance references.
| Стандарты | CSA FT5; ASTM B172 and B33; MSHA P-7K-268101; ICEA S-75-381 / NEMA WC-58; ICEA S-68-516 / NEMA WC-8 |
|---|---|
| Flame-test references | MSHA P-122 MSHA flame-resistance; UL 1581 vertical tray flame test |
| Portable power cable reference | UL 1650 Portable Power Cable |
| Other supplied references | CSA approved; MSHA listed; RoHS compliant |
State the required standard edition, approval scope, test report and documentation requirements in the enquiry.
