Symmetrical 400Hz Power Cable: The Ultimate Anti-Rupture Solution for Aviation

In fast-paced airport operations, ground power units (GPUs) attached to passenger boarding bridges and cable drum retrievers undergo constant dynamic stress. In standard cable designs, the central core absorbs the brunt of this twisting force, often leading to hidden internal ruptures and unexpected power failures. TEBAOFLEX’s symmetrical 400Hz power cables overcome this mechanical flaw through an advanced geometric construction, delivering reliable power for both civil and military aircraft under extreme conditions.

Key Engineering Advantages

• Zero Center-Core Rupture: By utilizing a highly engineered symmetrical layout, we leave the center of the cable empty of vulnerable control or power cores. This distributes torsion stress evenly across the outer diameter, completely eliminating the most common point of failure in retriever applications.
• Glass-Fiber Reinforced Torsion Bearing: To handle the immense pulling forces of motorized drums, the outer jacket is extruded using an advanced Polyurethane (PUR) reinforced with embedded glass fibers. This acts as a robust strain relief, maintaining the cable’s structural integrity over thousands of reeling cycles.

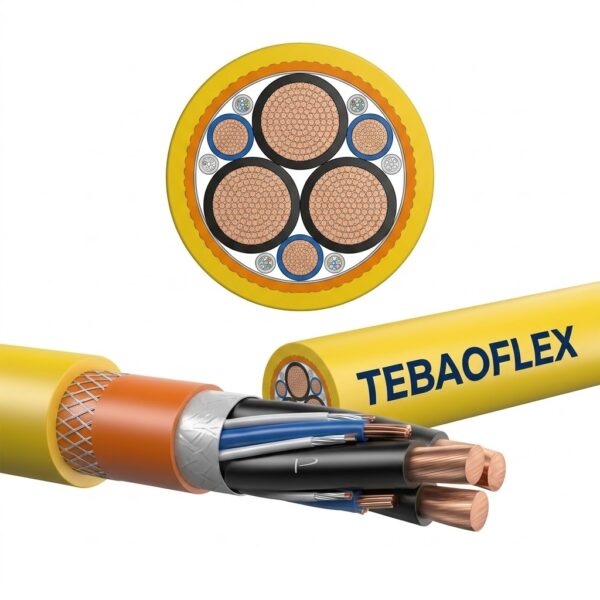

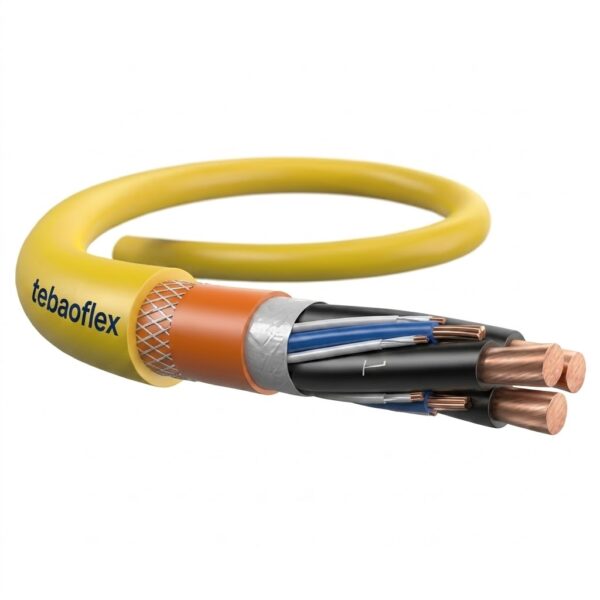

• Dual-Layer Visual Maintenance: Airport aprons are abrasive. The tough Yellow PUR exterior hides a bright Orange abrasion warning layer. If constant dragging wears the outer sheath down to a critical level, the orange layer becomes visible, signaling ground crews to replace the unit before an electrical hazard occurs.
• Direct-to-Socket Flexibility: Despite its mechanical toughness, the internal conductors utilize Class 6 and Class 5 extra-fine copper strands. This flexibility allows ground personnel to plug the connector directly into the aircraft without applying inadmissible stiffness or physical force to the delicate aircraft pins.
• Halogen-Free Safety: Designed for enclosed hangars and critical infrastructure, the cable is completely halogen-free and flame retardant, meeting strict IEC 60754-1 international safety standards for toxicity and corrosivity.

Technical Specifications

Engineered for rigorous EPC infrastructure projects, below are the detailed parameters of our Symmetrical 400Hz Power Cable. To view our other configurations, please explore our full range of aviation ground power cables.

Primary Application Scenarios

With its strain-relief design and rupture-proof core, this specialty industrial cable is exclusively deployed in high-stress mobile applications:

• Cable Drum Retrievers: Seamlessly handling continuous motorized reeling without internal twisting.
• Passenger Boarding Bridges (PBB): Suspended, moving cable routing where torsion stability is critical.
• Aircraft Hangars: Providing reliable, highly flexible GPU power for maintenance, repair, and overhaul (MRO) facilities.

Frequently Asked Questions (Technical & Procurement)

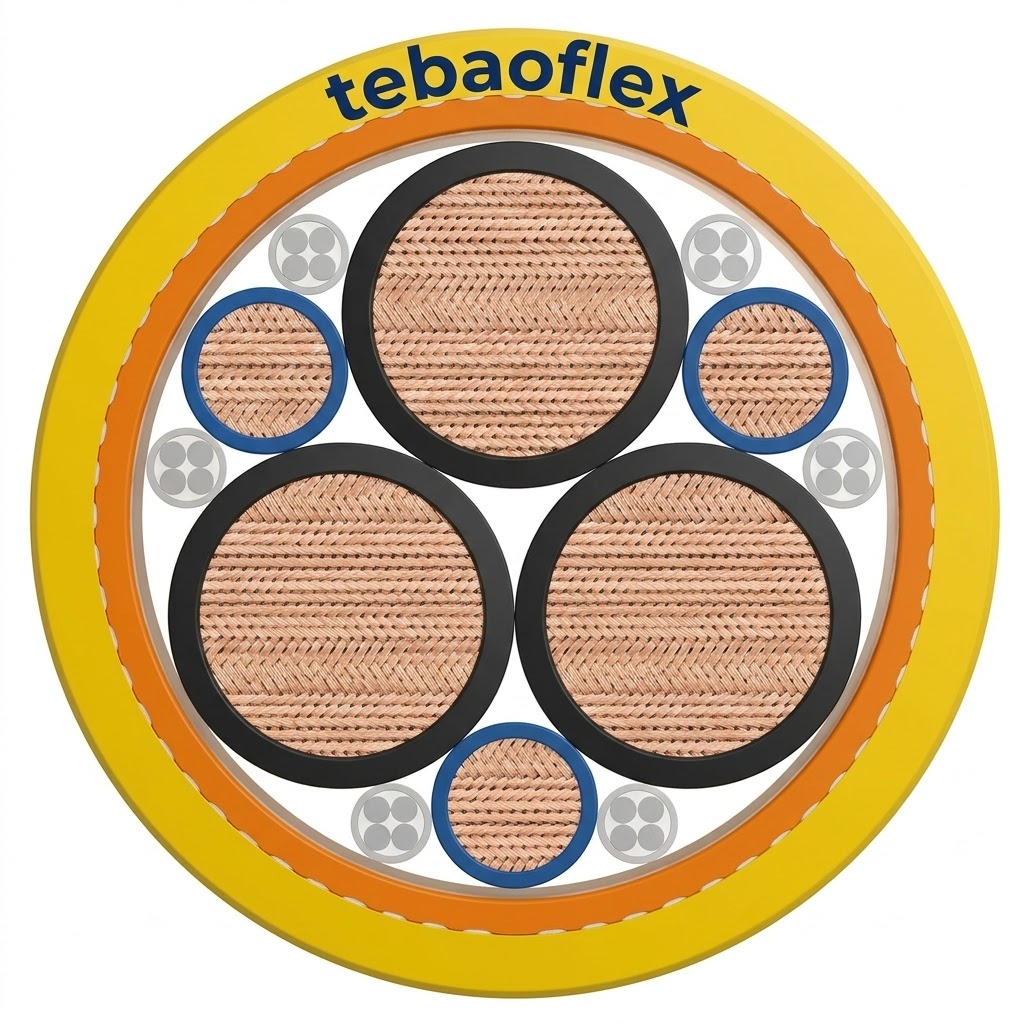

Q1: How does the “symmetrical construction” actually prevent cable failure? A: In standard multi-core cables, twisting and reeling forces are concentrated at the very center of the cable. Over time, the core located in the center snaps due to metal fatigue. Our symmetrical 400Hz power cable arranges the power and control cores in a balanced, circular geometry around an empty center. This ensures all physical stress is distributed evenly, completely preventing center-core rupture.

Q2: Will the glass-fiber reinforcement make the cable too stiff to handle? A: Not at all. The glass fibers are embedded within the Polyurethane (PUR) outer sheath to provide longitudinal strain relief (preventing the cable from stretching). Because we use Class 6 bare fine copper strands for the power conductors and cross-linked EPR insulation, the overall cable remains exceptionally flexible, allowing for easy, problem-free direct connector assembly.

Q3: Is this cable suitable for extreme winter tarmac operations? A: Yes. Airport aprons experience severe climatic shifts. Unlike standard PVC which becomes brittle and cracks in the cold, our cross-linked EPR insulation and specialized PUR sheath allow the cable to operate safely and maintain its flexibility in temperatures as low as -40°C.

Q4: As a direct manufacturer, can TEBAOFLEX supply specific lengths for our PBB bridge projects? A: Absolutely. Because we own our factory and specialized extrusion lines, we cater directly to global EPC contractors and GSE manufacturers. Whether you need the standard 3×50 mm² configuration or the heavier 3×70 mm² setup, we can manufacture custom drum lengths to perfectly fit your specific boarding bridge retrievers, eliminating middleman costs and reducing installation waste.
