MINING & TUNNELING CABLES

Engineering selection notes

Mining & Tunneling Cable Selection

TEBAOFLEX manufactures mining & tunneling cable — we are the factory, not a reseller. Since 2014 we have built low- and medium-voltage mining power, trailing, reeling, TBM and shielded ground-check cable in our own 20,000+ m² plant, with 150,000 km annual capacity, certified to UL, cUL and VDE and supplied to Glencore, Anglo American, BHP, Rio Tinto and Freeport projects across 20+ countries. MOQ from 50 m, free samples, OEM/ODM branding and typical 10–30 day lead times.

Mining, Drilling and Tunnelling Cable Scope

TEBAOFLEX supplies mining, drilling and tunnelling cables for underground, open-pit, quarry and TBM equipment. Compare low- and medium-voltage power, trailing, reeling, shielded ground-check and flexible rubber cable by movement duty, voltage, grounding and environment before reviewing price or supplier options.

Buy mining drilling and tunnelling cable by duty, not voltage alone. A specification may call it mining cable for drilling and tunnelling, mining & drilling cable, mining tunnelling cable, tunnelling cable for mining or simply tunneling cable. Fixed feeder, dragged trailing and powered-reel routes have different bend, tension, torsion, abrasion and grounding limits; send the equipment and route data for review.

01

Mining and Tunneling Cable Families

Mining Cable Selection by Movement Duty
Mining cable family selection by project movement duty
Project requirementShortlistConfirm before ordering

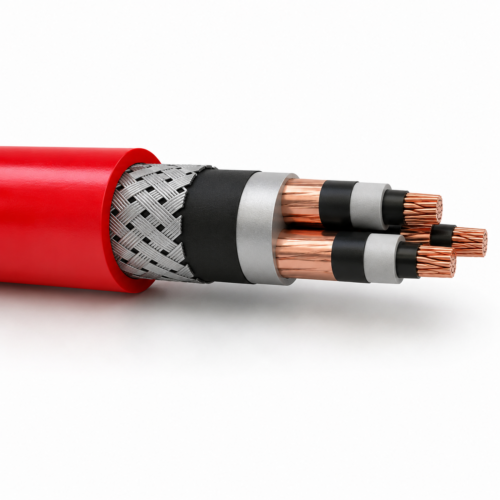

Fixed tunnel feederScreened or armoured MV cableInstallation method, earthing, bend limits, terminations and approved standard
Portable power without ground-checkType W or applicable flexible mining cableVoltage, conductor functions, movement path, abrasion and local code

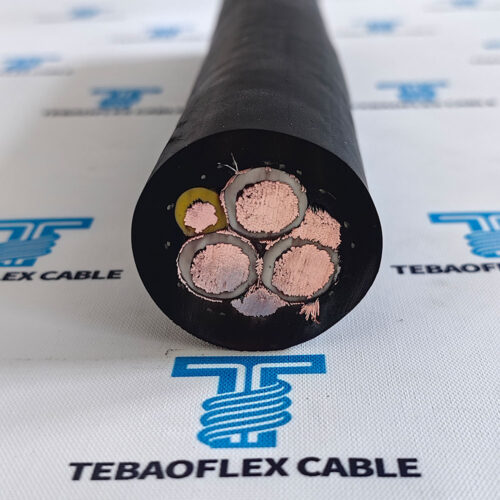

Portable power with ground-checkType G-GC or SHD-GC familyGrounding, ground-check circuit, shield, voltage class and protection system
Powered drum or LHDMining reeling cableDrum diameter, layers, travel, speed, pull, reverse bend and operating cycles

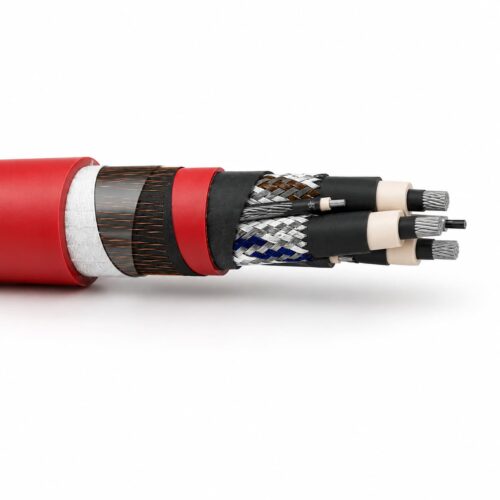

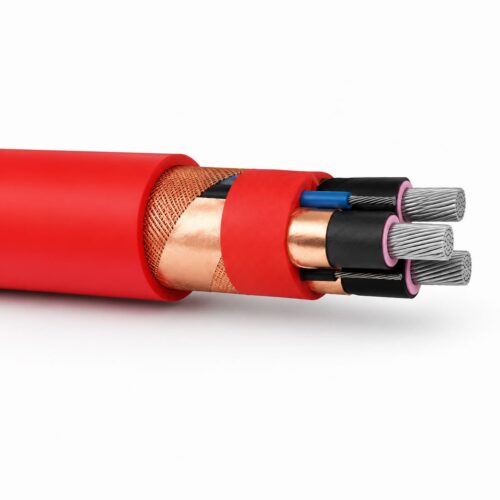

TBM or tunnel boring machineMV TBM reeling cableMachine zone, reel geometry, slurry/water exposure, vibration and monitoring cores

Check the governing source and current status

WorkSafe WA guidance distinguishes trailing and reeling duties; the official NEMA/ICEA mining-cable scope covers its own standard family; and the BSI record for BS 6708 shows its current withdrawn status.

These references define their own scope; they do not prove that a proposed cable is approved or suitable for a particular mine. Verify the required edition, offered construction, marking, certificates and jurisdiction before ordering.

Price Factors and Manufacturer Review

What Determines Mining and Tunneling Cable Price?

Mining drilling and tunnelling cable price depends on more than conductor metal. The quotation is affected by voltage class, copper cross-section, core and pilot arrangement, screen or armour, jacket material, reinforcement, minimum order length, drum packing, test documents, certification scope, delivery destination and the mechanical duty. Reeling and trailing cable often require a higher mechanical specification than a fixed cable with the same conductor size.

For an apples-to-apples comparison, ask suppliers to state the published construction, voltage, conductor size, grounding or ground-check arrangement, minimum bending radius, permitted tensile load, environmental rating, test basis and documentation included. A low price without the same duty and document scope is not a like-for-like replacement.

An (N)SHÖU-O price also depends on conductor size, route duty and order length. Confirm whether the required construction is the -O version without a green/yellow protective conductor or the -J version with one before requesting a quotation.

Mining Cable Supplier and Manufacturer Support

As a mining drilling and tunnelling cable supplier, TEBAOFLEX supports mine operators, drilling contractors, TBM teams, OEMs, distributors and engineering buyers with product selection, replacement identification and project-based manufacturing review. Depending on the specification and quantity, the construction can be reviewed for conductor size, voltage, pilot or monitoring cores, screen, grounding, jacket material, anti-torsion reinforcement, marking, drum length and test documentation.

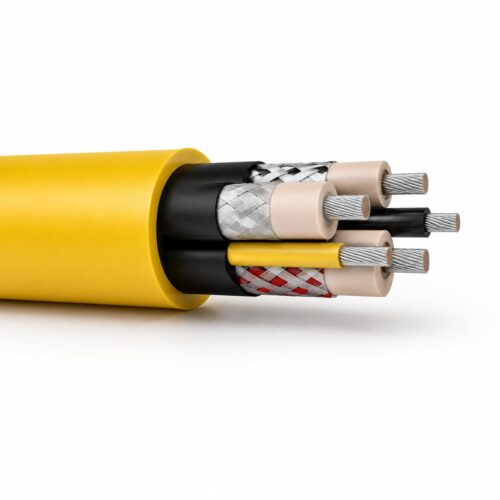

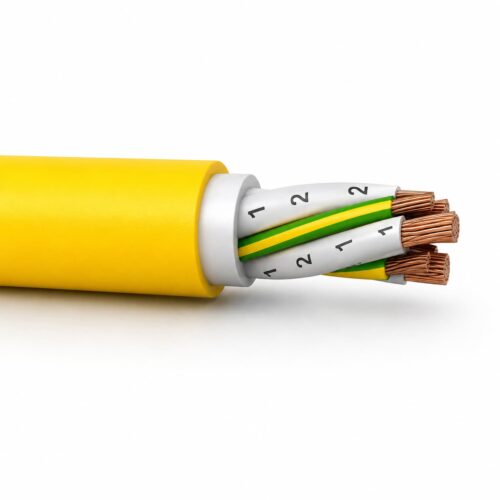

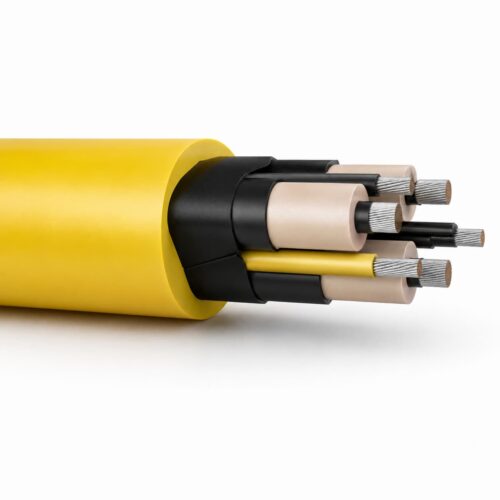

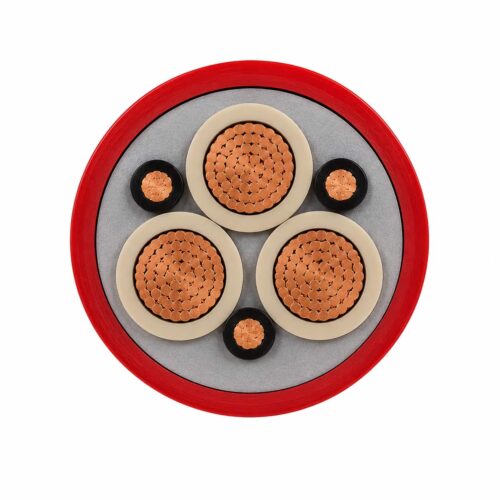

For North American projects, compare SHD-GC cable, Type G-GC and Type W by the complete electrical and mechanical requirement. For European or international projects, provide the requested standard edition and approval scope for (N)SHOU, (N)TSCGEWOU, (N)TMCETMPU and related cable families. Final suitability depends on the equipment, route, local rules and approved project specification.

Information Required for a Mining Cable RFQ
  • Existing cable marking, model or a clear product photograph.
  • Rated voltage, conductor size, number of power, earth, pilot and control cores.
  • Machine type, manufacturer/model, route length and operating cycle.
  • Fixed, trailing, suspended, basket, reeling or TBM movement duty.
  • Drum diameter, winding layers, speed, pull, guide arrangement and minimum bend radius for reeling.
  • Water, mud, oil, drilling fluid, abrasion, impact, UV and temperature exposure.
  • Required standard, certificate/test report scope, quantity, packing and delivery destination.

Send your mining or tunnelling cable specification for RFQ and include the route drawing or equipment manual when available. For a mining drilling cable for sale or replacement enquiry, provide the existing marking and the complete electrical and movement duty instead of relying on the model name alone. For application guidance, continue to the Mining and Tunneling Cable Solutions page.

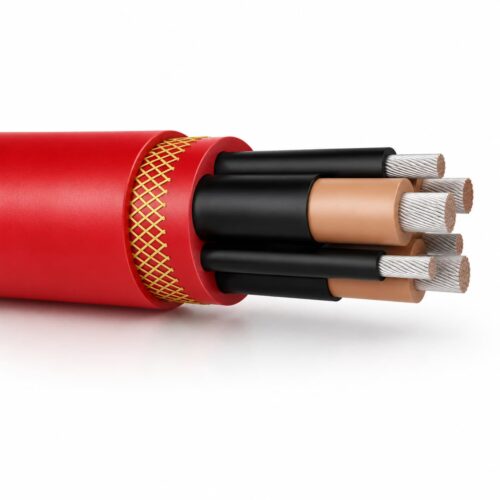

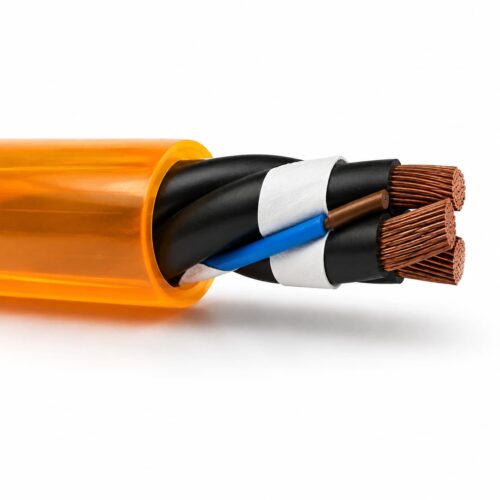

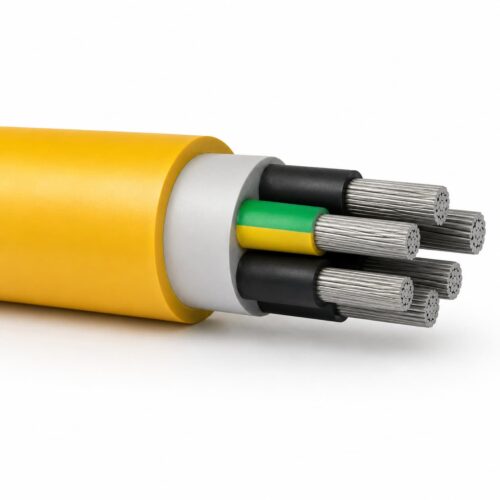

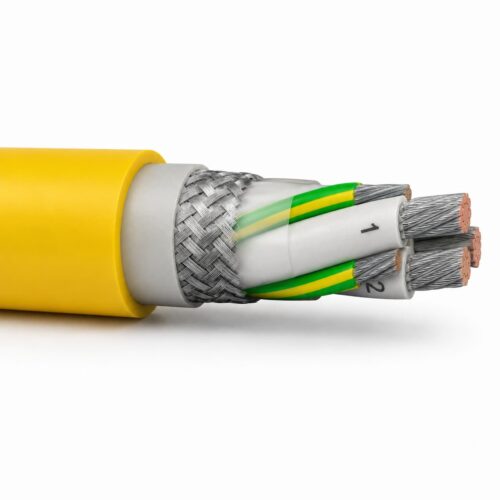

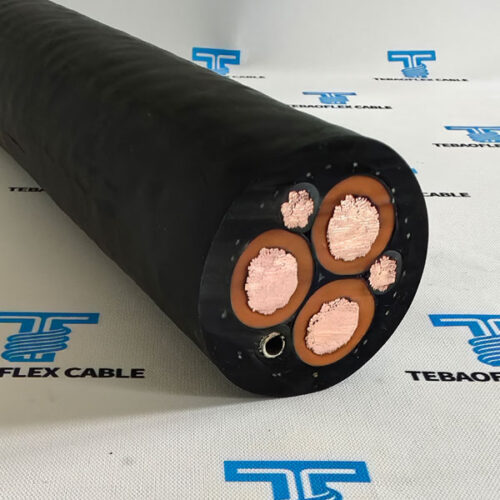

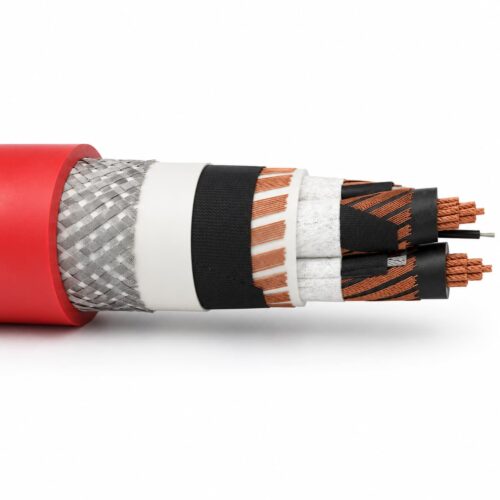

Additional Mining Cable Models

These model pages extend the mining and tunnelling range beyond the first product listing. Match the model to the equipment, voltage, movement duty, grounding arrangement and route before requesting a quotation.

Ready for engineering review?Send the equipment, route and electrical data together.
