Power Cables
For drilling skids, pumps, compressors, refinery distribution and offshore package power routes. Review current, voltage drop, sheath exposure and mechanical protection.
Type P Power 1C
Oil and Gas Cables
Petroleum / Drilling / Refinery Cable Selection
Oil & Gas Resistant Cable Selection for Power, Signal and VFD Circuits
TEBAOFLEX oil and gas resistant cables are selected for petroleum facilities, drilling packages, refinery units, offshore modules and fuel-exposed industrial routes where ordinary cable jackets can fail from oil, mud, vibration, abrasion, fire risk or chemical exposure.
Control & Signal Cables
For control panels, monitoring loops, IO systems and instrumentation routes where stable signals and rugged jacket construction are required.
Type P Control CableSolid Pair / Triad Cables
For buyers searching solid pair cables for gas and oil, pair or triad construction should be matched to instrumentation, shielding and termination requirements.
Type P Signal OSFire-Resistant Options
Refinery, petrochemical and offshore projects often require flame, smoke, halogen or fire-performance review before cable approval.
Request Fire Rating ReviewPetroleum & Oilfield Duty
Petroleum cable routes can face fuel, diesel, crude oil, drilling fluids, UV, salt air, vibration and temperature cycling in the same installation.
Marine & Offshore CablesType P / VFD Cables
For VFD motor supply, confirm insulation stress, shielding, grounding and EMC needs instead of replacing the drive cable by name only.
Type P VFD CableMatch the Search Need to the Right Oil & Gas Cable Family
| Search Need | Recommended Cable Family | Key Checks | Related Products |
|---|---|---|---|
| Oil and gas resistant power cables | Type P power cable, low-voltage or 2000V power circuits | Voltage, current, conductor size, route length, oil/mud exposure, armor | 5C Type P Power / 1C Type P Power |
| Control and signal cable for oilfield systems | Type P control, signal IO or signal OS cable | AWG, conductor count, shield/armor, panel route, instrumentation duty | Signal IO Armored / Signal IO Unarmored |
| Solid pair cables for gas and oil | Pair, triad or instrumentation-style signal cable | Pair/triad count, screen, color code, termination, petroleum exposure | Type P Signal OS |
| Petroleum cable for drilling and refinery duty | Oil-resistant Type P, VFD, control or power cable | Fuel/oil contact, drilling mud, vibration, salt air, fire requirement | Type P VFD / Mining Cable Duty |
Published Type P Cable Range for Oil & Gas Projects
Use these published product parameters to shortlist a construction, then confirm the complete datasheet and project approval requirements before ordering.
| Cable Type | Published Voltage | Published Size Range | Construction |
|---|---|---|---|
| Type P Power 1C | 600V / 0.6/1kV and 2000V | 18 AWG to 1111 MCM | Single conductor, unarmored |
| Type P Power 5C | 600V or 0.6/1kV | 8 AWG to 4/0 AWG | Five conductor, unarmored |
| Type P Control | 600V or 0.6/1kV | 18 AWG multi-conductor options | Multi-conductor, armored and sheathed |
| Type P Signal IO Armored | 600V | 16 and 14 AWG | Individually and overall shielded pairs, armored and sheathed |
| Type P Signal IO Unarmored | 600V | 20 and 18 AWG | Individually and overall shielded pairs, unarmored |
| Type P Signal OS | 600V | 20, 18 and 16 AWG | Overall shielded multi-conductor, unarmored |
| Type P VFD | 2000V | 1/0 AWG to 777 MCM | Shielded three conductor, unarmored |
Oil & Gas Cable Standards, Construction and Rating Checks
Reference Standards
The listed Type P product pages reference IEEE 1580, IEEE 45, UL 1309, CSA marine cable references and IEC 60332-3-22 Category A where applicable. Confirm the required edition and certification scope for the project.
Materials & Mechanical Protection
Published constructions use soft-annealed stranded tinned copper, XLPO insulation and flame-retardant thermosetting CPE jackets, with armored and unarmored options for different routes.
Environmental Approval
Published product data includes 125°C operating temperature plus oil, moisture, sunlight and flame-retardant performance. Final approval must match the selected cable, installation method and exposure.
0.6/1kV RFOU Cable for Marine & Offshore NEK 606 Projects
5G 35mm2 RFOU Cable | NEK 606 Power & Instrumentation
NEK 606 BFOU Cable | P5/P12 Power & Instrumentation
NEK 606 P108 UX 0.6/1kV Offshore Earth Cable
Type P Control Cable 600V / 0.6/1kV 18 AWG Armored and Sheathed

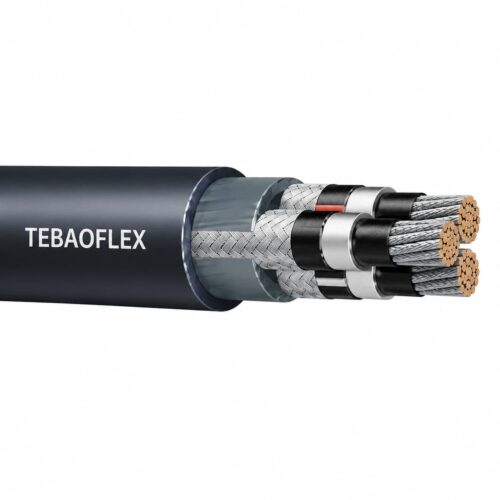

Type P Medium Voltage Cable 5kV-15kV Armored and Sheathed
Type P Power Cable 600V / 0.6/1kV 5C Unarmored

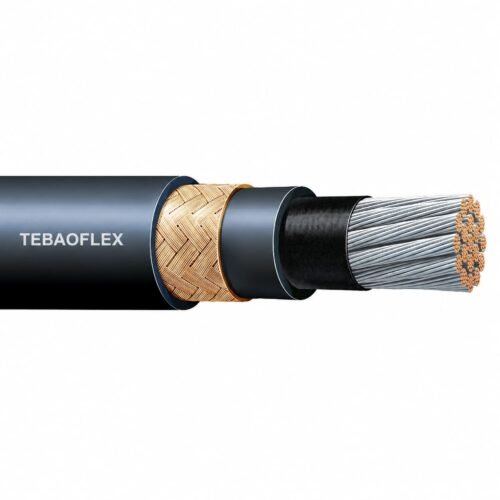

Type P Power Cable 600V / 0.6/1kV and 2000V 1C Unarmored
Type P Signal I/O Cable 600V 16 and 14 AWG Armored and Sheathed
Type P Signal I/O Cable 600V 20 and 18 AWG Unarmored
Type P Signal OS Cable 600V 20, 18 and 16 AWG Unarmored
Type P VFD Cable 2000V 1/0 AWG to 777 MCM Unarmored
TEBAOFLEX supplies cable constructions for drilling rigs, refinery and petrochemical plants, offshore packages and other oil-and-gas routes. Start with circuit duty: Type P power cables for feeders and package equipment, Type P control and signal cables for panels and instrumentation, and Type P VFD cables for drive-fed motors. Pair and triad instrumentation and offshore options require a construction and documentation review at project level.
Before ordering, send the system voltage, conductor size, cores, pairs or triads, cable length and quantity, fixed, mobile or reeling duty, oil or mud exposure, shielding or armor, fire, smoke or halogen requirements, applicable standard, installation area and delivery destination. A cable marking, drawing or clear photo helps us check a replacement or custom construction.
Request a technical oil and gas cable quotation or review the Oil, Gas and Petrochemical Cable Solutions. For a construction-level comparison, read the Oil and Gas Cable Selection Guide.
