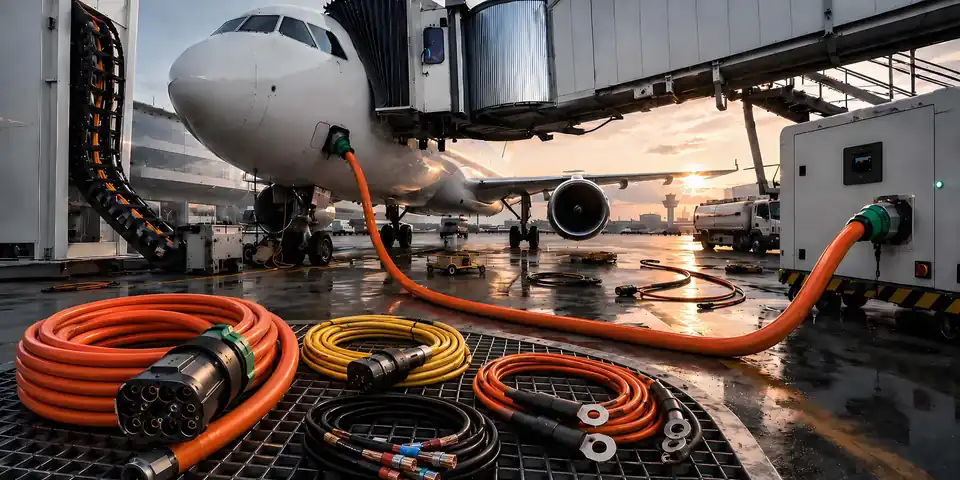

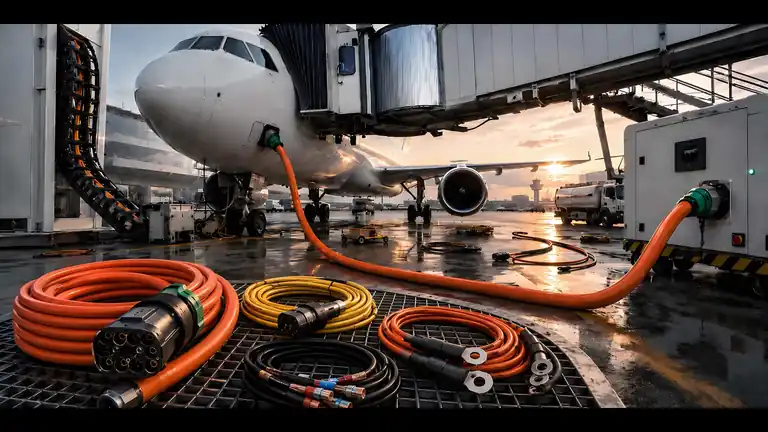

400 Hz aircraft ground power cables connected on an airport apron

Airport Ground Power Cables

Aircraft GPU / 400Hz / 28VDC / GSE Cable Selection

Airport Ground Power Cable Selection for Aircraft GPU, 400Hz and 28VDC GSE

TEBAOFLEX supports aircraft GPU cables, ground power cables, airport ground support cables, 400Hz and 28VDC GSE cable enquiries for apron service, passenger boarding bridge, PCA/FEGP, cable assemblies, aircraft connector, cable retriever and reel routes where voltage drop, jacket wear and plug reliability must be checked before quotation.

Send Airport Cable RFQ Compare 400Hz / 28VDC / Assemblies

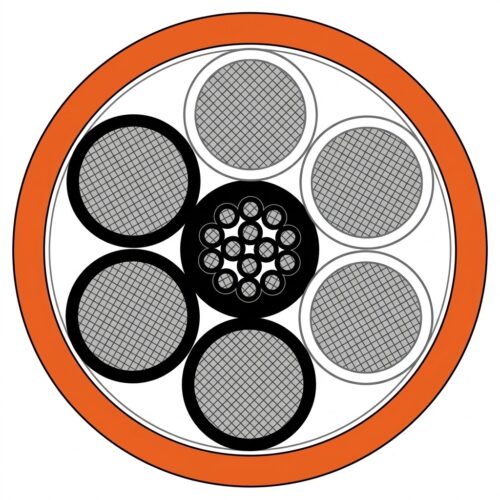

400Hz Aircraft GPU Cable

For aircraft GPU, apron power supply and passenger bridge systems where 400Hz transmission, flexibility and voltage drop are critical.

400Hz Aircraft Ground Power Cable

28VDC Ground Power Cable

For 28VDC aircraft ground power units, mobile GPU carts and GSE routes requiring low-voltage stability and rugged handling.

28 VDC Ground Power Cable

400 Hz Cable Assemblies

For 400 Hz cable assemblies where connector type, length, molded head, field replaceable plug and service duty need review.

400Hz GPU Cable Assembly

Banded / Single Jacket Cable

For banded 400 Hz airport cable, single jacket GPU cable and custom assembly projects where abrasion and repair strategy matter.

BETAjet 400 FRNC-quadroflex

Cable Retriever / Reel Cable

For cable retriever, drum, reel and bridge-mounted routes where bend radius, heating while wound and control cores must be checked.

400Hz Drum Retriever Cable

PCA / Bridge / FEGP Cable

For fixed electrical ground power, PCA bridge systems and static feeder routes where LSOH, installation path and current rating are specified.

400Hz Feeder Cable LSOH

Aircraft Grounding Cable

For aircraft grounding, bonding and refueling support where high-visibility sheath, flexibility and abrasion resistance are needed.

Aircraft Grounding Cable

Feeder / Static Installation Cable

For symmetrical, 7-core, feeder and static installation cable families used around airport ground power supply infrastructure.

Symmetrical 400Hz Power Cable

Match Buyer Search Intent to the Right Airport Ground Power Cable

Buyer Search IntentRecommended Cable FamilyKey ChecksRelated Product
aircraft gpu cables400Hz aircraft GPU cableCurrent, voltage drop, length, connector type, control cores and ramp handling duty400Hz Aircraft GPU Cable
ground power cables400Hz + 28VDC category comparisonAC/DC type, aircraft interface, conductor size, jacket and installation routeAirport Ground Power Cables
airport ground support cables28VDC / 400Hz GSE cableGSE equipment, GPU cart, bridge system, abrasion, fuel exposure and weather duty28VDC GSE Cable / 400Hz GPU Cable
400 hz cable assembliesAircraft cable assembly with connector and length checksAssembly length, aircraft connector, molded plug, field replacement and packing400Hz Cable Assembly
airport 400 hertz cable400Hz GPU cable family115/200V 400Hz duty, conductor size, cable geometry, flexibility and voltage drop7-Core 400Hz Cable
banded 400 hz airport cableBanded / single jacket assemblyBanded or single jacket design, repair method, plug type and abrasion protectionBanded / Quadroflex Cable
400hz ground power supplyCable for GPU / frequency converter systemsConfirm this is a cable enquiry, not a power supply unit; check current and connector400Hz Ground Power Cable
aircraft grounding cableGrounding / refueling cableBonding route, visibility, flexibility, sheath material and aircraft service areaAircraft Grounding Cable

Airport Ground Power Cable RFQ Parameters

  • AC/DC type: 400Hz AC, 28VDC or 270VDC if required
  • Voltage, current, load and voltage drop requirement
  • Cable length, AWG, mm2 or kcmil conductor size
  • Configuration: single jacket, banded, 7-core, symmetrical, feeder or retriever
  • Connector/plug: aircraft connector, P400/P28 style, molded or field replaceable
  • Installation area: GPU cart, passenger boarding bridge, PCA/FEGP, apron, hangar, reel or drum
  • Jacket: PUR, neoprene, LSOH, fuel, oil, abrasion and weather resistance
  • Control cores, sense wires, shielding, quantity, packing, delivery country and documents
TripleFlex 400Hz Cable Aviation GPU Cable Industrial Cable Families Request Quote

Airport ground power cable RFQ note: send AC/DC type, voltage, current, cable length, conductor size, connector or plug requirement, installation area, jacket material, control cores, shielding, quantity, packing and document requirements.

Specify the Aircraft GPU Cable as a Complete Ground-Support Power Route

An airport ground power cable must match both the electrical load and the handling system. For mobile GPUs, passenger boarding bridges, FEGP/PCA areas, pits and retrievers, confirm frequency, voltage, continuous current, cable length, allowable voltage drop, conductor layout, control cores, plug or connector interface and how the cable is deployed and stored.

Choose the route before the construction

  • 400Hz aircraft GPU supply: start with the 400Hz aircraft ground power cable family and provide aircraft-side connector, phase arrangement, control-core and length requirements.
  • 28VDC ground support: review the 28 VDC ground power cable route with current, duty cycle and acceptable voltage drop.
  • Bridge, reel or retriever: compare the 400Hz drum retriever cable against drum diameter, travel, acceleration, fleet cycles and reverse-bending exposure.
  • Fixed distribution to the gate: use the 400Hz LSOH feeder cable route only after installation method, fire-performance requirement and terminal limits are confirmed.
  • Refuelling and maintenance bonding: keep protective bonding separate from aircraft power selection and review the aircraft grounding cable for the stated bonding route.

Inputs that control voltage drop and service life

Send AC/DC type, voltage, frequency, current, one-way length, connector or plug specification, reel or retriever geometry, moving or fixed duty, apron chemicals, UV and temperature exposure, jacket requirement, control-core or shielding needs and the required standard or acceptance documents. These inputs allow conductor size, voltage drop and mechanical construction to be reviewed together before quotation.

Planning a multi-gate project? Review the Airport Ground Power Cable solution page, then send the route schedule and quantities for a project-level RFQ.
