Port Crane Cable Selection for Festoon, Reeling and Container Crane Systems

We manufacture port crane cables and festoon cable for port cranes — reeling, festoon, flat travelling, spreader and medium-voltage cables for STS, RTG, RMG, gantry and ship-to-shore container cranes. Every cable is matched to your crane’s movement, voltage, travel speed and bending radius, then checked for torsion, tensile load and sheath wear before we quote.

Send Port Crane Cable RFQ Compare Festoon / Reeling / Flat / MV

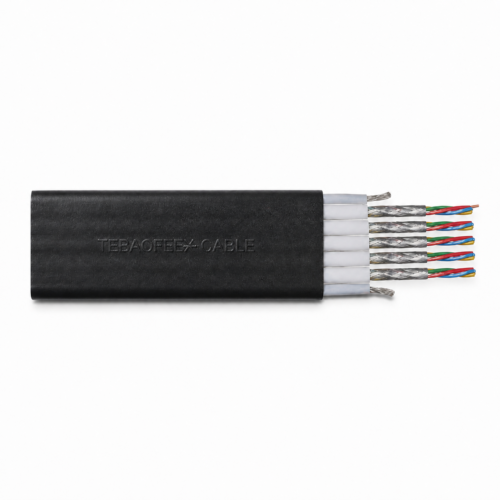

Festoon Cable for Port Crane

For port crane festoon systems where flat or round cable, trolley travel, EMC screening and power/control routes need review.

PUR-C-HF EMC Festoon Cable

Reeling Drum Cable

For cable reels and reeling drums on cranes, hoists and mobile equipment where torsion, layers and drum diameter define cable life.

NSHTOU 0.6/1kV Reeling Cable

Medium Voltage Crane Cable

For medium voltage crane cable routes from 3.6/6kV to 18/30kV where screening, bending and dynamic operation must be specified.

NTMCGCW11Y MV Crane Cable

Flat Crane Travelling Cable

For medium voltage flat cable crane and heavy-duty travelling cable routes used on container cranes and automated crane systems.

HTC-FP2(S) Crane Travelling Cable

Fibre Optic Reeling Cable

For fibre optic reeling cable crane projects where power, data, signalling and high-speed movement are combined in one route.

Medium Voltage Reeling Cable 24FO

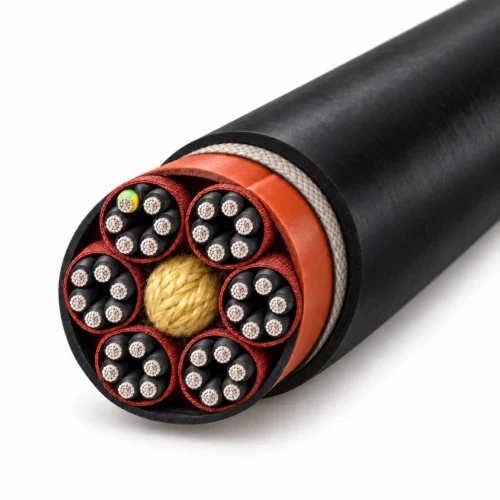

Collector Basket / Spreader Cable

For spreader, vertical hanging and collector basket routes where cable weight, direction, tensile load and wind movement matter.

YSLTOE-J Spreader Cable

RTG / RMG / STS Crane Cable

For RTG, RMG, STS and ship-to-shore crane cable routes where outdoor duty, oil, UV, abrasion and long operating cycles are expected.

Anti-Torsion Reeling Cable

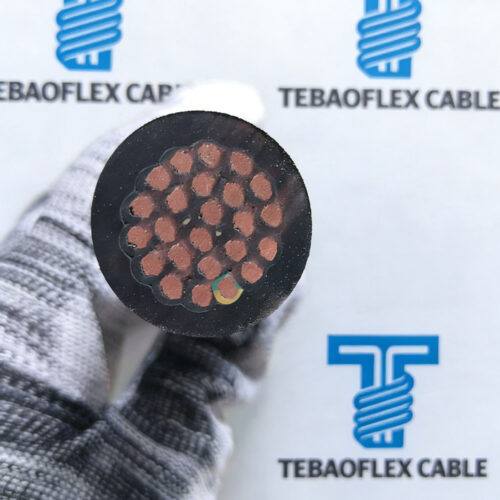

2PNCT / Hoist / Lift Cable

For hoist, lift and festoon systems where flexible rubber cable, repeated movement and compact installation are the main checks.

600V 2PNCT Festoon Cable

Match Your Search Term or Crane Type to the Right Port Crane Cable

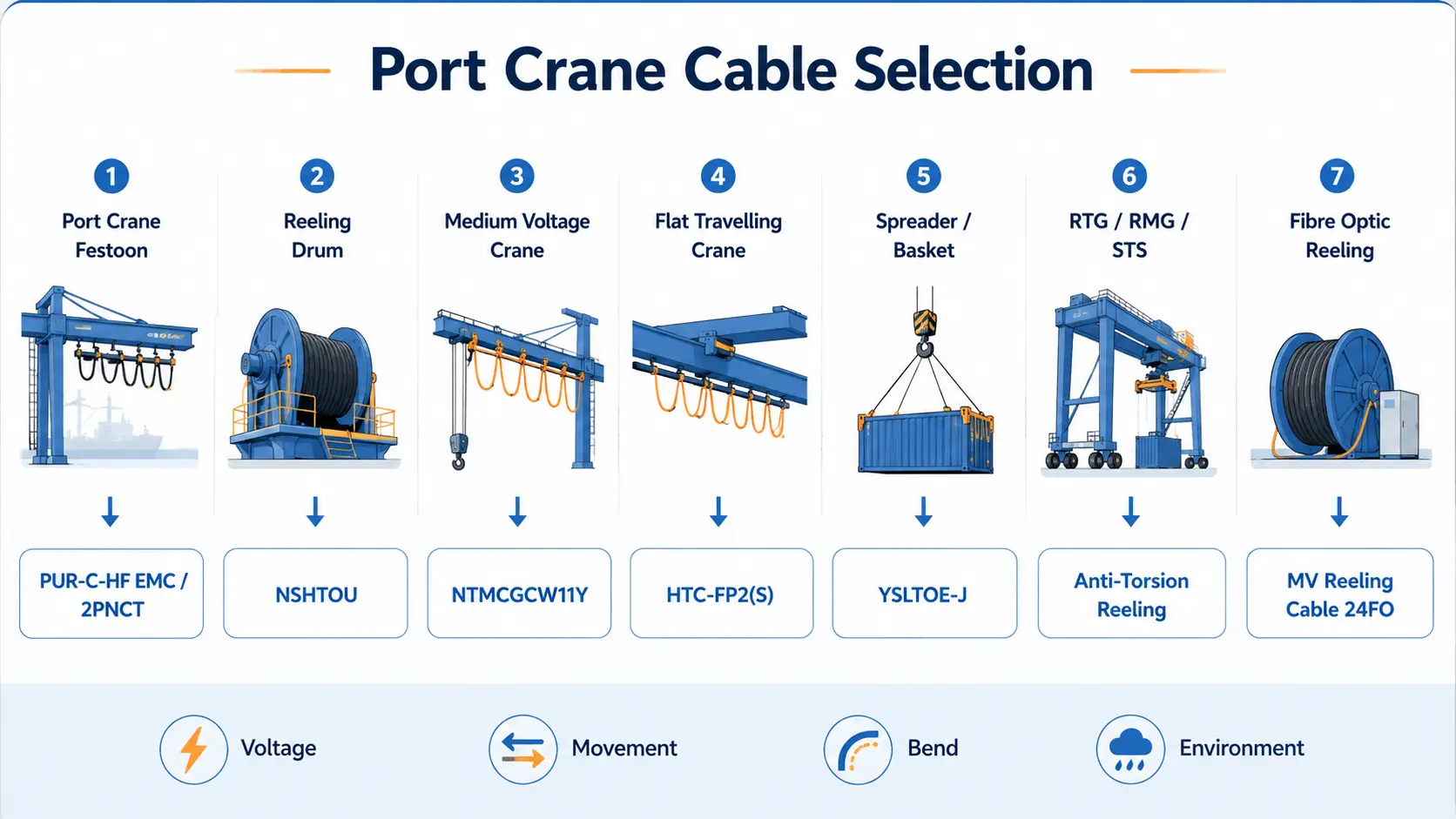

Port crane cable selection chart: festoon, reeling drum, medium voltage, flat travelling, spreader basket, RTG/RMG/STS and fibre optic reeling cable types matched to TEBAOFLEX designations (PUR-C-HF EMC, 2PNCT, NSHTOU, NTMCGCW11Y, HTC-FP2(S), YSLTOE-J, MV reeling 24FO). — Match the crane movement to the cable family — festoon, reeling, flat travelling, spreader and MV/fibre-optic reeling cables for port and container cranes.

Search Term / Crane Type	Recommended Cable Family	Key Checks	Related Product
festoon cable port crane	PUR-C-HF EMC / 2PNCT festoon cable	Flat or round cable, trolley route, EMC screen, oil resistance and bending duty	PUR-C-HF EMC / 2PNCT
automated port crane cable	Reeling or travelling crane cable by movement mode	Automated crane type, travel speed, acceleration, torsion and reel or festoon design	HTC-FP2(S) / Anti-Torsion Reeling
port crane cables	Category comparison and RFQ checklist	STS, RTG, RMG or gantry crane, voltage, movement mode, tensile load and sheath material	Port & Festoon Cables
medium voltage flat cable crane	NTMCGCW11Y / MV flat or reeling cable	Voltage class, screen, flat or round design, bend radius and dynamic installation	NTMCGCW11Y Cable
container crane cable	HTC-FP2(S), STS/RTG/RMG crane routes	Container crane type, travel length, spreader route, abrasion, UV and control cores	HTC-FP2(S) Crane Cable
fibre optic reeling cable crane	Medium voltage reeling cable with FO route	Fibre count, power core size, reeling speed, anti-torsion braid and data route protection	MV Reeling Cable 24FO
medium voltage crane cable	Screened MV crane cable	3.6/6kV to 18/30kV, screen, sheath, bend radius, VDE/HD/IEC document needs	Screened MV Crane Cable
collector basket / spreader cable	YSLTOE-J or basket/spreader cable	Vertical hanging height, tensile load, basket direction, wind movement and cable weight	YSLTOE-J Cable

Port Crane Cable RFQ Parameters

Crane type: STS, RTG, RMG, ASC, gantry, hoist, spreader or trolley
Movement mode: festoon, reeling drum, cable reel, collector basket or travelling cable
Voltage: 0.6/1kV, 3.6/6kV, 6/10kV, 8.7/15kV or 18/30kV
Cores, conductor size, control cores and fibre optic requirement
Cable shape: flat, round, hybrid, screened, anti-torsion or reinforced
Travel speed, acceleration, reel layers, drum diameter and bending radius
Torsion, tensile load, vertical hanging height and collector basket direction
Rubber, PUR, neoprene, oil, UV, abrasion, flame and weather resistance
DIN VDE 0250, HD 620, IEC or project document requirement
Length, quantity, drum/packing, delivery country and documents

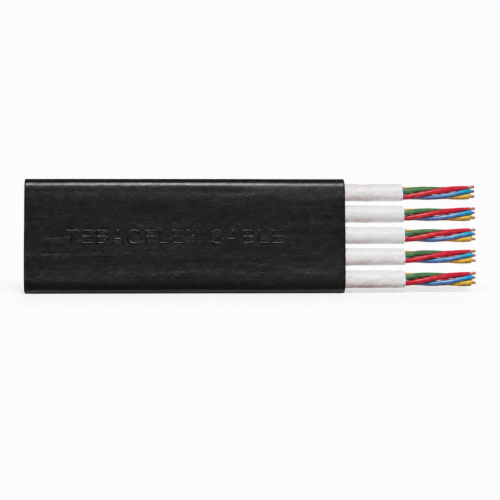

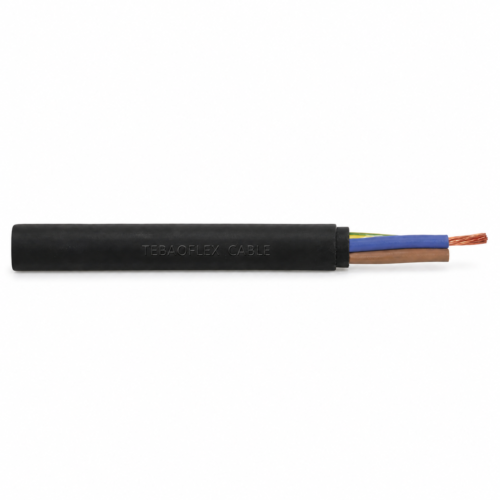

Flat, Round and C-Rail Festoon Cable

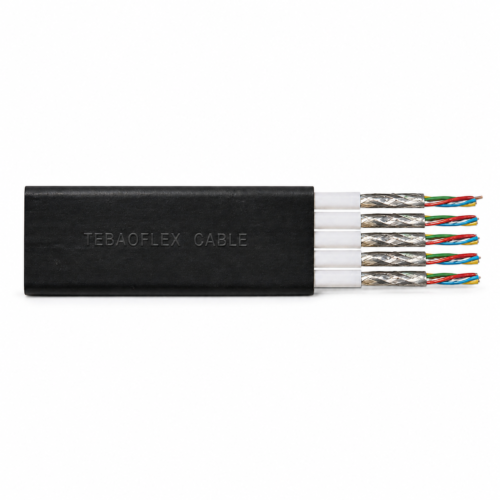

Flat festoon cable is the standard for C-rail and trolley systems — it folds cleanly at each loop and packs more cores per track width; see our NGFLGOEU flat festoon cable 300/500V. Round festoon cable suits trolley collectors that hold a round profile. C-rail is the track hardware, not a cable type — send the profile and we match the flat cable to it.

Validate Fatigue Duty Before Comparing Port Crane Cables

For STS, RTG, RMG and automated container-crane routes, cable life cannot be selected from voltage and conductor size alone. Festoon speed, reeling acceleration, bending radius at the drum and the number of daily cycles decide whether a cable survives its first year. Two cables with identical ratings can differ by years of service life once travel length and cycle count are applied. Before comparing prices, fix the mechanical duty: travel length, travel speed, acceleration, minimum bending radius, drum or trolley geometry, and cycles per day. A cable chosen on rating alone but wrong on fatigue duty is the most common failure we are asked to replace.

Port & Festoon Cable FAQ

How do I choose between a festoon cable and a reeling cable?

It follows the crane's motion. Cranes that pay cable on and off a drum use a reeling cable rated for that drum's bending radius and acceleration; cranes that carry cable on a trolley along a track use a flat festoon cable sized to the C-rail and travel length. Give us the movement mode and we match the family.

What voltage cable does a ship-to-shore (STS) crane use?

Most STS and large RMG cranes run medium-voltage reeling cable, commonly 3.6/6 kV up to 18/30 kV depending on yard supply, with LV control and fibre cores alongside. RTG and gantry festoon runs are usually 0.6/1 kV.

What decides the price of a port crane cable?

Six things move the price: copper cross-section and quantity, sheath material (PUR, rubber or PVC), screening and armour, voltage class, the certification range required, and order quantity. Send the crane route and length and we return an itemised quotation rather than a list price.

Can you supply flat festoon cable to a specific C-rail profile?

Yes. Send the C-rail and trolley profile with the core count and we build the flat festoon cable to fit the collector, including custom core arrangements for combined power, control and fibre.

Do you manufacture to a drawing or sample?

Yes. Send a drawing, sample or the target standard and duty, and we quote a build to it. Custom constructions are our normal work, not an exception.

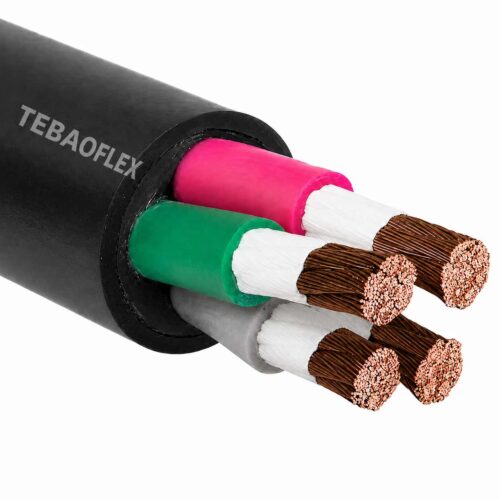

Port & festoon cables for STS, RTG, RMG, gantry, spreader and magnet cranes — reeling, festoon and flat travelling cables built to your crane route. Browse the range below.
