UL 3580 Silicone Motor Lead Wire, 150°C 1000V

UL 3580 wire selection

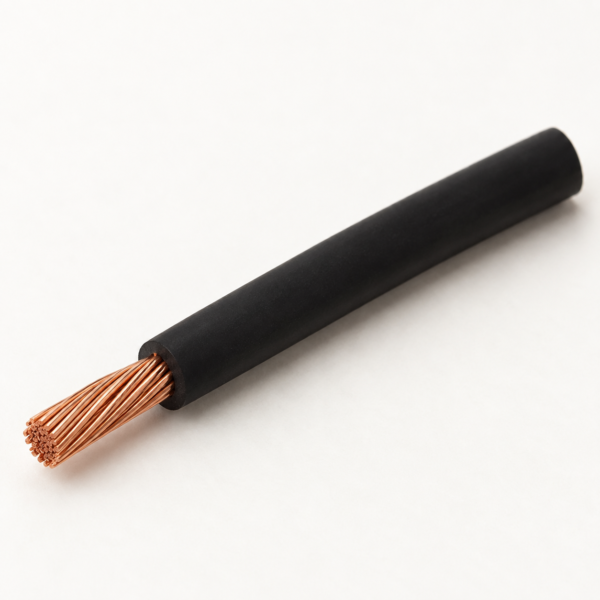

UL 3580 is a UL-certified silicone motor lead wire rated 150°C and 1000 V AC. It is intended for motor leads and internal appliance or electronic equipment wiring where the lead is protected from mechanical abuse.

The detailed size table covers 26–6 AWG. Nominal silicone thickness is 1.20 mm in the 26–10 AWG rows and 1.58 mm in the 8–6 AWG rows. Conductor stranding and finished diameter are listed with each model-size combination to help check motor terminal entries, connection boxes and protective sleeves. A separate insulation schedule explains the larger conductor groups within the style range.

For a motor connection, allow space for the finished wire rather than selecting the entry around the bare conductor size. The listed construction uses a bend radius of 10 times its finished diameter. Check the temperature near the winding exit and at the connection hardware, because the 150°C wire rating must be compatible with the rest of the assembly.

Xem bảng mã sản phẩm và cỡ dây trong tab Thông số kỹ thuật. Khám phá nhóm Dòng cáp chịu nhiệt cao for related constructions. Compare UL 3644 for a different 1 kV wall schedule and the dòng dây nối silicone for lower-voltage options.

Cấu tạo

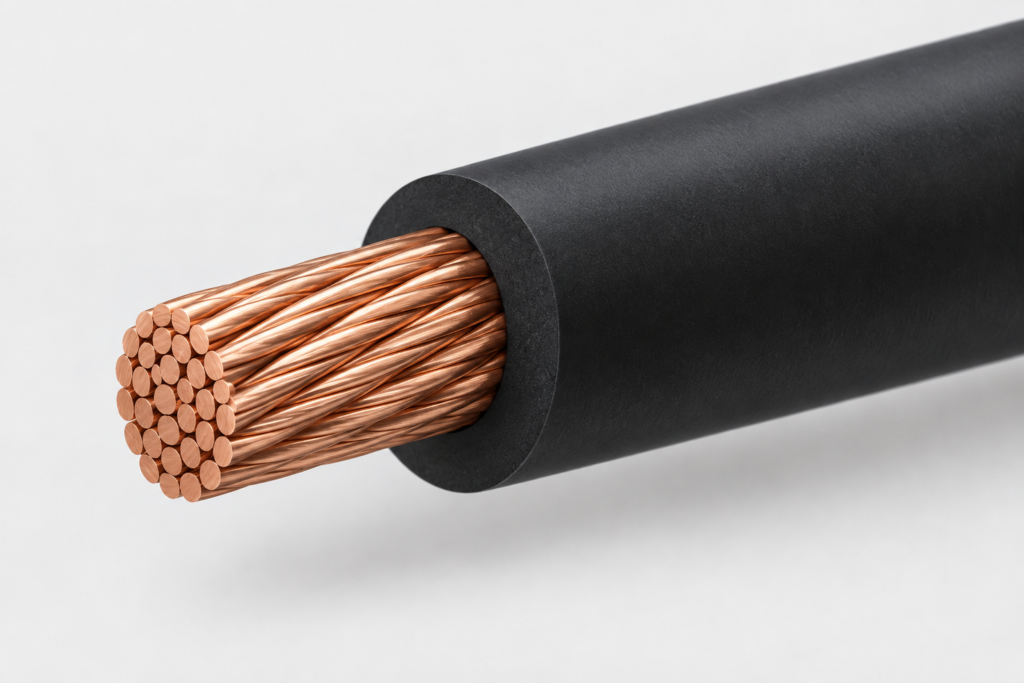

UL 3580 uses the following conductor and insulation system. The diagram illustrates the layer sequence; select the conductor construction and covering shown in the required size specification.

Ứng dụng

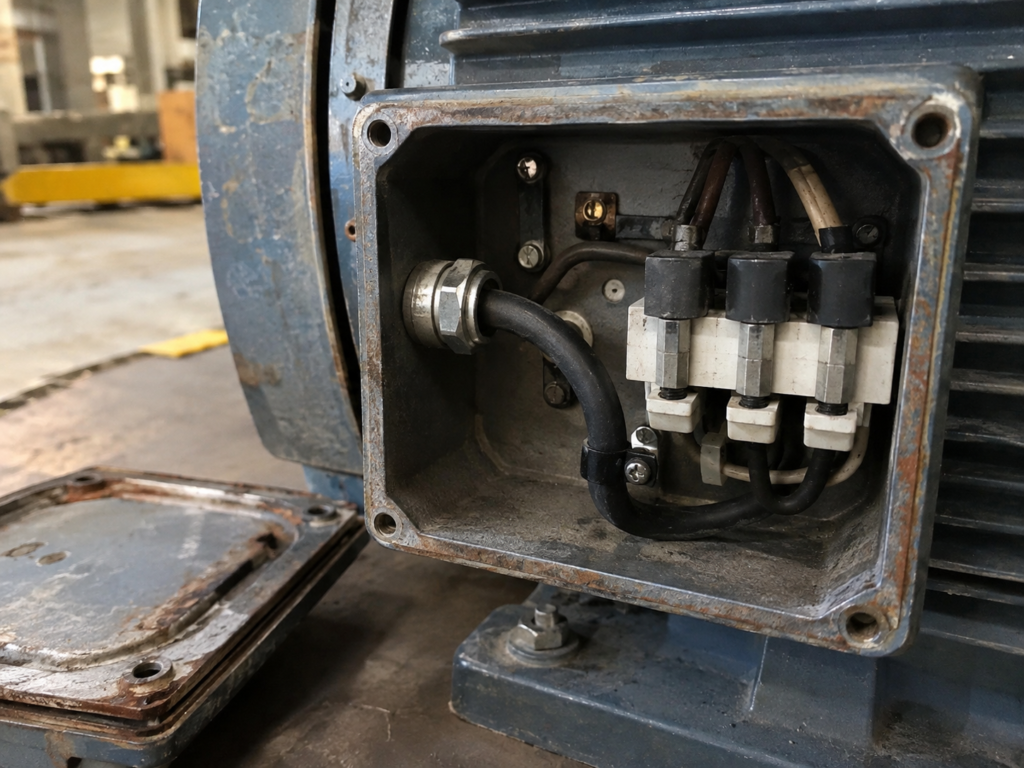

UL 3580 is used as motor lead wire and for internal appliance or electronic equipment wiring. Route and support the lead to prevent rubbing or mechanical damage at the winding exit and terminal enclosure.

UL 3580 replacement selection

Khi hỏi về dây thay thế, hãy gửi ký hiệu trên dây hiện có và bản vẽ đấu nối thiết bị để đối chiếu ruột dẫn, lớp cách điện và bố trí đầu nối.

Thông số kỹ thuật

Nominal dimensions follow the listed conductor constructions. Confirm the agreed finished-diameter drawing for tight-clearance assemblies.

Style construction thicknesses are shown in mils; 1 mil = 0.0254 mm. Nominal finished dimensions are listed separately.

Chọn cấu tạo theo yêu cầu

Specify UL 3580 with AWG or kcmil, stranding, required OD and connection temperature. For a size outside the dimension table, use the insulation schedule as a starting point and request the corresponding drawing.

Tiêu chuẩn

TEBAOFLEX UL 3580 wire is UL-certified appliance wiring material.

Trong quy cách mua hàng, hãy nêu kiểu UL, cỡ ruột dẫn, cấp điện áp và nhiệt độ. Kèm theo yêu cầu nhận dạng sản phẩm và hồ sơ chứng nhận cần thiết.
