3GSLTOE 0.6/1 kV Spreader Basket Cable
RFQ-only 3GSLTOE 0.6/1 kV flexible spreader basket control and feeder cable draft for container cranes, load-lifting equipment and gravity-fed collector basket systems. Project configuration, basket layout, data elements, mechanical duty and final TEBAOFLEX technical values must be confirmed before quotation or publication.
- Model: 3GSLTOE
- Product type: 0.6/1 kV flexible spreader basket control and feeder cable
- Rated voltage: 0.6/1 kV; 600/1000 V
- Application: Spreader basket feeder and control cable for crane and load-lifting equipment
- Outer sheath: Special PUR, black
- Insulation: Special EPR compound based on 3GI3
- Conductor: Bare electrolytic copper, extremely fine stranded, class FS
- Temperature range: Fixed: -50 to +80 °C; fully flexible: -40 to +80 °C
For an accurate quotation, provide the required conductor size and core configuration, cable length and quantity, equipment, basket or routing geometry, movement duty, operating environment and required documentation.
3Gsltoe Spreader Basket Cable for Spreader basket cable for container cranes and load-lifting equipment
3GSLTOE 0.6/1 kV Spreader Basket Cable is an RFQ-only TEBAOFLEX cable draft for flexible feeder and control service in spreader basket systems, container cranes and load-lifting equipment. It is intended for projects where the cable operates in a gravity-fed collector basket and must be reviewed for high mechanical stress, torsional duty, cold outdoor operation and optional signal or data elements.
This page is prepared for buyer selection and quotation scoping. Final TEBAOFLEX construction, dimensions, electrical values, installation instructions and compliance documents must be confirmed project by project. The draft design basis includes 0.6/1 kV rated-voltage requirements, flexible operation in crane basket systems, weather-resistance considerations for outdoor and indoor use, and mechanical support features for vertical suspension applications. Project teams should provide the complete crane operating profile so TEBAOFLEX can check the cable design against the actual collector basket and hoist conditions.
It is intended for feeder and control cable duties on load-lifting equipment, spreader systems and gravity-fed collector basket operation, including high mechanical stress and cold-environment outdoor operation. Confirm the final duty cycle, basket system and electrical design with TEBAOFLEX before ordering.
Construction

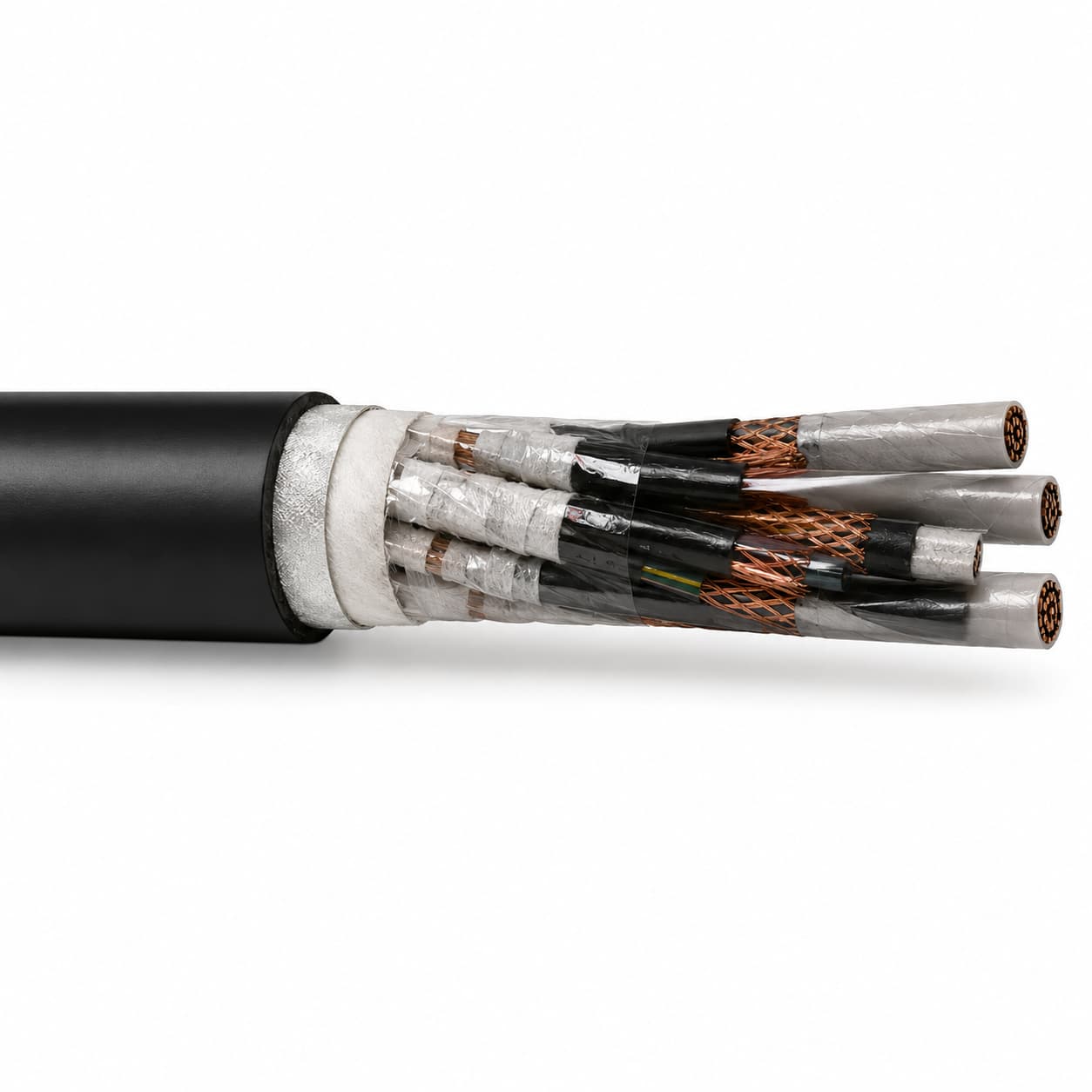

This unpublished draft describes the 3GSLTOE spreader basket cable as a flexible control and feeder cable with bundled cores laid around a central support element, EPR core insulation and a black PUR outer sheath. The construction below is evidence-led and remains pending TEBAOFLEX technical review.
| Cable element | Draft construction detail |
|---|---|
| Conductor | Bare electrolytic copper, extremely fine stranded, class FS. |
| Core insulation | Special EPR insulation compound based on 3GI3 according to DIN VDE 0207, intended for ambient temperatures down to -40 °C. |
| Core identification | Light-coloured numbered core insulation with black numbering; protective earth conductor green/yellow. |
| Individual screen | Tinned copper wire braid screen where specified; transfer impedance optimized at 30 MHz. Referenced braid coverage is at least 60% for shielded cores and at least 80% for twisted pairs. |
| Core arrangement | Cores laid up into bundles; bundles laid up around a central support element. |
| Support element | Central support element using aramid threads woven around lead ball cords. Larger designs may use a round rubber filler with aramid threads. |
| Data elements | Optional special bus elements, AS-i Bus, Profibus or fibre optic elements may be integrated subject to project design confirmation. |
| Outer sheath | Special PUR outer sheath, black. |
Applications

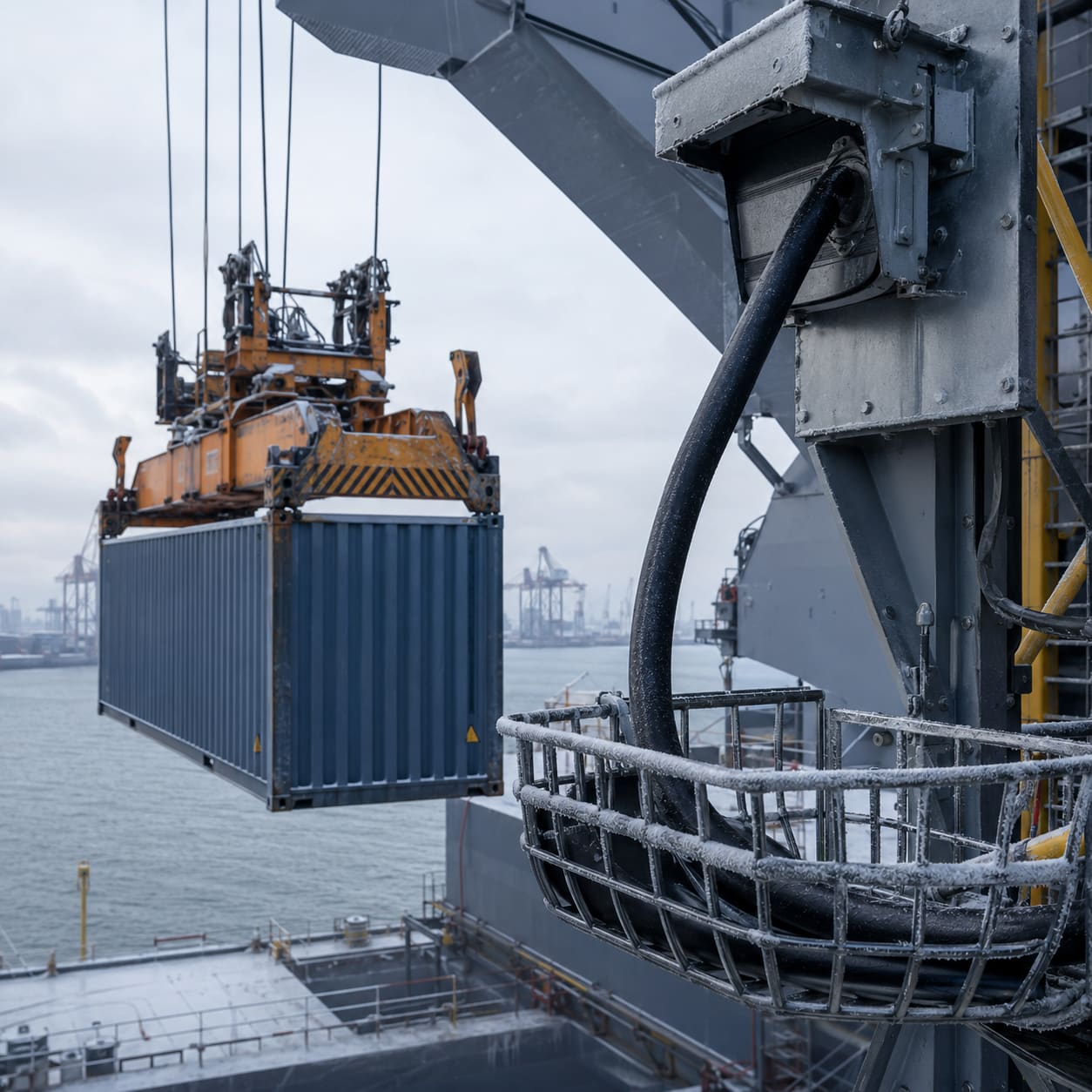

3GSLTOE spreader basket cable is a flexible 0.6/1 kV feeder and control cable draft-specified for load-lifting equipment, spreader systems and gravity-fed collector basket operation. It is intended for crane and port environments where the cable is repeatedly paid into and out of a collector basket under high mechanical stress.
- Container crane spreader basket cable for feeder and control circuits.
- Gravity-fed collector basket systems on load-lifting equipment.
- Flexible hoist duties requiring torsional performance and increased tensile capability from a support element.
- Cold-environment outdoor port and crane operation.
- Optional project designs with special bus elements, AS-i Bus, Profibus or fibre optic elements for data transmission.
Specifications
The following dimensional and electrical values for 3GSLTOE spreader basket cable.| Electrical rating | Reference value |
|---|---|
| Rated voltage | 0.6/1 kV; 600/1000 V. |
| Maximum permissible operating voltage | AC 0.7/1.2 kV; DC 0.9/1.8 kV. |
| AC test voltage | 3.5 kV for 5 minutes. |
| Current carrying capacity basis | According to DIN VDE 0298-4. The referenced condition is rubber cables laid on a surface at 30 °C ambient temperature, VDE 0298-4 Table 15. |
| AWG example conductor resistance | 5.75 Ω/km for listed 12 AWG examples. |
| AWG example current carrying capacity | 39 A for listed 12 AWG examples, subject to installation conditions and derating confirmation. |
| Mechanical, thermal and environmental data | Reference value |
|---|---|
| Conductor maximum temperature | 90 °C. |
| Short-circuit conductor maximum temperature | 250 °C. |
| Ambient temperature, fixed | -50 to +80 °C. |
| Ambient temperature, fully flexible | -40 to +80 °C. |
| Hoist travel speed | Up to 160 m/min, subject to system and installation confirmation. |
| Minimum bending radius | According to DIN VDE 0298 part 3; listed free-moving examples reference 101–243 mm. |
| Metric example outer diameter range | 18.1–48.5 mm for listed metric control cable examples. |
| Basket design guidance | System-dependent; recommendation references basket diameter at least 30×D and basket height about 45×D, where D is cable diameter. Confirm for each project. |
| Screen braid coverage | At least 60% for shielded cores and at least 80% for twisted pairs where these screened elements are specified. |
| Support element reference | Safety factor 5 for 50 m vertical suspension in the referenced support element design; final tensile design requires TEBAOFLEX confirmation. |
| Weather exposure | Outdoor and indoor use; resistant to ozone, UV and moisture. |
| Oil resistance test basis | DIN EN 60811-404 and DIN VDE 0473-811-404 paragraph 10. |
| Example variant group | Reference examples |
|---|---|
| Metric control cable examples | 48x1, 24x2.5 to 54x2.5, 24x3.5 to 42x3.5, and 7x4. |
| Metric bus and fibre optic variants | Examples from 24x2.5+1x(2x1)C to 50x2.5+4x(3G50) and 42x3.5+6x(1G62.5). |
| AWG control cable examples | 20x12AWG, 24x12AWG, 30x12AWG, 36x12AWG and 42x12AWG. |
| AWG fibre optic variants | 20x12AWG+4x1LWL, 32x12AWG+4x1LWL, 36x12AWG+6x1LWL, 38x12AWG+4x(1G62.5) and 38x12AWG+4x3LWL. |
Standards
| Reference | Draft scope | Status |
|---|---|---|
| DIN VDE 0250 | Referenced as the basis for cable construction. | |
| DIN VDE 0207 / 3GI3 | Referenced for special EPR insulation compound based on 3GI3. | |
| DIN VDE 0298-4 | Referenced for current carrying capacity. The noted condition refers to rubber cables laid on a surface at 30 °C ambient temperature and VDE 0298-4 Table 15. | |
| DIN VDE 0298 part 3 | Referenced for minimum bending radius. | |
| DIN EN 60811-404 | Referenced oil resistance test method. | |
| DIN VDE 0473-811-404 paragraph 10 | Referenced oil resistance test method. | |
| AC test voltage reference | 3.5 kV for 5 minutes. |
