Elevator Traveling Cable CAT6 for Smart Elevator Data Transmission
The TEBAOFLEX Elevator Traveling Cable CAT6 is designed for modern elevator systems that need stable high-speed data transmission inside the traveling cable assembly. It supports Ethernet-based devices such as IP cameras, Wi-Fi access points, digital displays, access control systems and multimedia communication equipment installed in elevator cabins.

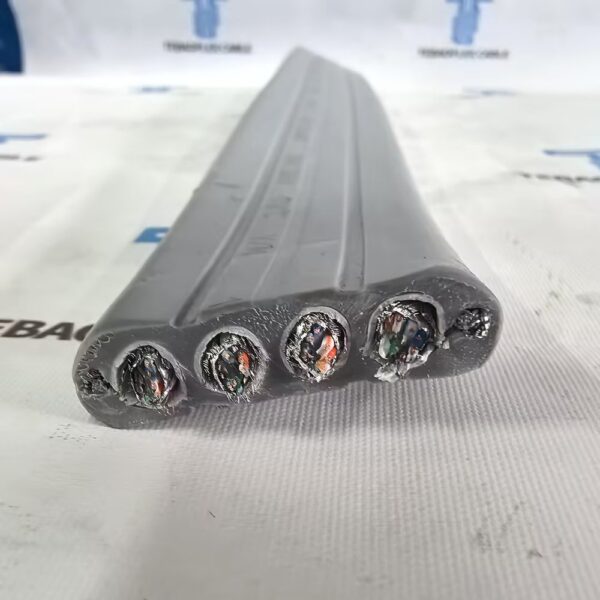

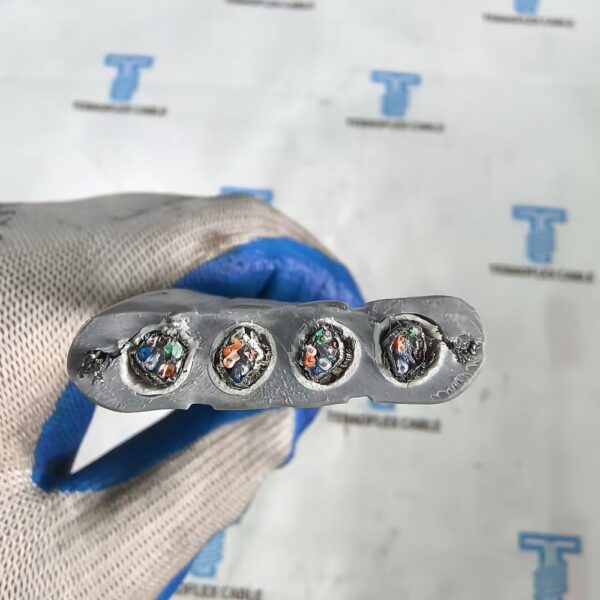

With four separate CAT6 elements, shielding protection and RJ45 compatibility, this cable helps provide reliable network connection between the elevator car and the control side while the cable is moving during daily elevator operation.
Key Features
- 4xCAT6 data structure: Includes four independent CAT6 elements for multiple Ethernet connections in one elevator traveling cable.
- Gigabit Ethernet support: Suitable for 10 Base-T, 100 Base-T and 1000 Base-T network applications used in smart elevator systems.
- RJ45 system compatibility: Designed for elevator network devices using RJ45 plug and socket connections.

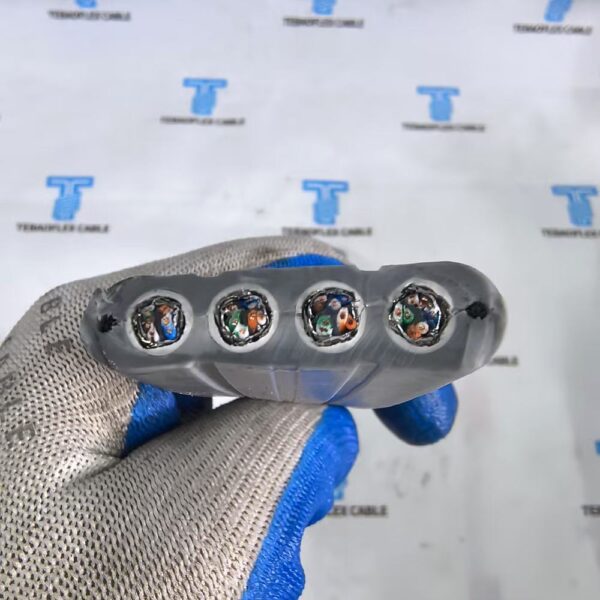

- S/FTP shielding: Foil and braid shielding help reduce electromagnetic interference in elevator shafts and machine rooms.
- Designed for moving installation: Suitable for vertical traveling cable movement where repeated bending and suspension are required.
- Optional steel rope reinforcement: A version reinforced with 2 steel ropes is available for installations requiring additional mechanical support.
Technical Specifications
| Product Name | Elevator Traveling Cable CAT6 |
| Configuration | 4xCAT6 |
| Application | Elevator Ethernet, IP camera, Wi-Fi, multimedia display and smart elevator communication systems |
| Network Support | 10 Base-T, 100 Base-T and 1000 Base-T Gigabit Ethernet applications |
| Connector System | Suitable for RJ45 plug systems |
| Shielding | S/FTP shielding with foil and tinned copper braid structure |
| Transmission Distance | Designed for stable elevator data transmission; booster may be used for longer distances depending on installation conditions |
| Mechanical Option | Version with 2 steel ropes available for additional suspension support |
| Brand | TEBAOFLEX |

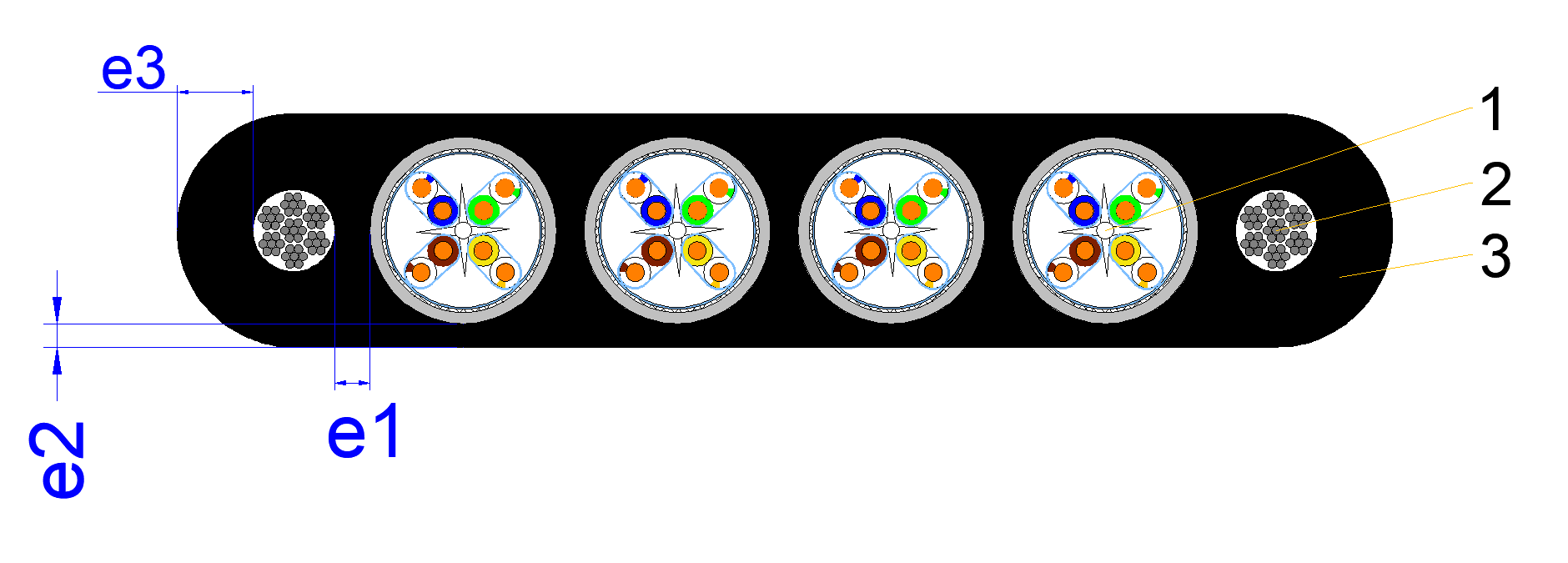

Cable Construction
- CAT6 elements: Four separate CAT6 data cable units are arranged for multiple Ethernet channels.
- Conductor: Copper conductors designed for CAT6 data transmission and RJ45 network connection.
- Pair insulation: Insulated twisted pairs help maintain signal balance and reduce crosstalk.
- Shielding layer: S/FTP shielding structure supports data stability in areas with electromagnetic interference.
- Outer sheath: Elevator traveling cable sheath designed for vertical movement and elevator shaft installation.
- Optional reinforcement: Steel rope reinforcement can be added for projects requiring higher tensile support.
Applications
This CAT6 elevator traveling cable is suitable for smart elevator projects that require Ethernet communication between the elevator car and control system.
- IP-based elevator security cameras
- In-car Wi-Fi access points
- Digital signage and advertising displays
- Elevator multimedia screens
- VoIP and intercom communication systems
- Access control and smart elevator monitoring devices
- Elevator LAN, Ethernet and Internet connectivity
Why Choose TEBAOFLEX
TEBAOFLEX supplies elevator traveling cables for manufacturers, maintenance contractors and elevator system integrators. We support custom cable configurations, reinforced structures, sheath marking, packing and project-based supply for smart elevator communication systems.
If you need a 4xCAT6 elevator cable for IP cameras, Wi-Fi access points or multimedia devices, contact TEBAOFLEX with your cable length, suspension requirement, network devices and installation conditions.
FAQ
What is Elevator Traveling Cable CAT6 used for?
Elevator Traveling Cable CAT6 is used to transmit Ethernet data between the elevator car and control equipment. It is commonly used for IP cameras, Wi-Fi access points, multimedia displays and smart elevator devices.
What does 4xCAT6 mean?
4xCAT6 means the cable contains four separate CAT6 data cable elements. This allows several Ethernet connections to be integrated into one elevator traveling cable.
Can this cable support Gigabit Ethernet?
Yes. The cable is designed for CAT6 network applications, including 10 Base-T, 100 Base-T and 1000 Base-T Gigabit Ethernet systems.
Is this cable suitable for RJ45 connectors?
Yes. The CAT6 elements are suitable for RJ45 plug systems commonly used in elevator IP cameras, Wi-Fi devices and network equipment.
Why does elevator CAT6 cable need shielding?
Elevator shafts and machine rooms may contain motors, control equipment and power cables. Shielding helps reduce electromagnetic interference and supports stable data transmission.
Can the cable be reinforced with steel ropes?
Yes. A version with 2 steel ropes is available for installations requiring additional mechanical support or longer free suspension length.
What information is needed for a quotation?
Please provide the required cable length, CAT6 quantity, elevator travel height, suspension condition, connector requirement, network devices and any special reinforcement needs.
