H05GG-F Cable for Light Duty Appliance and Portable Tool Use
H05GG-F cable is a flexible rubber cable manufactured to EN 50525-2-21 for ordinary duty applications. It is suitable for domestic premises, kitchens, offices, appliances and portable tools where the cable is exposed to low mechanical stress and requires reliable flexibility during normal use.
Key Features
- Flexible rubber construction: Designed for appliance supply leads, portable tools and ordinary duty connections where flexibility is important.
- 300/500V rating: Suitable for light duty power supply applications in domestic and similar environments.
- EVA rubber insulation: EI3 Ethylene Vinyl Acetate rubber insulation provides dependable electrical insulation for flexible cable use.
- EM4 rubber sheath: Black rubber outer sheath supports durability in everyday indoor use and temporary short-duration outdoor use.
- Class 5 tinned copper conductor: Flexible conductor construction supports easier handling and installation.
- Multiple core options: Available in 2, 3, 4 and 5 core constructions for different appliance and tool wiring requirements.
Technical Specifications
| Product Name | H05GG-F EN 50525-2-21 Flexible Rubber Cable |
| Cable Type | Flexible rubber sheathed cable |
| Standard | EN 50525-2-21 |
| Voltage Rating | 300/500V |
| Temperature Rating | Operating: -5°C to +110°C |
| Maximum Short Circuit Temperature | +250°C |
| Conductor | Class 5 flexible tinned copper conductor |
| Insulation | EVA rubber, Ethylene Vinyl Acetate, EI3 |
| Sheath | Rubber EM4 |
| Sheath Colour | Black |
| Core Range | 2 cores, 3 cores, 4 cores and 5 cores |
| Conductor Size Range | 0.75mm² to 6mm² |
| Minimum Bending Radius | Fixed: 3 x overall diameter; mobile: 4 x overall diameter |

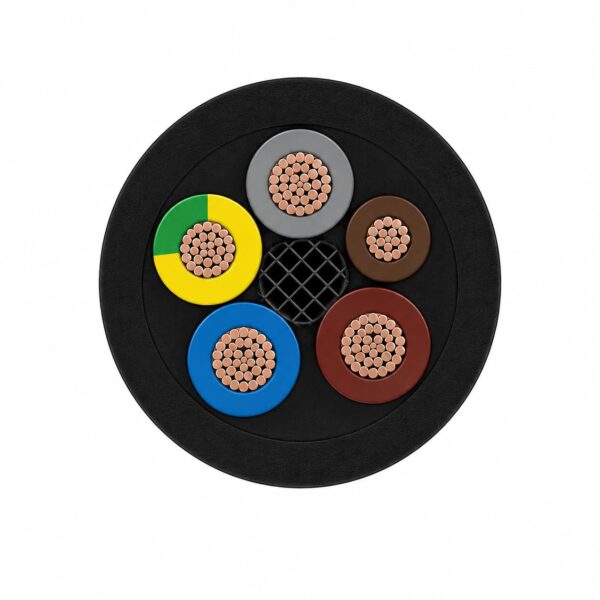

Cable Construction
- Conductor: Class 5 flexible tinned copper conductor.
- Insulation: EVA rubber, Ethylene Vinyl Acetate, EI3.
- Outer Sheath: EM4 rubber sheath in black.
Core Identification
- 2 cores: Blue and brown
- 3 cores: Green/yellow, blue and brown
- 4 cores: Green/yellow, brown, black and grey
- 5 cores: Green/yellow, blue, brown, black and grey
Applications
- Domestic premises, kitchens and offices
- Ordinary duty appliances
- Vacuum cleaners and cooking appliances
- Soldering irons and small portable tools
- Handheld inspection lamps
- Short-duration temporary outdoor use
Available Sizes
H05GG-F cable is available in 2 core, 3 core, 4 core and 5 core versions, with conductor sizes from 0.75mm² to 6mm². Common options include 0.75mm², 1mm², 1.5mm², 2.5mm², 4mm² and 6mm² depending on the required number of cores.
Why Choose H05GG-F Flexible Rubber Cable
H05GG-F cable is a practical choice for appliance manufacturers, maintenance teams and electrical buyers who need a flexible rubber cable for ordinary duty use. Its Class 5 tinned copper conductor, EVA rubber insulation and EM4 rubber sheath provide a balanced construction for low mechanical stress environments, appliance connections and temporary short-duration outdoor use.
FAQ
What is H05GG-F cable used for?
H05GG-F cable is used for ordinary duty applications in domestic premises, kitchens, offices, appliances, portable tools and temporary short-duration outdoor use where the cable is subject to low mechanical stress.
What is the voltage rating of H05GG-F cable?
H05GG-F cable has a voltage rating of 300/500V.
What insulation and sheath materials are used?
The cable uses EVA rubber, Ethylene Vinyl Acetate EI3, as insulation and an EM4 rubber outer sheath.
Is H05GG-F suitable for permanent heavy-duty outdoor use?
No. The product information indicates use outdoors for temporary periods of short duration. For heavy-duty outdoor, industrial or high mechanical stress applications, a more robust rubber cable type should be selected.
