8.7/15 kV Medium Voltage Reeling Cable with Integrated 24FO Fibre Optics
8.7/15 kV Medium Voltage Reeling Cable with Integrated 24FO Fibre Optics is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. This 8.7/15 kV reeling cable with fibre optics is suitable for mobile equipment requiring both medium voltage power and integrated data transmission. TEBAOFLEX medium voltage reeling cable is designed for mobile equipment requiring combined power, control and fibre optic data transmission under high mechanical stress. Send the exact size, length, installation duty and documentation requirements for a technical quotation.
8.7/15 kV Medium Voltage Reeling Cable with Integrated 24FO Fibre Optics is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. This 8.7/15 kV reeling cable with fibre optics is suitable for mobile equipment requiring both medium voltage power and integrated data transmission. TEBAOFLEX medium voltage reeling cable is designed for mobile equipment requiring combined power, control and fibre optic data transmission under high mechanical stress. The source record places this product in mining & tunneling cables. Before ordering, confirm the exact product variant, conductor or core arrangement, system rating, route conditions, equipment connection and required documentation against the project specification. The requested 8.7/15 kV Medium Voltage Reeling Cable with Integrated 24FO Fibre Optics should be evaluated as a complete cable assembly: review its intended equipment, conductor arrangement, installation method, movement duty, environment, terminations, dimensions and required documentation together. The V2 layout keeps the source-listed construction, application, technical and standard information available for a controlled engineering and procurement review. Use the Request Quote section to confirm the exact configuration, route conditions and documentation requirements before production or replacement ordering.

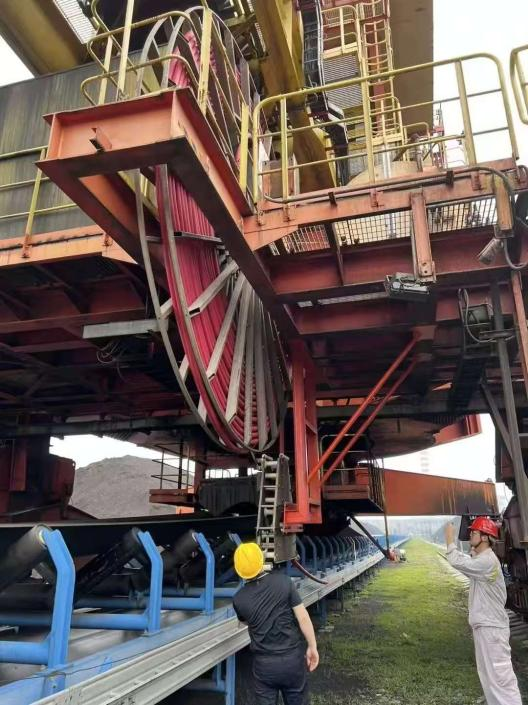

Project reference: this cable type is used on the ship unloader at Duyen Hai 2 Thermal Power Plant, Vietnam.

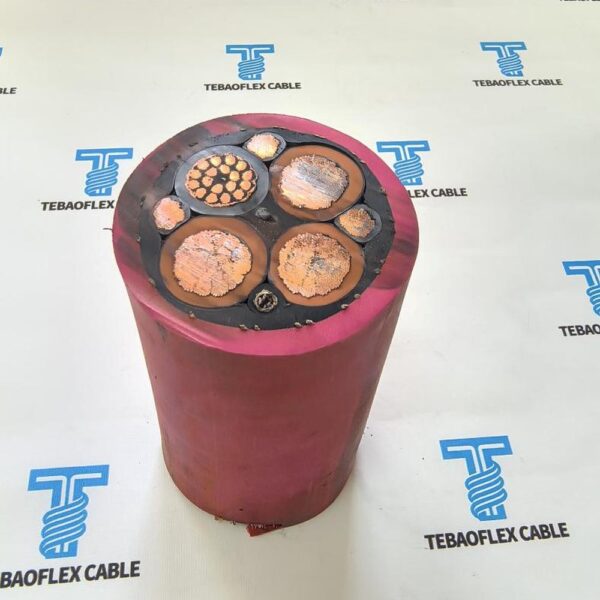

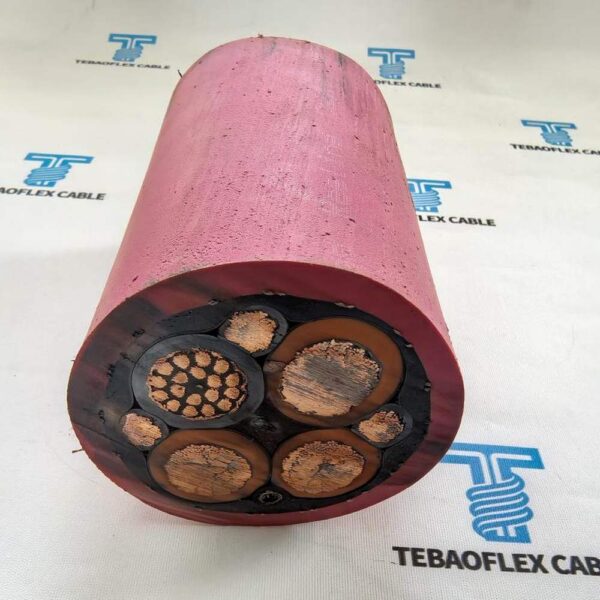

8.7/15 kV Medium Voltage Reeling Cable with Integrated 24FO Fibre Optics construction

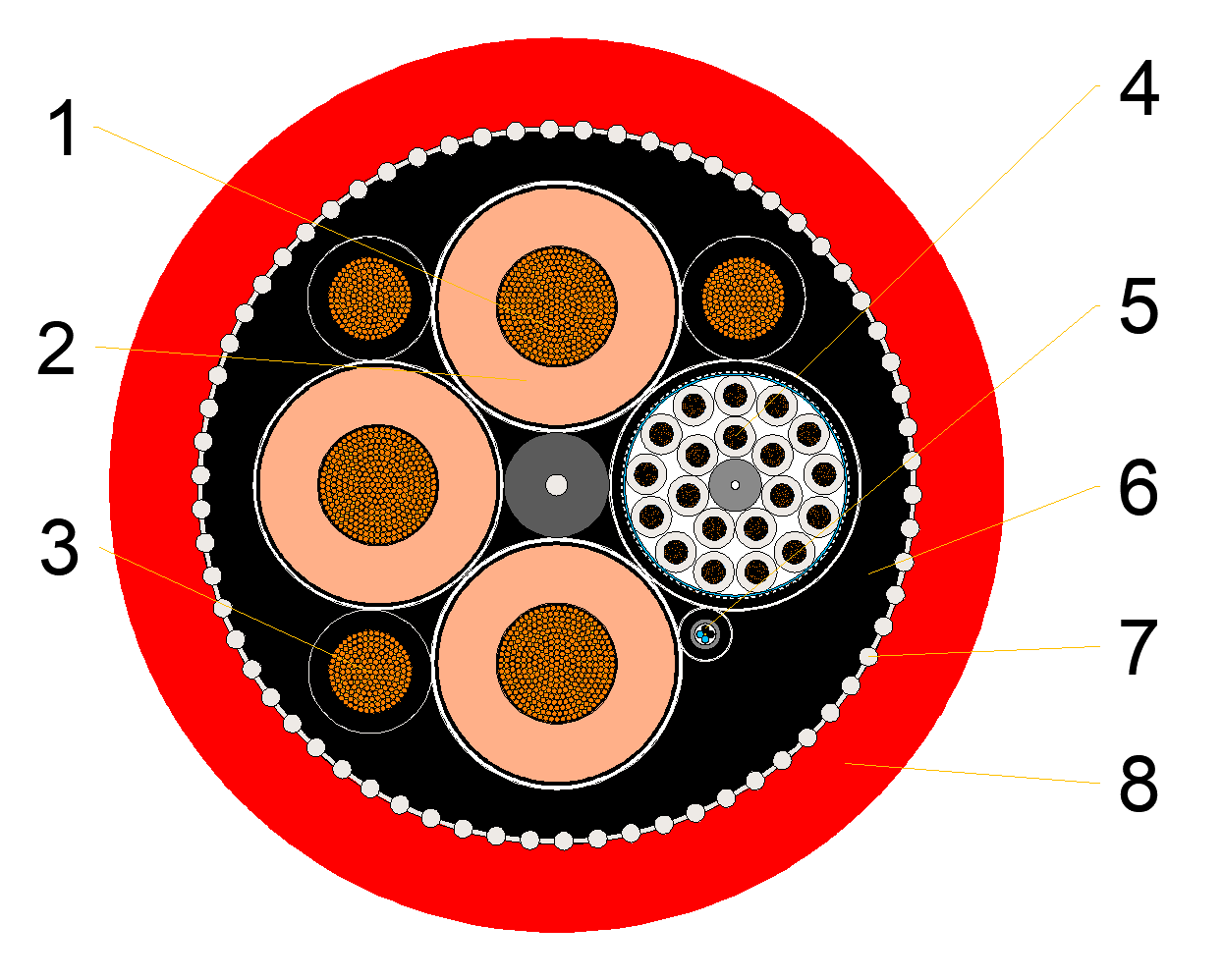

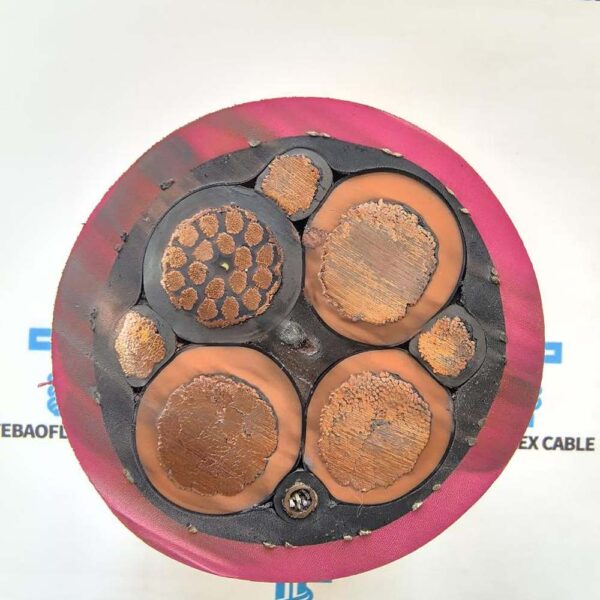

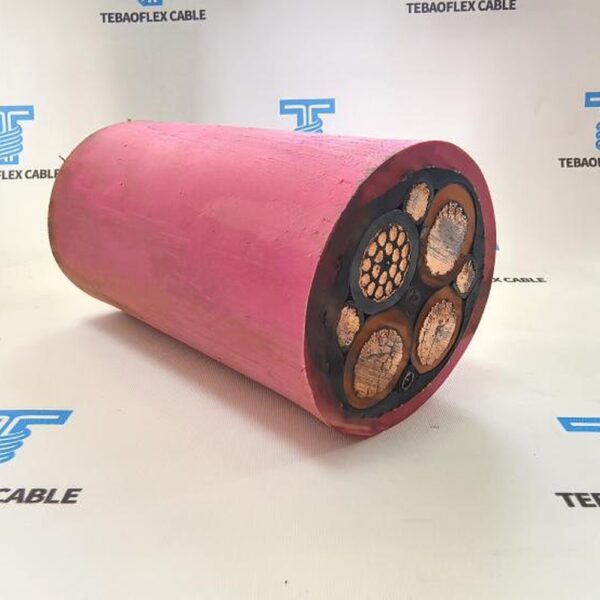

Cable Construction
- Power conductor: Class 5 flexible tinned copper conductor for dynamic movement and reliable medium voltage transmission.
- Conductor screen: Semi-conductive tape and rubber layers for electrical field control.
- Insulation: EPR rubber compound for mechanical strength and medium voltage electrical performance.
- Ground conductors: Split earth conductor design arranged in the interstices.
- Control cores: 20 x 2.5 mm² control conductors for auxiliary circuits and equipment control.
- Fibre optic element: Integrated 24FO 9/125 fibre optic unit for data transmission and monitoring systems.
- Inner sheath: 5GM3 rubber compound suitable for reeling cable construction.
- Reinforcement: Kevlar aramid fibre mesh and torsion protection braid to resist tensile and twisting stress.
- Outer sheath: Heavy-duty 5GM5 rubber sheath for abrasion, oil, UV, ozone, moisture and weather resistance.
8.7/15 kV Medium Voltage Reeling Cable with Integrated 24FO Fibre Optics applications
Applications
This 8.7/15 kV reeling cable with fibre optics is suitable for mobile equipment requiring both medium voltage power and integrated data transmission.
- Container cranes and port handling equipment
- Large material handling machines
- Excavators, dumpers and mobile crushers
- Open-cast mining equipment

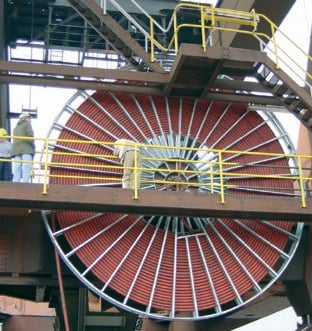

- Mono-spiral and cylindrical cable reel systems
- Mobile equipment with high travel speeds
- Installations requiring power, control and fibre optic communication in one cable
Selection checks
Confirm the equipment interface, installation method, route length, movement or flexing duty, environmental exposure, conductor or core requirements and project documentation before final selection.
8.7/15 kV Medium Voltage Reeling Cable with Integrated 24FO Fibre Optics specifications
The source-listed technical notes are retained below. Confirm the final size, tolerance, installation basis and ordered configuration before release.
Medium Voltage Reeling Cable for Power, Control and Fibre Optic Transmission
The TEBAOFLEX medium voltage reeling cable is engineered for heavy mobile equipment where energy supply, control circuits and fibre optic communication must operate together in one flexible cable system. This 8.7/15 kV cable is suitable for dynamic reeling applications exposed to tensile load, torsion, repeated bending and outdoor operating conditions.
With integrated 24FO 9/125 fibre optics, control cores and flexible tinned copper power conductors, this cable is designed for container cranes, large material handling equipment, open-cast mining machines, excavators, dumpers and mobile crushers.
Standards and Performance
- Construction reference: VDE 0250 Part 813
- Conductor reference: VDE 0295 / EN 60228
- Flame retardant: IEC/EN 60332-1-2
- Oil resistance: EN/IEC 60811-404
- Weather resistance: Resistant to ozone, UV and moisture
- Maximum conductor temperature: 90°C during operation, 250°C under short circuit condition
- Torsion stress: Up to ±100°/m depending on installation conditions
Source-listed technical tables
The tables below retain the original product data, including units, ranges and ordering examples.
| Product Name | Medium Voltage Reeling Cable with Integrated Fibre Optics |
| Type Designation | E5 3x35 + 3x35/3 + (20x2.5)C + 24FO (9/125) |
| Rated Voltage | 8.7/15 kV |
| Power Conductors | 3 x 35 mm² flexible tinned copper conductors |
| Ground Conductors | 3 x 35/3 mm² flexible tinned copper conductors |
| Control Cores | 20 x 2.5 mm² |
| Fibre Optics | 24FO 9/125 single-mode fibre optic element |
| Insulation | EPR rubber compound, 3GI3 type |
| Inner Sheath | 5GM3 rubber compound |
| Reinforcement | Kevlar aramid fibre mesh and polyester thread braid for torsion protection |
| Outer Sheath | 5GM5 chloroprene rubber compound, red as standard |
| Outer Diameter | Approx. 56.3 mm to 58.7 mm |
| Approx. Weight | 5110 kg/km |
| Current Carrying Capacity | 172 A at reference conditions |
| Conductor Resistance | 0.554 Ω/km at 20°C |
| Minimum Bending Radius | 6 x D fixed, 12 x D reeling operation, 15 x D with sheaves |
| Temperature Range | Fixed: -40°C to +80°C; mobile application: -25°C to +60°C |
8.7/15 kV Medium Voltage Reeling Cable with Integrated 24FO Fibre Optics standards and compliance
The following standard references are carried over from the original product record. They identify the source basis and do not replace project-specific certification or inspection requirements.
- Flame retardant performance: Designed according to IEC/EN 60332-1-2 flame-retardant requirements.
- Construction reference: VDE 0250 Part 813
- Conductor reference: VDE 0295 / EN 60228
- Flame retardant: IEC/EN 60332-1-2
- Oil resistance: EN/IEC 60811-404
Where a project requires a test report, certificate, marking record or inspection release, include that requirement in the quotation request.
