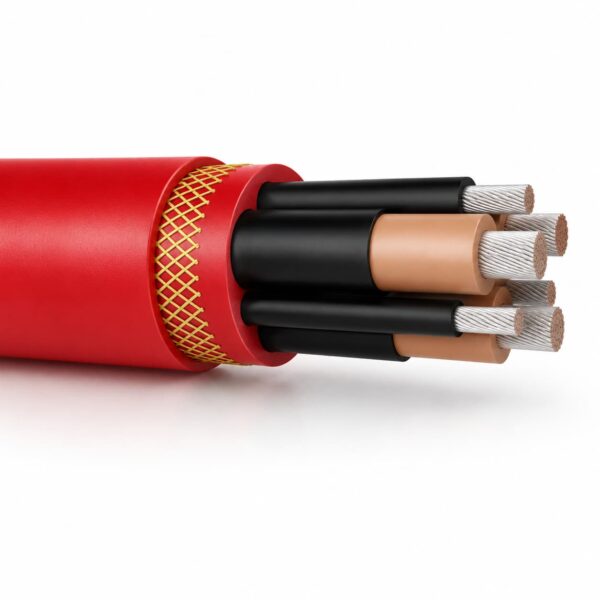

(N)TSKCGEWÖU 3.6/6kV Medium Voltage Mining Trailing Cable

(N)TSKCGEWÖU 3.6/6kV Medium Voltage Mining Trailing Cable is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. The (N)TSKCGEWÖU Cable is a 3.6/6kV medium voltage trailing cable for mobile mining machinery and heavy material handling equipment. It is built for applications where the cable is pulled, reeled, exposed to abrasion and moved with large machines such as excavators, dumpers and crushers. (N)TSKCGEWÖU Cable is a 3.6/6kV medium voltage trailing cable for large mobile mining and material handling machines. It is designed for high mechanical stress, reel operation and demanding open-cast mining environments where flexibility, torsion resistance, abrasion resistance and reliable earth/pilot core construction are required. The source record places this product in mining & tunneling cables. Before ordering, confirm the exact product variant, conductor or core arrangement, system rating, route conditions, equipment connection and required documentation against the project specification. The requested (N)TSKCGEWÖU 3.6/6kV Medium Voltage Mining Trailing Cable should be evaluated as a complete cable assembly: review its intended equipment, conductor arrangement, installation method, movement duty, environment, terminations, dimensions and required documentation together.

(N)TSKCGEWÖU 3.6/6kV Medium Voltage Mining Trailing Cable construction

Cable Construction

1. Conductors: Annealed flexible stranded tinned copper, class 5 to IEC 60228 and HD 383.
2. Separator: Semiconductive tape between conductor and insulation where required.
3. Conductor screen: Semiconductive layer.
4. Insulation: Ethylene-propylene rubber compound type 3GI3 to DIN VDE 0207 Part 20.
5. Insulation screen: Semiconductive layer, maximum resistivity 200 Ω·m.
6. Core cable: Three power cores, two earth cores and one pilot core laid up on a cradle separator with Kevlar reinforcement in the centre.
7. Semiconductive covering: Semiconductive layer over the core cable.
8. Internal sheath: Synthetic thermosetting compound type 5GM5 to DIN VDE 0207 Part 21.
9. Anti-torsion braid: Polyamide thread braid between internal and outer sheath.
10. Outer sheath: Synthetic thermosetting compound type 5GM5 to DIN VDE 0207 Part 21.

(N)TSKCGEWÖU 3.6/6kV Medium Voltage Mining Trailing Cable applications

(N)TSKCGEWÖU Cable for Mining Trailing Applications

The (N)TSKCGEWÖU Cable is a 3.6/6kV medium voltage trailing cable for mobile mining machinery and heavy material handling equipment. It is built for applications where the cable is pulled, reeled, exposed to abrasion and moved with large machines such as excavators, dumpers and crushers.

Applications

• Power connection for large material handling machines.
• Excavators, dumpers and crushers in open-cast mines.
• Medium voltage trailing cable systems with mono spiral reels or cylindrical reels.
• Heavy industrial applications requiring high mechanical stress resistance.
• Outdoor mining routes exposed to UV, ozone, oil, abrasion and impact.

Selection checks

Confirm the equipment interface, installation method, route length, movement or flexing duty, environmental exposure, conductor or core requirements and project documentation before final selection.

(N)TSKCGEWÖU 3.6/6kV Medium Voltage Mining Trailing Cable specifications

Source-listed technical tables

The tables below retain the original product data, including units, ranges and ordering examples.

Original product attributes

These product attributes are retained as supplied and should be checked against the ordered construction.

(N)TSKCGEWÖU 3.6/6kV Medium Voltage Mining Trailing Cable standards and compliance

The following standard references are carried over from the original product record. They identify the source basis and do not replace project-specific certification or inspection requirements.

• Conductors: Annealed flexible stranded tinned copper, class 5 to IEC 60228 and HD 383.
• Insulation: Ethylene-propylene rubber compound type 3GI3 to DIN VDE 0207 Part 20.
• Internal sheath: Synthetic thermosetting compound type 5GM5 to DIN VDE 0207 Part 21.
• Outer sheath: Synthetic thermosetting compound type 5GM5 to DIN VDE 0207 Part 21.
• Construction Standard Based on DIN VDE 0250 Part 813
• Conductor Standard IEC 60228, HD 383
• Insulation Compound 3GI3 to DIN VDE 0207 Part 20
• Sheath Compound 5GM5 to DIN VDE 0207 Part 21

Where a project requires a test report, certificate, marking record or inspection release, include that requirement in the quotation request.
