BETAjet 400 FRNC-quadroflex 400Hz Ground Power Cable
BETAjet 400 FRNC-quadroflex 400Hz Ground Power Cable is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. This flexible and economic 400Hz ground power cable provides excellent separation of potential and is incredibly easy for harnessing. It is the standard choice for various mobile power supply scenarios, including: Please review the detailed technical data below: Note: Custom harnessing and plug assembly for your 400Hz ground power cable are available upon request. Send the exact size, length, installation duty and documentation requirements for a technical quotation.

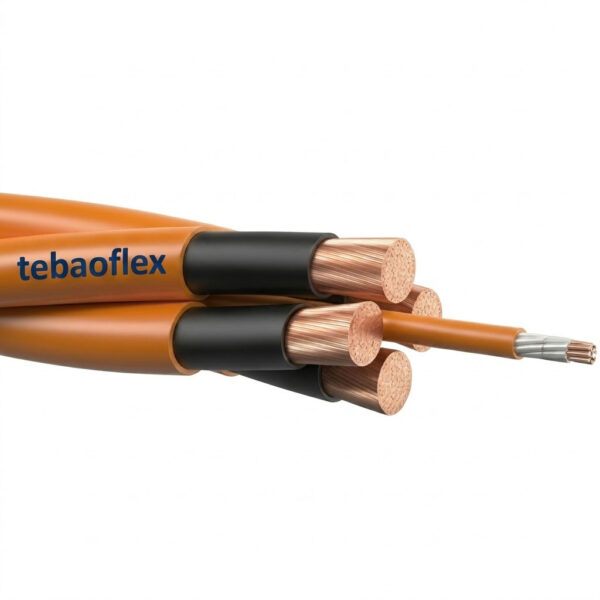

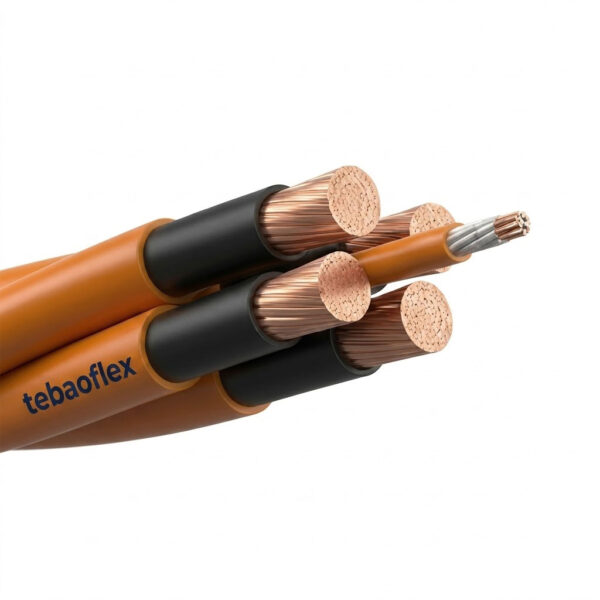

BETAjet 400 FRNC-quadroflex 400Hz Ground Power Cable is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. This flexible and economic 400Hz ground power cable provides excellent separation of potential and is incredibly easy for harnessing. It is the standard choice for various mobile power supply scenarios, including: Please review the detailed technical data below: Note: Custom harnessing and plug assembly for your 400Hz ground power cable are available upon request. Due to asymmetric voltage drops, the recommended maximum cable length is 15 meters. * Current rating at 70°C, typical value, cos φ=0.8 / 400 Hz, A phase/N. The BETAjet 400 FRNC-quadroflex is an open-twisted, highly flexible 400 Hz ground power cable designed with a central control core. Engineered for extreme mobile applications, it offers exceptional durability under heavy mechanical stress and severe climate conditions. The source record places this product in airport ground power cables. Before ordering, confirm the exact product variant, conductor or core arrangement, system rating, route conditions, equipment connection and required documentation against the project specification. The requested BETAjet 400 FRNC-quadroflex 400Hz Ground Power Cable should be evaluated as a complete cable assembly: review its intended equipment, conductor arrangement, installation method, movement duty, environment, terminations, dimensions and required documentation together.

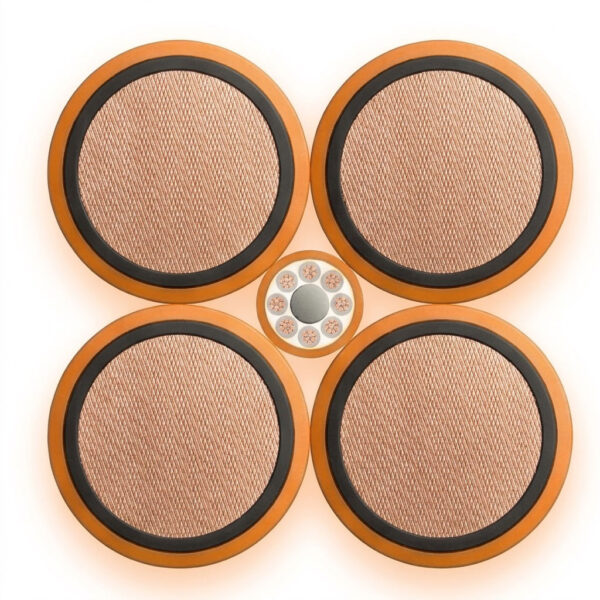

BETAjet 400 FRNC-quadroflex 400Hz Ground Power Cable construction
Cable Construction and Technical Specifications
Built for longevity, our 400Hz ground power cable is specified to support reliable power delivery from the generator to the aircraft. Please review the detailed technical data below:
BETAjet 400 FRNC-quadroflex 400Hz Ground Power Cable applications
Typical Applications in Civil and Military Aviation
This flexible and economic 400Hz ground power cable provides excellent separation of potential and is incredibly easy for harnessing. It is the standard choice for various mobile power supply scenarios, including:
- In grounded pits (Pit systems) across modern airport aprons.
- Mobile 400 Hz diesel generator units (GPUs).
- Suspended cable systems for Passenger Boarding Bridges (PBB).
- Robust power delivery for both civil and military aircraft charging operations.
Selection checks
Confirm the equipment interface, installation method, route length, movement or flexing duty, environmental exposure, conductor or core requirements and project documentation before final selection.
BETAjet 400 FRNC-quadroflex 400Hz Ground Power Cable specifications
The source-listed technical notes are retained below. Confirm the final size, tolerance, installation basis and ordered configuration before release.
Cable Construction and Technical Specifications
Built for longevity, our 400Hz ground power cable is specified to support reliable power delivery from the generator to the aircraft. Please review the detailed technical data below:
Dimensions and Ordering Information
Note: Custom harnessing and plug assembly for your 400Hz ground power cable are available upon request. Due to asymmetric voltage drops, the recommended maximum cable length is 15 meters.
* Current rating at 70°C, typical value, cos φ=0.8 / 400 Hz, A phase/N.
Source-listed technical tables
The tables below retain the original product data, including units, ranges and ordering examples.
| Conductor Material | Bare fine copper strands (acc. to VDE 0295, IEC 60228) |
| Nominal Voltage (Uo/U) | 115/200V / 600/1000V |
| Testing Voltage | 4000 VAC |
| Operation Temperature | -40°C to +90°C |
| Halogen Free & Corrosivity | IEC 60754-1 (< 5 mg/g), IEC 60754-2 (pH < 5) |
| Construction (n x mm²) | Outer Ø (mm) | Weight (kg/km) | Current Rating (A)* | Order No. |
|---|---|---|---|---|
| 4 x 1 x 50 + (8 x 1) | 39.6 | 2587 | 220 A | 300286 |
| 4 x 1 x 70 + (8 x 1) | 44.3 | 3286 | 280 A | 300287 |
Original product attributes
These product attributes are retained as supplied and should be checked against the ordered construction.
| Application | Aviation, Mobile Generators, Grounded Pits |
|---|---|
| Voltage | 115/200V, 600/1000V |
| Conductor Material | Bare fine copper strands |
| Outer Sheath Material | PUR (Polyurethane) |
| Operating Temperature | -40°C to +90°C |
| Features | Halogen-free, Flame retardant, UV resistant, Oil resistant |
BETAjet 400 FRNC-quadroflex 400Hz Ground Power Cable standards and compliance
The following standard references are carried over from the original product record. They identify the source basis and do not replace project-specific certification or inspection requirements.
- Conductor Material Bare fine copper strands (acc. to VDE 0295, IEC 60228)
- Halogen Free & Corrosivity IEC 60754-1 (< 5 mg/g), IEC 60754-2 (pH < 5)
Where a project requires a test report, certificate, marking record or inspection release, include that requirement in the quotation request.
