5G 35mm2 RFOU Cable | NEK 606 Power & Instrumentation
NEK 606 RFOU cable range: 5G 35 mm2 0.6/1 (1.2) kV power reference, with RFOU(i) 150/250 V individually screened and RFOU(c) S2/S6 250 V collectively screened instrumentation options. Fixed marine/offshore installation; confirm code, size, screen and project evidence at RFQ.
5G 35 mm2 RFOU cable for NEK 606 marine and offshore projects, with one product page covering the supplied power and instrumentation variants. The current 5-core product data identifies a 0.6/1 (1.2) kV cable for fixed power and lighting routes. The same RFOU family also covers 150/250 V RFOU(i) individually screened instrumentation cable and 250 V RFOU(c) collectively screened instrumentation cable, including the S2/S6 designation used in project specifications.
Use the power construction when the equipment needs a halogen-free, flame-retardant offshore cable for fixed power, control or lighting. Select RFOU(i) for individually screened pairs or triples, or RFOU(c) when a collective screen is the required signal architecture. NEK 606 terminology, screen arrangement, sheath compound, core count, size and bending radius must match the project data sheet. The 5G 35 mm2 listing is the reference configuration; other sizes and instrumentation pair/triple builds are quoted to order.
For a quotation, send the voltage, core or pair/triple count, conductor area, screen code, sheath colour, route, minimum temperature, bending requirement and any fire, mud, oil or classification evidence required by the project. See the Marine & Offshore Cables range, the NEK 606 BFOU P105 cable and the NEK 606 UX earth cable for adjacent selections.
Construction

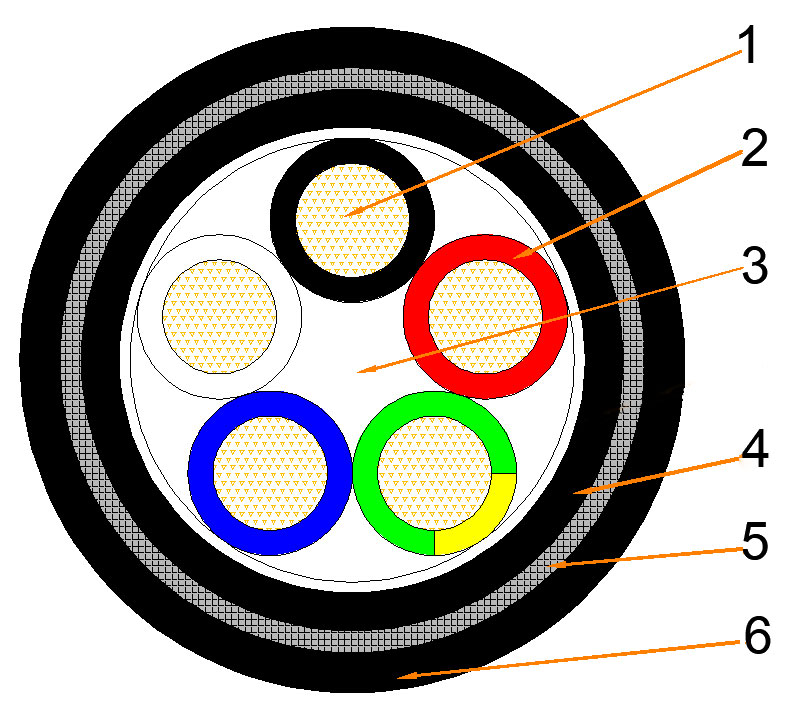

The exact construction follows the ordered NEK 606 code and size. The current 5G reference is documented as tinned copper conductors, EPR insulation, a halogen-free inner covering, tinned copper wire braid (TCWB) and a black SHF2/EVA outer sheath. The family mapping below keeps power, individually screened and collectively screened builds distinct.
| Variant | Typical construction / screen | Procurement check |
|---|---|---|
| RFOU power | Tinned stranded copper, EPR insulation, halogen-free bedding, TCWB braid and SHF2 or SHF MUD outer sheath. | Confirm P-code, conductor class, sheath compound and size. |
| RFOU(i) | Individually screened pairs/triples with numbered identification, halogen-free bedding, TCWB braid and SHF2 outer sheath. | Confirm pair/triple count, screen/drain arrangement and colour. |
| RFOU(c) | Collectively screened pairs/triples with copper-backed tape and drain wire, TCWB braid and SHF2/SHF MUD outer sheath. | Confirm S2/S6 or current project code and EMC requirement. |

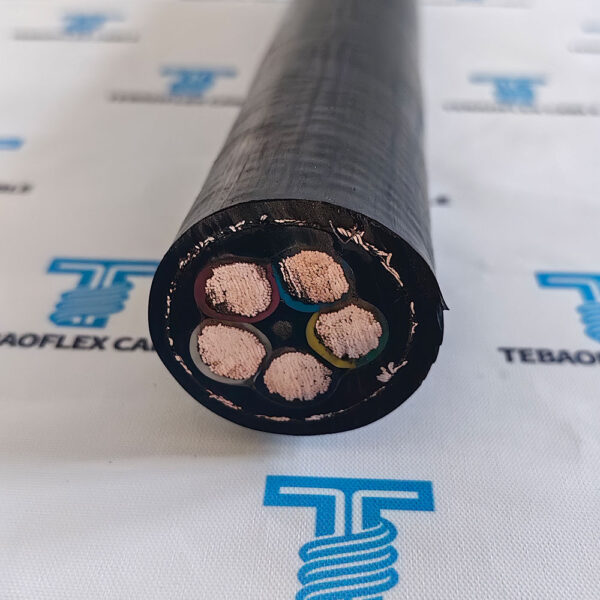

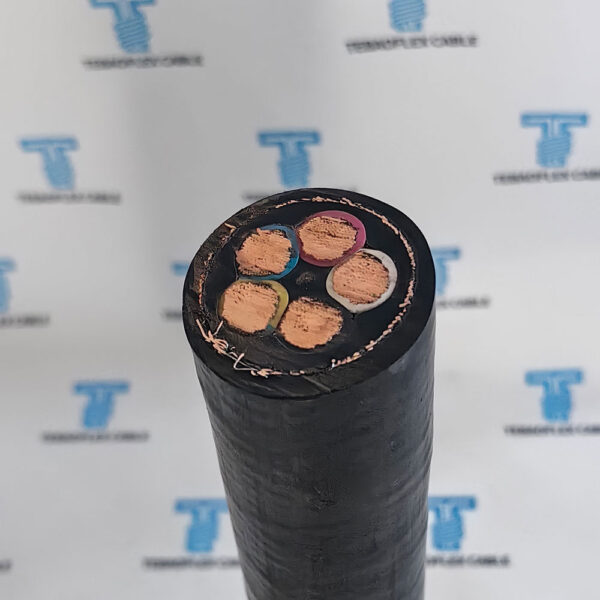

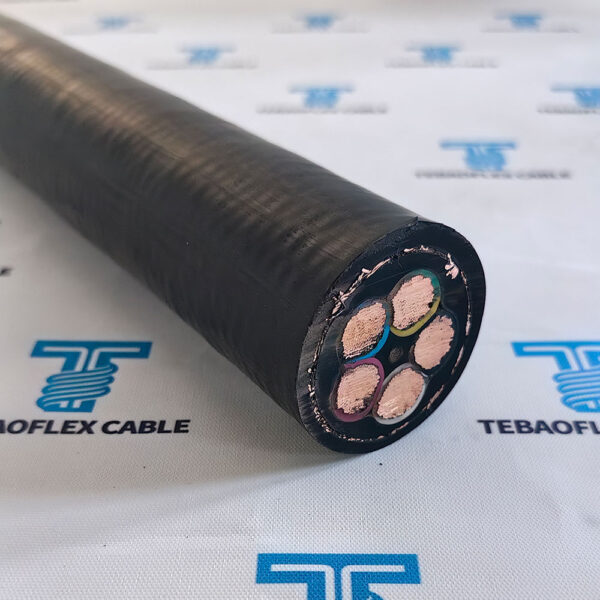

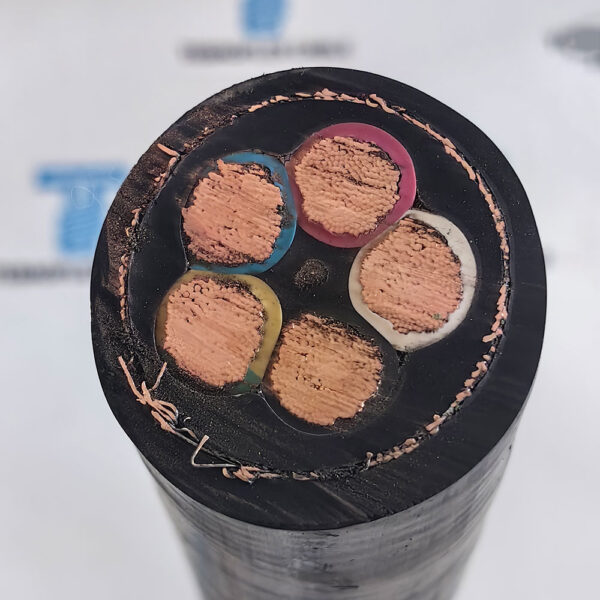

| 5G 35 mm2 reference | Five-core power cable; the page data lists an earth core, EPR insulation and black TCWB-protected sheath. | Confirm final drawing, marking and termination details before order. |
Applications
- Fixed power and lighting circuits on ships, offshore platforms and marine modules.
- Fixed control, alarm, communication and instrumentation routes where the project specifies NEK 606 RFOU.
- RFOU(i) for individually screened instrumentation pairs/triples when channel separation is required.
- RFOU(c) S2/S6 for collectively screened instrumentation, control and alarm circuits.
- Routes exposed to saline atmosphere, oils or drilling/cleaning fluids only when the ordered sheath code and project evidence cover that exposure.
Installation boundary: these are fixed-installation selections. Do not substitute them for continuous reeling, festoon, trailing, dynamic or permanent subsea cable without a separate engineering review. Confirm hazardous-area, fire-integrity, earthing, EMC and classification requirements with the project owner.
Specifications
Values marked as the 5G reference are the current product listing. Instrumentation values describe the NEK 606 family and must be confirmed against the ordered pair/triple datasheet.
| Selection | Voltage / temperature | Key data |
|---|---|---|
| 5G 35 mm2 RFOU power reference | 0.6/1 (1.2) kV; fixed installation data lists -40°C to +90°C. | 5 cores x 35 mm2; 3.5 kV AC test for 5 minutes; approx. 34.8 mm OD; approx. 0.529 ohm/km at 20°C; approx. 2,820 kg/km. |
| RFOU(i) S101 family | 150/250 V; max. conductor temperature commonly specified as +90°C. | Individually screened pairs/triples; fixed installation; confirm conductor area and minimum bend radius (often 6 x OD in supplier data). |
| RFOU(c) S2/S6 / S102 family | 150/250 V or 250 V project notation; max. conductor temperature commonly specified as +90°C. | Collectively screened pairs/triples; confirm screen, drain, sheath code, colour and minimum bend radius. |
Ordering note: overall diameter, weight, resistance, capacitance, inductance, current rating and bend radius vary by core/pair/triple size. Request the approved size datasheet rather than estimating from the 5G reference.
Standards
NEK 606 / NEK TS 606 is the offshore cable design framework used for the RFOU power and instrumentation designations. The applicable edition, code and test scope must be stated on the project purchase specification.
| Reference | Use on this page |
|---|---|
| NEK 606 / NEK TS 606 | RFOU power, RFOU(i) S101 and RFOU(c) S2/S6 or S102 designation framework. |
| IEC 60092-353, IEC 60092-376 | Power and instrumentation cable design guidance for shipboard/offshore installations. |
| IEC 60092-360, IEC 60228 | Insulation/sheath material references and conductor class/resistance. |
| IEC 60332-1-2 and IEC 60332-3-22 | Flame-retardant and vertical flame-spread test references. |
| IEC 60754-1/2 and IEC 61034-1/2 | Halogen-gas/corrosivity and smoke-density test references. |
Standards references are not a substitute for a model-specific certificate, classification approval or test report. List the required evidence in the RFQ so the exact variant can be checked before release.
Related cable options
Compare these cable options by service combination, movement, load, voltage and transmission requirement.

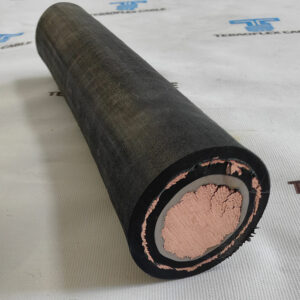

0.6/1kV RFOU Cable for Marine & Offshore NEK 606 Projects
