RG7H1OR Three-Core HEPR Insulated MV Cable

RG7H1OR three-core copper-tape-screened power cable with Class 2 copper, G7 HEPR insulation and red PVC sheath. Source rating family U₀/U 1.8/3–18/30 kV; complete voltage-specific dimensions, current and electrical tables.

Product information
Product overview

RG7H1OR packages three phase cores in one HEPR-insulated, PVC-sheathed power cable for transformer-room and large-load connections. Each core uses a Class 2 compact copper conductor and the supplied construction specifies copper-tape metallic screens, coloured phase identification, extruded inter-core filler and a red Rz PVC outer sheath. The source catalogue lists U₀/U 1.8/3 through 18/30 kV, with separate size and electrical tables for each voltage grade.

Choose this three-core format when the route, termination plan and cable handling favour one assembly rather than three individual phase cables. The related RG7H1R is single-core with a copper-wire metallic screen, so do not reuse its dimensions, ampacity or screen bonding detail for RG7H1OR. The catalogue tables distinguish air and buried reference current; actual current capacity still depends on installation, grouping, ambient, thermal resistivity and termination limits.

The supplied source describes laying in air, tube, open route and certain underground installations subject to local rules. Confirm U₀/U, conductor size, pulling load, bending space and joint/termination interfaces before ordering. For mechanical protection by flat steel wire armour, compare RG7OZR / RG7H1OZR armoured family. More related designs appear in the industrial cable range.

Construction

Construction

The RG7H1OR source construction has three individually identified copper conductors inside a common PVC sheath. HEPR is the insulation layer; the finished cable has a PVC outer sheath.

RG7H1OR three-core layer structure
LayerSource construction
Phase conductorsThree Class 2 compact plain-copper conductors
Conductor screensExtruded semiconductive layers for U₀/U ≥6/10 kV
InsulationLead-free G7 HEPR in source catalogue
Insulation screensExtruded, cold-strippable semiconductive layers for U₀/U ≥6/10 kV
Metallic screensWrapped plain-copper tapes
Identification / fillerColoured threads or bands; extruded filler between cores
Outer sheathRed Rz-quality PVC

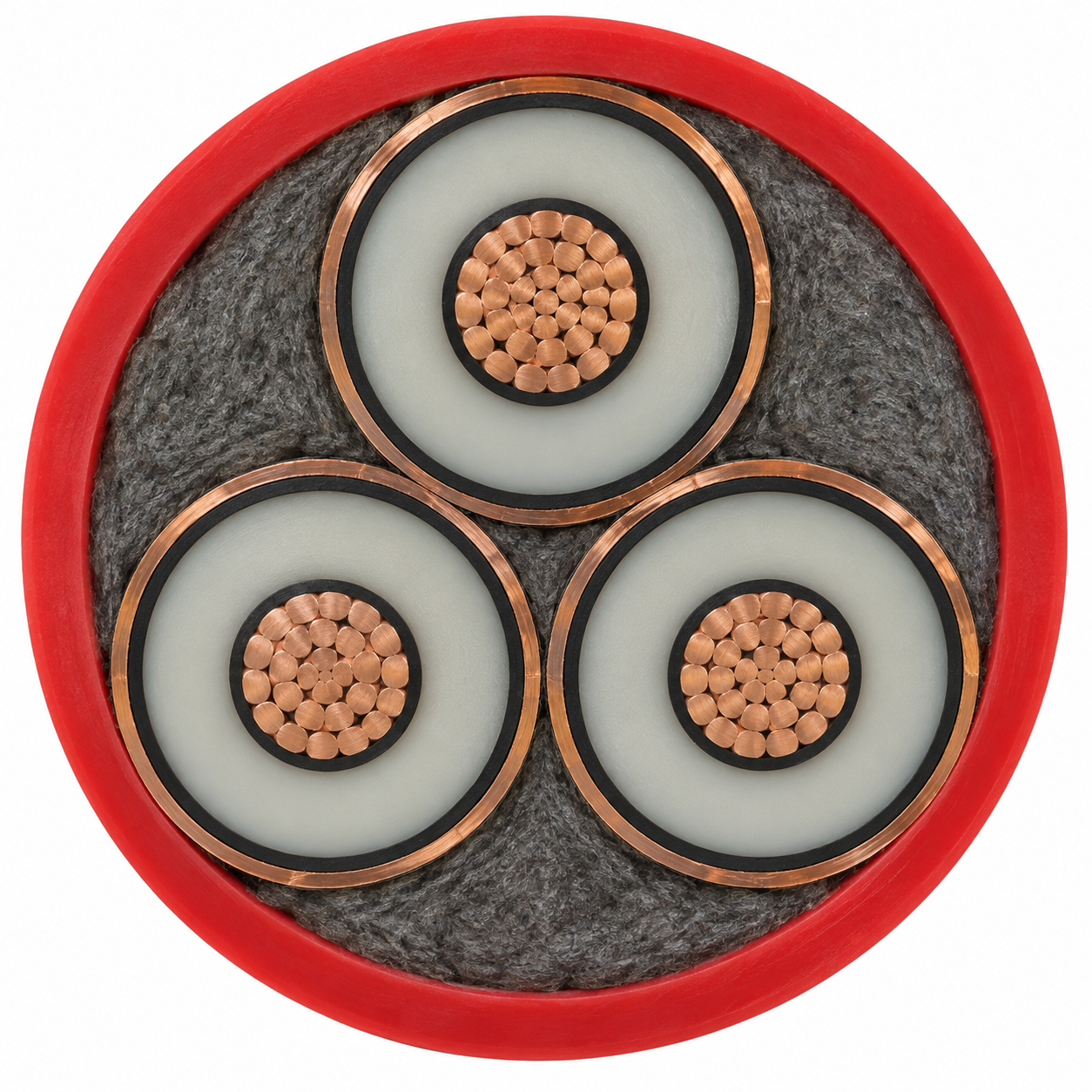

RG7H1OR three-core HEPR cable construction cross-section showing cores and layers

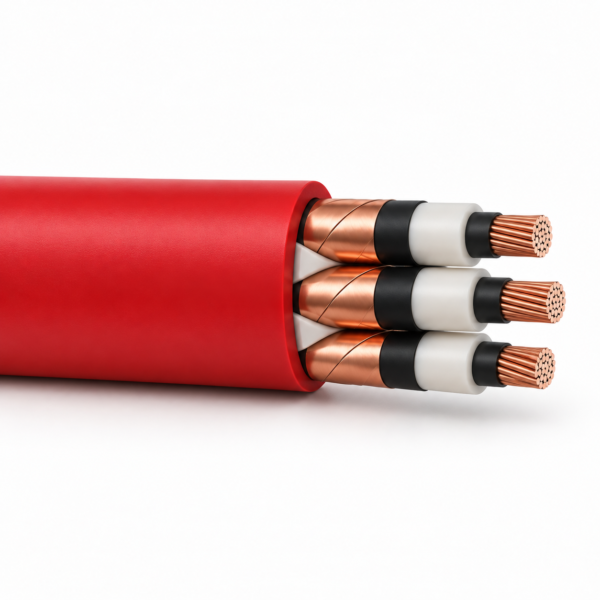

RG7H1OR Three-Core HEPR Insulated MV Cable construction illustration; verify the ordered build against its approved drawing.
Applications

Applications

RG7H1OR serves fixed energy transmission between transformer rooms and larger power users. The supplied catalogue describes installation in air, pipe or open route, with underground laying subject to the applicable installation rule. Check sheath protection, thermal conditions and route construction before specifying an unprotected buried installation.

For procurement, state voltage grade, three-core copper section, installation method, maximum pulling load, planned bend radii, screen earthing and required termination set. Reference guidance recommends 12 × OD minimum bend, 0 °C minimum installation temperature and 60 N/mm² maximum recommended copper-section pulling stress. Use the source air or buried current only as a starting point for project rating.

If separate single-core phase routes are required, use RG7H1R; if flat-wire armour is needed, review the armoured RG7 family.

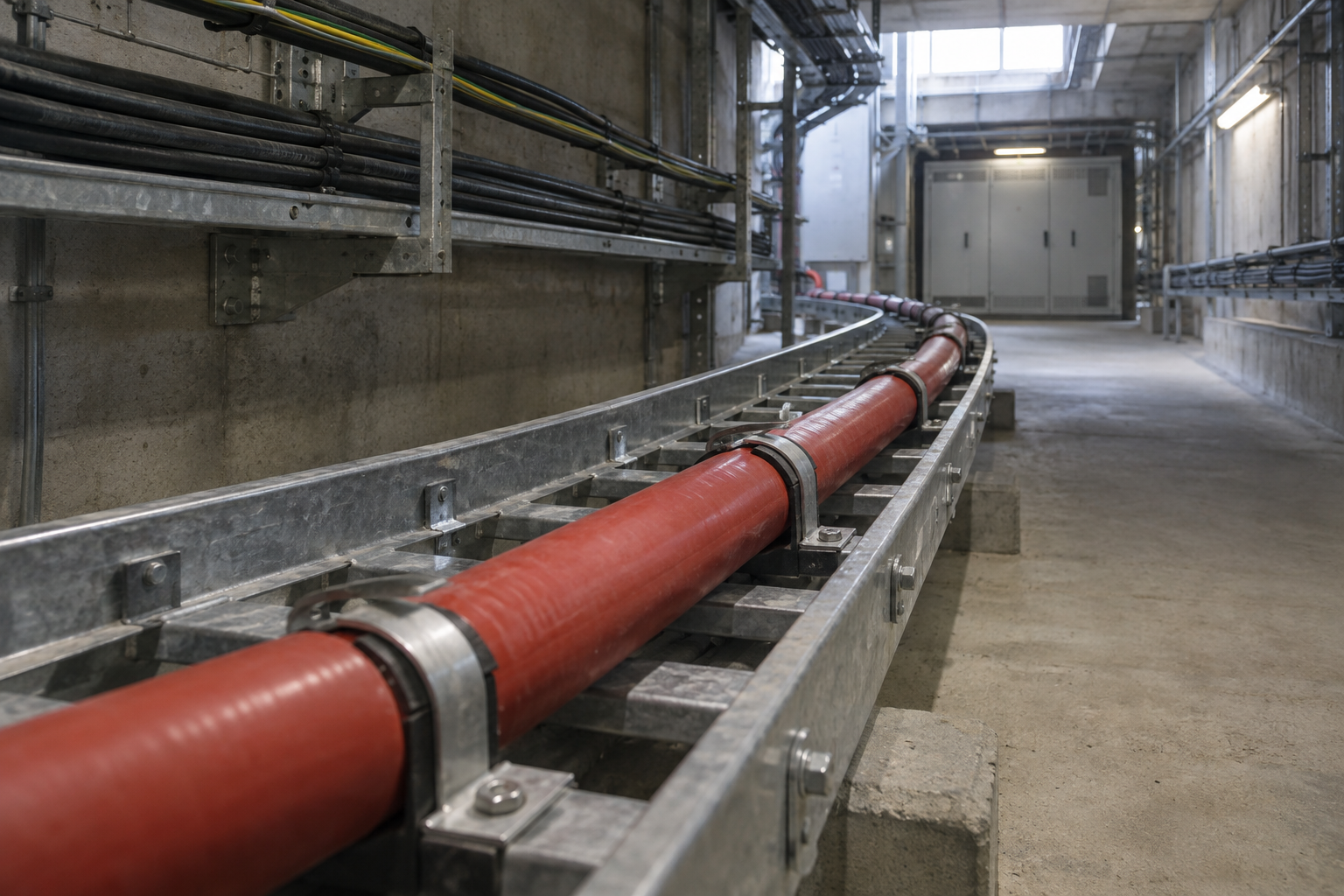

RG7H1OR three-core HEPR cable, three-core medium-voltage cable in an industrial cable route
Illustrative application setting for RG7H1OR Three-Core HEPR Insulated MV Cable; final cable route and terminations depend on the equipment design.
Specifications

Specifications

RG7 HEPR-insulated PVC-sheathed cable selection limits
Selection propertySource range or value
ConductorClass 2 compact stranded plain copper
HEPR insulationG7, lead-free in supplied catalogue
Max continuous operating temperature+90 °C
Minimum operating temperature−15 °C without mechanical shocks
Max short-circuit conductor temperature+250 °C
Minimum installation temperature0 °C
Recommended maximum pulling stress60 N/mm² of copper cross section
RG7H1OR selection summary
PropertyRG7H1OR source value
Rated U₀/U1.8/3–18/30 kV
Recommended minimum bend12 × cable OD
Metallic screenCopper tapes around individual cores
SheathRed Rz PVC

RG7H1OR 1.8/3 kV size and electrical data

RG7H1OR 1.8/3 kV configurations, dimensions and reference current ratings
Model + conductorConductor Ø mmInsulation mmMax OD mmApprox. kg/kmAir ABuried A
RG7H1OR 3 x 10 mm² 1.8/3 kV4.02.026.010508593
RG7H1OR 3 x 16 mm² 1.8/3 kV4.82.028.01200109120
RG7H1OR 3 x 25 mm² 1.8/3 kV6.02.030.21600145155
RG7H1OR 3 x 35 mm² 1.8/3 kV7.02.034.02000175185
RG7H1OR 3 x 50 mm² 1.8/3 kV8.12.036.02250208216
RG7H1OR 3 x 70 mm² 1.8/3 kV9.72.040.03200260265
RG7H1OR 3 x 95 mm² 1.8/3 kV11.42.043.44100318315
RG7H1OR 3 x 120 mm² 1.8/3 kV12.92.048.05000367360
RG7H1OR 3 x 150 mm² 1.8/3 kV14.32.052.05960415400
RG7H1OR 3 x 185 mm² 1.8/3 kV16.02.055.07100476453
RG7H1OR 3 x 240 mm² 1.8/3 kV18.32.062.09300555520
RG7H1OR 3 x 300 mm² 1.8/3 kV21.02.068.013000635585
RG7H1OR 3 x 400 mm² 1.8/3 kV23.22.075.014000716651
RG7H1OR 1.8/3 kV conductor and 50 Hz electrical characteristics
Model + conductorMax DC Ω/km at 20°CAC Ω/km at 90°CReactance Ω/kmCapacitance µF/km at 50 Hz
RG7H1OR 3 x 10 mm² 1.8/3 kV1.832.340.110.19
RG7H1OR 3 x 16 mm² 1.8/3 kV1.151.470.100.23
RG7H1OR 3 x 25 mm² 1.8/3 kV0.7270.9270.0970.27
RG7H1OR 3 x 35 mm² 1.8/3 kV0.5240.6690.0930.30
RG7H1OR 3 x 50 mm² 1.8/3 kV0.3870.4940.0880.34
RG7H1OR 3 x 70 mm² 1.8/3 kV0.2680.3420.0840.40
RG7H1OR 3 x 95 mm² 1.8/3 kV0.1930.2470.0810.45
RG7H1OR 3 x 120 mm² 1.8/3 kV0.1530.1970.0790.50
RG7H1OR 3 x 150 mm² 1.8/3 kV0.1240.1590.0770.55
RG7H1OR 3 x 185 mm² 1.8/3 kV0.09910.1290.0760.60
RG7H1OR 3 x 240 mm² 1.8/3 kV0.07540.09900.0740.68
RG7H1OR 3 x 300 mm² 1.8/3 kV0.06010.08070.0720.75
RG7H1OR 3 x 400 mm² 1.8/3 kV0.04700.06510.0710.83

Reference values are indicative. Confirm nominal dimensions and approximate mass on the project drawing; buried-current figures assume ground thermal resistivity of 100 °C cm/W.

RG7H1OR 3.6/6 kV size and electrical data

RG7H1OR 3.6/6 kV configurations, dimensions and reference current ratings
Model + conductorConductor Ø mmInsulation mmMax OD mmApprox. kg/kmAir ABuried A
RG7H1OR 3 x 10 mm² 3.6/6 kV4.03.030.512208593
RG7H1OR 3 x 16 mm² 3.6/6 kV4.83.032.51500109120
RG7H1OR 3 x 25 mm² 3.6/6 kV6.03.035.51850145153
RG7H1OR 3 x 35 mm² 3.6/6 kV7.03.037.52300175183
RG7H1OR 3 x 50 mm² 3.6/6 kV8.13.040.52800211216
RG7H1OR 3 x 70 mm² 3.6/6 kV9.73.044.53560262263
RG7H1OR 3 x 95 mm² 3.6/6 kV11.43.048.54510318315
RG7H1OR 3 x 120 mm² 3.6/6 kV12.93.052.05500370359
RG7H1OR 3 x 150 mm² 3.6/6 kV14.33.055.06350415400
RG7H1OR 3 x 185 mm² 3.6/6 kV16.03.059.57700477451
RG7H1OR 3 x 240 mm² 3.6/6 kV18.33.065.59700555518
RG7H1OR 3 x 300 mm² 3.6/6 kV21.03.070.511800635583
RG7H1OR 3 x 400 mm² 3.6/6 kV23.23.077.015000717651
RG7H1OR 3.6/6 kV conductor and 50 Hz electrical characteristics
Model + conductorMax DC Ω/km at 20°CAC Ω/km at 90°CReactance Ω/kmCapacitance µF/km at 50 Hz
RG7H1OR 3 x 10 mm² 3.6/6 kV1.832.340.120.15
RG7H1OR 3 x 16 mm² 3.6/6 kV1.151.470.120.17
RG7H1OR 3 x 25 mm² 3.6/6 kV0.7270.9270.110.20
RG7H1OR 3 x 35 mm² 3.6/6 kV0.5240.6690.100.23
RG7H1OR 3 x 50 mm² 3.6/6 kV0.3870.4940.0970.26
RG7H1OR 3 x 70 mm² 3.6/6 kV0.2680.3420.0920.30
RG7H1OR 3 x 95 mm² 3.6/6 kV0.1930.2470.0890.33
RG7H1OR 3 x 120 mm² 3.6/6 kV0.1530.1970.0860.37
RG7H1OR 3 x 150 mm² 3.6/6 kV0.1240.1590.0840.40
RG7H1OR 3 x 185 mm² 3.6/6 kV0.09910.1290.0820.44
RG7H1OR 3 x 240 mm² 3.6/6 kV0.07540.09900.0790.49
RG7H1OR 3 x 300 mm² 3.6/6 kV0.06010.08070.0770.54
RG7H1OR 3 x 400 mm² 3.6/6 kV0.04700.06510.0750.60

Reference values are indicative. Confirm nominal dimensions and approximate mass on the project drawing; buried-current figures assume ground thermal resistivity of 100 °C cm/W.

RG7H1OR 6/10 kV size and electrical data

RG7H1OR 6/10 kV configurations, dimensions and reference current ratings
Model + conductorConductor Ø mmInsulation mmMax OD mmApprox. kg/kmAir ABuried A
RG7H1OR 3 x 10 mm² 6/10 kV4.03.437.016507378
RG7H1OR 3 x 16 mm² 6/10 kV4.83.440.02100107112
RG7H1OR 3 x 25 mm² 6/10 kV6.03.442.52550145149
RG7H1OR 3 x 35 mm² 6/10 kV7.03.445.02850175178
RG7H1OR 3 x 50 mm² 6/10 kV8.13.448.03600208210
RG7H1OR 3 x 70 mm² 6/10 kV9.73.452.04200260257
RG7H1OR 3 x 95 mm² 6/10 kV11.43.456.05400316307
RG7H1OR 3 x 120 mm² 6/10 kV12.93.460.06300365350
RG7H1OR 3 x 150 mm² 6/10 kV14.33.463.07400407390
RG7H1OR 3 x 185 mm² 6/10 kV16.03.468.08600469440
RG7H1OR 3 x 240 mm² 6/10 kV18.33.474.011000550510
RG7H1OR 3 x 300 mm² 6/10 kV21.03.479.013000630580
RG7H1OR 3 x 400 mm² 6/10 kV23.23.485.016000720655
RG7H1OR 6/10 kV conductor and 50 Hz electrical characteristics
Model + conductorMax DC Ω/km at 20°CAC Ω/km at 90°CReactance Ω/kmCapacitance µF/km at 50 Hz
RG7H1OR 3 x 10 mm² 6/10 kV1.832.340.140.16
RG7H1OR 3 x 16 mm² 6/10 kV1.151.470.130.18
RG7H1OR 3 x 25 mm² 6/10 kV0.7270.9270.120.21
RG7H1OR 3 x 35 mm² 6/10 kV0.5240.6690.110.23
RG7H1OR 3 x 50 mm² 6/10 kV0.3870.4940.110.26
RG7H1OR 3 x 70 mm² 6/10 kV0.2680.3420.100.29
RG7H1OR 3 x 95 mm² 6/10 kV0.1930.2470.0970.32
RG7H1OR 3 x 120 mm² 6/10 kV0.1530.1970.0940.36
RG7H1OR 3 x 150 mm² 6/10 kV0.1240.1590.0910.38
RG7H1OR 3 x 185 mm² 6/10 kV0.09910.1290.0880.42
RG7H1OR 3 x 240 mm² 6/10 kV0.07540.09900.0850.47
RG7H1OR 3 x 300 mm² 6/10 kV0.06010.08070.0840.52
RG7H1OR 3 x 400 mm² 6/10 kV0.04700.06510.0820.57

Reference values are indicative. Confirm nominal dimensions and approximate mass on the project drawing; buried-current figures assume ground thermal resistivity of 100 °C cm/W.

RG7H1OR 8.7/15 kV size and electrical data

RG7H1OR 8.7/15 kV configurations, dimensions and reference current ratings
Model + conductorConductor Ø mmInsulation mmMax OD mmApprox. kg/kmAir ABuried A
RG7H1OR 3 x 16 mm² 8.7/15 kV4.84.546.0250098101
RG7H1OR 3 x 25 mm² 8.7/15 kV6.04.550.02900145145
RG7H1OR 3 x 35 mm² 8.7/15 kV7.04.552.03500177173
RG7H1OR 3 x 50 mm² 8.7/15 kV8.14.554.04000210204
RG7H1OR 3 x 70 mm² 8.7/15 kV9.74.558.04800262250
RG7H1OR 3 x 95 mm² 8.7/15 kV11.44.562.05900315298
RG7H1OR 3 x 120 mm² 8.7/15 kV12.94.566.06950361339
RG7H1OR 3 x 150 mm² 8.7/15 kV14.34.570.08000407378
RG7H1OR 3 x 185 mm² 8.7/15 kV16.04.574.09500470429
RG7H1OR 3 x 240 mm² 8.7/15 kV18.34.578.011800550500
RG7H1OR 3 x 300 mm² 8.7/15 kV21.04.585.014200630565
RG7H1OR 8.7/15 kV conductor and 50 Hz electrical characteristics
Model + conductorMax DC Ω/km at 20°CAC Ω/km at 90°CReactance Ω/kmCapacitance µF/km at 50 Hz
RG7H1OR 3 x 16 mm² 8.7/15 kV1.151.470.140.15
RG7H1OR 3 x 25 mm² 8.7/15 kV0.7270.9270.130.18
RG7H1OR 3 x 35 mm² 8.7/15 kV0.5240.6690.120.19
RG7H1OR 3 x 50 mm² 8.7/15 kV0.3870.4940.120.21
RG7H1OR 3 x 70 mm² 8.7/15 kV0.2680.3420.110.24
RG7H1OR 3 x 95 mm² 8.7/15 kV0.1930.2470.100.26
RG7H1OR 3 x 120 mm² 8.7/15 kV0.1530.1970.100.29
RG7H1OR 3 x 150 mm² 8.7/15 kV0.1240.1590.0970.31
RG7H1OR 3 x 185 mm² 8.7/15 kV0.09910.1290.0940.34
RG7H1OR 3 x 240 mm² 8.7/15 kV0.07540.09900.0900.37
RG7H1OR 3 x 300 mm² 8.7/15 kV0.06010.08070.0880.42

Reference values are indicative. Confirm nominal dimensions and approximate mass on the project drawing; buried-current figures assume ground thermal resistivity of 100 °C cm/W.

RG7H1OR 12/20 kV size and electrical data

RG7H1OR 12/20 kV configurations, dimensions and reference current ratings
Model + conductorConductor Ø mmInsulation mmMax OD mmApprox. kg/kmAir ABuried A
RG7H1OR 3 x 35 mm² 12/20 kV7.05.556.33950177175
RG7H1OR 3 x 50 mm² 12/20 kV8.15.558.04500210207
RG7H1OR 3 x 70 mm² 12/20 kV9.75.564.05500262253
RG7H1OR 3 x 95 mm² 12/20 kV11.45.567.06600315301
RG7H1OR 3 x 120 mm² 12/20 kV12.95.570.57600361342
RG7H1OR 3 x 150 mm² 12/20 kV14.35.573.68600407381
RG7H1OR 3 x 185 mm² 12/20 kV16.05.578.011000470431
RG7H1OR 3 x 240 mm² 12/20 kV18.35.584.012500550500
RG7H1OR 3 x 300 mm² 12/20 kV21.05.590.015000630562
RG7H1OR 12/20 kV conductor and 50 Hz electrical characteristics
Model + conductorMax DC Ω/km at 20°CAC Ω/km at 90°CReactance Ω/kmCapacitance µF/km at 50 Hz
RG7H1OR 3 x 35 mm² 12/20 kV0.5240.6690.130.17
RG7H1OR 3 x 50 mm² 12/20 kV0.3870.4940.120.18
RG7H1OR 3 x 70 mm² 12/20 kV0.2680.3420.110.21
RG7H1OR 3 x 95 mm² 12/20 kV0.1930.2470.100.23
RG7H1OR 3 x 120 mm² 12/20 kV0.1530.1970.100.25
RG7H1OR 3 x 150 mm² 12/20 kV0.1240.1590.100.27
RG7H1OR 3 x 185 mm² 12/20 kV0.09910.1290.0980.29
RG7H1OR 3 x 240 mm² 12/20 kV0.07540.09900.0940.32
RG7H1OR 3 x 300 mm² 12/20 kV0.06010.08070.0920.35

Reference values are indicative. Confirm nominal dimensions and approximate mass on the project drawing; buried-current figures assume ground thermal resistivity of 100 °C cm/W.

RG7H1OR 18/30 kV size and electrical data

RG7H1OR 18/30 kV configurations, dimensions and reference current ratings
Model + conductorConductor Ø mmInsulation mmMax OD mmApprox. kg/kmAir ABuried A
RG7H1OR 3 x 50 mm² 18/30 kV8.18.073.05980210205
RG7H1OR 3 x 70 mm² 18/30 kV9.78.076.06800260250
RG7H1OR 3 x 95 mm² 18/30 kV11.48.081.08400315300
RG7H1OR 3 x 120 mm² 18/30 kV12.98.084.09400360340
RG7H1OR 3 x 150 mm² 18/30 kV14.38.086.011000405380
RG7H1OR 3 x 185 mm² 18/30 kV16.08.090.013000465430
RG7H1OR 3 x 240 mm² 18/30 kV18.38.096.015000545496
RG7H1OR 18/30 kV conductor and 50 Hz electrical characteristics
Model + conductorMax DC Ω/km at 20°CAC Ω/km at 90°CReactance Ω/kmCapacitance µF/km at 50 Hz
RG7H1OR 3 x 50 mm² 18/30 kV0.3870.4940.130.15
RG7H1OR 3 x 70 mm² 18/30 kV0.2680.3420.130.16
RG7H1OR 3 x 95 mm² 18/30 kV0.1930.2470.120.18
RG7H1OR 3 x 120 mm² 18/30 kV0.1530.1970.120.19
RG7H1OR 3 x 150 mm² 18/30 kV0.1240.1590.110.20
RG7H1OR 3 x 185 mm² 18/30 kV0.09910.1290.110.22
RG7H1OR 3 x 240 mm² 18/30 kV0.07540.09900.100.24

Reference values are indicative. Confirm nominal dimensions and approximate mass on the project drawing; buried-current figures assume ground thermal resistivity of 100 °C cm/W.

Standards

Standards

Reference standards for this construction include CEI 20-13 and IEC 60502 for structure and electrical, physical and mechanical requirements; EN 60332-1-2 for flame propagation; and CEI 20-16 / IEC 60885-3 for partial-discharge measurement. Its underground-use note refers to CEI 11-17 Article 4.3.11. Specify the exact applicable edition and acceptance criteria in the purchase order.

Specify final test certificates and supply scope for the ordered voltage and conductor arrangement.

Compare by duty

Related cable options

Compare these cable options by service combination, movement, load, voltage and transmission requirement.

Engineering-led quotation

Request a cable recommendation and quotation

Send the required services, cable length, mechanical duty, environment, termination and quantity. Our team will review the application before quoting.

  • Include the product name or SKU plus the required cable length and quantity.
  • Attach a specification, drawing or data sheet when available.

    By submitting this form, you agree that TEBAOFLEX may use the contact information and files provided to review and respond to your enquiry. Files are used for quotation and engineering communication related to your request. See our Privacy Policy for current data handling and retention information.

    * Required fields. Please include the key cable or application details for review.
