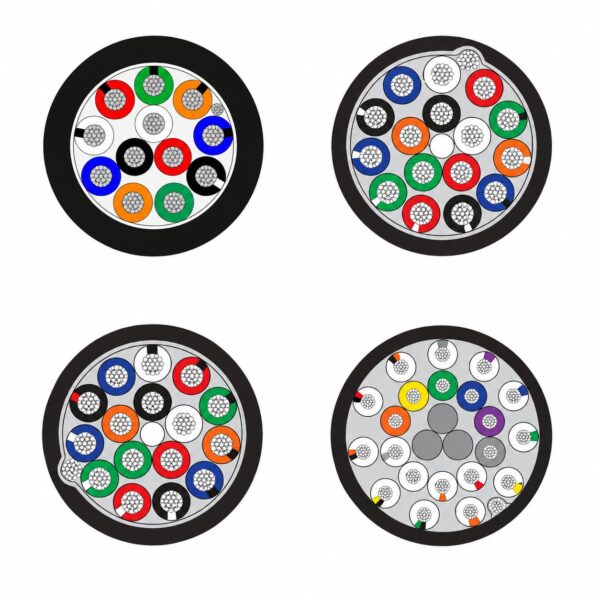

Screened underwater PUR cable cross-section options with multiple core configurations

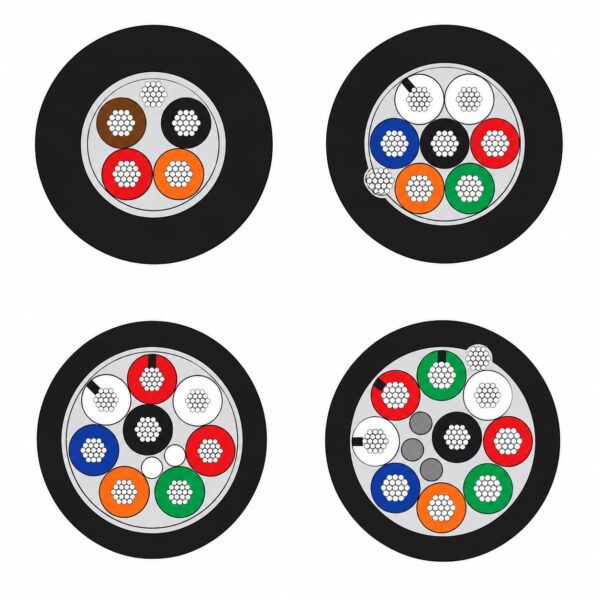

Screened underwater PUR cable cross-section options with four to eight power and control cores

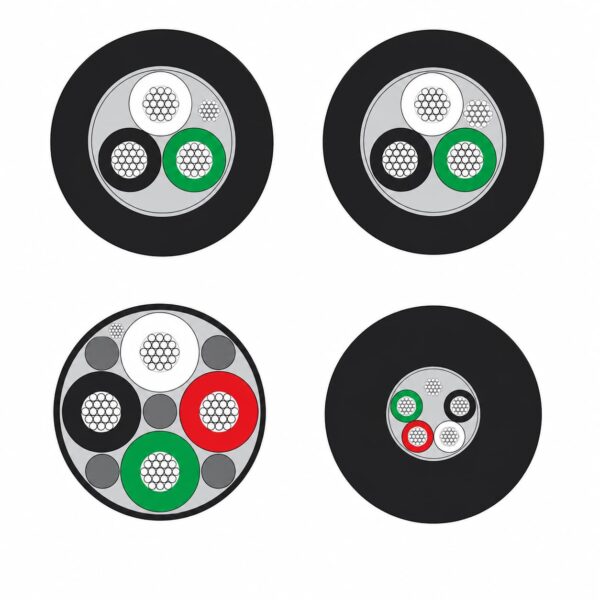

Screened underwater PUR cable cross-section options showing three-core and four-core constructions

Marine & Offshore Cables TEBAOFLEX

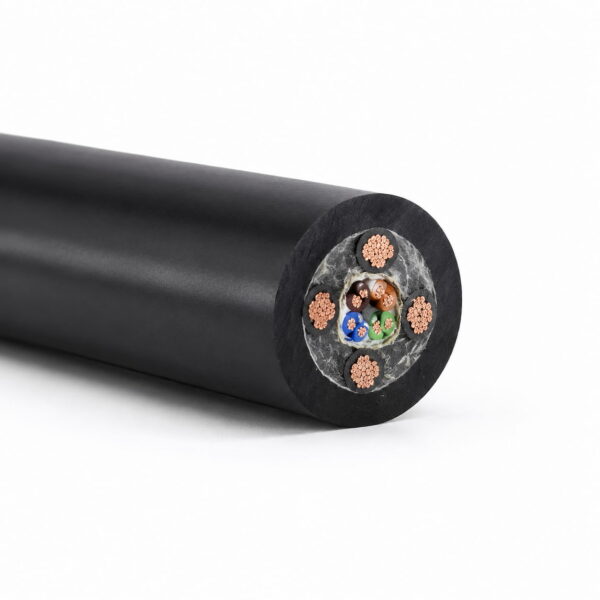

Screened Underwater PUR Cable – 3 to 21 Core

Screened underwater PUR cable is a build-to-order multi-core route for underwater equipment, instrument, control and connector-tail projects that require tinned copper conductors, an overall screen and a black polyurethane jacket.

Configuration range: 3 to 21 conductor positions
Conductor range: 0.34 to 8.0 mm² (22 to 8 AWG), depending on configuration
Screen: overall foil with drain wire; one supplied option uses an 85% minimum tinned-copper braid
Outer jacket: black polyurethane
Documented voltage: 300 V or 600 V only for the configurations where a value is supplied
Selection boundary: depth, pressure, immersion life, tensile duty and dynamic movement require project confirmation

For an RFQ, send the core count, conductor size, circuit voltage, cable length, equipment interface, movement, water depth and required tests.

SKU: SCREENED-UNDERWATER-PUR Category: Marine & Offshore Cables Brand: TEBAOFLEX

Product information

SKU: SCREENED-UNDERWATER-PUR
Category: Marine & Offshore Cables
Brand: TEBAOFLEX

Product overview

Screened Underwater PUR Cable Selection Overview

This screened underwater PUR cable family groups 14 conductor layouts for engineers comparing compact power, control and instrumentation routes in underwater equipment. The supplied configurations cover 3 to 21 tinned-copper conductor positions from 22 to 8 AWG, with a black polyurethane jacket and either an overall foil screen with drain wire or, for one eight-core option, a tinned-copper braid.

Select the electrical layout first, then verify the complete cable-and-termination system. The source data does not establish a common depth rating, pressure rating, waterblocking system, tensile capacity or dynamic-flex life. Voltage is stated only for selected configurations, so an unstated value must not be copied from another option.

Suitable selection route: protected underwater instrument, sensor, actuator, lighting and control connections.
Confirm before ordering: circuit load, length, voltage drop, screen bonding, connector or moulded termination and installation geometry.
Choose another construction when: the cable must carry deployment load, operate as a free-swimming tether or meet an unverified depth, pressure or dynamic-reeling requirement.

Compare this family within the marine and offshore cable range. Final supply requires an approved TEBAOFLEX drawing and project-specific technical review.

Construction

Screened Underwater PUR Cable Construction

All configurations use stranded tinned-copper conductors and a black polyurethane outer jacket. Insulation, screen type, drain-wire size, fillers and jacket thickness vary; select from the complete row rather than combining values from different options.

Configuration	Conductor	Insulation	Overall screen	Fillers / binder	Outer jacket
3 × 10 AWG (5.2 mm²)	3 × 5.2 mm² (10 AWG), 105/30 stranded tinned copper	Polypropylene, nominal 0.61 mm wall	Overall aluminum/polyester foil, foil facing inward; drain: 1.5 mm² (16 AWG), 26/30 stranded tinned copper	May be used as required for roundness	Black polyurethane, nominal 1.70 mm thickness
3 × 12 AWG (3.3 mm²)	3 × 3.3 mm² (12 AWG), 65/30 stranded tinned copper	Polypropylene, nominal 0.61 mm wall	Overall aluminum/polyester foil, foil facing inward; drain: 1.5 mm² (16 AWG), 26/30 stranded tinned copper	May be used as required for roundness	Black polyurethane, nominal 1.83 mm thickness
3 × 16 AWG (1.50 mm²)	3 × 1.50 mm² (16 AWG), 19/29 stranded tinned copper	Polypropylene, approximately 0.35 mm wall	Overall aluminum/polyester foil, foil facing inward; drain: 20 AWG drain wire	Filler for roundness	Black polyurethane, nominal 1.27 mm thickness
3 × 18 AWG (0.80 mm²)	3 × 0.80 mm² (18 AWG), source stranding stated as 19/.0092, tinned copper	Polypropylene, approximately 0.35 mm wall	Overall aluminum/polyester foil, foil facing inward; drain: 20 AWG drain wire	Filler for roundness	Black polyurethane, nominal 1.27 mm thickness
4 × 8 AWG (8.0 mm²)	4 × 8.0 mm² (8 AWG) stranded tinned copper	Polyethylene	Overall foil tape with polyester applied over the foil; drain: 16 AWG drain wire	Solid polypropylene rod fillers for roundness	Glossy black polyurethane, nominal 1.58 mm thickness
4 × 18 AWG (0.80 mm²)	4 × 0.80 mm² (18 AWG) stranded tinned copper	Polypropylene	Overall aluminum/Mylar wrap; drain: 0.50 mm² (20 AWG) tinned copper drain wire	Not separately stated	Black polyurethane, nominal 1.52 mm thickness
4 × 20 AWG (0.50 mm²)	4 × 0.50 mm² (20 AWG), 19-strand tinned copper	Polypropylene, nominal 0.30 mm; black, orange, red and brown cores	Overall aluminum/polyester foil, foil facing inward; drain: 0.50 mm² (20 AWG) tinned copper drain wire	Not separately stated	Glossy black polyurethane, nominal 2.03 mm thickness
7 × 20 AWG (0.50 mm²)	7 × 0.50 mm² (20 AWG), 19/32 stranded tinned copper; source wording requires confirmation	Tefzel	Overall aluminum/Mylar wrap; drain: Stranded drain wire; size not supplied	Not separately stated	Black polyurethane; source states 1.65 mm² thickness and the unit requires confirmation
8 × 16 AWG (1.34 mm²)	8 × 1.34 mm² (16 AWG) stranded tinned copper	Polypropylene, nominal 0.38 mm wall	Braided tinned copper, minimum 85% coverage, source braid-wire size 36 AWG; drain: Not separately stated	Fibrillated fillers as required, with overall clear polyester binder	Black polyurethane, nominal 1.5 mm thickness
9 × 20 AWG (0.52 mm²)	9 × 0.52 mm² (20 AWG) stranded tinned copper	Polypropylene; supplied core color sequence documented in the source	Overall aluminum/polyester foil; drain: Drain wire; size not supplied	Three fillers for roundness	Glossy black polyurethane, nominal 1.27 mm thickness
16 × 16 AWG (1.50 mm²)	16 × 1.50 mm² (16 AWG) stranded tinned copper	Polypropylene	Overall aluminum/Mylar wrap; drain: 0.50 mm² (20 AWG) stranded tinned copper drain wire	Rod filler for roundness	Black polyurethane, 86A Shore hardness, nominal 1.65 mm thickness
16 × 20 AWG (0.50 mm²)	16 × 0.50 mm² (20 AWG) stranded tinned copper	Polypropylene	Overall aluminum foil wrap; drain: Drain wire; size not supplied	May be used as required for roundness	Black polyurethane, nominal 1.6 mm thickness
16 × 22 AWG (0.34 mm²)	16 × 0.34 mm² (22 AWG) stranded tinned copper	Teflon	Overall aluminum/Mylar wrap; drain: Drain wire; size not supplied	Not separately stated	Black polyurethane, nominal 2.16 mm thickness
21 × 20 AWG (0.52 mm²)	21 × 0.52 mm² (20 AWG), 19/32 stranded tinned copper	Polypropylene	Overall aluminum/polyester foil; drain: 20 AWG drain wire	Three fillers for roundness with overall clear polyester binder	Black polyurethane, nominal 1.52 mm thickness

Screen termination and mechanical boundary

The foil or braid must be bonded through a compatible connector, gland or moulded termination. No supplied configuration includes a verified tensile member, armour or waterblocking system, so the cable must not be treated as a load-bearing tether or depth-rated assembly without separate evidence.

Applications

Applications for Screened Underwater PUR Cable

Use this family as a configuration route where an underwater equipment connection needs multiple copper circuits, an overall screen and a compact PUR-jacketed construction. Final suitability depends on the termination and the complete environmental duty.

Protected power and control connections for underwater instruments, sensors, actuators and lighting.
Connector tails or moulded cable assemblies after the connector interface, sealing method and pressure validation are defined.
Multi-core screened links where a drain wire or braid provides a planned screen-bonding route.
Custom equipment wiring where the buyer can specify core count, conductor size, length and circuit allocation.

Do not select from conductor count alone

This page does not establish suitability for free-swimming ROV tethers, towing, suspension, repeated reeling, seabed burial or long-term immersion at a stated depth. Those duties require confirmed waterblocking, pressure, tensile, bend, fatigue, buoyancy and termination data.

RFQ inputs

Send the equipment, circuit voltage and current, signal type, cable length, core allocation, screen-bonding plan, connector or gland, water depth, pressure, temperature, movement pattern, minimum bend geometry and required inspection documents.

Specifications

Screened Underwater PUR Cable Specifications

Values below are configuration-specific. A blank property was not supplied and must not be inferred from another option. Nominal source values require confirmation on the final TEBAOFLEX drawing.

3 × 10 AWG (5.2 mm²)

Outside diameter	12.70 mm nominal

3 × 12 AWG (3.3 mm²)

Outside diameter	11.43 mm nominal

3 × 16 AWG (1.50 mm²)

Outside diameter	7.24 mm nominal
Documented voltage	300 V operating voltage

3 × 18 AWG (0.80 mm²)

Outside diameter	6.58 mm nominal
Documented voltage	300 V operating voltage

4 × 8 AWG (8.0 mm²)

Outside diameter	16.55 mm nominal

4 × 18 AWG (0.80 mm²)

Outside diameter	8.26 mm nominal

4 × 20 AWG (0.50 mm²)

Outside diameter	8.00 ± 0.25 mm
Documented voltage	600 V operating voltage

7 × 20 AWG (0.50 mm²)

Outside diameter	8.0 mm nominal
Documented voltage	600 V operating voltage
Manual-review warning	Source labels the seven elements as twisted pairs although the configuration notation and cross-section indicate seven conductor positions.

8 × 16 AWG (1.34 mm²)

Outside diameter	11.13 ± 0.25 mm
Documented voltage	600 V rating
Temperature	80 °C operating temperature
Bending radius	133 mm bending radius
Weight in air	463 kg/km
Weight in water	193 kg/km
DC resistance	14.72 Ω/km DC resistance

9 × 20 AWG (0.52 mm²)

Outside diameter	9.12 mm
Additional source statement	Source states the cable is halogen-free; no test method or standard is supplied

16 × 16 AWG (1.50 mm²)

Outside diameter	14.23 mm nominal

16 × 20 AWG (0.50 mm²)

Outside diameter	10.4 ± 0.5 mm
Documented voltage	600 V operating voltage
Bending radius	102 mm minimum bending radius
Weight in air	171 kg/km
Weight in water	83 kg/km

16 × 22 AWG (0.34 mm²)

Outside diameter	10.55 mm nominal

21 × 20 AWG (0.52 mm²)

Outside diameter	14.70 ± 0.25 mm
Documented voltage	300 V operating voltage
Temperature	80 °C maximum operating temperature
Bending radius	152 mm bending radius
Weight in air	259 kg/km
Weight in water	90 kg/km
DC resistance	29 Ω/km DC resistance

Selection notes

Calculate voltage drop and conductor heating for the actual circuit length and installation.
Check the stated outside diameter against the connector, mould, gland, bend exit and routing space.
Do not transfer a 300 V, 600 V, temperature, bend or weight value to a configuration where the source is silent.

Standards

Standards and Documentation Status

CE, UL, IEC, EN, marine-class, waterblocking or certified-submersible claim.
