Tri-rated H05V2-K / H07V2-K / BS 6231 UL1015 CSA Flexible PVC Cable
Tri-rated H05V2-K / H07V2-K / BS 6231 UL1015 CSA Flexible PVC Cable is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. Tri-rated cable is a heat resistant, flame retardant flexible PVC insulated cable designed for switchgear, control panels, relay panels, instrumentation panels and internal equipment wiring. The source record places this product in high temperature cables. Before ordering, confirm the exact product variant, conductor or core arrangement, system rating, route conditions, equipment connection and required documentation against the project specification. Send the exact size, length, installation duty and documentation requirements for a technical quotation.
Tri-rated H05V2-K / H07V2-K / BS 6231 UL1015 CSA Flexible PVC Cable is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. Tri-rated cable is a heat resistant, flame retardant flexible PVC insulated cable designed for switchgear, control panels, relay panels, instrumentation panels and internal equipment wiring. The source record places this product in high temperature cables. Before ordering, confirm the exact product variant, conductor or core arrangement, system rating, route conditions, equipment connection and required documentation against the project specification. The requested Tri-rated H05V2-K / H07V2-K / BS 6231 UL1015 CSA Flexible PVC Cable should be evaluated as a complete cable assembly: review its intended equipment, conductor arrangement, installation method, movement duty, environment, terminations, dimensions and required documentation together. The V2 layout keeps the source-listed construction, application, technical and standard information available for a controlled engineering and procurement review. Use the Request Quote section to confirm the exact configuration, route conditions and documentation requirements before production or replacement ordering. For a reliable quotation, provide the cable marking, requested length, installation environment, load or signal duty, termination details and any required test or compliance documents.
Tri-rated H05V2-K / H07V2-K / BS 6231 UL1015 CSA Flexible PVC Cable construction

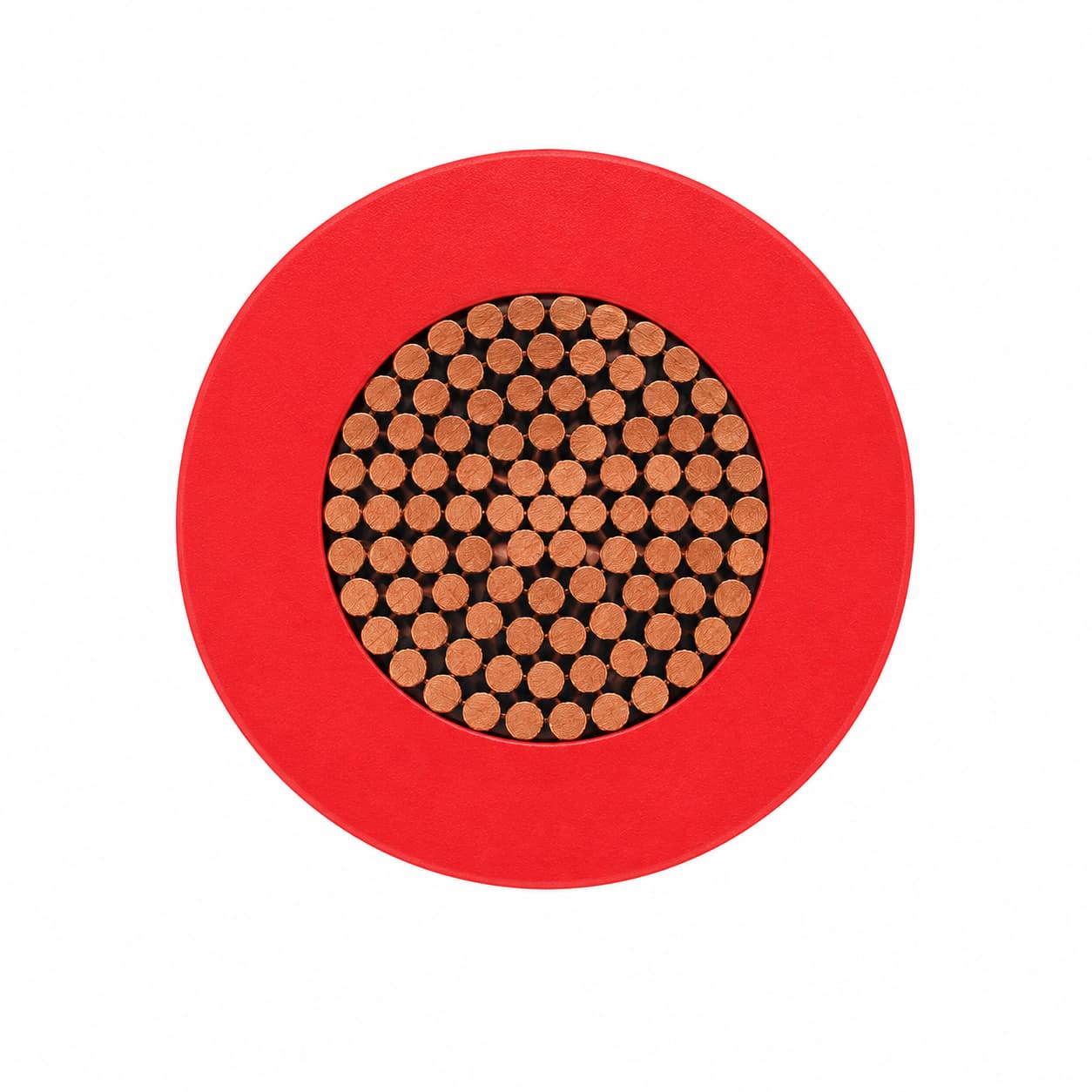

Cable Construction
- Conductor: Class 5 flexible copper conductor in accordance with IEC/EN 60228.
- Insulation: Heat resistant and flame retardant PVC insulation.
- Insulation Colours: Red, black, blue, light blue, dark blue, yellow, green/yellow, grey, brown, orange, white, violet, green and pink.
Tri-rated H05V2-K / H07V2-K / BS 6231 UL1015 CSA Flexible PVC Cable applications
Applications

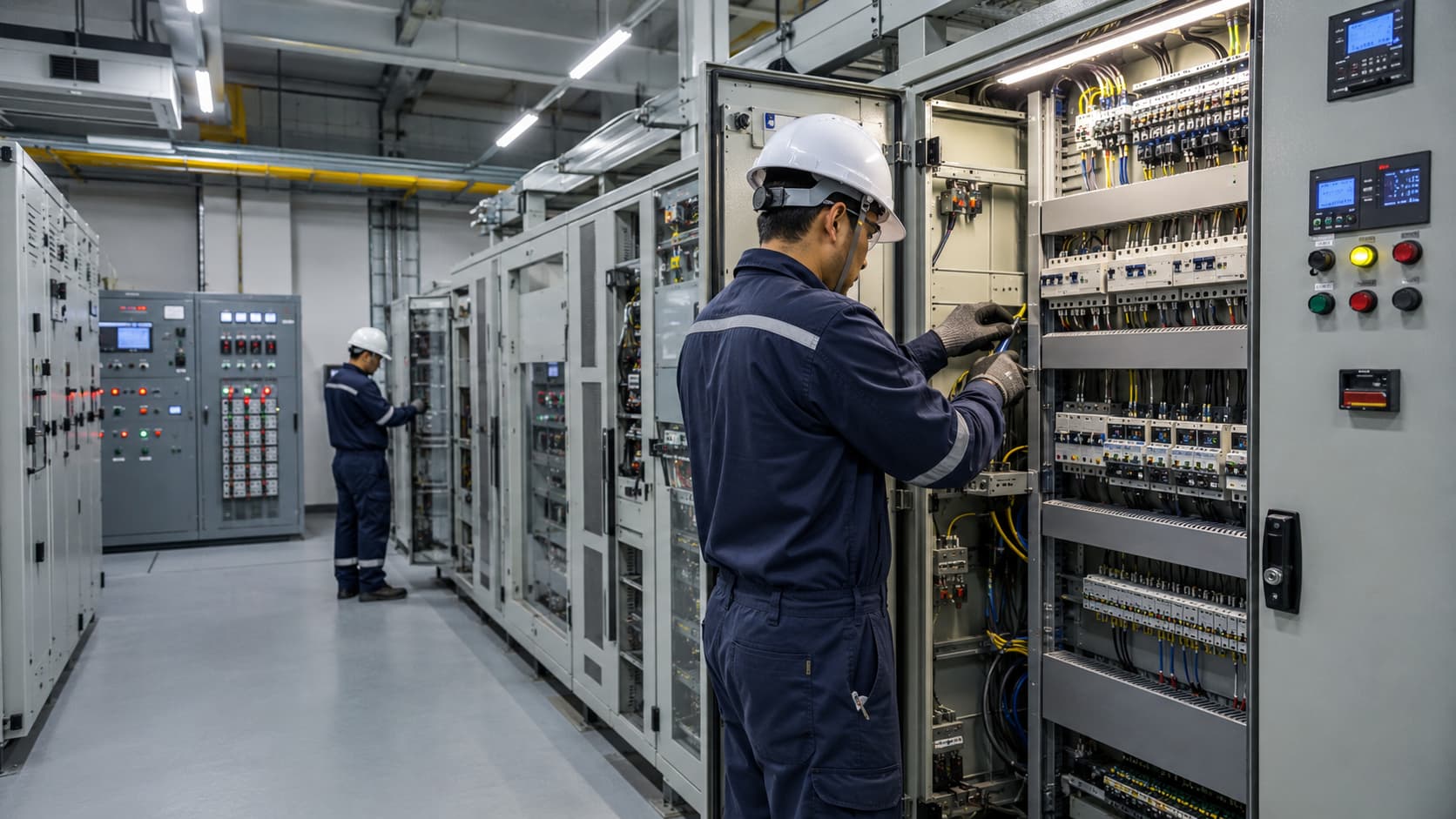

- Switchgear panel wiring
- Control panel and relay panel wiring
- Instrumentation panel wiring
- Internal connectors in rectifier equipment
- Motor starters and motor controllers
- Industrial electrical equipment requiring flexible single core panel wire
Selection checks
Confirm the equipment interface, installation method, route length, movement or flexing duty, environmental exposure, conductor or core requirements and project documentation before final selection.
Tri-rated H05V2-K / H07V2-K / BS 6231 UL1015 CSA Flexible PVC Cable specifications
Source-listed technical tables
The tables below retain the original product data, including units, ranges and ordering examples.
| Product Name | Tri-rated H05V2-K / H07V2-K / BS 6231 UL1015 CSA Flexible PVC Cable |
| Cable Type | Single core flexible PVC insulated panel wire |
| UL Style Number | 1015 |
| Conductor | Class 5 flexible copper conductor |
| Insulation | PVC, Polyvinyl Chloride |
| Voltage Rating | UL, CSA, BS 6231: 0.6/1kV; H05V2-K 0.5mm² to 1mm²: 300/500V; H07V2-K 1.5mm² and above: 450/750V |
| Temperature Rating | UL/CSA: -15°C to +105°C; BS 6231: -15°C to +90°C; suitable down to -40°C for fixed installations only |
| Minimum Bending Radius | 6 x overall diameter |
| Size Range | 0.5mm² to 240mm² |
| Flame Retardant Standard | IEC/EN 60332-1-2 |
Tri-rated H05V2-K / H07V2-K / BS 6231 UL1015 CSA Flexible PVC Cable standards and compliance
The following standard references are carried over from the original product record. They identify the source basis and do not replace project-specific certification or inspection requirements.
- Multiple approvals in one cable: Suitable for equipment wiring where BS, EN, UL and CSA recognition may be required across different export markets.
- Heat resistant PVC insulation: Designed for demanding internal wiring applications with operating temperatures up to +105°C under UL and CSA ratings.
- Flame retardant performance: Meets IEC/EN 60332-1-2 flame retardant requirements, supporting safer panel and equipment design.
- Product Name Tri-rated H05V2-K / H07V2-K / BS 6231 UL1015 CSA Flexible PVC Cable
- UL Style Number 1015
- Voltage Rating UL, CSA, BS 6231: 0.6/1kV; H05V2-K 0.5mm² to 1mm²: 300/500V; H07V2-K 1.5mm² and above: 450/750V
- Temperature Rating UL/CSA: -15°C to +105°C; BS 6231: -15°C to +90°C; suitable down to -40°C for fixed installations only
- Flame Retardant Standard IEC/EN 60332-1-2
- Conductor: Class 5 flexible copper conductor in accordance with IEC/EN 60228.
- EN 50525-2-31
- BS 6231 Type CK
- UL Subject 758, UL1015
- CSA C22.2 No.210
- IEC/EN 60228
- IEC/EN 60332-1-2 flame retardant performance
Where a project requires a test report, certificate, marking record or inspection release, include that requirement in the quotation request.
Request a cable recommendation and quotation
Send the required services, cable length, mechanical duty, environment, termination and quantity. Our team will review the application before quoting.
- Include the product name or SKU plus the required cable length and quantity.
- Attach a specification, drawing or data sheet when available.
