Type 209 Mining Cable

Type 209 Mining Cable is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. Type 209 flexible copper screened mining cable is designed for power supply to mining machinery, mobile equipment, drills, hand tools and heavy-duty industrial trailing applications where flexibility, screening and tough sheath performance are required. The source record places this product in mining & tunneling cables. Before ordering, confirm the exact product variant, conductor or core arrangement, system rating, route conditions, equipment connection and required documentation against the project specification. The requested Type 209 Mining Cable should be evaluated as a complete cable assembly: review its intended equipment, conductor arrangement, installation method, movement duty, environment, terminations, dimensions and required documentation together. The V2 layout keeps the source-listed construction, application, technical and standard information available for a controlled engineering and procurement review. Use the Request Quote section to confirm the exact configuration, route conditions and documentation requirements before production or replacement ordering. For a reliable quotation, provide the cable marking, requested length, installation environment, load or signal duty, termination details and any required test or compliance documents.

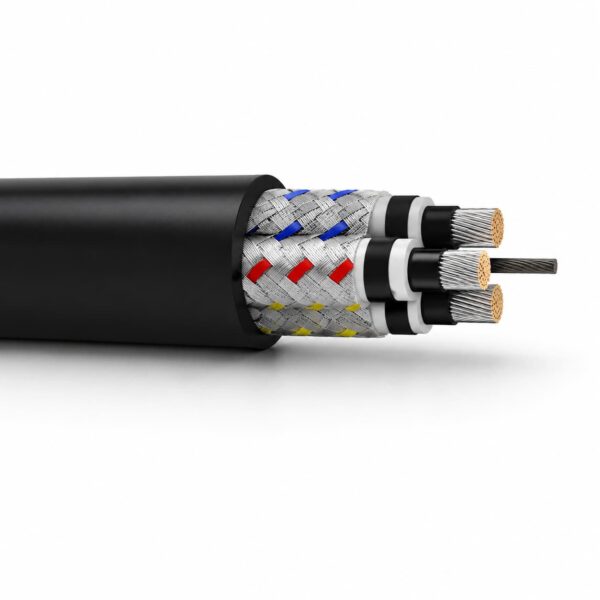

Type 209 Mining Cable construction

Cable Construction

1. Conductor: Tinned annealed copper wires provide a flexible current path for mobile and trailing mining equipment.
2. Separator / Screen: Type 209.1 uses a paper separator, while higher voltage versions use semi-conductive thermosetting compound.
3. Insulation: EPR type R-EP-90 insulation provides thermal and electrical stability for flexible mining service.
4. Insulation Screen: Type 209.1 uses synthetic tape; Type 209.3 and above use semi-conductive thermosetting compound.
5. Screen: Tinned copper/polyamide braid supports screened operation in mining power circuits.
6. Central Pilot Core: Flexible stranded tinned copper pilot core with EPR covering for control or monitoring functions.
7. Cable Assembly: Three screened power cores are laid up with right-hand direction on a cradle separator around the central pilot core.
8. Cradle Separator: Semi-conductive thermosetting compound helps maintain the cable geometry and electrical design.
9. Outer Sheath: Black PCP thermosetting compound HD-85-PCP provides extra heavy-duty protection, oil resistance and flame retardance.

Type 209 Mining Cable applications

Applications

• Flexible feeder cable for mining machinery.
• Trailing cable for mobile mining equipment.
• Power supply cable for drills and hand-held tools in smaller sizes.
• Industrial machinery operating in oil, water, UV, ozone or abrasive environments.
• Mining power distribution where screened flexible cable construction is required.

Smaller drill and hand-tool circuits can also be compared with the Type 210 1.1kV mining drill cable, which is designed for hand-held boring machines and drills, with EPR insulation and a heavy-duty PCP sheath.

Selection checks

Confirm the equipment interface, installation method, route length, movement or flexing duty, environmental exposure, conductor or core requirements and project documentation before final selection.

Type 209 Mining Cable specifications

Source-listed technical tables

The tables below retain the original product data, including units, ranges and ordering examples.

Original product attributes

These product attributes are retained as supplied and should be checked against the ordered construction.

Type 209 Mining Cable standards and compliance

The following standard references are carried over from the original product record. They identify the source basis and do not replace project-specific certification or inspection requirements.

• Standards AS/NZS 1802:2003, AS/NZS 1125:2001

Where a project requires a test report, certificate, marking record or inspection release, include that requirement in the quotation request.
