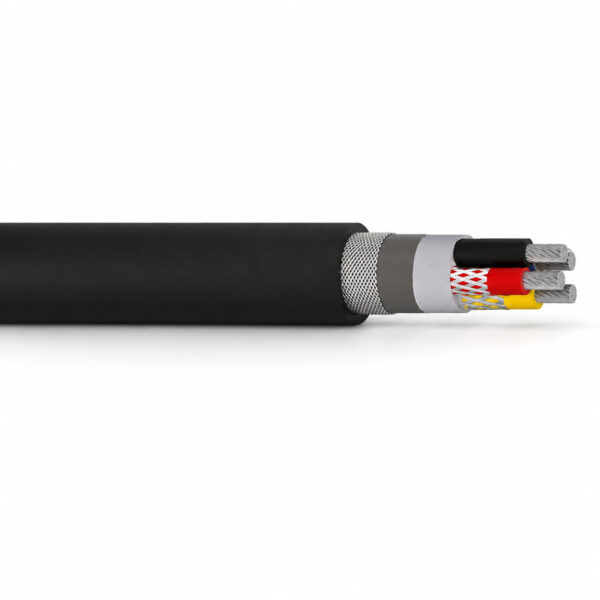

Type 41 Cable 640/1100V Mining | TEBAOFLEX is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. Type 41 Cable for 640/1100V mining applications, designed for portable electrical equipment, movable machinery and hazardous-area equipment. Built with class 5 tinned copper conductors, EPR insulation, screened power cores, one pilot core, CR inner and outer sheath, and open nylon braid reinforcement for flexibility and mechanical protection. The source record places this product in mining & tunneling cables. Before ordering, confirm the exact product variant, conductor or core arrangement, system rating, route conditions, equipment connection and required documentation against the project specification. The requested Type 41 Cable 640/1100V Mining | TEBAOFLEX should be evaluated as a complete cable assembly: review its intended equipment, conductor arrangement, installation method, movement duty, environment, terminations, dimensions and required documentation together. The V2 layout keeps the source-listed construction, application, technical and standard information available for a controlled engineering and procurement review. Use the Request Quote section to confirm the exact configuration, route conditions and documentation requirements before production or replacement ordering. For a reliable quotation, provide the cable marking, requested length, installation environment, load or signal duty, termination details and any required test or compliance documents.

Type 41 Cable 640/1100V Mining | TEBAOFLEX construction

CR Sheath for Mechanical Protection

• Inner and outer sheaths use CR polychloroprene rubber for durability in industrial environments.
• Open nylon braid reinforcement with minimum 16 nylon strings improves mechanical strength.
• Black outer sheath is suitable for heavy-duty mining and portable equipment use.

Type 41 Cable 640/1100V Mining | TEBAOFLEX applications

Recommended Applications

• Small pumps, fans and drills using 2.5mm2 cable
• Shuttle cars using 16mm2 cable
• Reeling applications using 16mm2 and 25mm2 cable sizes
• Portable electrical equipment in mining sites
• Movable electric apparatus in hazardous areas
• General 640/1100V mining cable applications requiring a flexible screened cable

Selection checks

Confirm the equipment interface, installation method, route length, movement or flexing duty, environmental exposure, conductor or core requirements and project documentation before final selection.

Type 41 Cable 640/1100V Mining | TEBAOFLEX specifications

Source-listed technical tables

The tables below retain the original product data, including units, ranges and ordering examples.

Type 41 Cable 640/1100V Mining | TEBAOFLEX standards and compliance

The following standard references are carried over from the original product record. They identify the source basis and do not replace project-specific certification or inspection requirements.

• This SANS Type 41 Cable is suitable for electrically driven machines, movable electric apparatus in hazardous areas, small pumps, fans, drills and shuttle cars. It can be used for both reeling and non-reeling applications, depending on conductor size and site requirements.
• Product name SANS Type 41 Cable
• Standards SANS 1520-1, SANS 1411-1, SANS 1411-3
• Insulation EPR thermosetting compound type RD3, compliant with SANS 1411-3
• Inner sheath CR polychloroprene rubber, type RS6, compliant with SANS 1411-3

Where a project requires a test report, certificate, marking record or inspection release, include that requirement in the quotation request.
