Type 611 Cable 6.35/11kV Mining | TEBAOFLEX
Type 611 Cable 6.35/11kV Mining | TEBAOFLEX is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. Type 611 Cable and Type 611 ECC Cable for 6.35/11kV mining power systems, designed for electrically driven machines, section feeders, movable apparatus, draglines, shovels and drills. Built with class 5 tinned copper conductors, screened power cores, pilot cores and a heavy-duty TPU outer jacket for flexibility, abrasion resistance, oil resistance and UV protection. Send the exact size, length, installation duty and documentation requirements for a technical quotation.
Type 611 Cable 6.35/11kV Mining | TEBAOFLEX is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. Type 611 Cable and Type 611 ECC Cable for 6.35/11kV mining power systems, designed for electrically driven machines, section feeders, movable apparatus, draglines, shovels and drills. Built with class 5 tinned copper conductors, screened power cores, pilot cores and a heavy-duty TPU outer jacket for flexibility, abrasion resistance, oil resistance and UV protection. The source record places this product in mining & tunneling cables. Before ordering, confirm the exact product variant, conductor or core arrangement, system rating, route conditions, equipment connection and required documentation against the project specification. The requested Type 611 Cable 6.35/11kV Mining | TEBAOFLEX should be evaluated as a complete cable assembly: review its intended equipment, conductor arrangement, installation method, movement duty, environment, terminations, dimensions and required documentation together. The V2 layout keeps the source-listed construction, application, technical and standard information available for a controlled engineering and procurement review. Use the Request Quote section to confirm the exact configuration, route conditions and documentation requirements before production or replacement ordering.
Type 611 Cable 6.35/11kV Mining | TEBAOFLEX construction
Construction details are retained from the original product record and require project confirmation against the ordered cable schedule.
Type 611 Cable 6.35/11kV Mining | TEBAOFLEX applications
Built for Safer Installation and Handling
- Minimum bending radius data helps EPC teams design safer cable routes.
- Maximum recommended tension supports controlled installation planning.
- Transparent sheath with orange and silver reflective tape improves cable visibility around mobile equipment.
Recommended Applications
- Electrically driven mining machines
- Movable electric apparatus in hazardous areas
- Section feeders and medium-voltage mine power distribution
- Open cast mining equipment
- Medium-sized draglines, shovels and drills
- Industrial applications requiring a flexible 6.35/11kV screened cable
Selection checks
Confirm the equipment interface, installation method, route length, movement or flexing duty, environmental exposure, conductor or core requirements and project documentation before final selection.
Type 611 Cable 6.35/11kV Mining | TEBAOFLEX specifications
The source-listed technical notes are retained below. Confirm the final size, tolerance, installation basis and ordered configuration before release.

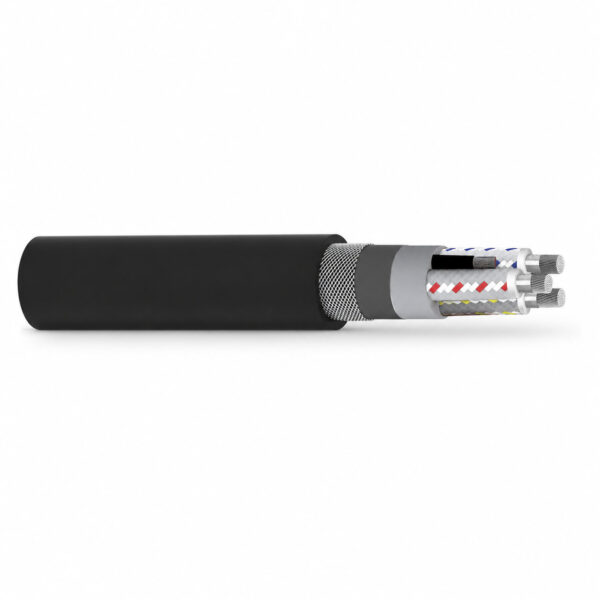

Type 611 Cable for Medium-Voltage Mining Equipment
This flexible copper screened mining cable is suitable for mining machinery and portable apparatus, including equipment used in hazardous areas. It is commonly used for section feeders, open cast mining, medium-sized draglines, shovels and drills where a robust 6.35/11kV cable is required.
Source-listed technical tables
The tables below retain the original product data, including units, ranges and ordering examples.
| Product name | Type 611 Cable / Type 611 ECC Cable |
| Voltage rating | 6.35/11kV |
| Standards | SANS 1520-2, SANS 1411-1, SANS 1411-3, ICEA S-75-381 |
| Cable type | Flexible copper screened mining cable |
| Conductors | Flexible class 5 tinned annealed copper conductors |
| Insulation | EPR thermosetting compound type RD3 with strippable semi-conducting core screen |
| Insulation screen | Tinned copper braid |
| Cable assembly | Three screened power cores and three pilot cores laid around a semi-conductive filler centre |
| ECC variant | One pilot core can be replaced with a tinned ECC conductor |
| Outer jacket | Extra-heavy-duty TPU jacket according to ICEA S-75-381 Tab. 3-3 |
| Outer jacket color | Transparent with orange and silver reflective tape under TPU jacket |
| Maximum conductor operating temperature | +90°C |
| Maximum conductor temperature during short circuit | +250°C |
| Lowest ambient temperature for mobile systems | -25°C |
| Flame retardant | IEC 60332-1-2 |
| Oil resistance | IEC 60811 |
| Standard packing | 500m on drums; other packing and delivery options available on request |
| Power core conductor size | 120mm2 |
| Power core maximum wire diameter | 0.51mm |
| Approximate power conductor diameter | 15.5mm |
| Maximum screen wire diameter | 0.31mm |
| Braided screen filling factor | 60% |
| Approximate summarized screen cross-section | 43mm2 |
| Pilot core conductor size | 16mm2 |
| Pilot core maximum wire diameter | 0.41mm |
| Approximate pilot conductor diameter | 5.3mm |
| ECC size | 70mm2 |
| ECC maximum wire diameter | 0.51mm |
| Maximum lay ratio | 20 x PCD |
| Approximate cable diameter | 72.5mm |
| Approximate cable mass, Type 611 | 8.23kg/m |
| Approximate cable mass, Type 611 ECC | 8.58kg/m |
| Minimum bending radius | 640mm |
| Maximum recommended tension | 5.4kN |
Type 611 Cable 6.35/11kV Mining | TEBAOFLEX standards and compliance
The following standard references are carried over from the original product record. They identify the source basis and do not replace project-specific certification or inspection requirements.
- Extra-heavy-duty TPU jacket according to ICEA S-75-381 Tab. 3-3.
- Standards SANS 1520-2, SANS 1411-1, SANS 1411-3, ICEA S-75-381
- Outer jacket Extra-heavy-duty TPU jacket according to ICEA S-75-381 Tab. 3-3
- Flame retardant IEC 60332-1-2
- Oil resistance IEC 60811
Where a project requires a test report, certificate, marking record or inspection release, include that requirement in the quotation request.
Request a cable recommendation and quotation
Send the required services, cable length, mechanical duty, environment, termination and quantity. Our team will review the application before quoting.
- Include the product name or SKU plus the required cable length and quantity.
- Attach a specification, drawing or data sheet when available.
