(N)TSCGEWTOEUS Reeling Cable for Mining and Tunneling Equipment
(N)TSCGEWTOEUS Reeling Cable for Mining and Tunneling Equipment is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. The layers include: Please review the technical limits below: * Note: Cross-sections up to 24kV and 30kV are fully available. The table highlights common mining specifications. Overview: The TEBAOFLEX NTSCGEWTOEUS cable is an ultimate medium-voltage flexible power cable designed for high-stress material handling machines. Send the exact size, length, installation duty and documentation requirements for a technical quotation.
(N)TSCGEWTOEUS Reeling Cable for Mining and Tunneling Equipment is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. The layers include: Please review the technical limits below: * Note: Cross-sections up to 24kV and 30kV are fully available. The table highlights common mining specifications. Overview: The TEBAOFLEX NTSCGEWTOEUS cable is an ultimate medium-voltage flexible power cable designed for high-stress material handling machines. Featuring a high-visibility red PCP outer sheath and embedded Kevlar reinforcement, it ensures maximum durability in mining and tunneling operations. The source record places this product in mining & tunneling cables. Before ordering, confirm the exact product variant, conductor or core arrangement, system rating, route conditions, equipment connection and required documentation against the project specification. The requested (N)TSCGEWTOEUS Reeling Cable for Mining and Tunneling Equipment should be evaluated as a complete cable assembly: review its intended equipment, conductor arrangement, installation method, movement duty, environment, terminations, dimensions and required documentation together. The V2 layout keeps the source-listed construction, application, technical and standard information available for a controlled engineering and procurement review. Use the Request Quote section to confirm the exact configuration, route conditions and documentation requirements before production or replacement ordering.
(N)TSCGEWTOEUS Reeling Cable for Mining and Tunneling Equipment construction

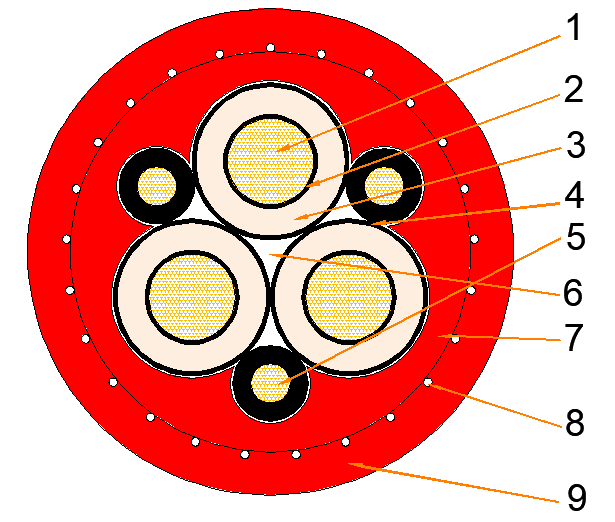

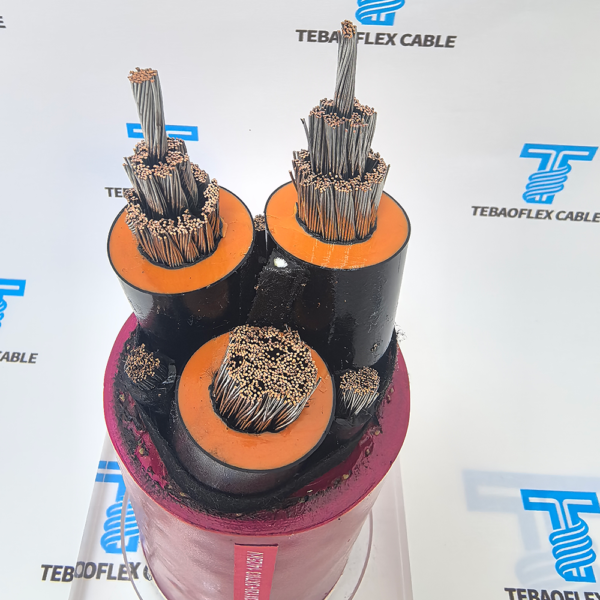

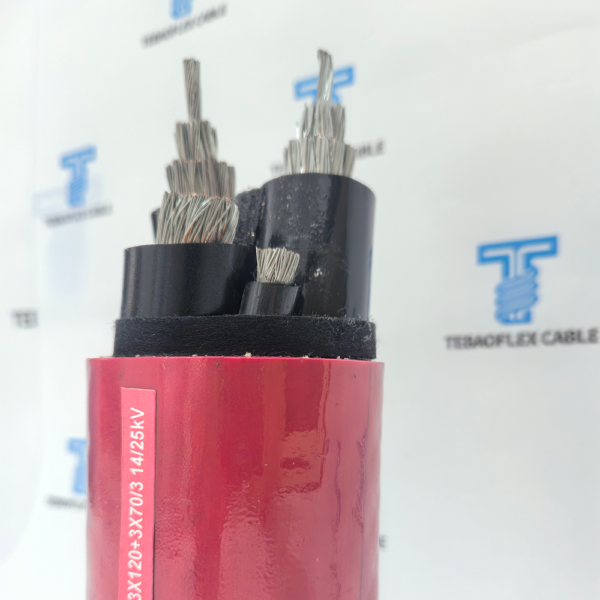

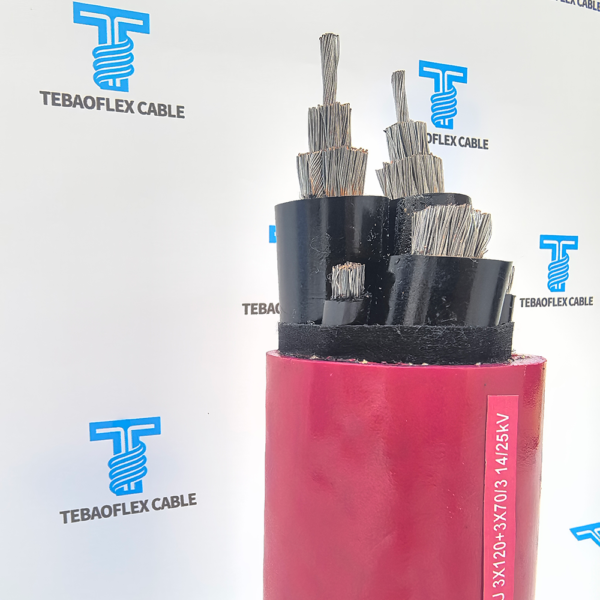

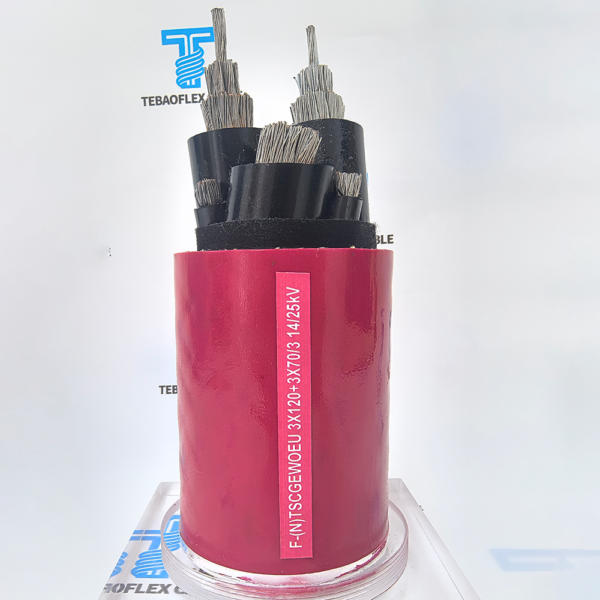

Detailed Cable Construction (Based on VDE Standards)
Manufactured according to VDE 0250 Part 812 and VDE 0295, the structural integrity of this mining cable ensures operational continuity. The layers include:
- Conductor: Electrolytic, stranded, tinned copper wire (DIN VDE 0295 Class 5) for high flexibility.
- Conductor Shield: Semi-conductive tape.
- Insulation: Premium 3Gl3 type EPR compound.
- Insulation Shield: Semi-conductive tape.
- Earth Conductor: Class 5 tinned copper conductor.
- Rubber Filler / Central Filler: Semi-conductive compound on a textile polyester support.
- Inner Sheath: GM1b Type EPR Compound.
- Reinforcement: Kevlar braided reinforcement layer (Embedded braid made of anti-torsion synthetic threads).
- Outer Sheath: 5GM5 Type elastomer/rubber PCP. Highly visible Red color.
(N)TSCGEWTOEUS Reeling Cable for Mining and Tunneling Equipment applications
The original product record identifies the application context but does not provide a separate application section. Confirm the equipment, route, movement duty and environment before quotation.
Selection checks
Confirm the equipment interface, installation method, route length, movement or flexing duty, environmental exposure, conductor or core requirements and project documentation before final selection.
(N)TSCGEWTOEUS Reeling Cable for Mining and Tunneling Equipment specifications
The source-listed technical notes are retained below. Confirm the final size, tolerance, installation basis and ordered configuration before release.
Technical Data and Electrical Characteristics
Our medium-voltage NTSCGEWTOEUS cable is tested to is specified to support extreme thermal and mechanical stability. Please review the technical limits below:
Dimensional Specifications (1.8/3kV & 3.6/6kV Series)
* Note: Cross-sections up to 24kV and 30kV are fully available. The table highlights common mining specifications.
Source-listed technical tables
The tables below retain the original product data, including units, ranges and ordering examples.
| Operating Voltage AC | 1.8/3kV to 18/30kV (Acc. to DIN VDE 0298 part 3) |
| Temperature Range (Fixed) | -40°C to +80°C |
| Temperature Range (Flexed) | -25°C to +80°C |
| Max Short Circuit Temp. | +250°C |
| Min Bending Radius | Fixed: 6 x overall diameter / Min distance with S-Type changes: 20 x D |
| Travel Speed | Max 30 m/min (Tunneling), Max 60 m/min (Rewinding drum car) |
| Flame Retardant | IEC/EN 60332-1-2 |
| Voltage | Cable Size (mm²) | Outer Dia. (Nominal / Max) | Elec. Resistance (Max DC/20℃) | Approx. Weight (kg/km) | Max Tensile Load (daN) |
|---|---|---|---|---|---|
| 1.8/3 (3.6) kV | 3x25 + 3x25/3 | 31 mm / 34 mm | 0.795 Ω/km | 1850 | 300 |
| 3x50 + 3x25/3 | 38 mm / 41 mm | 0.393 Ω/km | 2900 | 300 | |
| 3x95 + 3x50/3 | 49 mm / 51 mm | 0.210 Ω/km | 4900 | 570 | |
| 3x240 + 3x120/3 | 69 mm / 72 mm | 0.082 Ω/km | 10800 | 1440 | |
| 3.6/6 (7.2) kV | 3x25 + 3x25/3 | 39 mm / 42 mm | 0.795 Ω/km | 2350 | 300 |
| 3x50 + 3x25/3 | 46 mm / 49 mm | 0.393 Ω/km | 3550 | 300 | |
| 3x95 + 3x50/3 | 55 mm / 58 mm | 0.210 Ω/km | 5500 | 570 | |
| 3x240 + 3x120/3 | 73 mm / 76 mm | 0.082 Ω/km | 11350 | 1440 |
(N)TSCGEWTOEUS Reeling Cable for Mining and Tunneling Equipment standards and compliance
The following standard references are carried over from the original product record. They identify the source basis and do not replace project-specific certification or inspection requirements.
- Manufactured according to VDE 0250 Part 812 and VDE 0295, the structural integrity of this mining cable ensures operational continuity. The layers include:
- Conductor: Electrolytic, stranded, tinned copper wire (DIN VDE 0295 Class 5) for high flexibility.
- Operating Voltage AC 1.8/3kV to 18/30kV (Acc. to DIN VDE 0298 part 3)
- Flame Retardant IEC/EN 60332-1-2
