2GTL Halogen Free Silicone Rubber Motor Lead Cable
2GTL Halogen Free Silicone Rubber Motor Lead Cable is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. 2GTL cable is a halogen free single core silicone rubber insulated cable designed for transformers, generators and motors operating under high or low temperature conditions. The source record places this product in high temperature cables. Before ordering, confirm the exact product variant, conductor or core arrangement, system rating, route conditions, equipment connection and required documentation against the project specification. Send the exact size, length, installation duty and documentation requirements for a technical quotation.
2GTL Halogen Free Silicone Rubber Motor Lead Cable is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. 2GTL cable is a halogen free single core silicone rubber insulated cable designed for transformers, generators and motors operating under high or low temperature conditions. The source record places this product in high temperature cables. Before ordering, confirm the exact product variant, conductor or core arrangement, system rating, route conditions, equipment connection and required documentation against the project specification. The requested 2GTL Halogen Free Silicone Rubber Motor Lead Cable should be evaluated as a complete cable assembly: review its intended equipment, conductor arrangement, installation method, movement duty, environment, terminations, dimensions and required documentation together. The V2 layout keeps the source-listed construction, application, technical and standard information available for a controlled engineering and procurement review. Use the Request Quote section to confirm the exact configuration, route conditions and documentation requirements before production or replacement ordering. For a reliable quotation, provide the cable marking, requested length, installation environment, load or signal duty, termination details and any required test or compliance documents.
When a motor assembly specifically requires a UL AWM style, review UL 3580 silicone motor lead, 150°C/1 kV. Check the winding-exit temperature, conductor size, bend allowance and applicable approval; the 2GTL designation is a separate construction route.

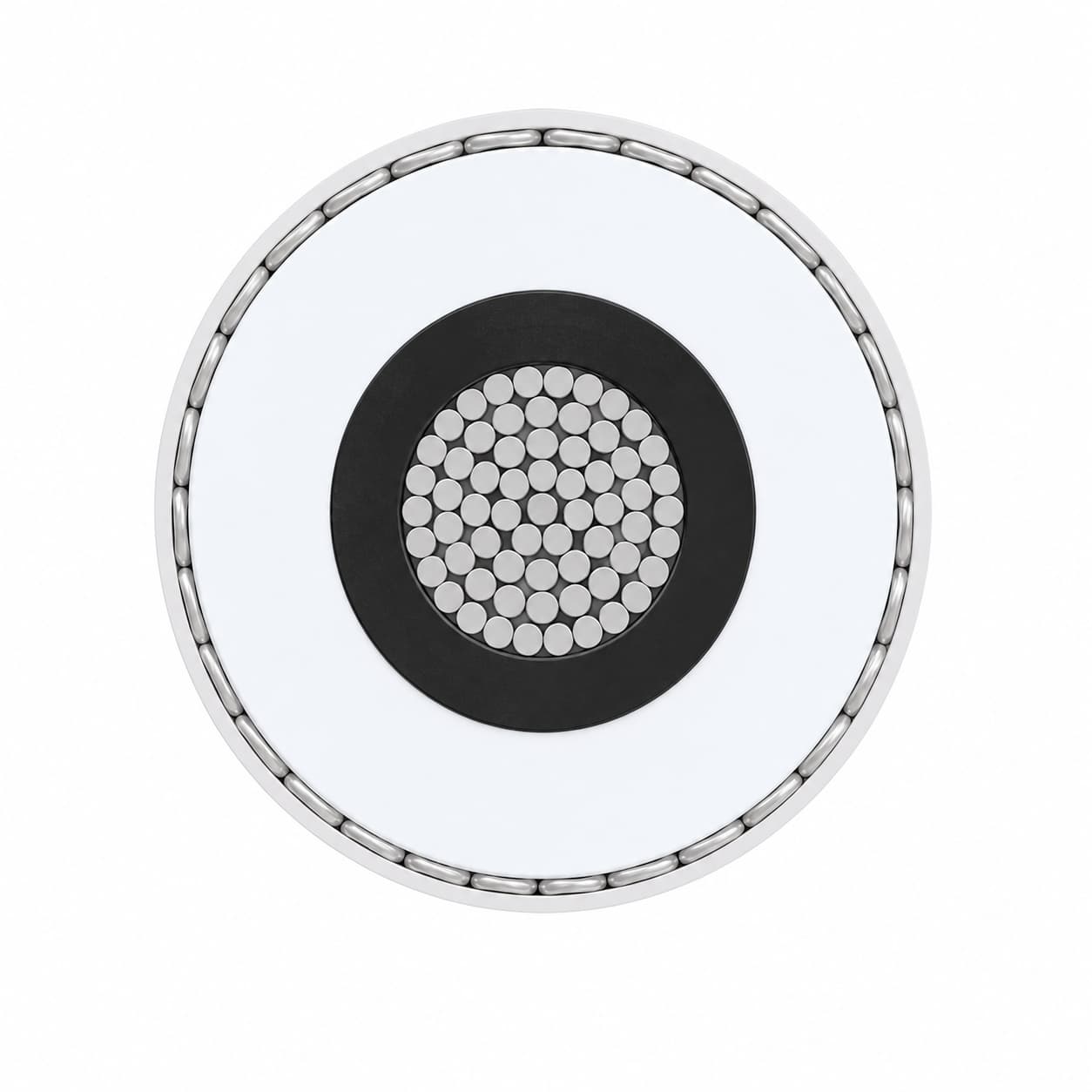

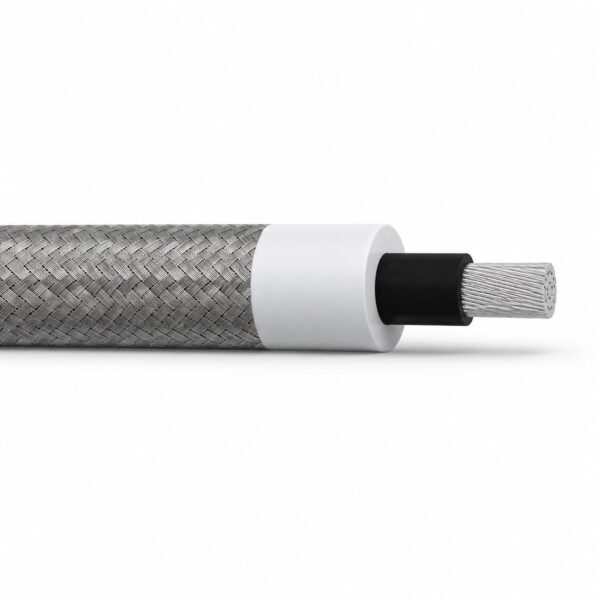

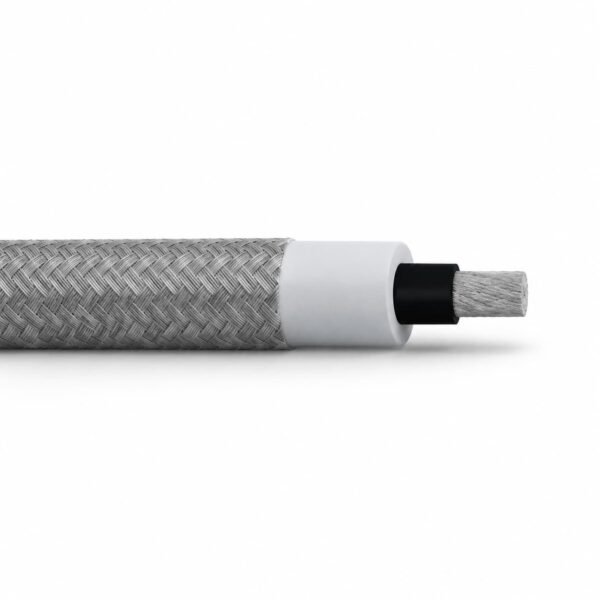

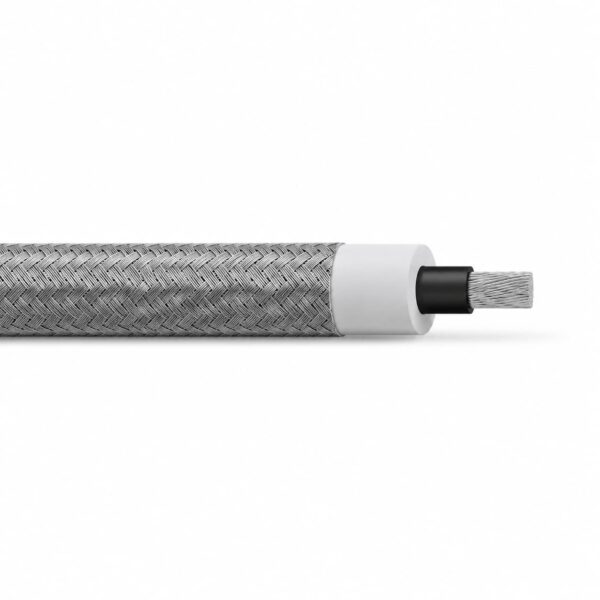

2GTL Halogen Free Silicone Rubber Motor Lead Cable construction
Cable Construction
- Conductor: Class 5 flexible tinned copper conductor.
- Semi-Conductive Layer: Semi-conductive tape.
- Insulation: Silicone rubber for high temperature electrical performance.
- Separator: Separator tape.
- Inner Sheath: Rubber compound.
- Outer Sheath: Glass fibre braid to enhance mechanical properties.

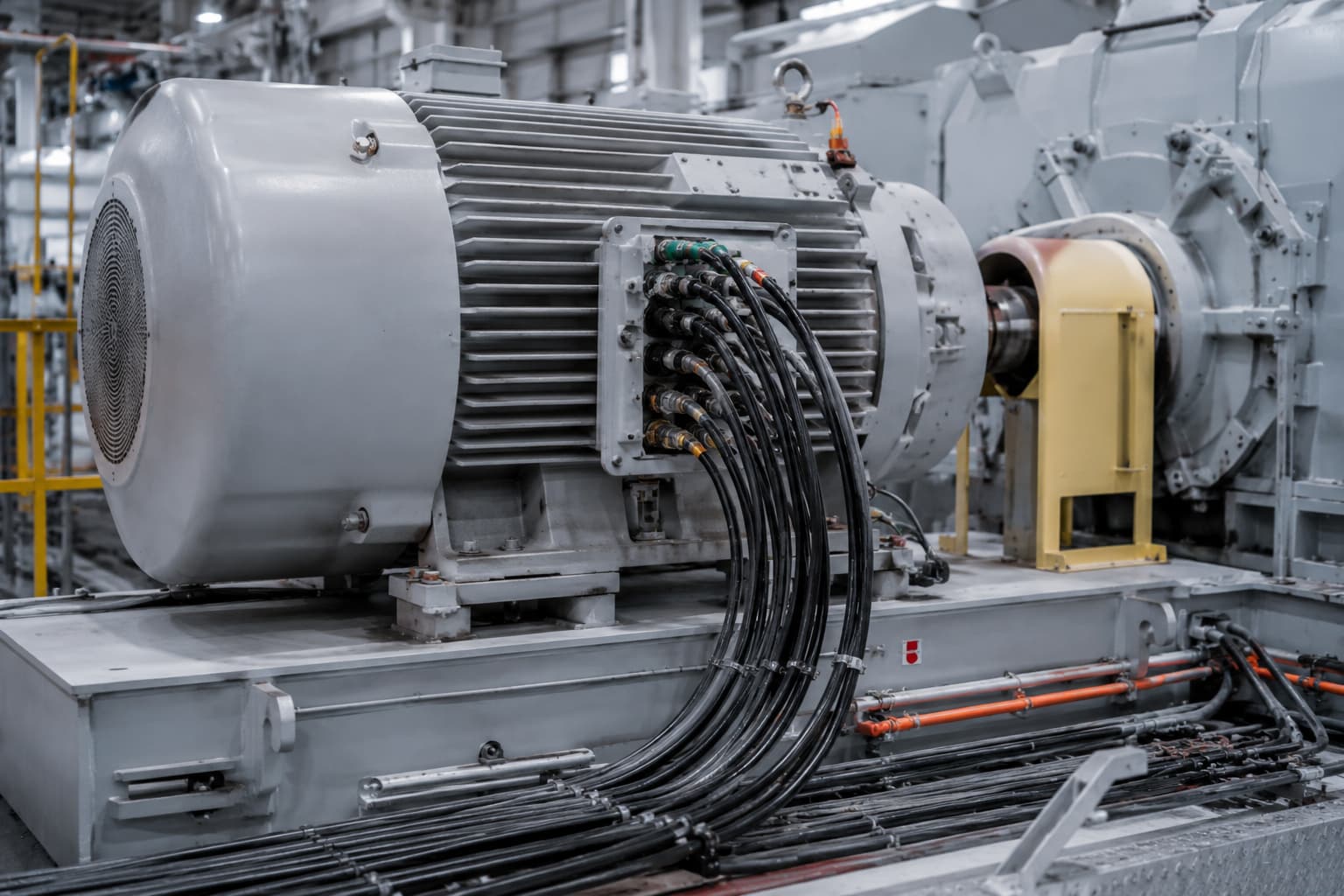

2GTL Halogen Free Silicone Rubber Motor Lead Cable applications
Applications
- Transformer connections
- Generator wiring and connections
- Motor lead connections
- Electrical equipment operating under high or low temperatures
- Industrial installations requiring halogen free high temperature cable
- Applications exposed to oils, fats, alcohols or seawater
Selection checks
Confirm the equipment interface, installation method, route length, movement or flexing duty, environmental exposure, conductor or core requirements and project documentation before final selection.
2GTL Halogen Free Silicone Rubber Motor Lead Cable specifications
The source-listed technical notes are retained below. Confirm the final size, tolerance, installation basis and ordered configuration before release.
Voltage and Size Range
- 1.1/1.9kV: 1.5mm² to 240mm²
- 3.3/4.2kV: 6mm² to 240mm²
- 6.6/7.2kV: 4mm² to 240mm²
- 13.9/15kV: 10mm² to 240mm²
Source-listed technical tables
The tables below retain the original product data, including units, ranges and ordering examples.
| Product Name | 2GTL Halogen Free Silicone Rubber Motor Lead Cable |
| Cable Type | Single core halogen free high temperature cable |
| Voltage Ratings | 1.1/1.9kV, 3.3/4.2kV, 6.6/7.2kV, 13.9/15kV |
| Temperature Rating | -50°C to +180°C |
| Conductor | Class 5 flexible tinned copper |
| Semi-Conductive Layer | Semi-conductive tape |
| Insulation | Silicone rubber |
| Separator | Separator tape |
| Inner Sheath | Rubber compound |
| Outer Sheath | Glass fibre braid |
| Sheath Colours | Yellow, red/brown, grey and black |
| Minimum Bending Radius | Dynamic: 15 x overall diameter; static: 6 x overall diameter |
| Standards | IEC/EN 60228, IEC/EN 60332-1, IEC/EN 61034-2, IEC/EN 60754-1 |
2GTL Halogen Free Silicone Rubber Motor Lead Cable standards and compliance
The following standard references are carried over from the original product record. They identify the source basis and do not replace project-specific certification or inspection requirements.
- Standards IEC/EN 60228, IEC/EN 60332-1, IEC/EN 61034-2, IEC/EN 60754-1
Where a project requires a test report, certificate, marking record or inspection release, include that requirement in the quotation request.
