Drincable 600 Cable 450/750V Potable Water Submersible Pump Cable
Drincable 600 cable is a 450/750 V potable-water submersible pump cable specified for permanent immersion in drinking-water installations up to 600 m depth, with flexible tinned copper conductors, EPR insulation and a light blue special XLPE outer sheath.
- Voltage rating: U0/U 450/750 V with 2.5 kV test voltage
- Conductor: Class 5 tinned copper for flexible pump installation and termination
- Insulation: EPR compound around each core
- Outer sheath: special XLPE compound in light blue
- Temperature range: -40°C to +90°C fixed; -25°C to +90°C flexed
- Short-circuit reference: maximum conductor short-circuit temperature 250°C
- Construction options: circular version and flat version; supplied flat data covers 3-core and 4-core sizes
- Documentation note: potable-water approvals such as WRAS or ACS must be confirmed against the required project certificate before order release
For a correct quotation, send the required core count, conductor size, cable shape, length, pump depth, potable-water approval requirement and any inspection or test documentation needed.
Drincable 600 Cable for Potable Water Submersible Pumps
Drincable 600 cable is a flexible 450/750 V pump cable for drinking-water and water-treatment installations where the cable may remain permanently immersed. The supplied specification uses Class 5 tinned copper conductors, EPR insulation and a light blue special XLPE sheath, with a 600 m immersion-depth reference and flat or circular construction options.
This page is written for buyers who need to match a pump cable to a deep-well, potable-water, pool-lighting, chlorination or food-and-beverage water-system project. Final selection should confirm the cable shape, conductor size, tensile load, bending radius, approval documentation and actual pump installation depth.
TEBAOFLEX supports submersible pump and water-treatment cable projects with construction review, size selection, dimensional checks, custom length and marking support, and documentation review before production. Send your existing cable marking, pump drawing or approval requirement and our team can confirm whether Drincable 600 type construction is suitable for the project.
Drincable 600 cable is used for potable-water submersible pump and water-treatment installations where a 450/750 V flexible cable is specified for permanent immersion up to the supplied 600 m depth reference.
Construction
- Flexible conductor: Class 5 tinned copper conductor selected for pump cable flexibility and wet-duty termination requirements.
- Core insulation: EPR compound insulation around each conductor.
- Core assembly: circular or flat multicore construction according to the required pump and cable-entry arrangement.

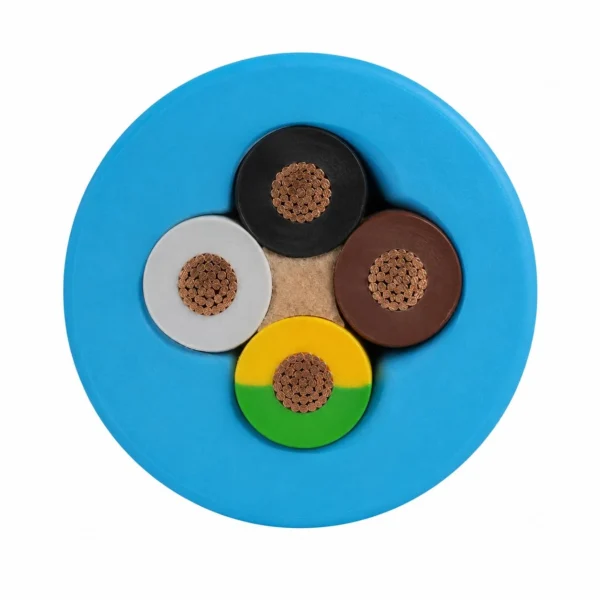

- Outer sheath: light blue special XLPE sheath for the specified potable-water pump cable construction.
Applications
- Deep-well submersible pumps for drinking-water supply
- Water-treatment, purification, depuration and chlorination systems
- Food and beverage processing installations where water-contact documentation is required
- Swimming-pool lighting and filtration systems requiring a suitable submerged cable
- Industrial potable-water handling equipment where 450/750 V flexible cable is specified
Specifications
| Suitable for | Submersible pumps in drinking-water wells, potable-water treatment systems, depuration and chlorination systems, swimming-pool lighting circuits, and food or beverage water-processing equipment where the specified cable documentation is accepted. |
|---|---|
| Confirm before use | Required potable-water approval, country-specific certification, immersion depth, cable shape, conductor size, pump starting current, voltage drop, tensile load, gland or sleeve fit, and installation temperature. |
| Not intended for | Unverified hazardous-area use, unconfirmed chemical immersion, VFD EMC-sensitive pump systems requiring screened cable, or applications that require a named approval certificate not supplied with the quotation. |
Technical Specifications
| Product Type | Potable-water submersible pump cable |
|---|---|
| Model | Drincable 600 Cable |
| Voltage Rating | U0/U 450/750 V |
| Test Voltage | 2.5 kV |
| Conductor | Class 5 tinned copper conductor |
| Insulation | EPR compound |
| Outer Sheath | Special XLPE compound |
| Sheath Colour | Light blue |
| Fixed Temperature Range | -40°C to +90°C |
| Flexed Temperature Range | -25°C to +90°C |
| Maximum Short-Circuit Temperature | 250°C |
| Minimum Bending Radius | Circular fixed: 3 x overall diameter; circular flexed: 5 x overall diameter; flat fixed: 3 x height when height is below 12 mm, 4 x height when height is above 12 mm |
| Core Identification | 2-core: blue and brown; 3-core: blue, brown and green/yellow; 4-core: brown, black, grey and green/yellow; 5-core: blue, brown, black, grey and green/yellow |
| Supplied Flat Range | 3-core 6-185 mm2; 4-core 4-120 mm2 according to supplied flat dimension table |
Flat Cable Dimensions and Tensile Load
The table below is taken from the supplied flat-version data. It should be used for first-stage cable-entry, clamp, weight and pulling-force checks. Circular dimensions and any sizes outside this table should be confirmed by quotation drawing.
| Cores | Nominal Area | Conductor Diameter | Height | Width | Weight | Max Tensile Load |
|---|---|---|---|---|---|---|
| 3 | 6 mm2 | 2.9 mm | 7.5-8.5 mm | 17.5-18.5 mm | 300 kg/km | 270 N |
| 3 | 10 mm2 | 3.8 mm | 9.9-10.9 mm | 22.9-23.9 mm | 490 kg/km | 450 N |
| 3 | 16 mm2 | 4.9 mm | 12.0-13.0 mm | 28.0-29.0 mm | 730 kg/km | 720 N |
| 3 | 25 mm2 | 6.1 mm | 14.0-15.0 mm | 33.0-34.0 mm | 1060 kg/km | 1125 N |
| 3 | 35 mm2 | 7.2 mm | 16.0-17.5 mm | 37.0-38.7 mm | 1430 kg/km | 1575 N |
| 3 | 50 mm2 | 8.9 mm | 18.5-20.0 mm | 44.1-45.8 mm | 2010 kg/km | 2250 N |
| 3 | 70 mm2 | 10.6 mm | 20.5-22.0 mm | 50.5-52.5 mm | 2680 kg/km | 3150 N |
| 3 | 95 mm2 | 12.3 mm | 23.1-23.9 mm | 57.1-57.9 mm | 3380 kg/km | 4275 N |
| 3 | 120 mm2 | 14.2 mm | 25.1-25.9 mm | 62.1-62.9 mm | 4160 kg/km | 5400 N |
| 3 | 150 mm2 | 15.5 mm | 26.8-27.6 mm | 67.2-68.0 mm | 5080 kg/km | 6750 N |
| 3 | 185 mm2 | 17.0 mm | 28.6-29.4 mm | 72.6-73.4 mm | 6110 kg/km | 8325 N |
| 4 | 4 mm2 | 2.4 mm | 8.0-9.0 mm | 23.0-24.0 mm | 350 kg/km | 240 N |
| 4 | 6 mm2 | 2.9 mm | 8.5-9.5 mm | 24.5-25.5 mm | 440 kg/km | 360 N |
| 4 | 10 mm2 | 3.8 mm | 10.0-11.0 mm | 29.5-30.5 mm | 640 kg/km | 600 N |
| 4 | 16 mm2 | 4.9 mm | 12.0-13.0 mm | 34.5-35.5 mm | 940 kg/km | 960 N |
| 4 | 25 mm2 | 6.1 mm | 15.8-17.2 mm | 42.1-43.5 mm | 1500 kg/km | 1500 N |
| 4 | 35 mm2 | 7.2 mm | 18.6-19.4 mm | 48.6-49.8 mm | 1990 kg/km | 2100 N |
| 4 | 50 mm2 | 8.9 mm | 19.4-20.2 mm | 56.8-57.6 mm | 2650 kg/km | 3000 N |
| 4 | 70 mm2 | 10.6 mm | 24.0-24.8 mm | 65.4-66.6 mm | 3720 kg/km | 4200 N |
| 4 | 95 mm2 | 12.3 mm | 25.6-26.4 mm | 73.0-74.2 mm | 4680 kg/km | 5700 N |
| 4 | 120 mm2 | 14.2 mm | 24.3-25.1 mm | 73.8-75.0 mm | 5260 kg/km | 7200 N |
Electrical Characteristics
Use the electrical data as a conductor-size reference. Final current-carrying capacity depends on installation method, ambient conditions, grouping, water temperature and duty cycle.
| Area | Max Wire Diameter | Max DC Resistance at 20°C | Pipe Air 3 Single Core | Pipe Air 1 Three Core | Free Air 3 Single Core | Free Air 1 Three Core |
|---|---|---|---|---|---|---|
| 1.5 mm2 | 0.26 mm | 13.7 Ω/km | 20 A | 19.5 A | 24 A | 23 A |
| 2.5 mm2 | 0.26 mm | 8.21 Ω/km | 28 A | 26 A | 33 A | 32 A |
| 4 mm2 | 0.31 mm | 5.09 Ω/km | 37 A | 35 A | 45 A | 42 A |
| 6 mm2 | 0.31 mm | 3.39 Ω/km | 48 A | 44 A | 58 A | 54 A |
| 10 mm2 | 0.41 mm | 1.95 Ω/km | 66 A | 60 A | 80 A | 75 A |
| 16 mm2 | 0.41 mm | 1.24 Ω/km | 88 A | 80 A | 107 A | 100 A |
| 25 mm2 | 0.41 mm | 0.795 Ω/km | 117 A | 105 A | 141 A | 127 A |
| 35 mm2 | 0.41 mm | 0.565 Ω/km | 144 A | 128 A | 176 A | 158 A |
| 50 mm2 | 0.51 mm | 0.393 Ω/km | 175 A | 154 A | 216 A | 192 A |
| 70 mm2 | 0.51 mm | 0.277 Ω/km | 222 A | 194 A | 279 A | 246 A |
| 95 mm2 | 0.51 mm | 0.210 Ω/km | 269 A | 233 A | 342 A | 298 A |
| 120 mm2 | 0.51 mm | 0.164 Ω/km | 312 A | 268 A | 400 A | 346 A |
| 150 mm2 | 0.51 mm | 0.132 Ω/km | 355 A | 300 A | 464 A | 399 A |
| 185 mm2 | 0.51 mm | 0.108 Ω/km | 417 A | 340 A | 533 A | 456 A |
| 240 mm2 | 0.51 mm | 0.0817 Ω/km | 490 A | 398 A | 634 A | 538 A |
Standards
| Construction Standards Referenced | EN 50363-1, EN 50363-2-1, VDE 0207 P20 and IEC/EN 60228 are referenced in the supplied specification. |
|---|---|
| Water-Resistance Reference | AD8 water-resistance testing according to EN 50525-2-21 is referenced in the supplied specification. |
| Material Tests Referenced | Acid and alkaline solution and ozone-resistance test references are shown in the supplied specification; confirm the exact test report required for the project. |
| Potable-Water Approvals | WRAS and ACS references must be verified against the actual certificate, country requirement and cable construction before publishing or ordering as an approved product. |
| Regulatory Documents | CE, RoHS or REACH documentation should be supplied only when the matching declaration or test record is available for the ordered cable. |
