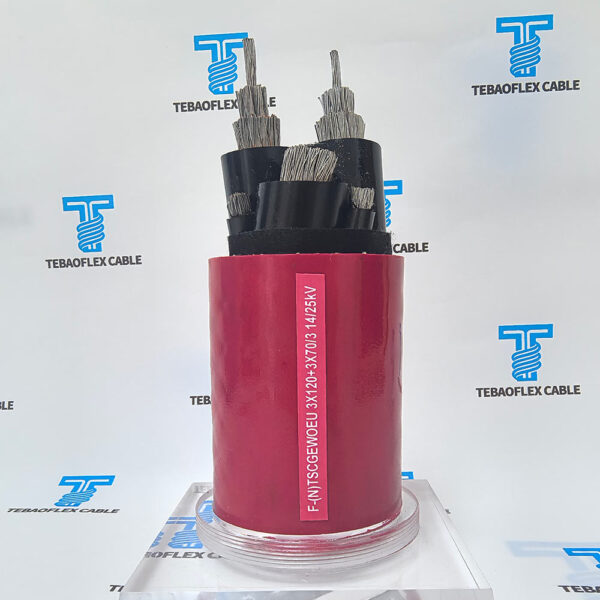

F-(N)TSCGEWÖU Medium Voltage Conveyor & Mining Cable 3.6/6–18/30 kV

F-(N)TSCGEWÖU Medium Voltage Conveyor & Mining Cable 3.6/6–18/30 kV is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. The F-(N)TSCGEWOU cable is commonly selected for medium voltage power supply in conveyor and material-handling systems. It is also suitable for semi-mobile equipment and pump units where the cable may be exposed to mechanical stress and harsh working conditions. The F-(N)TSCGEWÖU medium voltage cable can be supplied in common voltage classes used for mining and heavy industrial power systems. Available options may include: Typical constructions use three power cores with divided protective earth conductors. Common size examples include 3×25 + 3×25/3 mm², 3×35 + 3×25/3 mm², 3×50 + 3×25/3 mm², 3×70 + 3×50/3 mm², 3×95 + 3×50/3 mm², 3×120 + 3×70/3 mm² and larger cross-sections according to the final project design. This F-(N)TSCGEWOU cable is designed with reference to DIN VDE 0250-813 and related rubber cable requirements. Depending on project needs, the cable can be supplied with technical datasheets, dimensional data, electrical parameters and test documentation for procurement review. These variations are useful for covering search queries where German characters are not typed. The source record places this product in mining & tunneling cables. Before ordering, confirm the exact product variant, conductor or core arrangement, system rating, route conditions, equipment connection and required documentation against the project specification.

F-(N)TSCGEWÖU Medium Voltage Conveyor & Mining Cable 3.6/6–18/30 kV construction

Construction details are retained from the original product record and require project confirmation against the ordered cable schedule.

F-(N)TSCGEWÖU Medium Voltage Conveyor & Mining Cable 3.6/6–18/30 kV applications

Typical Applications

The F-(N)TSCGEWOU cable is commonly selected for medium voltage power supply in conveyor and material-handling systems. It is also suitable for semi-mobile equipment and pump units where the cable may be exposed to mechanical stress and harsh working conditions.

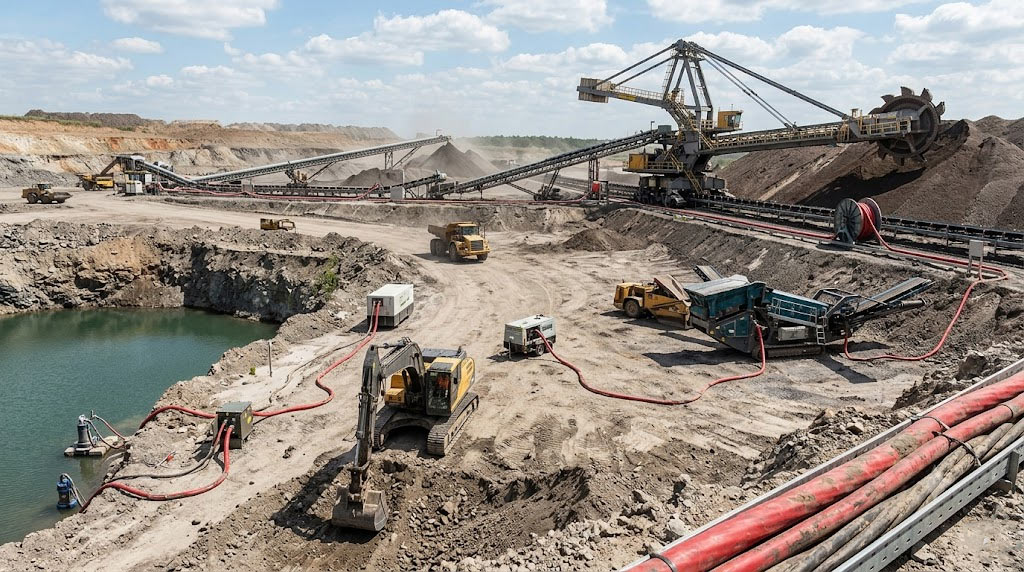

• Power supply along conveyor belts in mining and bulk material handling sites
• Shiftable conveyor systems and semi-mobile mining equipment
• Material-handling machines working in open-pit mining or industrial plants
• Connection of submersible pump units and related heavy-duty equipment
• Outdoor installations exposed to moisture, oil, sunlight and mechanical wear
• Medium voltage power distribution in mining, quarrying and tunnelling projects

Selection checks

Confirm the equipment interface, installation method, route length, movement or flexing duty, environmental exposure, conductor or core requirements and project documentation before final selection.

F-(N)TSCGEWÖU Medium Voltage Conveyor & Mining Cable 3.6/6–18/30 kV specifications

The source-listed technical notes are retained below. Confirm the final size, tolerance, installation basis and ordered configuration before release.

F-(N)TSCGEWÖU Medium Voltage Cable for Conveyor and Mining Equipment

F-(N)TSCGEWÖU is a flexible medium voltage rubber cable designed for conveyor systems, mining installations, material-handling equipment and pump connection applications. It is suitable for projects where the cable needs to remain mechanically reliable under semi-flexible installation, outdoor exposure and demanding industrial site conditions.

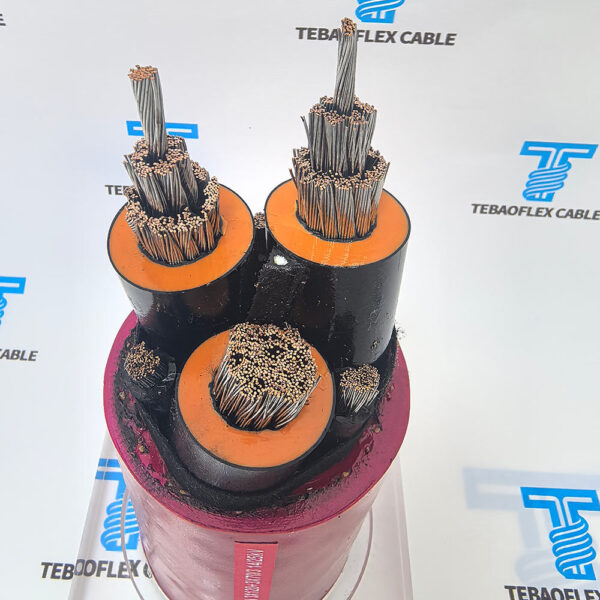

Compared with standard fixed power cables, this cable is built for operating environments where movement, vibration, bending, moisture, oil and abrasion may occur during daily use. Its construction combines flexible copper conductors, EPR rubber insulation, semi-conductive screening and a durable rubber sheath to support stable medium voltage power transmission in mining and heavy-duty industrial applications.

Voltage Ratings and Size Range

The F-(N)TSCGEWÖU medium voltage cable can be supplied in common voltage classes used for mining and heavy industrial power systems. Available options may include:

• 3.6/6 kV
• 6/10 kV
• 8.7/15 kV
• 12/20 kV
• 14/25 kV
• 18/30 kV

Typical constructions use three power cores with divided protective earth conductors. Common size examples include 3×25 + 3×25/3 mm², 3×35 + 3×25/3 mm², 3×50 + 3×25/3 mm², 3×70 + 3×50/3 mm², 3×95 + 3×50/3 mm², 3×120 + 3×70/3 mm² and larger cross-sections according to the final project design.

Key Performance Features

• Flexible medium voltage cable for mining, conveyor and material-handling applications
• EPR rubber insulation for stable electrical performance
• Semi-conductive screening for controlled electrical field distribution
• Robust rubber sheath for abrasion, oil, UV, ozone and weather resistance
• Suitable for outdoor use and harsh industrial environments
• Flame-retardant construction available according to project requirements
• Designed for semi-flexible installation and mechanically demanding operation
• Maximum conductor operating temperature up to 90°C
• Short-circuit conductor temperature up to 250°C
• Customized cable length, sheath marking and drum packing available on request

Source-listed technical tables

The tables below retain the original product data, including units, ranges and ordering examples.

F-(N)TSCGEWÖU Medium Voltage Conveyor & Mining Cable 3.6/6–18/30 kV standards and compliance

The following standard references are carried over from the original product record. They identify the source basis and do not replace project-specific certification or inspection requirements.

• This F-(N)TSCGEWOU cable is designed with reference to DIN VDE 0250-813 and related rubber cable requirements. Depending on project needs, the cable can be supplied with technical datasheets, dimensional data, electrical parameters and test documentation for procurement review.

Where a project requires a test report, certificate, marking record or inspection release, include that requirement in the quotation request.
