Four Conductor Flat Type W Cable 600/2000V for Mining Equipment

Product information

SKU: Flat Type W Cable
Category: MINING & TUNNELING CABLES
Brand: TEBAOFLEX

Product overview

Four Conductor Flat Type W Cable 600/2000V for Mining Equipment is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. This four conductor flat Type W cable is intended for mining equipment operating on AC circuits where flexible portable power supply is required. TEBAOFLEX Flat Type W Cable is a 600/2000V four conductor portable power cable designed for AC mining equipment where flexible, flat construction and heavy-duty jacket protection are required. The source record places this product in mining & tunneling cables. Before ordering, confirm the exact product variant, conductor or core arrangement, system rating, route conditions, equipment connection and required documentation against the project specification. The requested Four Conductor Flat Type W Cable 600/2000V for Mining Equipment should be evaluated as a complete cable assembly: review its intended equipment, conductor arrangement, installation method, movement duty, environment, terminations, dimensions and required documentation together. The V2 layout keeps the source-listed construction, application, technical and standard information available for a controlled engineering and procurement review. Use the Request Quote section to confirm the exact configuration, route conditions and documentation requirements before production or replacement ordering.

Construction

Four Conductor Flat Type W Cable 600/2000V for Mining Equipment construction

Cable Construction

Conductors: Annealed tin-coated rope stranded conductors in accordance with ICEA and ASTM requirements.
Insulation: Ethylene-propylene rubber insulation extruded over each conductor.
Circuit identification: Insulated conductors are color coded black, white, red and green.
Reinforcement: Synthetic yarn braid is applied over the assembly to improve reinforcement and control movement between the insulated conductors and outer jacket.
Jacket: CPE jacket is extruded over the four parallel insulated conductors for mechanical protection and permanent surface marking.

Applications

Four Conductor Flat Type W Cable 600/2000V for Mining Equipment applications

Applications

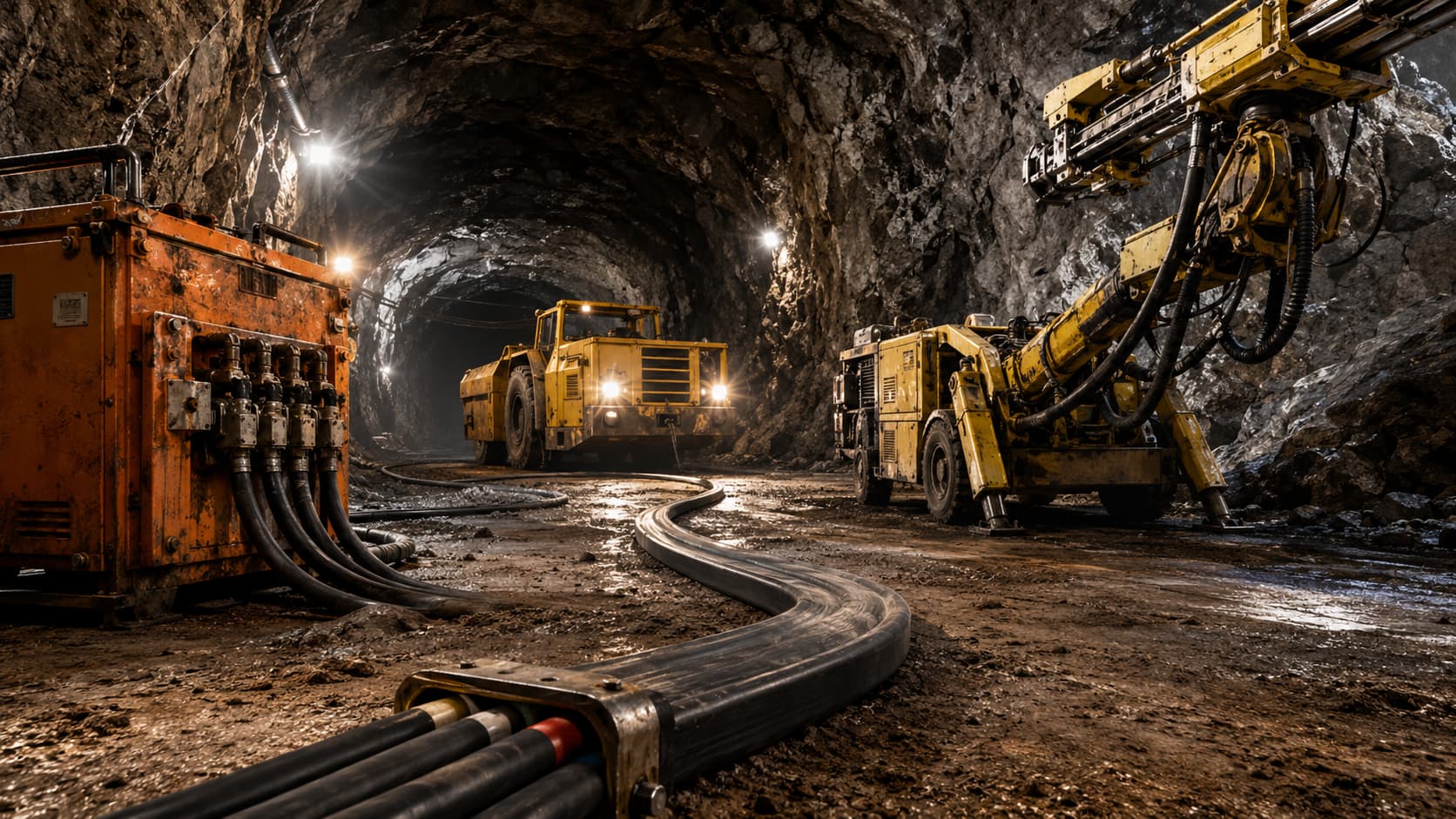

This four conductor flat Type W cable is intended for mining equipment operating on AC circuits where flexible portable power supply is required.

AC shuttle cars
Roof bolters
Off-track mining equipment
Underground mining power systems
Portable mining equipment requiring 600/2000V cable

Selection checks

Confirm the equipment interface, installation method, route length, movement or flexing duty, environmental exposure, conductor or core requirements and project documentation before final selection.

Pump cable for a well, not for a machine

This flat cable is built for equipment that moves. A flat cable that hangs in a well casing and stays there is a different construction: see our flat submersible pump cable, 600/2000 V EPR/CPE to the UL 44 deep-well pump cable basis.

Specifications

Four Conductor Flat Type W Cable 600/2000V for Mining Equipment specifications

The source-listed technical notes are retained below. Confirm the final size, tolerance, installation basis and ordered configuration before release.

Performance Characteristics

Highly resistant to cutting and abrasion
Resistant to chemicals, sunlight and flame
Excellent resistance to heat and moisture
Designed for oils commonly used in mining applications
Permanent surface marking for easy cable identification
Flexible flat construction for equipment handling and routing

Source-listed technical tables

The tables below retain the original product data, including units, ranges and ordering examples.

Product Name	Four Conductor Flat Type W Cable
Voltage Rating	600/2000 volts
Application	AC off-track mining equipment, shuttle cars and roof bolters
Conductors	Flexible tinned copper conductors
Insulation	90°C ethylene-propylene rubber (EPR)
Reinforcement	Open braid of synthetic yarn over the assembly
Jacket	Black CPE jacket with permanent surface marking
Standards	ICEA S-68-516 / NEMA WC-8 and ICEA S-75-381 / NEMA WC-58
Maximum Conductor Temperature	90°C continuous service
Available Sizes	6 AWG, 4 AWG, 2 AWG and 1 AWG

Conductor Size	Approx. O.D.	Approx. Weight	Ampacity at 40°C
6 AWG	0.68 x 1.71 in.	910 lbs/1000 ft	72 A
4 AWG	0.76 x 1.91 in.	1220 lbs/1000 ft	93 A
2 AWG	0.82 x 2.25 in.	1720 lbs/1000 ft	122 A
1 AWG	0.97 x 2.48 in.	2240 lbs/1000 ft	143 A

Standards

Four Conductor Flat Type W Cable 600/2000V for Mining Equipment standards and compliance

The following standard references are carried over from the original product record. They identify the source basis and do not replace project-specific certification or inspection requirements.

Mining compliance: Designed to meet or exceed ICEA S-68-516 and ICEA S-75-381 requirements.
MSHA marking: Cable carries MSHA marking for mining applications.
Standards ICEA S-68-516 / NEMA WC-8 and ICEA S-75-381 / NEMA WC-58
Conductors: Annealed tin-coated rope stranded conductors in accordance with ICEA and ASTM requirements.

Where a project requires a test report, certificate, marking record or inspection release, include that requirement in the quotation request.
