(N)SSHCGEWÖU-V Cable 0.6/1kV for Coal Mine Cutters and Drills

(N)SSHCGEWÖU-V Cable 0.6/1kV for Coal Mine Cutters and Drills is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. (N)SSHCGEWÖU-V cable is a 0.6/1kV heavy-duty flexible mining cable for supplying coal mine cutters, drills and underground equipment where monitoring cores help detect external cable damage. The source record places this product in mining & tunneling cables. Before ordering, confirm the exact product variant, conductor or core arrangement, system rating, route conditions, equipment connection and required documentation against the project specification. The requested (N)SSHCGEWÖU-V Cable 0.6/1kV for Coal Mine Cutters and Drills should be evaluated as a complete cable assembly: review its intended equipment, conductor arrangement, installation method, movement duty, environment, terminations, dimensions and required documentation together. The V2 layout keeps the source-listed construction, application, technical and standard information available for a controlled engineering and procurement review. Use the Request Quote section to confirm the exact configuration, route conditions and documentation requirements before production or replacement ordering. For a reliable quotation, provide the cable marking, requested length, installation environment, load or signal duty, termination details and any required test or compliance documents.

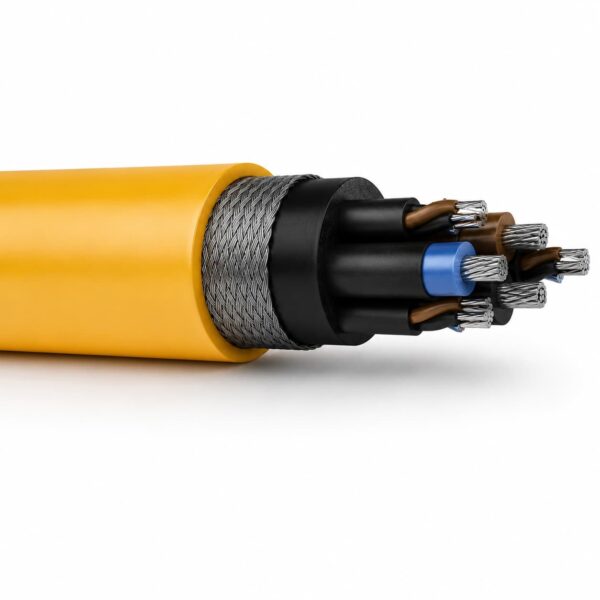

(N)SSHCGEWÖU-V Cable 0.6/1kV for Coal Mine Cutters and Drills construction

Cable Construction

1. Conductor: Flexible Class 5 stranded tinned copper conductors for mining machinery power supply.
2. Monitoring conductor layer: Semiconductive layer over monitoring conductor supports damage monitoring function.
3. Insulation: Phase and control cores are insulated with 3GI3 compound, while the monitoring core remains uninsulated as part of the monitoring design.
4. Core separator: Semiconductive layer over phase core and control unit insulation.
5. Layup: Phase cores are laid in contact with each other, with control units laid beforehand.
6. Bedding: GM1b special elastomeric compound provides a resilient bedding layer.
7. Armour: Galvanized steel and tinned copper pliable armour improves mechanical protection.
8. Outer sheath: Heavy-duty 5GM5 elastomeric sheath forms the external protection layer.

(N)SSHCGEWÖU-V Cable 0.6/1kV for Coal Mine Cutters and Drills applications

Applications

• Coal mine cutter power supply
• Coal mine drill power supply
• Underground mining machinery requiring heavy-duty flexible armoured cable
• Mine and tunnel locations where monitoring cores are required for damage detection
• Heavy-duty equipment routes exposed to mechanical stress, dragging and abrasion

Selection checks

Confirm the equipment interface, installation method, route length, movement or flexing duty, environmental exposure, conductor or core requirements and project documentation before final selection.

Coal cutter enquiries often arrive with catalogue-name suffixes such as V, VE, Z or ZE instead of a VDE type; the mining cable designation cross-reference decodes those letters and maps each catalogue name to its VDE type designation.

(N)SSHCGEWÖU-V Cable 0.6/1kV for Coal Mine Cutters and Drills specifications

Source-listed technical tables

The tables below retain the original product data, including units, ranges and ordering examples.

Original product attributes

These product attributes are retained as supplied and should be checked against the ordered construction.

(N)SSHCGEWÖU-V Cable 0.6/1kV for Coal Mine Cutters and Drills standards and compliance

The following standard references are carried over from the original product record. They identify the source basis and do not replace project-specific certification or inspection requirements.

• Related Standard VDE 0250-812
• Conductor Electrolytic, stranded, tinned copper wire, DIN VDE 0295 Class 5
• Insulation Phase and control cores insulated with 3GI3 compound according to DIN VDE 0207 Part 20
• Bedding Special elastomeric compound GM1b according to DIN VDE 0207 Part 21
• Outer Sheath Heavy-duty elastomeric outer sheath 5GM5 according to DIN VDE 0207 Part 21

Where a project requires a test report, certificate, marking record or inspection release, include that requirement in the quotation request.
