(N)SSHCOEU Cable | 0.6/1kV VFD Mining Cable

(N)SSHCOEU Cable for Variable Frequency Converter Drives

(N)SSHCOEU cable is a 0.6/1kV flexible motor power supply cable for frequency converter controlled drives used in mining, construction sites, material handling systems and similar heavy-duty environments. It is suitable for fixed installation and flexible operation, including cable booms and connections between upper and lower cars where continuous movement may occur.

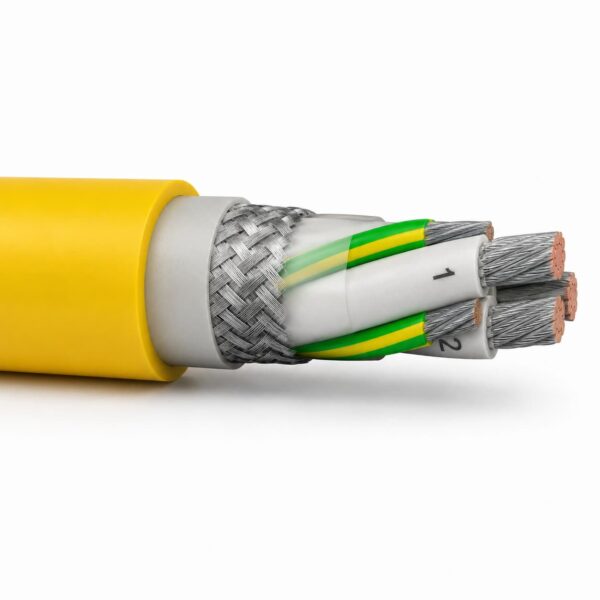

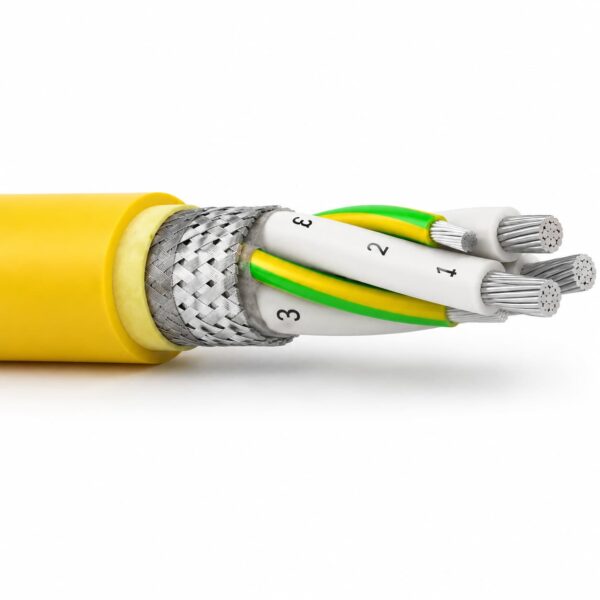

The cable is designed for motor drive circuits where EMC behavior, mechanical strength and environmental resistance all matter. Its construction uses finely stranded tinned copper conductors, EPR-based 3GI3 insulation, protective earth conductors split into the outer interstices, a vulcanized rubber inner sheath, an EMC optimized tinned copper wire braid and a yellow 5GM5 synthetic elastomer outer sheath. It can also be applied in water up to 40°C and approximately 10 m depth, making it useful for wet mining and industrial operating conditions.

Technical Specifications

Product Type	(N)SSHCOEU cable, EMC screened VFD motor supply cable
Type Designation	(N)SSHCOEU
Rated Voltage	Uo/U 0.6/1kV, also permitted for Uo/U 640/1140V
Max. Permissible AC Operating Voltage	0.7/1.2 kV
Max. Permissible DC Operating Voltage	0.9/1.8 kV
AC Test Voltage – Main Cores	5 kV for 5 minutes
Standard Basis	Based on DIN VDE 0250 Part 812
Certifications / Approvals	MSHA P-189-3, EAC Certificate where project scope applies
Conductor	Finely stranded tinned copper conductor, Class 5 according to DIN EN 60228
Insulation	EPR-based PROTOLON material, compound type 3GI3
Core Identification	Natural coloring with black figures
Core Arrangement	Three power cores laid up with protective earth conductors split into three outer interstices
Screen	EMC optimized concentric braid of tinned copper wires
Inner Sheath	Vulcanized rubber compound, EPR-based GM1B compound
Outer Sheath	Yellow synthetic elastomer compound, CR-based 5GM5 compound

Available Sizes and Electrical Data

Cores x Cross Section	Part No.	MLFB No.	Conductor Diameter Max.	Outer Diameter Min-Max	Approx. Weight	Max Tensile Force	Resistance at 20°C	Nominal Capacitance	Inductance	Current Carrying Capacity	Short Circuit Current
3×16 + 3×2.5	20004904	5DL2108	5.4 mm	24.4 – 27.4 mm	1190 kg/km	720 N	1.24 Ω/km	0.42 µF/km	0.26 mH/km	99 A	2.29 kA
3×25 + 3×4	20016716	5DL2107	6.3 mm	28.2 – 31.2 mm	1680 kg/km	1125 N	0.795 Ω/km	0.42 µF/km	0.26 mH/km	131 A	3.58 kA
3×35 + 3×16/3	20004903	5DL2106	7.5 mm	30.5 – 33.5 mm	2000 kg/km	1575 N	0.565 Ω/km	0.49 µF/km	0.25 mH/km	162 A	5.01 kA
3×50 + 3×25/3	20004902	5DL2105	8.9 mm	36.0 – 39.0 mm	2820 kg/km	2250 N	0.393 Ω/km	0.51 µF/km	0.25 mH/km	202 A	7.15 kA
3×70 + 3×35/3	20004901	5DL2104	10.6 mm	41.2 – 44.2 mm	3800 kg/km	3150 N	0.277 Ω/km	0.59 µF/km	0.24 mH/km	250 A	10.01 kA
3×95 + 3×50/3	20004900	5DL2103	12.1 mm	45.7 – 48.7 mm	4760 kg/km	4275 N	0.210 Ω/km	0.60 µF/km	0.24 mH/km	301 A	13.59 kA
3×120 + 3×70/3	20001453	5DL2100	14.1 mm	48.7 – 52.7 mm	5890 kg/km	5400 N	0.164 Ω/km	0.69 µF/km	0.23 mH/km	352 A	17.16 kA
3×150 + 3×70/3	20004899	5DL2101	16.0 mm	55.7 – 59.7 mm	7230 kg/km	6750 N	0.132 Ω/km	0.70 µF/km	0.23 mH/km	404 A	21.45 kA
3×185 + 3×95/3	20004905	5DL2109	17.8 mm	60.4 – 64.4 mm	8640 kg/km	8325 N	0.108 Ω/km	0.71 µF/km	0.23 mH/km	461 A	26.46 kA
3×240 + 3×120/3	20008903	5DL2102	20.2 mm	68.2 – 72.2 mm	11100 kg/km	10800 N	0.0817 Ω/km	0.73 µF/km	0.23 mH/km	540 A	34.32 kA

Applications

Variable frequency converter controlled motor drives in mining
Construction site equipment with high mechanical stress
Material handling equipment with cable boom movement
Connections between upper and lower cars in moving systems
Outdoor and indoor motor supply routes requiring weather, ozone and moisture resistance
Wet operating conditions where water use up to 40°C and approximately 10 m depth is required

FAQ

What is (N)SSHCOEU cable used for?

(N)SSHCOEU cable is used as a 0.6/1kV motor supply cable for variable frequency converter controlled drives in mining, construction, material handling and similar heavy-duty applications.

Why does this cable use an EMC optimized screen?

The tinned copper wire braid helps reduce electromagnetic interference created by frequency converter operation and supports a more controlled drive cable installation.

Can this cable be used in water?

Yes. It can be applied in water up to 40°C and approximately up to 10 m depth, subject to project installation conditions.

What is the conductor temperature rating?

The maximum operating temperature of the conductor is 90°C, with a maximum short-circuit conductor temperature of 250°C.

Can Tebaoflex help select the right VFD cable size?

Yes. Tebaoflex can review motor power, drive voltage, cable length, current capacity, EMC needs, grounding arrangement, movement duty and installation environment before quotation.

Product Type	EMC screened VFD motor supply cable
Model	(N)SSHCOEU cable
Voltage Rating	0.6/1kV; permitted for 640/1140V
AC Test Voltage	5 kV for 5 minutes
Conductor	Finely stranded tinned copper, Class 5 acc. to DIN EN 60228
Insulation	EPR-based 3GI3 compound
Core Arrangement	Three power cores with protective earth conductors split into three outer interstices
Screen	EMC optimized concentric braid of tinned copper wires
Inner Sheath	EPR-based GM1B vulcanized rubber compound
Outer Sheath	Yellow CR-based 5GM5 synthetic elastomer compound
Flame Performance	IEC 60332-1-2
Oil Resistance	IEC 60811-404
Weather Resistance	Outdoor and indoor use, ozone and moisture resistant
Fixed Temperature	-40°C to +80°C
Flexible Temperature	-25°C to +60°C
Max Conductor Temperature	90°C
Max Short-Circuit Temperature	250°C
Max Tensile Load	15 N/mm2
Torsional Stress	+/- 25°/m

(N)SSHCOEU Cable 0.6/1kV EMC Screened VFD Mining Cable
