(N)TMCETMPU Cable 6/10 kV to 14/25 kV Portable Mining Trailing Cable
(N)TMCETMPU Cable 6/10 kV to 14/25 kV Portable Mining Trailing Cable is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. When specifying (N)TMCETMPU cable, confirm voltage class, phase conductor size, grounding conductor size, ground-check conductor size, bending method, drum or trailing route, tensile stress, expected abrasion, ampacity requirement and cable weight. Send the exact size, length, installation duty and documentation requirements for a technical quotation.
(N)TMCETMPU Cable 6/10 kV to 14/25 kV Portable Mining Trailing Cable is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. When specifying (N)TMCETMPU cable, confirm voltage class, phase conductor size, grounding conductor size, ground-check conductor size, bending method, drum or trailing route, tensile stress, expected abrasion, ampacity requirement and cable weight. In mobile mining equipment, the jacket material, grounding system and bending radius are as important as conductor ampacity because cable downtime can stop production equipment. (N)TMCETMPU cable is a three-conductor round portable trailing cable for medium-voltage mining equipment operating from 6/10 kV to 14/25 kV. The source record places this product in mining & tunneling cables. Before ordering, confirm the exact product variant, conductor or core arrangement, system rating, route conditions, equipment connection and required documentation against the project specification. The requested (N)TMCETMPU Cable 6/10 kV to 14/25 kV Portable Mining Trailing Cable should be evaluated as a complete cable assembly: review its intended equipment, conductor arrangement, installation method, movement duty, environment, terminations, dimensions and required documentation together.

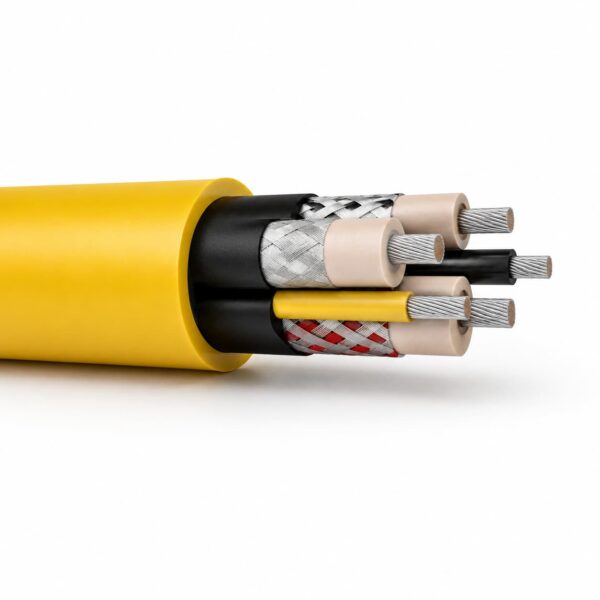

(N)TMCETMPU Cable 6/10 kV to 14/25 kV Portable Mining Trailing Cable construction
The original product record does not separate a construction section, so the confirmed construction-related attributes are retained below.
| Conductor | Finely stranded tinned copper, IEC 60228 Class 5 |
|---|---|
| Insulation | Thermosetting EPR compound, type 3GI3 |
| Ground Check Conductor | Annealed tin-coated copper with yellow polypropylene insulation |
| Grounding Conductor | Tinned copper conductor, flexible and finely stranded |
| Jacket | Thermoplastic polyurethane TPU compound |
| Jacket Colour | Yellow; other colours on request |
| Max Conductor Temperature | 90°C |
(N)TMCETMPU Cable 6/10 kV to 14/25 kV Portable Mining Trailing Cable applications
Applications
- Open pit mining portable power supply
- Underground mining trailing cable systems
- Electric shovels and draglines
- Shuttle cars and self-driven loaders
- Cable reel and cable boom systems
- Dry, moist and wet rooms, outdoor routes and mining cable trays
- High tensile and abrasion stress applications requiring TPU jacket protection
Selection Notes for Mining Engineers
When specifying (N)TMCETMPU cable, confirm voltage class, phase conductor size, grounding conductor size, ground-check conductor size, bending method, drum or trailing route, tensile stress, expected abrasion, ampacity requirement and cable weight. In mobile mining equipment, the jacket material, grounding system and bending radius are as important as conductor ampacity because cable downtime can stop production equipment.
Selection checks
Confirm the equipment interface, installation method, route length, movement or flexing duty, environmental exposure, conductor or core requirements and project documentation before final selection.
(N)TMCETMPU Cable 6/10 kV to 14/25 kV Portable Mining Trailing Cable specifications
Source-listed technical tables
The tables below retain the original product data, including units, ranges and ordering examples.
| Product Type | (N)TMCETMPU cable, three-conductor round portable trailing cable |
| Voltage Classes | 6/10 kV, 8.7/15 kV, 14/25 kV |
| Standards | Based on IEC 60502, VDE 0250 Part 813 and IEC 60228 |
| Conductors | Finely stranded tinned copper, flexible Class 5 according to IEC 60228 |
| Power Cores | Inner semiconductive rubber layer, high-quality dielectric and thermal insulation, ozone-resistant EPR, outer semiconductive rubber layer and insulation extruded in one process where applicable |
| Insulation | Special thermosetting ethylene-propylene rubber (EPR), type 3GI3 according to DIN VDE 0207 Part 20 |
| Circuit Identification | Colored textile braid threads: black, white and red |
| Ground Check Conductor | Annealed tin-coated copper according to IEC 60228 with yellow polypropylene insulation |
| Grounding Conductor | Tinned copper conductor, flexible and finely stranded |
| Assembly | Three power cores, two earth conductors and one ground-check conductor cabled together with single-faced rubber-filled binder tape applied overall |
| Jacket | Thermoplastic polyurethane (TPU) compound for extra-heavy use, oil resistance, high abrasion resistance and high tear resistance |
| Jacket Colour | Yellow as standard; other colours available on request |
| Standard Packing | 300 m on drums; other packing and delivery forms available on request |
| Approval Reference | MSHA-P-07-KA120001-1-MSHA |
| Flexibility | Excellent flexibility |
| Ozone and Weather Resistance | Highly ozone and weather resistant |
| Impact and Abrasion Resistance | Excellent impact and abrasion resistance |
| Oil and Heat Resistance | Oil and heat resistant |
| Maximum Conductor Operating Temperature | 90°C |
| Maximum Short-Circuit Current Temperature | 200°C |
| Low-Temperature Flexibility | Rated and flexible at -30°C |
| Voltage Test | AC 17 kV for 6/10 kV; AC 24 kV for 8.7/15 kV; AC 36 kV for 14/25 kV, 5 minutes |
| Minimum Bending Radius | 4D fixed installation; 7.5D free bending on drum |
| Identification | Ink-jet printed for easy identification |
| Voltage | Power + Grounding Conductors | Power Conductor Stranding | Grounding / Ground Check Stranding | Insulation Thickness | Jacket Thickness | Approx. Overall Diameter | Resistance at 20°C | Ampacity at 30°C | Approx. Weight |
|---|---|---|---|---|---|---|---|---|---|
| 6/10 kV | 3x50 + 2x16 + 1x10 | 364x0.4 | 116x0.4 / 74x0.4 | 3.4 mm | 5.5 mm | 54.0 mm | 0.393 Ω/km | 202 A | 4307 kg/km |
| 6/10 kV | 3x70 + 2x35 + 1x10 | 514x0.4 | 254x0.4 / 74x0.4 | 3.4 mm | 5.5 mm | 54.8 mm | 0.277 Ω/km | 250 A | 5534 kg/km |
| 6/10 kV | 3x95 + 2x35 + 1x16 | 684x0.4 | 254x0.4 / 116x0.4 | 3.4 mm | 5.5 mm | 62.6 mm | 0.210 Ω/km | 301 A | 6901 kg/km |
| 6/10 kV | 3x120 + 2x50 + 1x10 | 870x0.4 | 364x0.4 / 74x0.4 | 3.4 mm | 5.5 mm | 66.3 mm | 0.164 Ω/km | 352 A | 7467 kg/km |
| 6/10 kV | 3x185 + 2x70 + 1x35 | 1325x0.4 | 514x0.4 / 254x0.4 | 3.4 mm | 5.5 mm | 75.6 mm | 0.108 Ω/km | 461 A | 11100 kg/km |
| 8.7/15 kV | 3x50 + 2x16 + 1x10 | 364x0.4 | 116x0.4 / 74x0.4 | 4.5 mm | 5.5 mm | 60.3 mm | 0.393 Ω/km | 215 A | 4900 kg/km |
| 8.7/15 kV | 3x70 + 2x35 + 1x10 | 514x0.4 | 254x0.4 / 74x0.4 | 4.5 mm | 5.5 mm | 63.2 mm | 0.277 Ω/km | 265 A | 6100 kg/km |
| 8.7/15 kV | 3x95 + 2x35 + 1x16 | 684x0.4 | 254x0.4 / 116x0.4 | 4.5 mm | 5.5 mm | 68.2 mm | 0.210 Ω/km | 319 A | 7100 kg/km |
| 8.7/15 kV | 3x120 + 2x50 + 1x10 | 870x0.4 | 364x0.4 / 74x0.4 | 4.5 mm | 5.5 mm | 72.2 mm | 0.164 Ω/km | 371 A | 8400 kg/km |
| 8.7/15 kV | 3x185 + 2x70 + 1x35 | 1325x0.4 | 514x0.4 / 254x0.4 | 4.5 mm | 5.5 mm | 76.7 mm | 0.108 Ω/km | 488 A | 12100 kg/km |
| 14/25 kV | 3x50 + 2x16 + 1x10 | 364x0.4 | 116x0.4 / 74x0.4 | 6.8 mm | 5.5 mm | 65.1 mm | 0.393 Ω/km | 215 A | 6800 kg/km |
| 14/25 kV | 3x70 + 2x35 + 1x10 | 514x0.4 | 254x0.4 / 74x0.4 | 6.8 mm | 5.5 mm | 69.7 mm | 0.277 Ω/km | 265 A | 8000 kg/km |
| 14/25 kV | 3x95 + 2x35 + 1x16 | 684x0.4 | 254x0.4 / 116x0.4 | 6.8 mm | 5.5 mm | 75.3 mm | 0.210 Ω/km | 319 A | 9000 kg/km |
| 14/25 kV | 3x120 + 2x50 + 1x10 | 870x0.4 | 364x0.4 / 74x0.4 | 6.8 mm | 5.5 mm | 78.3 mm | 0.164 Ω/km | 371 A | 9400 kg/km |
| 14/25 kV | 3x185 + 2x70 + 1x35 | 1325x0.4 | 514x0.4 / 254x0.4 | 6.8 mm | 5.5 mm | 86.3 mm | 0.108 Ω/km | 488 A | 14000 kg/km |
Original product attributes
These product attributes are retained as supplied and should be checked against the ordered construction.
| Product Type | Three-conductor round portable trailing cable |
|---|---|
| Model | (N)TMCETMPU cable |
| Voltage Rating | 6/10 kV; 8.7/15 kV; 14/25 kV |
| Standards | IEC 60502, VDE 0250 Part 813, IEC 60228 |
| Conductor | Finely stranded tinned copper, IEC 60228 Class 5 |
| Insulation | Thermosetting EPR compound, type 3GI3 |
| Ground Check Conductor | Annealed tin-coated copper with yellow polypropylene insulation |
| Grounding Conductor | Tinned copper conductor, flexible and finely stranded |
| Assembly | Three power cores, two earth conductors and one ground-check conductor cabled together |
| Jacket | Thermoplastic polyurethane TPU compound |
| Jacket Colour | Yellow; other colours on request |
| Max Conductor Temperature | 90°C |
| Max Short-Circuit Temperature | 200°C |
| Low Temperature Flexibility | Rated and flexible at -30°C |
| Bending Radius | 4D fixed installation; 7.5D free bending on drum |
| Standard Packing | 300 m on drums |
| Approval Reference | MSHA-P-07-KA120001-1-MSHA |
(N)TMCETMPU Cable 6/10 kV to 14/25 kV Portable Mining Trailing Cable standards and compliance
The following standard references are carried over from the original product record. They identify the source basis and do not replace project-specific certification or inspection requirements.
- Standards Based on IEC 60502, VDE 0250 Part 813 and IEC 60228
- Conductors Finely stranded tinned copper, flexible Class 5 according to IEC 60228
- Insulation Special thermosetting ethylene-propylene rubber (EPR), type 3GI3 according to DIN VDE 0207 Part 20
- Ground Check Conductor Annealed tin-coated copper according to IEC 60228 with yellow polypropylene insulation
- Approval Reference MSHA-P-07-KA120001-1-MSHA
Where a project requires a test report, certificate, marking record or inspection release, include that requirement in the quotation request.
