(N)TMCGETMPU Cable 6/10 kV to 14/25 kV Reeling Mining Trailing Cable

When specifying (N)TMCGETMPU cable, confirm voltage class, conductor size, grounding and ground-check conductor arrangement, reeling drum design, bending radius, tensile stress, torsion exposure, ampacity, operating temperature and cable weight. In continuous reeling applications, cable lifetime depends on the complete mechanical design: conductor flexibility, filled construction, jacket material, drum diameter and route alignment must work together. (N)TMCGETMPU cable is a medium-voltage three-conductor round portable trailing cable for heavy mobile mining equipment supplied through cable reels and high-torsion trailing systems. Before ordering, confirm the exact product variant, conductor or core arrangement, system rating, route conditions, equipment connection and required documentation against the project specification. The (N)TMCGETMPU Cable 6/10 kV to 14/25 kV Reeling Mining Trailing Cable should be evaluated as a complete cable assembly: review its intended equipment, conductor arrangement, installation method, movement duty, environment, terminations, dimensions and required documentation together.

Enquiries from mines in the Americas sometimes describe this construction as SHD-GC TPU 6/10 kV with metric conductor sizes, for example 3×95 + 2×35 + 1×35 mm². That size is listed in the 6/10 kV rows of the Specifications section, and the (N)TMCGETMPU construction is quoted against it: Class 5 tinned copper, 3GI3 EPR insulation, an insulated ground-check conductor and a TPU jacket on a DIN VDE 0250-813 basis. Where the enquiry calls for a braided copper and textile screen over each phase, a single ground-check conductor, an orange halogen-free flame-retardant TPU sheath or a low-temperature rating below -30°C, TEBAOFLEX can supply these options to order; the exact construction and values are stated on the order data sheet. For the AWG sizes and the ICEA-based 2 kV to 25 kV family, see the SHD-GC cable 2 kV to 25 kV page.

Reference note: for enquiries marked URSUS^® MT MIN GC B PUR HF 6/10 kV, TEBAOFLEX manufactures to the (N)TMCGETMPU designation and the construction shown, and is not affiliated with the trademark holder.

Cross-reference: for enquiries marked PCBU-GC-FO — a 5 kV-class trailing cable with ground check and integrated single-mode fibres under TPU sheaths — see the PCBU-GC-FO reference review before a TEBAOFLEX drawing is confirmed.

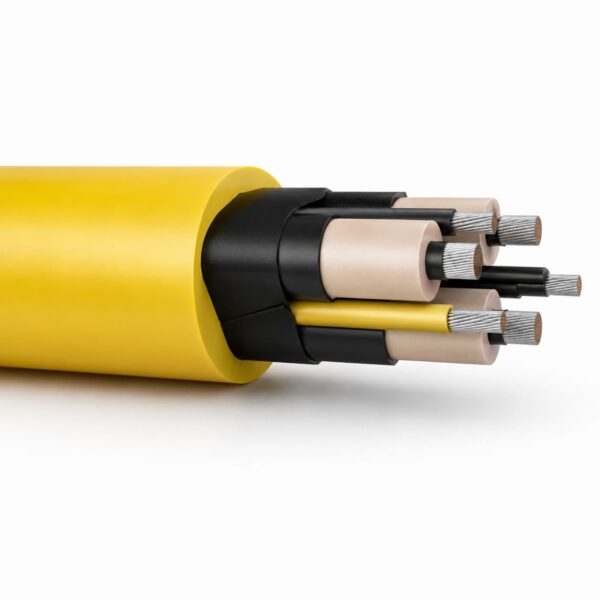

(N)TMCGETMPU Cable 6/10 kV to 14/25 kV Reeling Mining Trailing Cable construction

The original product record does not separate a construction section, so the confirmed construction-related attributes are retained below.

(N)TMCGETMPU Cable 6/10 kV to 14/25 kV Reeling Mining Trailing Cable applications

Applications

• Surface and underground mine power supply
• Quarries and industrial areas with heavy mobile equipment
• Shovels, draglines and continuous miners
• Cutting and loading machines
• Dredges, drills and track equipment
• Continuous reeling and unreeling applications
• High tensile and abrasion stress routes requiring TPU protection

Selection Notes for Reeling Cable Projects

When specifying (N)TMCGETMPU cable, confirm voltage class, conductor size, grounding and ground-check conductor arrangement, reeling drum design, bending radius, tensile stress, torsion exposure, ampacity, operating temperature and cable weight. In continuous reeling applications, cable lifetime depends on the complete mechanical design: conductor flexibility, filled construction, jacket material, drum diameter and route alignment must work together.

Selection checks

Confirm the equipment interface, installation method, route length, movement or flexing duty, environmental exposure, conductor or core requirements and project documentation before final selection.

(N)TMCGETMPU Cable 6/10 kV to 14/25 kV Reeling Mining Trailing Cable specifications

Source-listed technical tables

The tables below retain the original product data, including units, ranges and ordering examples.

Original product attributes

These product attributes are retained as supplied and should be checked against the ordered construction.

(N)TMCGETMPU Cable 6/10 kV to 14/25 kV Reeling Mining Trailing Cable standards and compliance

The following standard references are carried over from the original product record. They identify the source basis and do not replace project-specific certification or inspection requirements.

• Flexible tinned copper conductors: IEC 60228 Class 5 tinned copper conductors support flexibility in dynamic mining applications.
• Standards Based on IEC 60502, VDE 0250 Part 813 and IEC 60228
• Conductors Finely stranded tinned copper, flexible Class 5 according to IEC 60228
• Insulation Special thermosetting ethylene-propylene rubber (EPR), 3GI3 type according to DIN VDE 0207 Part 20
• Ground Check Conductor Annealed tin-coated copper according to IEC 60228 with yellow polypropylene insulation

Where a project requires a test report, certificate, marking record or inspection release, include that requirement in the quotation request.
