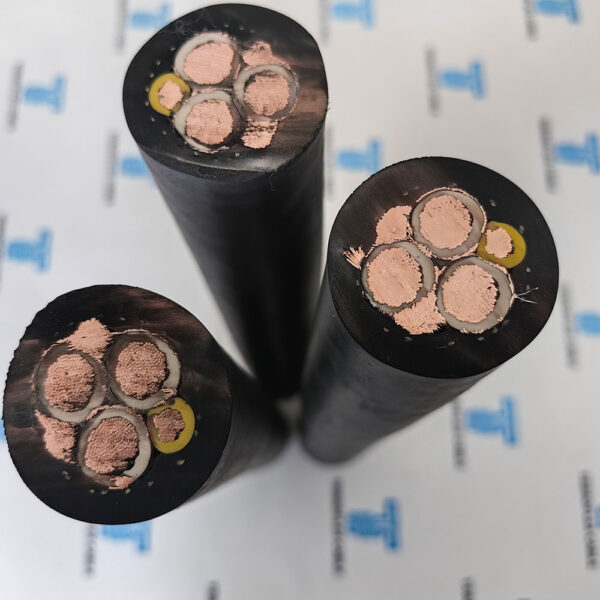

SHD-GC cable 2kV to 25kV mining power cable sample

Type SHD-GC mining cable round portable power construction

SHD-GC 2kV mining cable sample for portable mining power

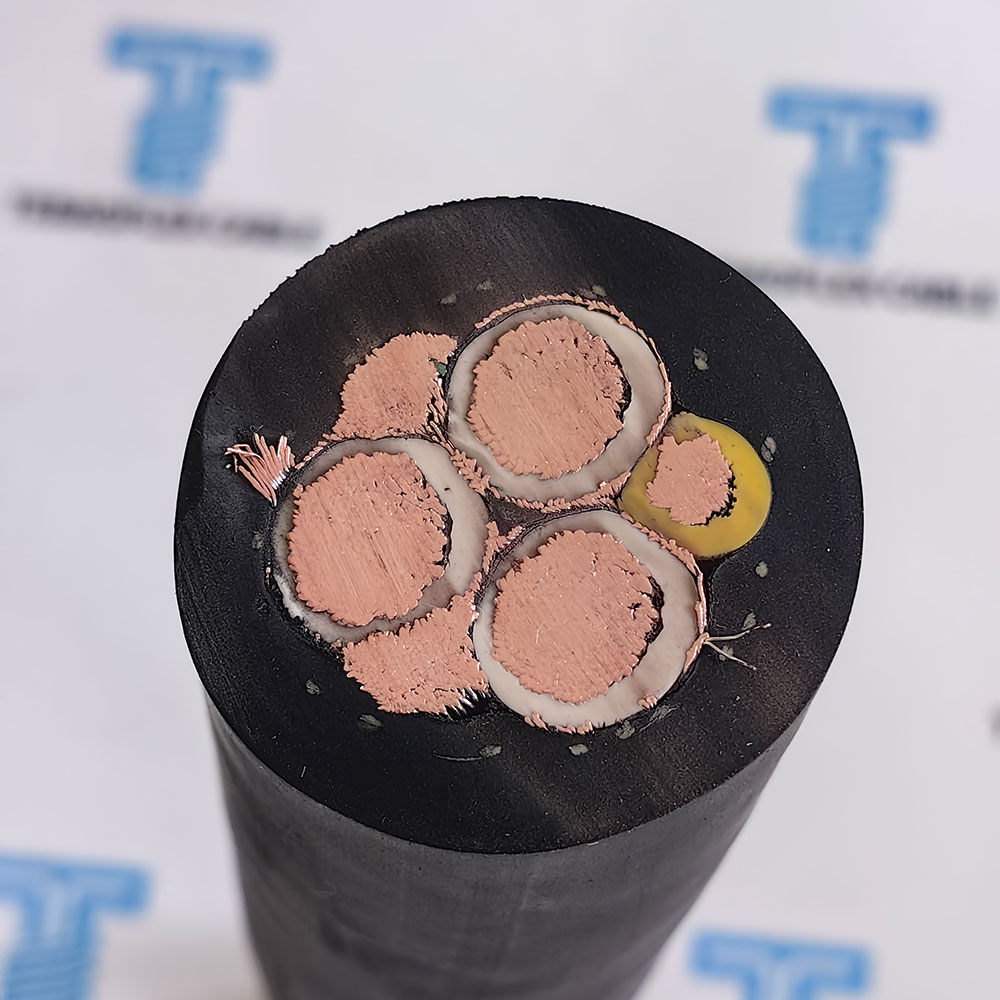

SHD GC cable jacket and conductor cross section

MINING & TUNNELING CABLES TEBAOFLEX

SHD-GC Cable 2kV-25kV Mining Power Cable

SHD-GC cable is a shielded round portable mining power cable with grounding and ground-check conductors for heavy mobile equipment.

Voltage classes: 2kV, 5kV, 8kV, 15kV and 25kV
Construction: Flexible tinned copper, EPR insulation and composite shielding
Grounding: Grounding conductors plus an insulated ground-check conductor
Jacket options: CPE or TPU by project duty
Size references: Voltage-dependent ranges from 6 AWG to 500 kcmil; see Specifications
Applications: Miners, loaders, drills, shovels, draglines, dredges, conveyors and pumps

SKU: SHD-GC Cable 2-25 kV Category: MINING & TUNNELING CABLES Tags: Brand: TEBAOFLEX

Product information

SKU: SHD-GC Cable 2-25 kV
Category: MINING & TUNNELING CABLES
Brand: TEBAOFLEX

Product overview

SHD-GC Cable for 2kV to 25kV Mining Power

SHD-GC cable is a shielded round portable mining power cable for mobile and semi-mobile equipment that needs power conductors, grounding conductors and a ground-check conductor in one heavy-duty construction. TEBAOFLEX supplies the product family for 2kV, 5kV, 8kV, 15kV and 25kV duties. Cable schedules may also write the name as SHD GC cable, Type SHD-GC, SHD-GC mining cable or cable SHD-GC.

The 2kV construction covers shielded portable power requirements that should not be selected only by comparison with Type G-GC or Type W. Higher-voltage configurations serve demanding mining equipment where shielding, grounding continuity, mechanical protection and a rugged jacket are central to the specification. The supplied technical data covers 6 AWG to 500 kcmil at 2kV and 5kV, 4 AWG to 500 kcmil at 8kV, 2 AWG to 4/0 AWG at 15kV, and 1 AWG to 4/0 AWG at 25kV.

Typical construction uses flexible tinned-copper conductors, EPR insulation, conductor and insulation shielding, grounding conductors, an insulated ground-check conductor and an extra-heavy-duty jacket. CPE and TPU jacket options can be reviewed against abrasion, impact, oil, weather, water and low-temperature exposure.

Use this page as the consolidated SHD GC cable specs and quotation reference. Before ordering, confirm system voltage, conductor size, cable length, equipment, route movement, bend radius, jacket exposure and required approval documentation. Compare the Mining & Tunneling Cables range or use the SHD-GC vs Type G-GC vs Type W guide when the cable type is not yet fixed.

Construction

SHD-GC Cable Construction

The exact layer thicknesses and conductor sizes change with voltage and cable size. The following construction describes the consolidated 2kV to 25kV product family and should be checked against the project cable schedule.

Layer	Typical construction	Selection purpose
Power conductors	Annealed, flexible stranded tinned copper	Supports repeated handling and corrosion resistance.
Conductor shield	Semi-conductive layer over each power conductor	Controls the electrical field at the conductor interface.
Insulation	Ethylene-propylene rubber (EPR), typically rated for 90°C conductor operation	Provides dielectric performance with flexibility.
Insulation shield	Semi-conducting layer with composite tinned-copper/polyamide braid; coverage follows the selected design	Provides shielding while retaining portable-cable flexibility.
Grounding conductors	Flexible tinned-copper grounding conductors laid in the interstices	Provides the equipment grounding path required by the circuit design.
Ground-check conductor	Yellow TPE-E or polypropylene insulated flexible tinned copper	Supports ground-continuity monitoring; size is project dependent.
Core assembly	Fillers and binder/separator tape as required by the construction	Maintains a round profile and stable core lay.
Outer jacket	Extra-heavy-duty CPE or project-specified TPU; two-layer or reinforced options available	Selected for abrasion, impact, oil, weather, water, torsion and temperature exposure.

Construction note: jacket compound, reinforcement, shield coverage, ground-check size and approval markings must be confirmed for the exact voltage, conductor size and order.

Applications

SHD-GC Mining Cable Applications

Type SHD-GC is selected when the route needs a shielded portable cable with grounding and ground-check continuity. Match the voltage and mechanical duty to the machine rather than treating every mining cable name as interchangeable.

Equipment or route	Typical selection focus	Important checks
Continuous miners and longwall systems	2kV or project-specified shielded portable power	Route movement, ground-check circuit, water, abrasion and cable handling.
Loaders, drills, jumbos and conveyors	Flexible trailing duty with repeated handling	Voltage, bend radius, pulling tension, run-over risk and jacket compound.
Shovels, draglines and dredges	Higher-voltage heavy mobile mining power	8kV, 15kV or 25kV class, conductor size, route length and mechanical protection.
Pumps and temporary mine distribution	Shielded portable or semi-mobile power	Water exposure, installation method, voltage drop and termination system.
Cranes and shore-to-ship routes	Project-specific flexible heavy-duty supply	Reeling or suspended movement, torsion, travel speed and local rules.

Selection boundaries

Do not substitute Type G-GC or Type W solely because the voltage is 2kV; first confirm whether the circuit requires a shielded SHD-GC construction.
Do not treat a standard bend-radius value as a drum-design approval. Send reel, sheave, roller and route data for moving systems.
MSHA, CSA or other approval language applies only when the exact supplied construction and marking are documented for the order.

For a broader application path, review Mining Cable Solutions. For a cable-family comparison, use the SHD-GC, Type G-GC and Type W guide.

Specifications

SHD GC Cable Specs

Product type	Type SHD-GC shielded round portable mining power cable with ground check
Voltage classes	2kV, 5kV, 8kV, 15kV and 25kV
Power conductors	Three flexible stranded tinned-copper conductors
Insulation	EPR; typical maximum conductor temperature 90°C
Shielding	Conductor shield plus insulation shield/composite tinned-copper and polyamide braid according to selected construction
Ground system	Grounding conductors plus one insulated ground-check conductor
Jacket	Extra-heavy-duty CPE or project-specified TPU
Minimum bend radius	6 脳 overall cable diameter in the current supplied data sheet; confirm the moving-route, reel, sheave and roller design separately
Low-temperature reference	-40°C for current rubber/CPE selections; TPU options may be reviewed for -50°C service
Packing	Project drum length; 1000 ft and 500 m formats can be reviewed with the quotation

Voltage and conductor-size reference

The following ranges are the rows listed in the current supplied TEBAOFLEX data sheet; they are not a promise that every size is stocked.

Voltage class	Sizes listed in supplied data	Ampacity range shown
2kV	6 AWG to 500 kcmil	93 to 536 A
5kV	6 AWG to 500 kcmil	93 to 536 A
8kV	4 AWG to 500 kcmil	122 to 536 A
15kV	2 AWG to 4/0 AWG	164 to 325 A
25kV	1 AWG to 4/0 AWG	191 to 327 A

Selection note: ampacity, outside diameter, weight, conductor stranding, grounding/ground-check sizes and insulation/jacket thickness are voltage- and size-specific. Confirm the order data sheet and installation conditions before procurement.

2kV electrical reference data

Size	Conductor strands	DC resistance at 25°C (Ω/1000 ft)	Inductance (mH/1000 ft)	Capacitance (µF/1000 ft)	1 s short-circuit current (kA)	Ampacity at 40°C ambient (A)
6 AWG	133	0.436	0.118	0.09	1.90	93
4 AWG	259	0.274	0.107	0.11	3.03	122
2 AWG	259	0.172	0.101	0.13	4.80	159
2/0 AWG	323	0.0868	0.092	0.16	9.64	243
250 MCM	627	0.0466	0.084	0.21	18.16	355
500 MCM	1221	0.0233	0.078	0.28	36.18	536

Data-use note: this table preserves the existing 2kV product-page reference data. Final resistance, ampacity, dimensions, short-circuit duty and installation limits must be confirmed on the order-specific data sheet.

Standards

Standards, Testing and Order Documentation

Source basis: the current TEBAOFLEX data sheet covers 2kV, 5kV, 8kV, 15kV and 25kV three-conductor SHD-GC constructions. Final markings and approval scope remain order-specific.

Reference	How it is used	Scope note
ANSI/ICEA S-75-381 / NEMA WC 23058	Portable and power-feeder cables for mines and similar applications	Current designation; NEMA WC 58 is the former designation commonly found in existing specifications.
ASTM B33	Tin-coated soft or annealed copper wire	Applicable when the selected construction uses tin-coated copper covered by the referenced requirement.
ASTM B172	Rope-lay-stranded copper conductors	Confirm conductor construction and edition on the order data sheet.
CAN/CSA C22.2 No. 96	Portable power cable reference named in the supplied data sheet	Confirm the exact construction, marking and certification evidence required by the order.
MSHA / CSA options	Project- or market-specific approval and marking	No blanket approval is claimed. Availability must be confirmed for the exact voltage, size, jacket and supplied marking.

Documentation available for review

Order-specific technical data sheet and cable construction drawing.
Routine electrical test report and agreed inspection records.
Cable marking, drum schedule, packing list and project documentation.
Applicable approval or compliance evidence only when included in the confirmed order scope.

Procurement note: send the existing cable marking, mine or equipment specification, voltage, conductor size, length, movement pattern and required documentation. TEBAOFLEX will review the requested construction before quotation.
