Pool Cleaner Umbilical Cable for Swimming Pool Robots

Pool Cleaner Umbilical Cable for Robotic Pool Systems

TEBAOFLEX pool cleaner umbilical cable is a configurable hybrid connection for corded swimming pool robots that need power and control or data circuits in one flexible cable. It is developed for repeated movement across pool floors, walls, steps and corners, where cable stiffness, excess weight, surface abrasion and accumulated twist can restrict the robot’s route.

The product family supports tinned or plain copper conductors, PE, PP or PVC insulation, and foamed PUR or PVC jackets. Buoyancy can be set to a neutral, positive or project-specific target, while the circuit layout can combine power cores, screened signal pairs or optical fibres. The supplied qualitative performance requirements have been confirmed against applicable test acceptance; numeric ratings remain configuration-specific and belong on the approved drawing and test plan.

• Suitable for: residential and commercial corded robotic pool cleaners.
• Confirm before ordering: voltage, current, core functions, length, connector, pool chemistry and buoyancy.
• Selection boundary: do not treat this pool-duty cable as a deepwater, towing or load-bearing umbilical without a separate engineering review.

Browse the industrial cable range for other flexible equipment connections.

Construction

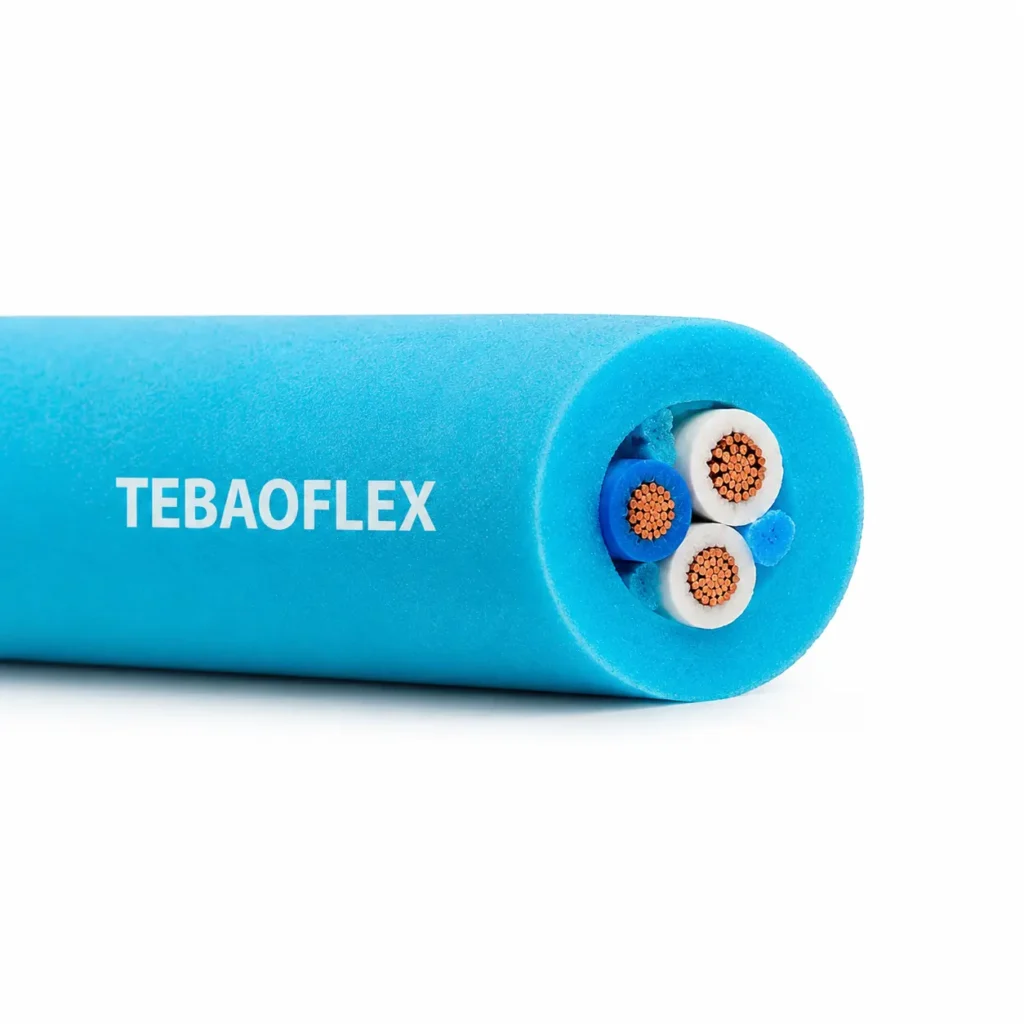

The cable is engineered as a project-specific hybrid. Conductor, insulation, circuit layout and jacket are selected together so electrical service, signal integrity, flexibility and buoyancy match the pool robot and its route.

Buoyancy and twist management

Neutral, positive or project-specific buoyancy can be tuned through the completed construction. The cable uses a flexible, tangle-resistant design; final handling also depends on length, pool geometry, robot path, storage method, swivel and strain relief. Specify these interfaces instead of relying on the cable name alone.

Applications

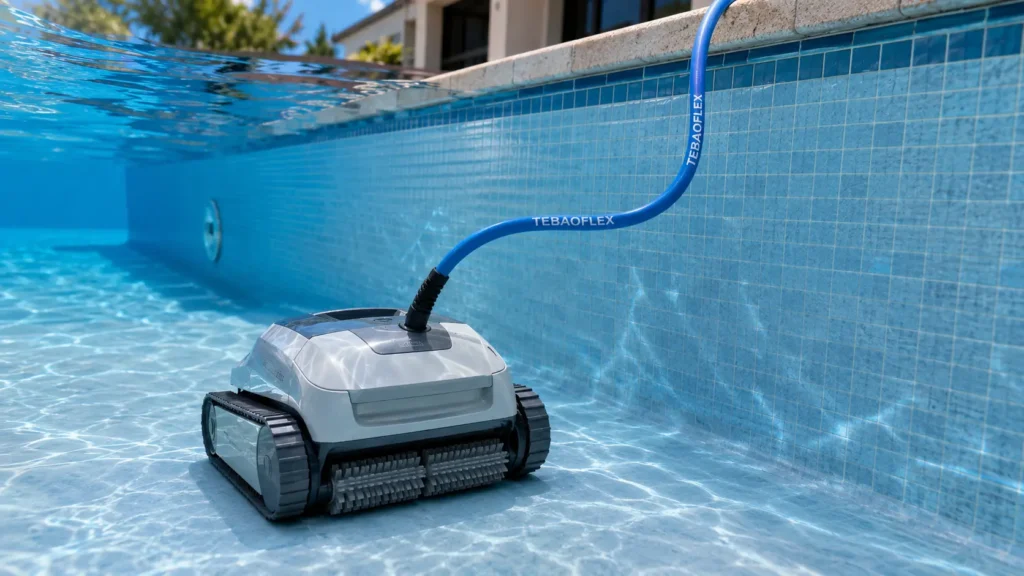

This product family is intended for corded robotic cleaners operating in treated swimming-pool water and moving repeatedly across submerged pool surfaces.

• Residential swimming pool cleaning robots
• Commercial pools and aquatic-facility cleaning systems
• Robots that clean floors, walls, steps and waterline areas
• Combined power and control or data connections
• Custom OEM pool-cleaner cable and termination assemblies

Environmental and routing checks

• The supplied test status covers continuous pool immersion and qualitative resistance to pool chemicals, UV, abrasion and corrosion under the applicable acceptance conditions.
• State actual disinfectant chemistry, concentration, operating cycle and storage exposure for the final material review.
• Match cable length to pool dimensions and the robot route; unnecessary length can increase loops and twist accumulation.
• Confirm connector sealing, pinout, strain relief and any swivel as part of the completed assembly.

Specifications

The confirmed information defines a configurable product family rather than one universal electrical size. Final numeric ratings are recorded on the approved cable drawing and test plan.

Required ordering data

State the robot model, voltage, current, power-core sizes, signal protocol, screen or fibre requirement, overall length, buoyancy target, connector pinout, pool chemistry, bend geometry and required test documentation.

Standards

The supplied construction data and qualitative performance requirements are confirmed as meeting the applicable test acceptance requirements for this pool-cleaner cable family. Because each electrical layout and buoyancy target can differ, the final order drawing and test plan define the named methods, durations and numeric acceptance values for the selected configuration.

Include any market-specific safety, material declaration, inspection or test-report requirement in the RFQ so it can be written into the order documents before production.
