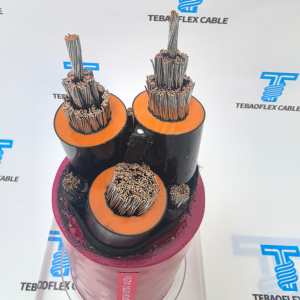

3.6/6kV to 18/30kV NTSCGEWOEU-W Cable
3.6/6kV to 18/30kV NTSCGEWOEU-W Cable is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. TEBAOFLEX supplies this robust cable in a wide array of cross-sections to match your specific machinery power requirements. Below is a snapshot of our 6/10 kV and 12/20 kV range: Overview: The TEBAOFLEX NTSCGEWOEU-W cable is a premium flexible medium-voltage power supply cable. Send the exact size, length, installation duty and documentation requirements for a technical quotation.
3.6/6kV to 18/30kV NTSCGEWOEU-W Cable is a TEBAOFLEX cable for the application and operating conditions identified in the original product record. TEBAOFLEX supplies this robust cable in a wide array of cross-sections to match your specific machinery power requirements. Below is a snapshot of our 6/10 kV and 12/20 kV range: Overview: The TEBAOFLEX NTSCGEWOEU-W cable is a premium flexible medium-voltage power supply cable. Engineered based on DIN VDE 0250-813, it is explicitly designed to withstand extreme mechanical stresses in open-pit mining facilities and is fully rated for continuous operation in permanent water immersion. The source record places this product in mining & tunneling cables. Before ordering, confirm the exact product variant, conductor or core arrangement, system rating, route conditions, equipment connection and required documentation against the project specification. The requested 3.6/6kV to 18/30kV NTSCGEWOEU-W Cable should be evaluated as a complete cable assembly: review its intended equipment, conductor arrangement, installation method, movement duty, environment, terminations, dimensions and required documentation together. The V2 layout keeps the source-listed construction, application, technical and standard information available for a controlled engineering and procurement review.

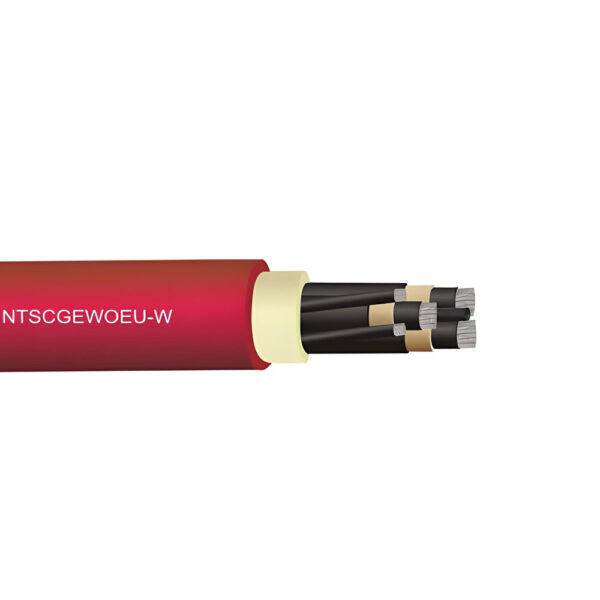

3.6/6kV to 18/30kV NTSCGEWOEU-W Cable construction

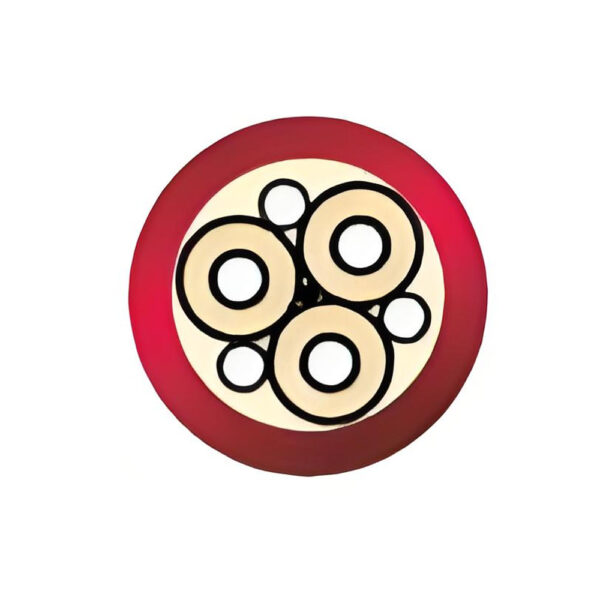

Advanced Cable Construction (.../3E Design)
To ensure flawless power delivery and specified safety (CPR 305/2011 compliant), our cable utilizes a highly specialized symmetrical construction:
- Main Conductors: Finely stranded tinned copper wires, class 5 (DIN EN/IEC 60228) to prevent oxidation.
- Electrical Field Control: Extruded inner and outer semi-conductive rubber stress control layers over the insulation to eliminate partial discharge.
- Insulation: Premium EPR (Ethylene Propylene Rubber) compound type 3G13.
- Protective Earth Conductor: Tinned copper wire spinning, symmetrically split into 3 in the outer interstices (.../3E configuration) to minimize electromagnetic interference.
- Inner Sheath: Synthetic EPR rubber compound based on type GM1b, specifically optimized for waterproofing and filling the interstices.
- Outer Sheath: Heavy-duty rubber compound type 5GM3. Highly resistant to oil (EN 60811-404), ozone, and UV rays. Standard color: Red.
3.6/6kV to 18/30kV NTSCGEWOEU-W Cable applications
The original product record identifies the application context but does not provide a separate application section. Confirm the equipment, route, movement duty and environment before quotation.
Selection checks
Confirm the equipment interface, installation method, route length, movement or flexing duty, environmental exposure, conductor or core requirements and project documentation before final selection.
3.6/6kV to 18/30kV NTSCGEWOEU-W Cable specifications
The source-listed technical notes are retained below. Confirm the final size, tolerance, installation basis and ordered configuration before release.
Technical Data & Operational Limits
The source record lists NTSCGEWOEU-W cable to specified quality control to ensure maximum durability on the field:
Dimensional Specifications (Selection)
TEBAOFLEX supplies this robust cable in a wide array of cross-sections to match your specific machinery power requirements. Below is a snapshot of our 6/10 kV and 12/20 kV range:
Source-listed technical tables
The tables below retain the original product data, including units, ranges and ordering examples.
| Rated Voltage (Uo/U) | 3.6/6 kV, 6/10 kV, 8.7/15 kV, 12/20 kV, 14/25 kV, 18/30 kV |
| Max. Conductor Temperature | +90°C (Operating) / +250°C (Short-circuit for 1s) |
| Ambient Temp. (Fixed) | -40°C to +80°C |
| Ambient Temp. (Flexible) | -25°C to +80°C |
| Max. Water Temperature | +40°C (Permanent immersion) |
| Max. Tensile Load | 15 N/mm² (per conductor) |
| Torsional Stresses | +/- 100 °/m (High resistance to twisting) |
| Fire Performance | Flame retardant according to DIN EN/IEC 60332-1-2 |
| Voltage Rating | No. of Cores x Cross-section (mm²) | Outer Diameter min-max (mm) | Current Rating at 30°C (A) | Approx. Weight (kg/km) |
|---|---|---|---|---|
| 6 / 10 kV | 3 x 35 + 3 x 25/3E | 51 - 54 | 162 A | 3 730 |
| 3 x 50 + 3 x 25/3E | 57 - 60 | 202 A | 4 625 | |
| 3 x 95 + 3 x 50/3E | 66 - 69 | 301 A | 7 085 | |
| 3 x 150 + 3 x 70/3E | 72 - 76 | 404 A | 9 100 | |
| 12 / 20 kV | 3 x 35 + 3 x 25/3E | 62 - 65 | 172 A | 5 045 |
| 3 x 50 + 3 x 25/3E | 68 - 71 | 215 A | 6 070 | |
| 3 x 95 + 3 x 50/3E | 73 - 77 | 319 A | 8 300 | |
| 3 x 150 + 3 x 70/3E | 83 - 87 | 428 A | 10 900 |
3.6/6kV to 18/30kV NTSCGEWOEU-W Cable standards and compliance
The following standard references are carried over from the original product record. They identify the source basis and do not replace project-specific certification or inspection requirements.
- Main Conductors: Finely stranded tinned copper wires, class 5 (DIN EN/IEC 60228) to prevent oxidation.
- Outer Sheath: Heavy-duty rubber compound type 5GM3. Highly resistant to oil (EN 60811-404), ozone, and UV rays. Standard color: Red.
- Fire Performance Flame retardant according to DIN EN/IEC 60332-1-2
Where a project requires a test report, certificate, marking record or inspection release, include that requirement in the quotation request.
Request a cable recommendation and quotation
Send the required services, cable length, mechanical duty, environment, termination and quantity. Our team will review the application before quoting.
- Include the product name or SKU plus the required cable length and quantity.
- Attach a specification, drawing or data sheet when available.
