SiHFC Cable for EMC-Sensitive High Temperature Connections
SiHFC cable is a screened silicone rubber cable designed for the connection of mobile electrical appliances in demanding environments. It is suitable for high ambient temperatures, low temperature conditions, and installations where electromagnetic compatibility is important. The cable uses silicone rubber insulation, a silicone rubber inner sheath, a tinned copper wire braid screen and a red silicone rubber outer sheath.
Key Features
- Screened construction: The TCWB tinned copper wire braid helps reduce electromagnetic interference in EMC-sensitive applications.
- High temperature resistance: Rated for fixed installation from -60°C to +180°C, supporting use in heat-exposed industrial environments.
- Flexible tinned copper conductor: Class 5 stranded tinned copper provides flexibility and stable conductivity for appliance and equipment connections.
- Silicone rubber insulation and sheath: Offers good flexibility and temperature performance compared with standard PVC cables.
- Resistance to industrial media: Insulation and sheath are resistant to most oils, greases, acids, lyes and oxidants.
- Multi core range: Available from 2 cores to 25 cores for different control, signal and power connection requirements.
Technical Specifications
| Product Name | SiHFC Silicone 180 Screened Multi Core Cable |
| Cable Type | Screened multi core silicone rubber flexible cable |
| Voltage Rating | 300/500V |
| Temperature Rating | Fixed installation: -60°C to +180°C |
| Conductor | Class 5 flexible stranded tinned copper |
| Insulation | Silicone rubber |
| Inner Sheath | Silicone rubber |
| Screen | TCWB, tinned copper wire braid |
| Outer Sheath | Silicone rubber |
| Sheath Colour | Red |
| Core Range | 2 cores to 25 cores |
| Conductor Size Range | 0.75mm² to 25mm² depending on core count |
| Minimum Bending Radius | Fixed: 5 x overall diameter; flexed: 10 x overall diameter |
| Standard | VDE 0482-332-1-2 |
| Flame Retardant Standard | IEC 60332-1-2 |

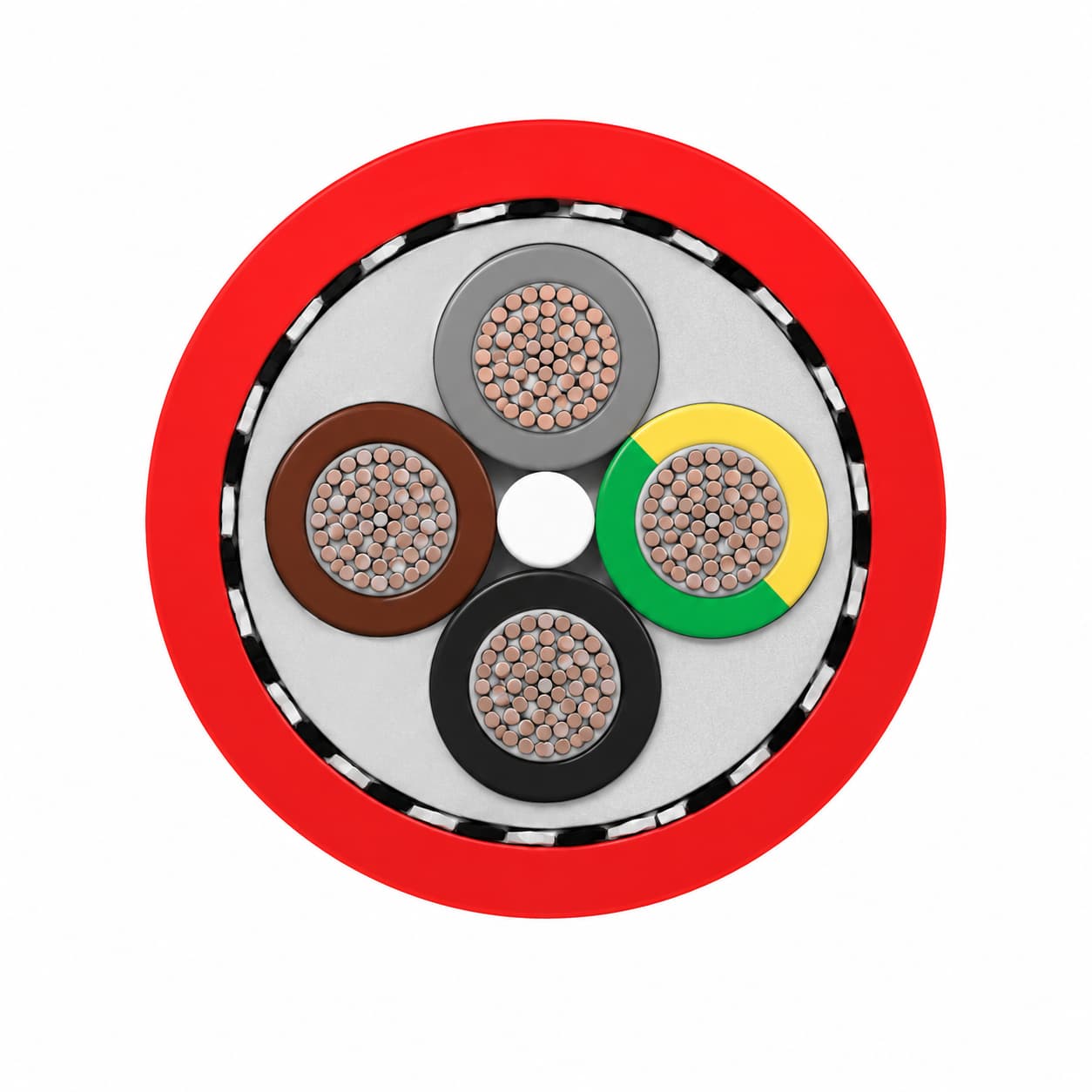

Cable Construction
- Conductor: Class 5 flexible stranded tinned copper conductor.
- Insulation: Silicone rubber insulation for high and low temperature performance.
- Inner Sheath: Silicone rubber inner sheath.
- Screen: TCWB tinned copper wire braid for EMC protection.
- Outer Sheath: Red silicone rubber sheath with resistance to most oils, greases, acids, lyes and oxidants.
Core Identification
- 3 cores: Green/yellow, blue and brown
- 4 cores: Green/yellow, blue, black and grey
- 5 cores: Green/yellow, blue, brown, black and grey
- More than 5 cores: Black numbered cores plus green/yellow
Applications
- Connection of mobile electrical appliances without mechanical stress
- EMC-sensitive equipment and control connections
- High temperature appliance wiring in industrial environments

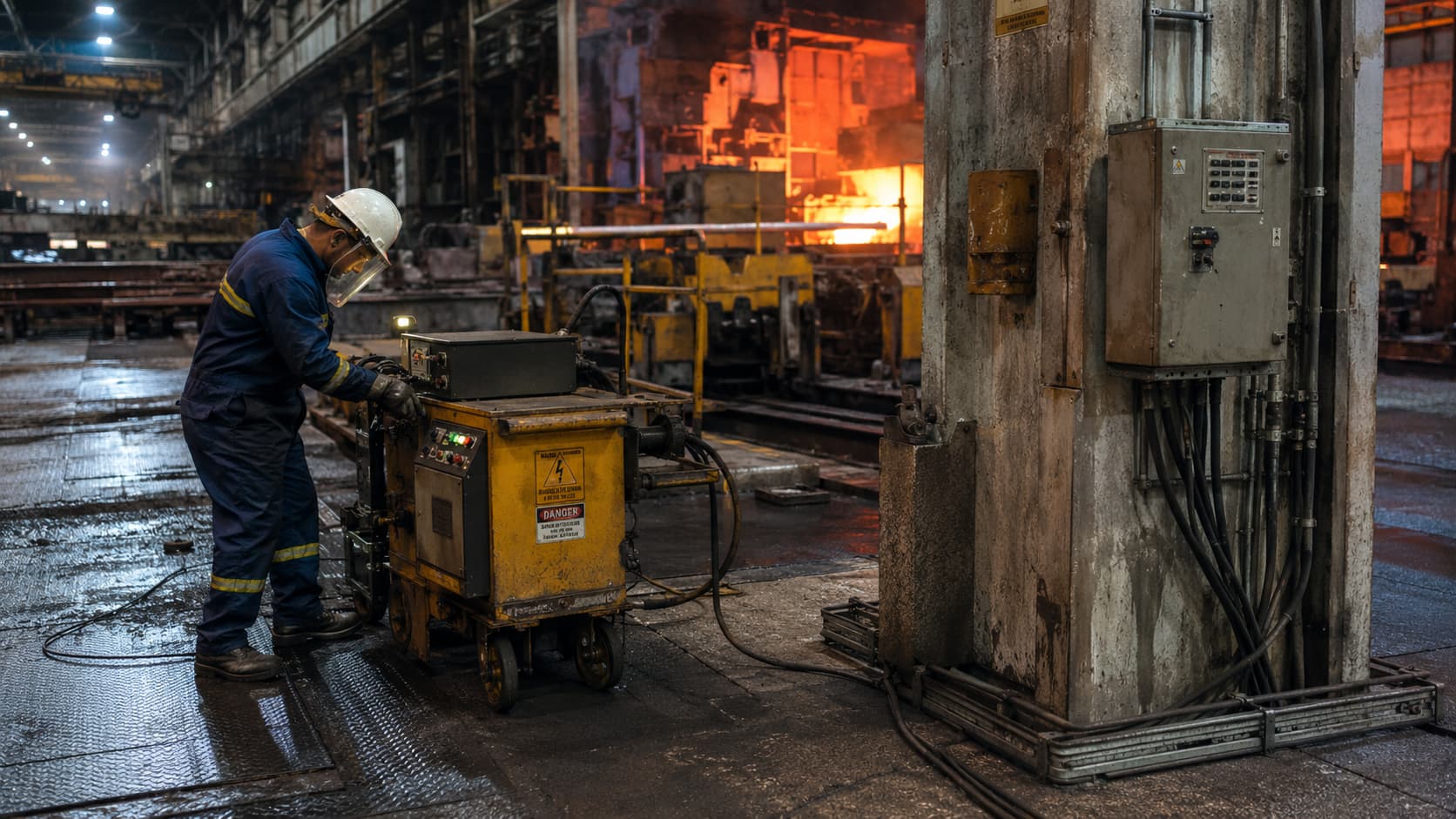

- Steelworks and heat-exposed production areas
- Low temperature installations requiring flexible silicone cable
- Fixed installation in mechanically protected conduits
- Equipment wiring exposed to oils, greases, acids, lyes or oxidants
Available Core and Size Options
SiHFC Silicone 180 cable is available in 2, 3, 4, 5, 7, 12, 18, 24 and 25 core constructions. Common conductor sizes include 0.75mm², 1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm² and 25mm², depending on the selected number of cores.
Why Choose SiHFC Screened Silicone Cable
SiHFC cable is suitable when a standard multi core silicone cable is not enough and EMC protection is also required. Its tinned copper wire braid screen, silicone rubber insulation and silicone outer sheath make it a practical choice for equipment manufacturers, maintenance teams and industrial buyers working with high temperature, low temperature or interference-sensitive installations.
FAQ
What is SiHFC cable used for?
SiHFC cable is used for connecting mobile electrical appliances and equipment in high or low temperature environments, especially where screened cable construction is required for EMC-sensitive applications.
What is the difference between SiHFC and SiHF-J cable?
SiHFC cable includes an inner sheath and a tinned copper wire braid screen, while SiHF-J is an unscreened silicone cable. SiHFC is selected when electromagnetic interference protection is required.
What temperature can SiHFC Silicone 180 cable withstand?
The cable is rated for fixed installation from -60°C to +180°C, making it suitable for both heat-exposed and low temperature environments.
Is SiHFC cable resistant to oil and chemicals?
Yes. The product information states that the insulation and sheath are resistant to most oils, greases, acids, lyes and oxidants.
