12YHRDT11YH / RXP-D Heavy-Duty PUR Reeling Cable

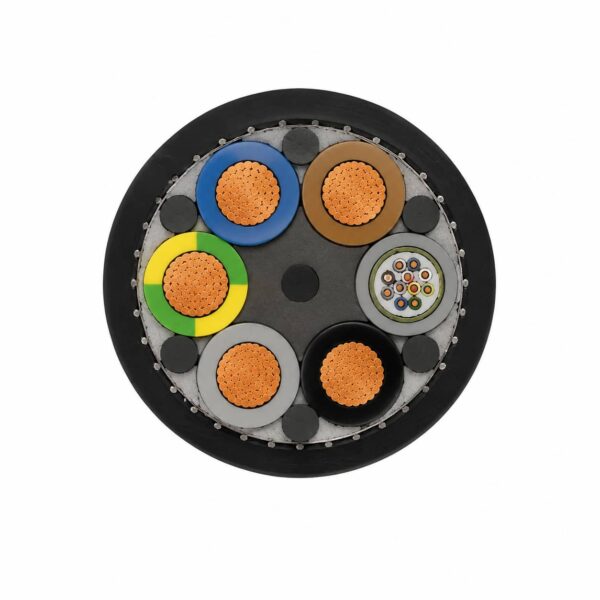

12YHRDT11YH / RXP-D heavy-duty PUR reeling cable is a 0.6/1 kV round cable for motorized reels on high-speed horizontal and vertical machinery. A central support element, double sheath and embedded braid handle higher tensile and torsional loads.
12YHRDT11YH / RXP-D PUR reeling cable is designed for motorized reels exposed to high travel speed, acceleration, tensile load and torsion. It supplies power and control to transfer cars, lifting equipment, bulk-material machinery and automated parking systems.
The construction combines flexible Class 5 copper conductors with a central support element, short core lays and a compact double-sheath system. An embedded braid between the inner and outer sheath increases torsional stability, while the wear-resistant PUR outer layer protects the cable over rollers and during repeated winding. The cable is rated 0.6/1 kV for horizontal travel speeds up to 180 m/min. Minimum bending radii are 6 x cable diameter on the reel and 7.5 x diameter over rollers, with 20 x diameter spacing at S-type directional changes. The supported construction also controls cable stretch during vertical travel.
The wide temperature range supports moving service down to -40°C and fixed installation down to -50°C. Specify reel geometry, cable layers, speed, acceleration, route orientation, hanging length, tensile load, bend points, conductor arrangement and installed length with the enquiry.
Construction
| Layer | Construction detail |
|---|---|
| Conductor | Flexible copper, Class 5. |
| Core material | Halogen-free polyester or equivalent flexible core system. |
| Central element | Embedded support element for higher tensile loading. |
| Inner sheath | Compact bedding layer around the cabled core assembly. |
| Reinforcement | Braid between inner and outer sheath for torsional stability. |
| Outer sheath | Wear-resistant PUR compound. |
| Type designations | 12YHRDT11YH and 12HRDTC11YH power, control and composite configurations. |
Mechanical Load Path
The central element carries axial load, while the embedded braid limits twist through the double sheath. This separation protects the copper conductors during acceleration and vertical movement.
Applications
- Motorized cable reels.
- Horizontal and vertical high-speed machinery.
- Transfer cars and automated parking systems.
- Lifting equipment and hoisting systems.
- Bulk-material handling machinery with rollers and direction changes.
Related Cable Selection
Use the TRA anti-torsion PUR cable for multi-pattern reels up to 200 m/min. For dedicated port-crane spreader routes, select the spreader vertical reeling cable. The RP / RP-D cable covers compact standard-duty reels.
Specifications
| Parameter | 12YHRDT11YH / RXP-D data |
|---|---|
| Rated voltage | 0.6/1 kV |
| Travel speed | Up to 180 m/min horizontal |
| Minimum bending radius | 6 x cable diameter on reel; 7.5 x over rollers; 20 x spacing at S-type direction changes |
| Movement | Horizontal and vertical reeling with high acceleration |
| Ambient temperature | Flexing: -40°C to +80°C; fixed: -50°C to +80°C |
| Maximum conductor temperature | 90°C in operation; 200°C under short-circuit conditions |
| Mechanical system | Central support element, double sheath and anti-torsion braid |
| Sheath | Wear-resistant PUR |
Standards
The technical references below define the conductor, test or installation basis used for this cable family.
| Reference | Product application |
|---|---|
| IEC 60228 | Class 5 flexible copper conductor. |
| IEC 60332-1 | Single-cable flame propagation test reference. |
Production and Ordering Records
- Routine electrical and dimensional test records accompany the production batch.
- Cable marking includes type designation, rated voltage, core arrangement and production code.
- The drum schedule records length, cable outside diameter and handling direction.
