RXX / TRA-RF Spreader Vertical Reeling Cable 0.6/1 kV
RXX / TRA-RF spreader vertical reeling cable is a 0.6/1 kV extra-heavy-duty cable family for port-crane spreader reels and other high-load vertical routes. Reinforced rubber and PUR versions carry tensile loading up to 30 N/mm².
RXX / TRA-RF spreader vertical reeling cable is designed for motorized reels exposed to high hanging load, acceleration, torsion and continuous roller contact. Typical routes include port-crane spreaders, grab dredgers and other vertical moving equipment.
RXX uses a compact reinforced rubber double sheath, embedded anti-torsion braid and central support element. It operates at vertical reeling speeds up to 240 m/min with tensile loading up to 30 N/mm². TRA-RF uses a double polyurethane sheath, textile anti-twisting braid and a central elastomer support element reinforced with aramid ropes. It operates horizontally or vertically up to 200 m/min with the same 30 N/mm² tensile rating. Both families are rated 600/1000 V. Both variants separate axial load from conductor movement during repeated vertical acceleration and braking.
RXX suits the highest-speed vertical routes and wet-contact spreader or dredger duty. TRA-RF suits compact high-load systems that prioritize a wear-resistant PUR sheath. Specify spreader type, reel geometry, hanging length, cable weight, speed, acceleration, tensile demand, bend path, core schedule, water exposure and installed length with the enquiry.
Construction
| Variant | Construction detail |
|---|---|
| RXX conductor and cores | Flexible Class 5 or extra-flexible copper with mechanically stable thermoplastic insulation. |
| RXX reinforcement | Central support element, compact double sheath and embedded braid. |
| RXX outer sheath | Highly wear-resistant rubber compound. |
| TRA-RF conductor and cores | Class 5 flexible copper with polyethylene insulation and numbered black cores. |
| TRA-RF reinforcement | Textile anti-twisting braid plus central elastomer cord reinforced with aramid ropes. |

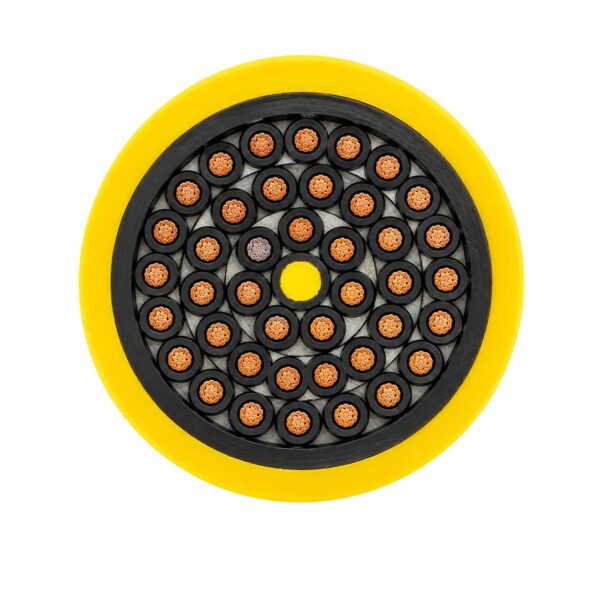

| TRA-RF outer sheath | Highly abrasion-resistant double polyurethane sheath, yellow RAL 1021. |
Vertical Load Transfer
The central support element carries the hanging load while the braid controls torsion through the sheath. This protects the insulated conductors during rapid spreader acceleration and braking.
Applications
- Ship-to-shore crane spreader reels.
- Vertical motorized reels with high speed and acceleration.
- Grab dredgers and floating dredgers.
- Port machinery with high hanging load and repeated roller contact.
- Horizontal or vertical heavy-duty routes using TRA-RF construction.
Related Cable Selection
For high-speed anti-torsion reeling below spreader-duty tensile levels, use the TRA PUR reeling cable. Compare the NSHTOEU-J rubber reeling cable for standard-duty rubber reels and the 3GSLTOE spreader basket cable for dedicated basket systems.
Specifications
| Parameter | RXX / TRA-RF data |
|---|---|
| Rated voltage | 600/1000 V |
| Travel speed | RXX: up to 240 m/min vertical; TRA-RF: up to 200 m/min horizontal and vertical |
| Minimum bending radius | RXX: 6 x diameter on reel, 7.5 x over rollers, 20 x at S-type changes; TRA-RF: 6 x on spool, 9 x at guide, 4 x on anti-tension drum |
| Tensile load | Up to 30 N/mm² |
| Ambient temperature | RXX flexing: -35°C to +80°C, fixed: -50°C to +80°C; TRA-RF flexing: -25°C to +60°C, fixed: -30°C to +60°C |
| Maximum conductor temperature | RXX: 90°C; TRA-RF: 80°C |
| Reinforcement | Central support element plus embedded anti-torsion braid |
| Sheath options | RXX reinforced rubber; TRA-RF double PUR |
Standards
The technical references below define the conductor, test or installation basis used for this cable family.
| Reference | Product application |
|---|---|
| IEC 60228 | Class 5 flexible copper conductor reference. |
| IEC 60502-1 | TRA-RF voltage-test reference for the 0.6/1 kV construction. |
Production and Ordering Records
- Routine electrical and dimensional records identify the RXX or TRA-RF configuration.
- Tensile member, conductor schedule and cable outside diameter are recorded for the production batch.
- Drum direction, supplied length and handling data are marked on the cable packaging.
