GPM / GPM-RF PUR Reeling Cable 0.6/1 kV
GPM / GPM-RF PUR reeling cable is a 0.6/1 kV round cable family for random-winding and monospiral reels. GPM serves standard horizontal reeling up to 60 m/min, while GPM-RF supports heavier duty up to 90 m/min with higher tensile loading.

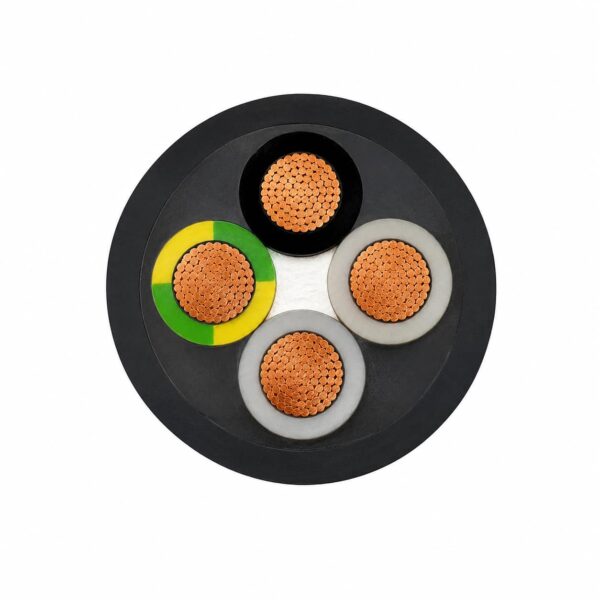

GPM / GPM-RF PUR reeling cable supplies low-voltage power and control to moving machinery through spring or motorized reels. Its flexible copper conductors, compact round lay-up and abrasion-resistant polyurethane sheath are designed for repeated winding on horizontal travel routes.
GPM is the standard-duty option for random-winding reels at travel speeds up to 60 m/min and tensile loading up to 12 N/mm². GPM-RF extends the same 0.6/1 kV family to heavy-duty random-winding or monospiral reels, with travel speeds up to 90 m/min and tensile loading up to 20 N/mm². Both versions use minimum bending radii of 6 x cable diameter on the spool, 9 x diameter at a guiding device and 4 x diameter on an anti-tension drum.
Typical installations include horizontally travelling machinery, ergonomic handling systems and compact reel-fed equipment. Specify the conductor arrangement, reel type, drum diameter, cable layers, travel speed, route length and ambient exposure with the enquiry. Level-wind systems, deflection-pulley routes and sustained vertical hanging loads call for a different reeling construction.
Construction
| Layer | Construction detail |
|---|---|
| Conductor | Flexible copper, Class 5 to IEC 60228. |
| Core insulation | Polypropylene or cross-linked elastomer according to the selected GPM or GPM-RF configuration. |
| Core assembly | Short-lay round construction for repeated drum winding. |
| Sheath | Highly abrasion-resistant polyurethane outer sheath. |
| Cable identification | GPM or GPM-RF type marking with rated voltage, conductor arrangement and production code. |
GPM and GPM-RF Selection
Use GPM for standard horizontal random winding. Use GPM-RF where the route adds monospiral storage, higher travel speed or greater tensile load.
Applications
- Random-winding spring and motorized reels.
- Monospiral reels using the GPM-RF heavy-duty construction.
- Horizontal travelling machinery and transfer equipment.
- Ergonomic handling systems and compact material-handling equipment.
- Low-voltage power, control or combined moving circuits.
Related Cable Selection
For a smaller cable envelope, compare the RP / RP-D compact PUR reeling cable. For faster, more torsion-sensitive routes, use the TRA anti-torsion reeling cable. Browse the port and festoon cable range for rubber, PUR, flat and medium-voltage alternatives.
Specifications
| Parameter | GPM / GPM-RF data |
|---|---|
| Rated voltage | 0.6/1 kV |
| Travel speed | GPM: up to 60 m/min horizontal; GPM-RF: up to 90 m/min horizontal |
| Minimum bending radius | 6 x cable diameter on spool; 9 x at guiding device; 4 x on anti-tension drum |
| Tensile load | GPM: up to 12 N/mm²; GPM-RF: up to 20 N/mm² |
| Ambient temperature | Flexing: -25°C to +60°C; fixed: -30°C to +60°C |
| Maximum conductor temperature | 80°C in operation; 200°C under short-circuit conditions |
| Reel patterns | Random winding; GPM-RF also for monospiral winding |
| Sheath | PUR / polyurethane |
Standards
The technical references below define the conductor, test or installation basis used for this cable family.
| Reference | Product application |
|---|---|
| IEC 60228 | Class 5 flexible copper conductor construction. |
| IEC 60502-1 | Voltage-test reference for the 0.6/1 kV cable family. |
Production and Ordering Records
- Routine electrical test record for the supplied production length.
- Cable marking records the model, rated voltage, conductor arrangement and production traceability.
- Drum schedule and cable length are matched to the reel and route data stated in the order.
