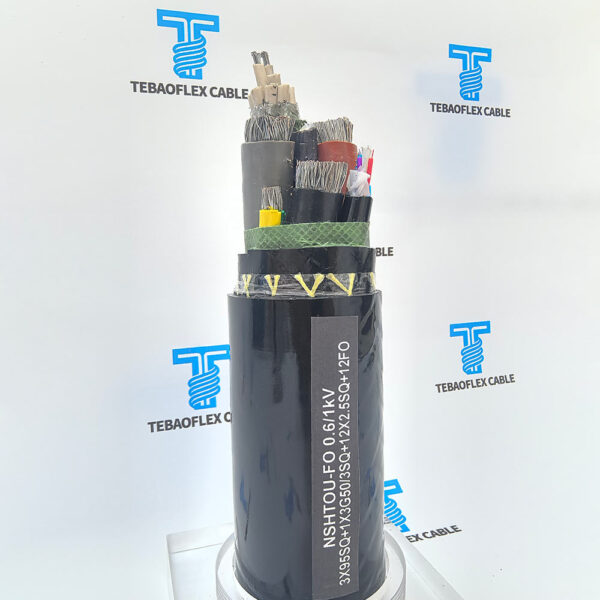

NSHTÖU-J Rubber Reeling Cable 0.6/1 kV for Hoisting and Hauling Equipment
NSHTÖU-J is a 0.6/1 kV rubber insulated flexible cable designed for hoisting, hauling, crane, conveyor and drum cable applications. Its flexible tinned copper conductors, EPR rubber insulation, reinforcing braid and heavy-duty rubber sheath make it suitable for frequent winding and unwinding, tensile load, torsional stress, abrasion, moisture and outdoor operating conditions. It is available in multi-core constructions from small control sizes to larger power cable cross-sections, with custom drum length, sheath marking and packing available for project orders.
NSHTÖU-J Rubber Reeling Cable for Hoisting, Hauling and Crane Equipment
NSHTÖU-J is a 0.6/1 kV rubber insulated flexible cable designed for equipment that operates under repeated movement, mechanical load and outdoor industrial conditions. It is commonly used on hoisting systems, hauling equipment, cranes, conveyors, cable drums and similar machines where the cable may be wound, unwound, pulled or deflected during operation.
The cable construction combines flexible tinned copper conductors, EPR rubber insulation, an internal rubber jacket, reinforcing braid and a heavy-duty outer sheath. This makes it suitable for demanding applications where abrasion, impact, moisture, torsion and tensile stress are part of normal service conditions.
Typical Applications
NSHTOU-J cable is suitable for low voltage power and control supply in moving industrial equipment. It is often selected where standard rubber flexible cables may not provide enough mechanical strength for repeated reeling, trailing or guided movement.
- Hoisting and hauling equipment

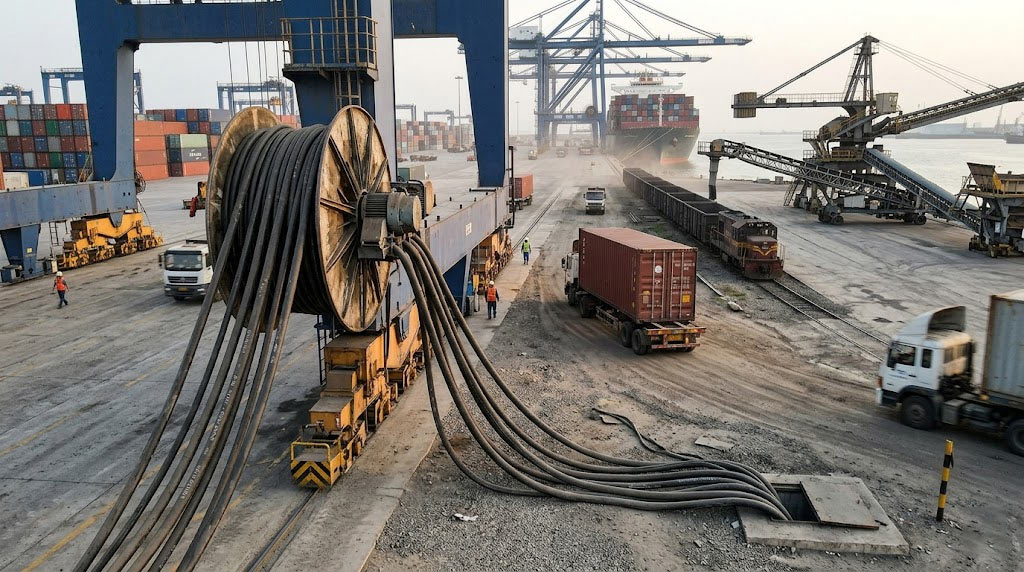

- Overhead cranes, gantry cranes and port handling machinery
- Conveyors and material-handling systems
- Drum cable and trailing cable applications
- Building machinery and mobile industrial equipment
- Outdoor installations in dry, damp or wet working areas
- Applications with frequent winding and unwinding under mechanical stress

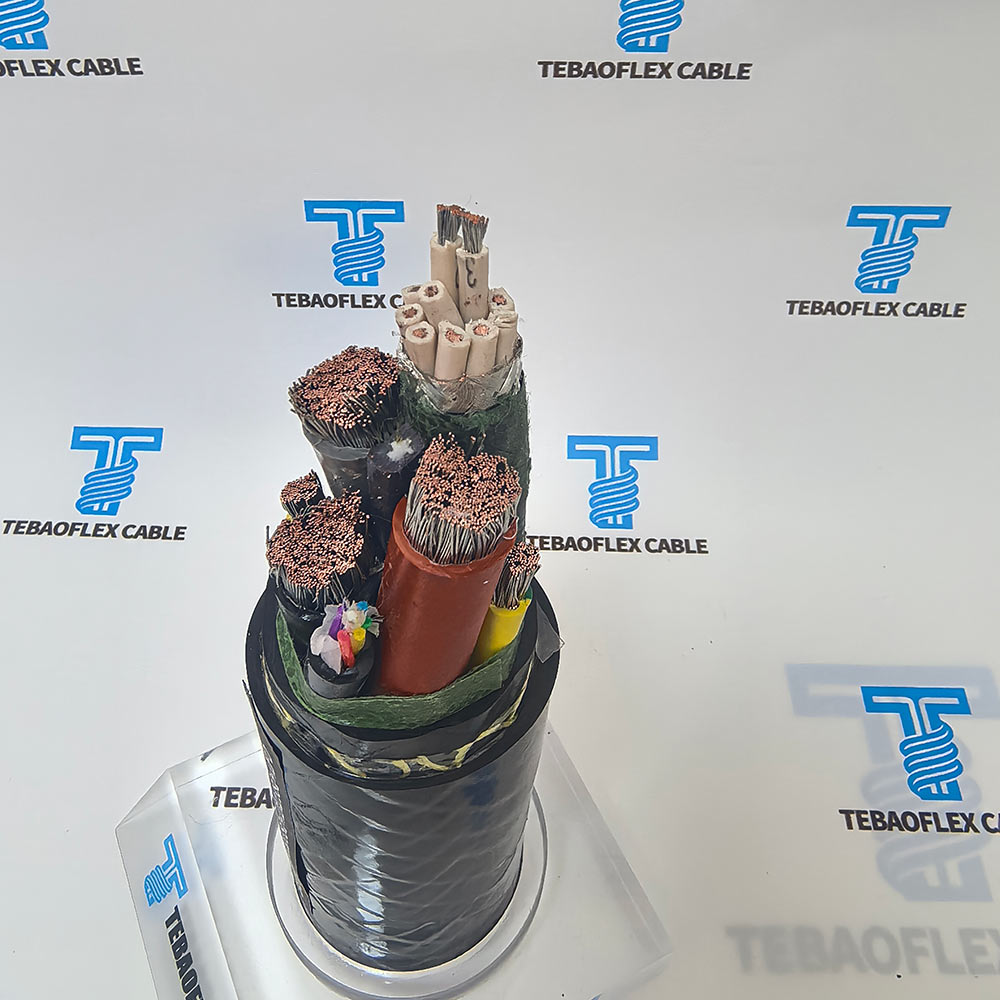

Cable Construction
| Component | Description |
|---|---|
| Conductor | Flexible tinned copper conductor, Class 5, designed for repeated movement and easier cable handling |
| Separator | Suitable separator may be applied where required between conductor and insulation |
| Insulation | EPR rubber insulation for reliable low voltage electrical performance |
| Core Identification | Colour-coded cores according to common European identification practice; protective conductor included for “J” type |
| Internal Jacket | Synthetic rubber-based compound to support the cable core assembly |
| Reinforcing Braid | Open polyamide braid to improve resistance against tensile and torsional stress |
| Outer Jacket | Heavy-duty rubber sheath with resistance to abrasion, impact, water, oil, ozone, UV and weather exposure |
| Sheath Colour | Black as standard; other sheath colours may be discussed for project orders |
Electrical and Mechanical Characteristics
- Rated voltage: 0.6/1 kV
- Designed with reference to DIN VDE 0250-814
- Flexible Class 5 tinned copper conductors
- EPR rubber insulation for flexible cable service
- Reinforced structure for frequent winding and unwinding
- Suitable for simultaneous tensile and torsional stress
- Outer sheath resistant to tearing, abrasion and impact
- Water-resistant and flame-retardant construction
- Resistant to UV, sunlight, ozone and oil under normal industrial conditions
- Suitable for outdoor use in dry, damp and wet areas
Available Core and Size Range
NSHTÖU-J rubber reeling cable can be supplied in multiple core configurations for both power and control applications. Common options include 3-core, 4-core, 5-core, 7-core, 10-core and 12-core constructions, with conductor sizes selected according to current load, equipment design and installation conditions.
Typical size examples include 3×1.5 mm² to 3×240 mm², 4×1.5 mm² to 4×150 mm², 5-core sizes for compact power/control circuits, and multi-core versions for control or auxiliary functions. Final dimensions, cable weight, conductor resistance and sheath thickness should be confirmed according to the selected specification.
Operating Environment
The cable is designed for heavy-duty industrial environments where movement and mechanical exposure are expected. It can be used in outdoor locations and in dry, damp or wet areas when installed according to proper handling and bending requirements.
- Mobile operation temperature range: -25°C to +60°C
- Lowest fixed installation temperature: down to -40°C
- Suitable for frequent cable movement under controlled installation conditions
- Standard drum packing can be supplied according to order requirements
Why Choose NSHTOEU-J Cable for Reeling Systems?
Cable failure in crane, conveyor or hoisting systems can lead to equipment downtime and costly maintenance. NSHTOEU-J cable is designed for applications where the cable must handle movement, pulling force, bending and outdoor exposure over long service periods. Its reinforced rubber construction helps improve durability in equipment that works under high mechanical stress.
For procurement teams, contractors and cable distributors, this cable provides a practical solution for low voltage reeling, drum, trailing and hauling applications. We can support project-based supply with cable length selection, sheath marking, drum packing and technical datasheets based on your equipment requirements.
How to Select the Right NSHTÖU-J Cable
To recommend the correct cable size and construction, please provide the working conditions and equipment information. This allows the cable design to be matched with the mechanical and electrical requirements of the project.
- Required voltage and current load
- Number of cores and conductor cross-section
- Total cable length
- Application equipment, such as crane, hoist, conveyor or hauling system
- Reeling method, drum size or cable guiding system
- Movement frequency and operating speed
- Minimum bending radius
- Exposure to oil, water, UV, abrasion or outdoor weather
- Required standard, test report or inspection document
- Existing cable marking or reference datasheet, if available
NSHTÖU-J Cable FAQ
What is NSHTÖU-J cable used for?
NSHTÖU-J cable is used for low voltage power and control supply in hoisting, hauling, crane, conveyor, drum and trailing cable applications. It is suitable for equipment working under frequent movement and high mechanical stress.
Is NSHTOU-J the same as NSHTÖU-J?
Yes. NSHTOU-J and NSHTOEU-J are common international spellings of NSHTÖU-J. The German character “Ö” is often written as “O” or “OE” in procurement systems, datasheets and search queries.
What does the “J” mean in NSHTÖU-J?
The “J” indicates that the cable includes a green-yellow protective conductor. This is different from “O” type cables, which do not include a green-yellow protective conductor.
What voltage rating is available?
The standard rated voltage is 0.6/1 kV. It is suitable for low voltage power and control applications in heavy-duty mobile and industrial equipment.
Can NSHTÖU-J be used outdoors?
Yes. The rubber sheath is suitable for outdoor industrial use where moisture, UV exposure, oil and mechanical wear may be present. Final suitability should be confirmed according to the installation and operating conditions.
Is this cable suitable for cable drums?
Yes. NSHTÖU-J is suitable for drum, reeling and trailing applications, especially where the cable is exposed to pulling force, bending and torsional stress during operation.
What information is needed for a quotation?
Please provide the number of cores, conductor size, cable length, application equipment, reeling method, bending radius, operating environment and any required standards or documentation.
Can the cable be customized?
Yes. Cable length, sheath marking, packing method, documentation and selected construction details can be customized according to project requirements.
“`
