Hybrid Coaxial Power & Signal Tow Cable

Hybrid Coaxial Power & Signal Tow Cable brings 5 selectable construction options together for sonar, video, telemetry and towed-system engineers. Compare the complete signal, electrical and mechanical requirement before choosing a configuration.

  • Selection focus: compare coaxial, power, control and screened-pair combinations in one load-bearing cable
  • Available configurations: 5
  • Mechanical inputs: cable length, working load, drum, sheave, routing and deployment cycle
  • Quotation inputs: services, environment, termination, quantity and required inspection documents
SKU: 5SSA24/6SSA5/7SSA26/8SSA38/9SSA31 Category: Brand:
Product information
SKU
5SSA24/6SSA5/7SSA26/8SSA38/9SSA31
Brand
TEBAOFLEX
Product overview

Hybrid Coaxial Power & Signal Tow Cable selection overview

The Hybrid Coaxial Power & Signal Tow Cable gives sonar, video, telemetry and towed-system engineers one clear route for comparing 5 available constructions. It is designed to compare coaxial, power, control and screened-pair combinations in one load-bearing cable. Keeping the options in one product group makes it easier to compare signal architecture, conductor or fibre content, armour, diameter, mechanical load and bend geometry without switching between separate product pages.

Selection starts with the equipment interface: define voltage and current, signal type and frequency, coaxial impedance and allowable attenuation, or fibre type, count and wavelength as applicable. Then define whether the cable will be static, suspended, reeled, towed or repeatedly deployed. Cable length, working load, breaking-load criterion, drum and sheave dimensions, temperature, water environment, abrasion, buoyancy and the connector or moulded termination must be reviewed as one system.

  • Compare: construction, transmission values, outside diameter, load and bend data shown for each option.
  • Confirm: the complete service combination and the operating values that apply at the required cable length.
  • Specify: inspection stages, test methods, acceptance values, marking and documentation in the quotation.

Use the related subsea and marine cable selection page for the wider application route, or send your equipment and deployment requirements for an engineering review.

Construction

Hybrid Coaxial Power & Signal Tow Cable construction options

Compare the complete layer sequence for each option. Conductor or fibre elements, insulation, screening, fillers, bedding, strength members, armour and outer sheath are selected together to suit the transmission and deployment duty.
ConfigurationConstruction

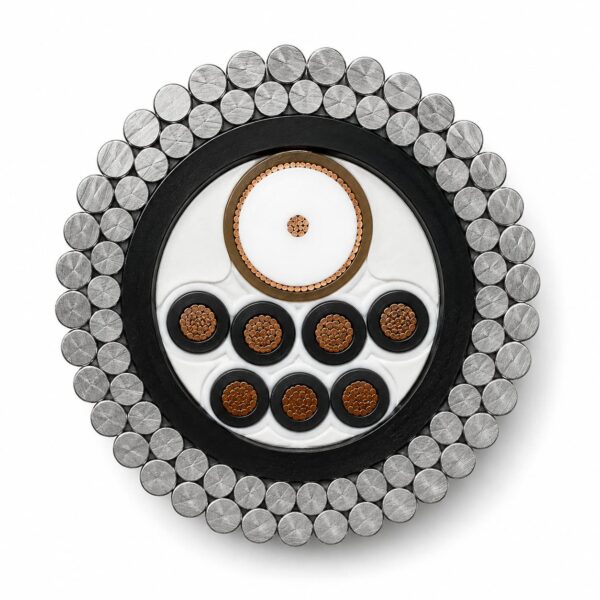

RG11 coax plus four power cores1 × RG11 coax + 4 × 2.50 mm²; hydrolysis/UV-resistant PUR; two contra-helical armour layers

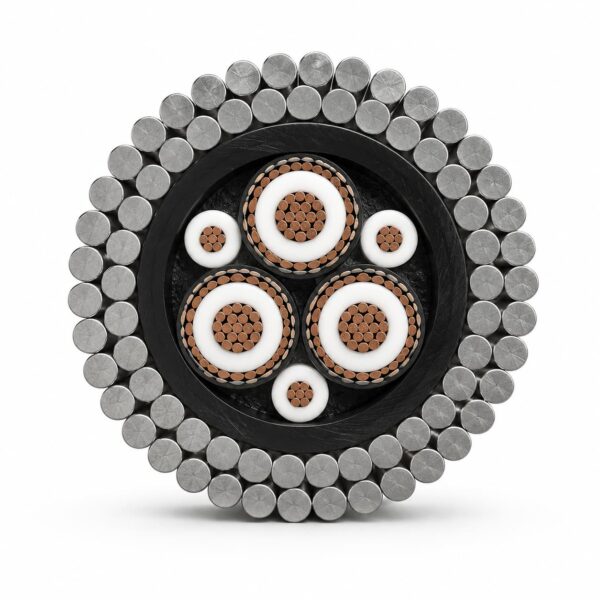

Three 30 Ω coaxes plus three control cores3 × 30 Ω coax + 3 × 22 AWG; HDPE; two preformed galvanized steel armour layers

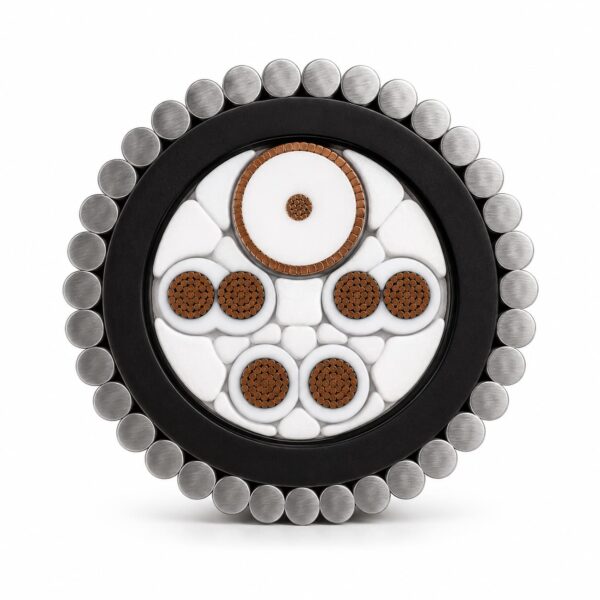

74 Ω coax plus three screened pairs1 × 74 Ω coax + 3 × 2 × 1.00 mm²; PUR; preformed galvanized steel armour

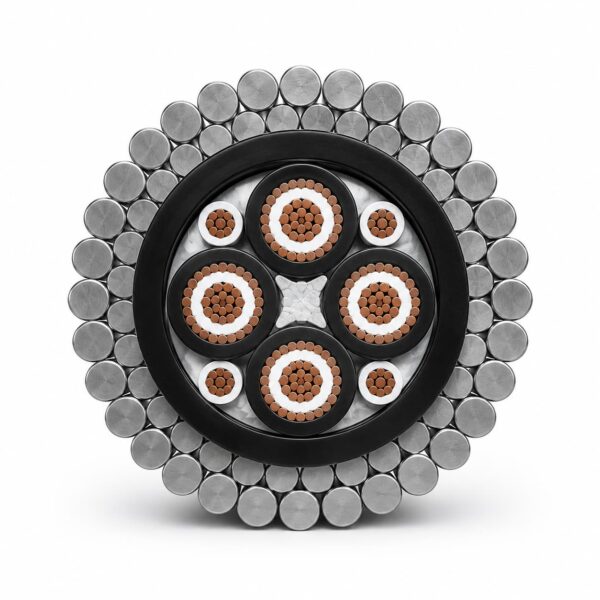

Four 35 Ω coaxes plus four control cores4 × 35 Ω coax + 4 × 22 AWG; silicone waterblocking; two armour layers

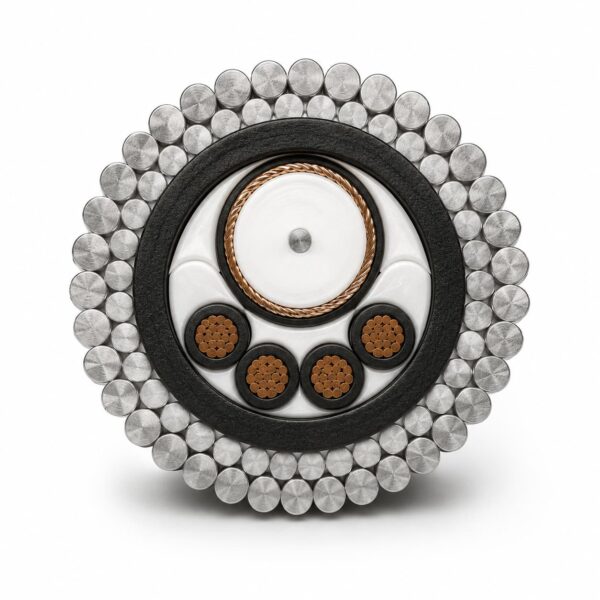

74 Ω coax plus four individually screened pairs1 × 74 Ω coax + 4 × 2 × 1.00 mm² screened pairs; PUR; galvanized steel armour

Construction selection

Armour material and lay, sheath material, waterblocking, screening and fibre protection are matched to corrosion exposure, abrasion, repeated bending, handling load and termination design. The armour anchoring and connector or moulded transition are reviewed with the cable because they control how load and water sealing are transferred into the equipment.
Applications

Applications for Hybrid Coaxial Power & Signal Tow Cable

This product group supports sonar, video, telemetry and towed-system engineers where transmission performance and mechanical deployment duty must be selected together.
  • Towed sonar, video and telemetry systems combining coaxial transmission with power, control cores or screened pairs.
  • Projects seeking one cable/termination interface instead of separate coaxial and electrical cables.
  • The service combination must be reviewed for impedance, screening, voltage drop, heat, diameter, bending and armour load.

Information needed for selection

Provide the equipment, cable length, service voltages or signals, load criterion, winch and sheave dimensions, deployment method, water environment, temperature, buoyancy target, connector or moulding interface and required inspection documents.
Specifications

Hybrid Coaxial Power & Signal Tow Cable specifications

Use the stated values to compare complete configuration options. Empty properties are omitted instead of being estimated, and each numerical value stays with the construction under which it is listed.

RG11 coax plus four power cores

Construction1 × RG11 coax + 4 × 2.50 mm²; hydrolysis/UV-resistant PUR; two contra-helical armour layers
Voltage / test value0.6/1 kV power
Impedance75 ± 3 Ω
Additional coaxial dataCapacitance 67 ± 5 pF/m
Outside diameter23.70 mm
Breaking load190 kN
Working load48 kN
Static bend radius285 mm
Dynamic bend radius355 mm
Temperature-30 to +80°C

Three 30 Ω coaxes plus three control cores

Construction3 × 30 Ω coax + 3 × 22 AWG; HDPE; two preformed galvanized steel armour layers
Voltage / test value1000 V coax; 750 V cores
Impedance30 Ω @ 1 MHz
Outside diameter12.70 mm
Breaking load89 kN
Static bend radius125 mm
Dynamic bend radius250 mm
Temperature-30 to +80°C

74 Ω coax plus three screened pairs

Construction1 × 74 Ω coax + 3 × 2 × 1.00 mm²; PUR; preformed galvanized steel armour
Voltage / test value2000 V coax; 300 V pairs
Impedance74 ± 5 Ω
Additional coaxial dataCapacitance 69 ± 5 pF/m
Outside diameter20.40 mm
Breaking load> 150 kN
Static bend radius200 mm
Dynamic bend radius300 mm
Temperature-40 to +80°C

Four 35 Ω coaxes plus four control cores

Construction4 × 35 Ω coax + 4 × 22 AWG; silicone waterblocking; two armour layers
Voltage / test value600 V coax and cores
Impedance35 Ω @ 1 MHz
Outside diameter12.30 mm
Breaking load85 kN
Working load18 kN
Dynamic bend radius250 mm
Temperature-30 to +90°C

74 Ω coax plus four individually screened pairs

Construction1 × 74 Ω coax + 4 × 2 × 1.00 mm² screened pairs; PUR; galvanized steel armour
Voltage / test value2000 V coax; 300 V pairs
Impedance74 ± 5 Ω
Additional coaxial dataCapacitance 69 ± 5 pF/m
Outside diameter23.30 mm
Breaking load160 kN
Static bend radius240 mm
Dynamic bend radius360 mm
Temperature-40 to +80°C

Using the values

Breaking load is not the normal operating load. Bend values must match drums, sheaves, guides and connector exits. A voltage entry that includes a duration is a dielectric test value rather than a continuous rated voltage. Confirm the applicable operating and acceptance values in the quotation.
Standards

Standards and test references

The applicable references are selected for the confirmed cable construction and project duty. They provide a framework for engineering and inspection rather than a one-size-fits-all cable designation.
  • IEC 61196-1: Coaxial-element definitions, design requirements and test-method framework.
  • IEC 61196-1-100: General conditions for electrical tests on coaxial communication elements.
  • IEC 60228: Conductor resistance and conductor-class reference for separately specified insulated copper power or control cores.
  • Project test plan: Coordinates coaxial performance, conductor tests, screening, voltage drop, tensile load, bending, water exposure and completed-cable acceptance.
Final test conditions, sample lengths, conditioning, acceptance values, marking and report format are defined in the quotation and inspection plan.
