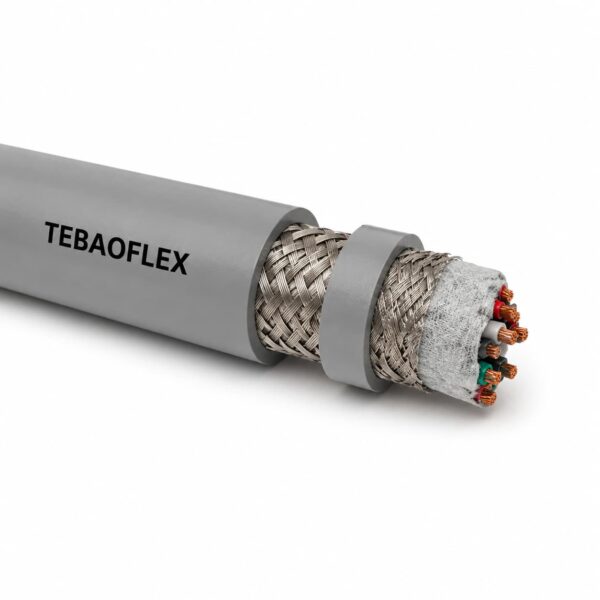

JZ PUR Control Cable Family
JZ PUR control cable family covering JZ-30400 P, JZ-35400 CP, JZ-40415 CP, JZ-45440 P and JZ-50440 CP. Select by exact marking, screen, material and movement duty.
JZ PUR Control Cable Family for Machine Tools
JZ P and CP cables are 300/500 V control and data constructions for machine tools, industrial machinery and measurement systems. The family brings together unscreened P variants and screened CP variants, with PVC/PUR or TPE/PUR layer options. JZ-30400 P, JZ-35400 CP, JZ-40415 CP, JZ-45440 P and JZ-50440 CP therefore share a buyer intent but do not share one universal construction.
Use the model rows to compare the screen, inner sheath, PETP tape or braid, temperature range and minimum bend radius. Some environmental or halogen-free wording is model-specific and should be read against the selected row. This page consolidates exact model searches while keeping sizes and core schedules in the RFQ record.
- Choose P: use the unscreened rows where the control system does not require the listed screen arrangement.
- Choose CP: use the screened rows where braid and grounding form part of the EMC decision.
- Provide for RFQ: exact JZ marking, core schedule, control function, length, movement and environment.
For a different control-cable standard, compare the Type P control cable by complete construction.
Construction
The JZ page is a comparison family, not one common layer sequence. P rows are non-screened and CP rows are screened where listed; material and sheath details stay model-specific.
| Model | Screen | Material and layer description |
|---|---|---|
| JZ-30400 P | Non-screened | PVC TI2 and PUR |
| JZ-35400 CP | Screened | PVC TI2, PVC inner sheath and tinned-copper braid |
| JZ-40415 CP | Screened | PVC TI2, PETP tape and tinned-copper braid |
| JZ-45440 P | Non-screened | TPE core insulation and PUR |
| JZ-50440 CP | Screened | TPE core insulation, TPE inner sheath and tinned-copper braid |
Fine copper, EN 60228 class 5, and gray RAL 7001 sheath are listed family elements.
Applications
- Machine tools, industrial machinery and measurement systems.
- Data and control routes where the selected JZ model matches the circuit and movement duty.
- Screened CP routes where the listed screen and grounding method are required.
Specify fixed or moving installation, bend radius, temperature, environmental exposure and control-signal requirements. A JZ model is not a substitute for another cable solely because the voltage is similar.
Specifications
| Model | Voltage | Screen | Temperature | Minimum bend radius |
|---|---|---|---|---|
| JZ-30400 P | 300/500 V | Non-screened | Flexible -5 to +70 deg C; fixed -30 to +70 deg C | 12.5 x D flexible; 4 x D fixed |
| JZ-35400 CP | 300/500 V | Screened | Flexible -5 to +70 deg C; fixed -30 to +70 deg C | 20 x D flexible; 6 x D fixed |
| JZ-40415 CP | 300/500 V | Screened | Flexible -5 to +70 deg C; fixed -30 to +70 deg C | 20 x D flexible; 6 x D fixed |
| JZ-45440 P | 300/500 V | Non-screened | Flexible -5 to +90 deg C; fixed -50 to +90 deg C | 12.5 x D flexible; 4 x D fixed |
| JZ-50440 CP | 300/500 V | Screened | Flexible -40 to +90 deg C; fixed -50 to +90 deg C | 15 x D flexible; 6 x D fixed |
| Test references | 4000 V for non-screened rows; screened rows also carry C/S 2000 V where listed | |||
| Insulation resistance, dimensions, weight and conductor size | Minimum insulation resistance is 20 GOhm x cm; use the selected model table for ordering | |||
| Halogen-free wording | Model-specific; read the selected model row | |||
Standards
- EN 60228 class 5 and DIN VDE 0293 core-identification references where listed.
- EN 50525-2-51 or the applicable HD/VDE reference for the selected JZ model.
- EN 50363-3 for PVC rows where listed.
- EN 60332-1-2 or ASTM G154 where the selected model lists the reference.
The selected model row defines the applicable standards and inspection documentation.
