(N)3GHSSHCH 6-20 kV LSZH Mining & Tunneling Cable

(N)3GHSSHCH Cable for Shiftable Mining and Tunnel Equipment

(N)3GHSSHCH cable is a flexible medium-voltage power cable for shiftable equipment and feeder connections in mines, tunnels and underground construction. The supplied range covers 3.6/6 kV, 6/10 kV, 8.7/15 kV and 12/20 kV size data, with separate 18/30 kV voltage and test references. Class 5 copper conductors, EPR insulation, semiconductive field-control layers, protective and monitoring conductors, steel-wire braid and a halogen-free flame-retardant sheath combine electrical control with mechanical protection.

Select this construction where a mining or tunnelling route needs a screened, monitored MV cable that can tolerate movement within the stated temperature, torsion, travel-speed and direction-change limits. It is not an automatic substitute for a continuous high-speed reeling cable or a submersible cable; confirm the movement pattern, route and environmental exposure before ordering.

• Suitable for: shiftable MV mining equipment, tunnel systems and transformer feeder connections.
• Confirm before ordering: Uo/U voltage, phase size, protective and control-core arrangement, cable length and route.
• Mechanical inputs: movement frequency, bend path, torsion, travel speed and pulling load.
• Documentation: required standards, tests, marking, inspection and packing.

Review the mining and tunneling cable range or use the TBM cable selection guide when the route includes a cable reel or moving tunnel-boring equipment.

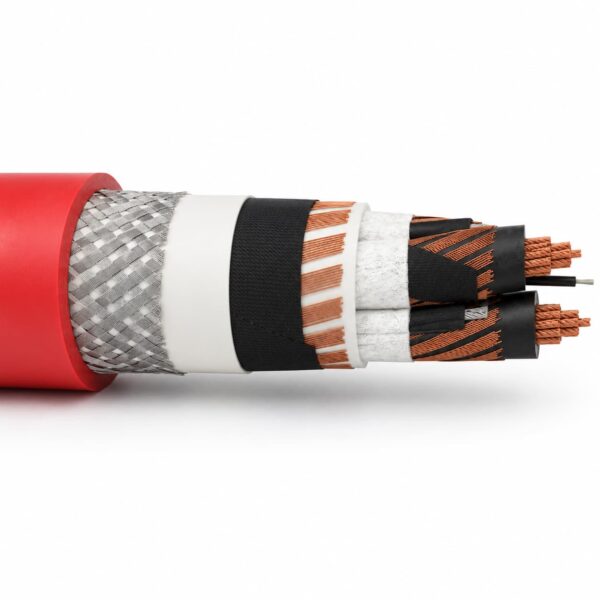

(N)3GHSSHCH Cable Construction

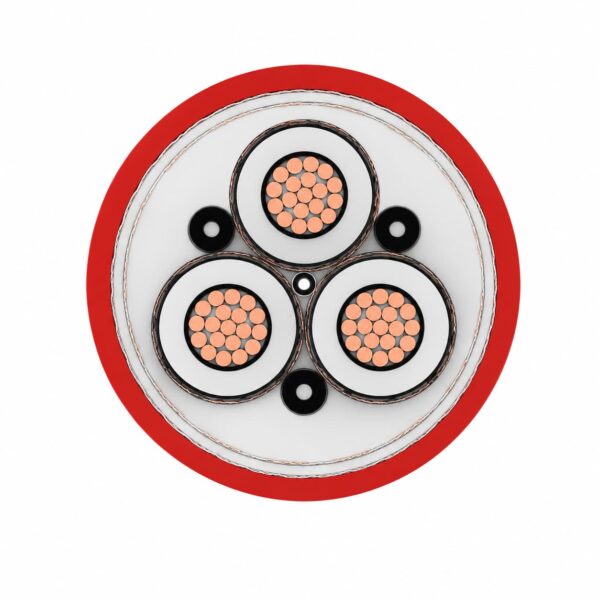

The construction places field-control, protective and monitoring elements around flexible EPR-insulated power cores, then adds halogen-free inner layers and steel-wire braid. This arrangement is intended for medium-voltage mining and tunnelling routes where the cable must combine electrical screening with controlled movement and mechanical protection.

Construction Checks for a Replacement Cable

Do not cross-reference by voltage and conductor size alone. Compare the protective-conductor layout, pilot/control cores, monitoring conductor, field-control layers, braid, outer diameter and movement limits against the existing cable marking and equipment requirements.

(N)3GHSSHCH Mining Cable Applications

This cable is used as a medium-voltage power connection where mining or tunnelling equipment is shifted during operation or where a robust monitored feeder is needed between electrical equipment. The final choice depends on the route, movement and equipment interface, not only the voltage class.

• Shiftable underground mining machines and mobile operating equipment.
• Tunnel construction and excavation equipment power supply.
• Medium-voltage feeder connections for underground transformers and distribution equipment.
• Mine and tunnel routes requiring protective, pilot/control and monitoring conductors.
• Installations requiring a halogen-free flame-retardant sheath and steel-wire braid.

Movement and Route Boundaries

Use the supplied limits as engineering inputs: +5°C to +80°C for mobile service, maximum travel speed 30 m/min, maximum torsion 25 deg/m, maximum tensile load 15 N/mm² and a 20 x cable-diameter minimum direction-change distance. Confirm rollers, sheaves, pulling method and reversal frequency. Choose a purpose-designed reeling cable for continuous drum duty and a separately qualified construction for immersion or other conditions not stated in the supplied data.

Information Needed for an RFQ

Provide Uo/U voltage, phase-conductor size, protective and control-core arrangement, installed and moving length, equipment, movement cycle, minimum bend path, pulling load, sheath colour, marking, standard and inspection requirements.

(N)3GHSSHCH Cable Specifications

The following ratings, dimensions, resistance values and weights are preserved from the current TEBAOFLEX product data. Values are nominal reference data; confirm the final size, tolerances and production data with the quotation.

Range note: supplied detailed size data is listed through 12/20 kV. The separate 18/30 kV voltage and test reference requires size and construction confirmation before quotation.

Voltage and Test Data

Available Construction Range

Detailed Size Table

(N)3GHSSHCH Standards and Test References

The current product data names the following construction, use and test references for this cable. Request the required routine-test, inspection and marking documents with the quotation.
