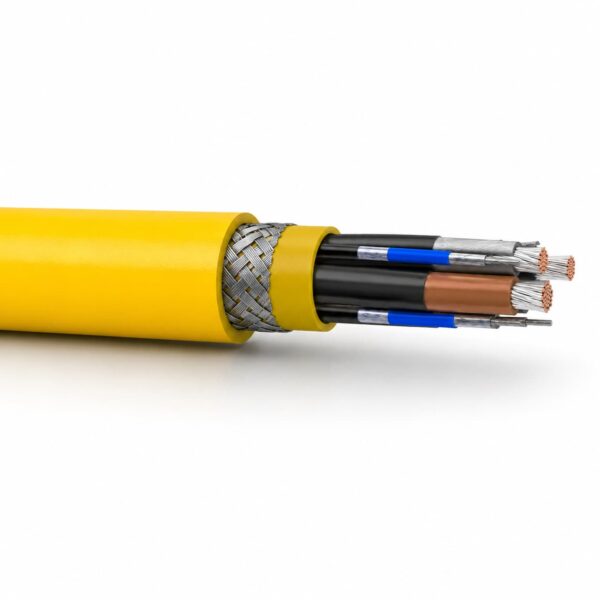

NSSHCGEOEU 0.6/1kV High-Tensile Reeling Mining Cable
NSSHCGEOEU 0.6/1 kV high-tensile reeling mining cable for coal cutters and comparable mobile equipment using guide pulleys or an LHD reel.
- Voltage: 0.6/1 kV.
- Conductor: flexible stranded tinned copper.
- Insulation: heat-resistant 3GI3 EPR rubber.
- Auxiliary elements: pilot and monitoring conductors in the confirmed high-tensile construction.
- Reinforcement: combined copper-steel tensile braid.
- Sheath: 5GM5 heavy-duty rubber reference.
- Standard reference: VDE 0250 Part 812.
Send the cable marking, size, reel drawing, speed, pull, route and document requirements for RFQ review.
NSSHCGEOEU Reeling Mining Cable for Mobile Equipment
NSSHCGEOEU is a 0.6/1 kV high-tensile mining cable reference for mobile machines that pass the cable over guide pulleys or wind it on an LHD reel. The confirmed construction combines flexible tinned-copper power conductors, 3GI3 EPR insulation, pilot and monitoring elements, a GM1b inner sheath, a copper-steel tensile braid and a 5GM5 outer sheath. Select it only after the reel geometry and operating tensile duty are known.
- Suitable for: coal cutters and comparable mobile mining equipment with guided or reeling duty.
- Confirm first: core arrangement, reel diameter, layers, speed, pull, reverse bending and terminations.
- Do not substitute by spelling: NSSHCGEOEU and NSSHKCGEOEU records must be compared against the complete cable schedule.
Review the broader mining and tunneling cable range and use the mobile-equipment selection guide before quotation.
Frequently asked questions
Is every NSSHCGEOEU cable suitable for the same reel?
No. Drum diameter, winding layers, pull, speed and bend direction must match the offered construction.
Can NSSHKCGEOEU replace NSSHCGEOEU?
Not by model similarity alone. Confirm the exact marking, core functions, reinforcement and tensile data.
NSSHCGEOEU Cable Construction
The high-tensile construction below is the verified basis for this reeling and guide-pulley page. Final layer dimensions and core combinations are confirmed on the quotation data sheet.
| Layer | Confirmed construction | Buyer relevance |
|---|---|---|
| Power conductors | Flexible stranded tinned copper | Flexible current paths for mobile equipment. |
| Insulation | Heat-resistant 3GI3 EPR rubber | Electrical insulation for the 0.6/1 kV circuit. |
| Outer conductive layer | Easy-strippable conductive layer | Part of the documented core construction. |
| Pilot cores | Copper-steel conductor with 3GI3 insulation | Supports the specified auxiliary circuit while accommodating movement. |
| Monitoring conductor | Copper-steel conductor covered with semiconductive rubber | Must be matched to the approved monitoring system. |
| Inner sheath | GM1b rubber compound | Bedding beneath the tensile reinforcement. |
| Armour / earth conductor | Tensile-resistant braid of combined copper-steel wires | Addresses the documented high-tensile guided and reeling duty. |
| Outer sheath | 5GM5 rubber compound | Documented abrasion, tear, oil and flame-resistant outer layer. |
NSSHCGEOEU Mining Cable Applications
This page maps the high-tensile NSSHCGEOEU reference to mobile mining machines that place the cable under repeated bending, guided travel and reel tension.
- Coal cutters and comparable mobile mining machines.
- LHD reeling routes with a documented drum, fleet angle and winding pattern.
- Cable-car or guide-pulley systems where tensile, impact and crushing loads are part of the selection.
- Projects requiring power, pilot, monitoring and earth functions in the confirmed construction.
Choose a different cable when the duty changes
Use (N)SSHCGEWÖU for monitored mine and tunnel lighting, (N)SSHCOEU for screened VFD motor output, or (N)SSHÖU for the applicable heavy-duty flexible power construction. These are selection paths, not automatic substitutes.
RFQ data
Provide the existing marking, voltage, conductor size, core functions, cable length, machine, reel core and flange diameter, usable width, layers, fleet angle, speed, pull, acceleration, reverse bends, terminations, environment and required test documents.
NSSHCGEOEU Specifications
| Model | NSSHCGEOEU high-tensile reference |
|---|---|
| Rated voltage | 0.6/1 kV |
| Primary duty | Mobile mining equipment, guide-pulley and LHD reeling routes |
| Power conductor | Flexible stranded tinned copper |
| Insulation | 3GI3 EPR rubber |
| Reinforcement | Combined copper-steel tensile braid |
| Inner / outer sheath | GM1b / 5GM5 rubber compounds |
High-Tensile Reference Dimensions
Nominal source values for the listed high-tensile configurations. Confirm the final cable diameter, weight and reel fit before manufacture.
| Core configuration | Minimum diameter | Maximum diameter | Nominal weight |
|---|---|---|---|
| 3 脳 16/16KON + 2ST + UEL | 38.5 mm | 41.5 mm | 2430 kg/km |
| 3 脳 25/16KON + 2ST + UEL | 41.0 mm | 44.5 mm | 3050 kg/km |
| 3 脳 35/16KON + 2ST + UEL | 44.5 mm | 48.0 mm | 3620 kg/km |
| 3 脳 50/25KON + 2ST + UEL | 50.0 mm | 54.0 mm | 4810 kg/km |
| 3 脳 70/35KON + 2ST + UEL | 54.5 mm | 58.5 mm | 5890 kg/km |
| 3 脳 95/50KON + 2ST + UEL | 62.5 mm | 66.5 mm | 7800 kg/km |
| 3 脳 35/16KON + 3ST + 3UEL | 44.5 mm | 48.0 mm | 3860 kg/km |
| 3 脳 50/25KON + 3ST + 3UEL | 50.0 mm | 54.0 mm | 5050 kg/km |
| 3 脳 70/35KON + 3ST + 3UEL | 54.5 mm | 58.5 mm | 6000 kg/km |
| 3 脳 95/50KON + 3ST + 3UEL | 62.5 mm | 66.5 mm | 8050 kg/km |
| 3 脳 120/70KON + 3ST + 3UEL | 67.5 mm | 72.0 mm | 9380 kg/km |
| 3 脳 150/70KON + 3ST + 3UEL | 74.5 mm | 79.0 mm | 11120 kg/km |
Standards and Order Documentation
| Reference | Published relationship | Order check |
|---|---|---|
| VDE 0250 Part 812 | Construction standard reference for the researched NSSHCGEOEU cable | Confirm the required edition and exact high-tensile designation. |
The quotation package should state the full model marking, core arrangement, nominal dimensions, reel data, routine electrical tests, sheath marking, drum schedule and any project inspection requirements. No additional approval is implied without matching documents.
