(N)TMCHXOEU 12/20 kV LSOH Single-Core Wind Turbine Cable
(N)TMCHXOEU 12/20 kV single-core LSOH wind turbine cable reference with Class 5 bare copper, EPR-3GI3 insulation, a spiral tinned-copper screen and black HXM1 rubber sheath.
(N)TMCHXOEU 12/20 kV is a single-core screened cable designation for wind-turbine medium-voltage connections subject to medium mechanical stress. The supplied reference shows three single-core sizes rather than a multicore tower cable. Use it when the electrical design calls for a separate phase cable and the routing, support and screen-bonding arrangement are defined at system level.
Its catalogue construction pairs fine-stranded Class 5 bare copper with EPR-3GI3 rubber insulation, inner and outer semiconductive field-control layers, a spiral layer of tinned-copper screen wires and a black vulcanized HXM1 outer sheath. The source identifies the series as low-smoke, zero-halogen (LSOH) and gives a fixed-installation ambient range of −40°C to +80°C; for fully flexible operation, the lower ambient bound is −25°C. The size table reports minimum bend radius separately for fixed and free-moving service.
Specify the voltage, phase size, screen cross-section, single-core arrangement, bonding design, cable support and movement before asking for a quotation. The source-listed 1×50/16, 1×120/16 and 1×150/25 mm² configurations are separate from the multicore (N)TSCGEHXOEU wind turbine cable. If the turbine requires 36/60–69 kV, review the high-voltage model instead. The industrial cable range gives the wider selection context.

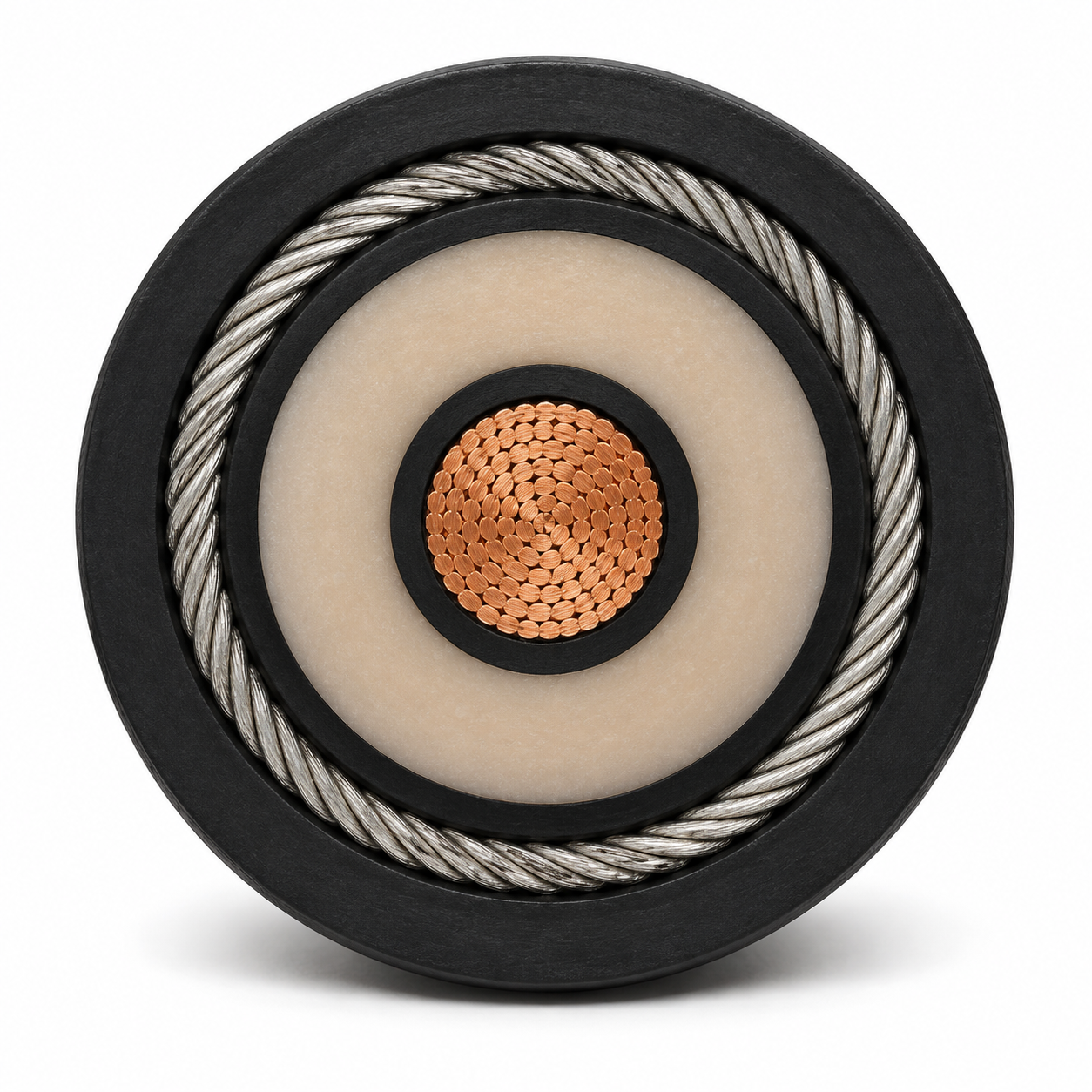

Construction
The single-core design uses a fine-stranded bare-copper conductor and EPR-3GI3 rubber insulation between semiconductive field-control layers. A spiral tinned-copper-wire screen surrounds the insulated core, and a black HXM1 vulcanized rubber outer sheath completes the reference construction.
| Property | Source catalogue reference |
|---|---|
| Conductor | Bare copper, fine-stranded Class 5 to IEC 60228 / DIN EN 60228 |
| Insulation | EPR-3GI3 rubber compound |
| Electrical field control | Inner and outer semiconductive rubber layers |
| Metallic screen | Spiral tinned-copper wire layer |
| Outer sheath | Black vulcanized HXM1 rubber compound |
| Form | Single-core; screen size included after slash in catalogue configuration |

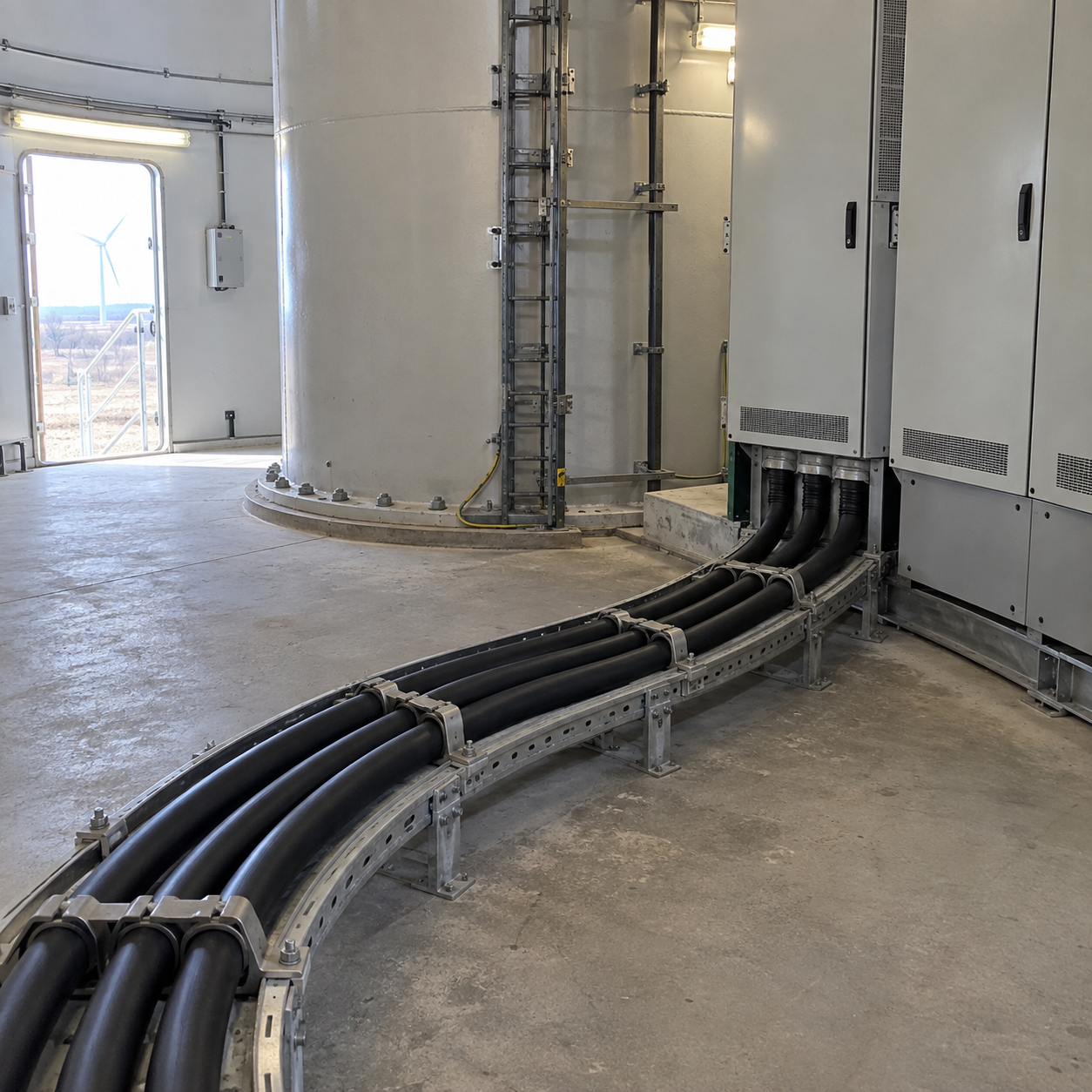

Applications
The source places (N)TMCHXOEU in wind turbines under medium mechanical stress. Size the cable for the voltage and current, then check the route for fixed or moving service: the supplied lower ambient limit is −40°C when fixed and −25°C when fully flexible. Cable cleats, screen bonding and terminations should be engineered as a single-core system.
How does it differ from (N)TSCGEHXOEU?
This (N)TMCHXOEU reference is single-core with a spiral tinned-copper screen and EPR-3GI3 insulation. The (N)TSCGEHXOEU medium-voltage wind page carries three-core and 3+3 catalogue configurations with HEPR and a different size table. Select by circuit layout and cable formation before comparing diameters or ampacities.
Specifications
| Property | Source catalogue reference |
|---|---|
| Type designation | (N)TMCHXOEU |
| Rated voltage | 12/20 kV |
| Maximum permissible operating voltage | AC 13.9/24 kV; DC 18/36 kV |
| AC test voltage | 29 kV in supplied reference |
| Maximum conductor / short-circuit temperature | 90°C / 250°C |
| Ambient temperature, fixed | −40°C to +80°C |
| Ambient temperature, fully flexible | −25°C to +80°C |
| Maximum tensile load on conductor | 15 N/mm² |
| Reference torsional stress | ±100°/m |
| Model + source configuration | Insulation nom. (mm) | OD min–max (mm) | Bend min. fixed / moving (mm) | Approx. weight (kg/km) | Tensile max (N) | Conductor R20 max (Ω/km) | Capacitance (µF/km) | Ampacity (A) | 1 s short-circuit (kA) |
|---|---|---|---|---|---|---|---|---|---|
| (N)TMCHXOEU 12/20 kV 1×50/16 mm² | 5.5 | 27–30 | 150 / 300 | 1 440 | 750 | 0.386 | 0.24 | 275 | 7.15 |
| (N)TMCHXOEU 12/20 kV 1×120/16 mm² | 5.5 | 36.4–38.9 | 233.4 / 389 | 2 350 | 1 800 | 0.164 | 0.28 | 505 | 17.16 |
| (N)TMCHXOEU 12/20 kV 1×150/25 mm² | 5.5 | 36–40 | 248.4 / 414 | 2 730 | 2 250 | 0.132 | 0.29 | 582 | 21.45 |
The source defines current ratings for three loaded conductors, spaced. Confirm installation, grouping, bonding and thermal correction factors for the actual circuit. Values are catalogue references pending the order-specific production drawing.
Standards
The supplied (N)TMCHXOEU reference lists DIN VDE 0250-813 as the product design standard and IEC 60228 / DIN EN 60228 for the Class 5 conductor. It lists HXM1 sheath material to DIN VDE 0266. Specify the exact acceptance tests and documentation in the project technical schedule.
| Property | Source catalogue reference |
|---|---|
| Flame propagation | IEC 60332-1-2 referenced |
| Oil resistance | EN 60811-404 test reference |
| Ozone resistance | DIN EN 50396, clause 8.1.3 referenced |
| Bend selection | DIN VDE 0298 Part 3 referenced; size values in Specifications |
| LSOH description | LSOH construction: request smoke-density and halogen-acidity test reports for the ordered cable |
Related cable options
Compare these cable options by service combination, movement, load, voltage and transmission requirement.
(N)TSCGEHXOEU 12/20–20/35 kV Wind Turbine Twist Cable
A related cable option for a different application or duty profile.
View product

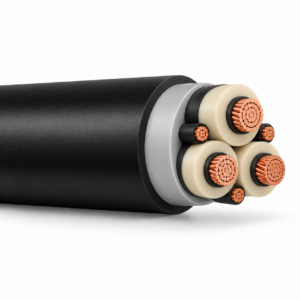

(N)TSCGEHXOEU 36/60–69 kV High-Voltage Wind Turbine Cable
