Underwater Coaxial Cable – 50/75 Ohm PUR Options

Underwater coaxial cable with 50 ohm and 75 ohm transmission options for compact subsea connector, RF, video and telemetry circuits. Select coax-only or coax-plus-six-conductor constructions, with standard PUR or water-blocked variants.

Impedance options: 50 Ω and 75 Ω
Circuit options: one coaxial element, or one coax plus 6 x 0.50 mm² (20 AWG) conductors
Coax references: RG-58 and RG-400 constructions are included in selected 50 Ω options
Outside diameter: approximately 5.59 to 9.80 mm, depending on configuration
Outer jacket: polyurethane; black or ultramarine blue by configuration
Documented duty: selected water-blocked options carry configuration-specific voltage, temperature and 7000 m depth data
Selection boundary: the cable is not specified as an armoured or load-bearing tow line

For an RFQ, send the impedance, frequency, allowable attenuation, length, connector, depth, temperature and auxiliary-circuit load.

SKU: UNDERWATER-COAXIAL-PUR Category: Marine & Offshore Cables Brand: TEBAOFLEX

Product information

SKU: UNDERWATER-COAXIAL-PUR
Category: Marine & Offshore Cables
Brand: TEBAOFLEX

Product overview

Underwater Coaxial Cable for Compact Subsea Connections

This underwater coaxial cable family gives equipment designers one selection page for 50 Ω RF and telemetry circuits, 75 Ω video or data circuits, and versions that add six 0.50 mm² auxiliary conductors for power, control or sensor functions. Eight reference constructions cover compact RG-58 and RG-400 routes, higher-temperature FEP-insulated coax, and water-blocked PUR-jacketed options.

Choose by the complete signal and installation duty, not by impedance alone. Connector impedance, operating frequency, cable length and attenuation must be reviewed together. A PUR jacket does not by itself establish pressure or depth capability: the 7000 m value applies only to the three configurations that state it, and the cable, moulding and connector must be confirmed as one assembly.

Use this family for: compact underwater connector tails, camera, telemetry, instrument and equipment wiring.
Confirm before ordering: 50 Ω or 75 Ω interface, frequency, run length, voltage, bend geometry, depth and termination.
Choose another route when: the cable must carry towing, suspension or winch load.

Browse the marine and offshore cable range or use the subsea cable selection guide to compare load-bearing and hybrid alternatives.

Construction

Underwater Coaxial Cable Construction

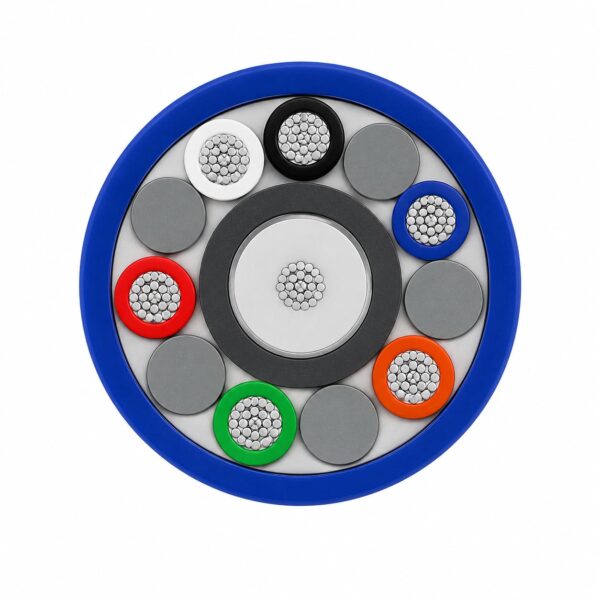

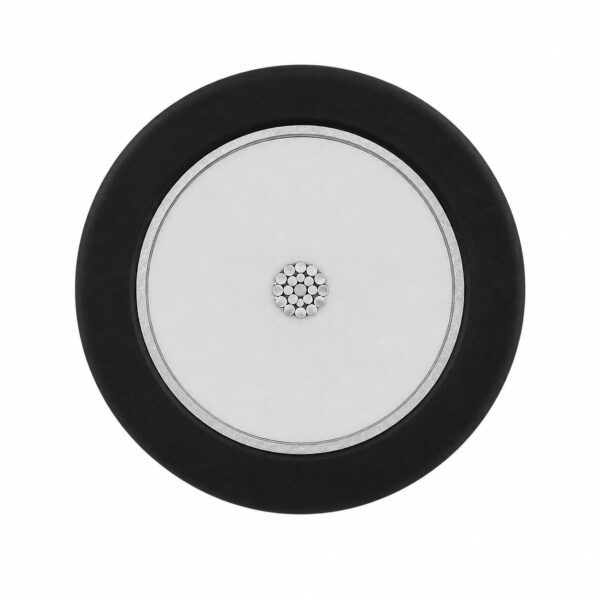

The eight options use a controlled-impedance coaxial element inside a polyurethane outer jacket. Conductor plating, dielectric, braid, waterblocking, inner jacket and auxiliary circuits vary by row; do not combine ratings from different configurations.

Configuration	Coaxial element	Dielectric / insulation	Screen	Auxiliary conductors	Water block	Inner jacket	Outer jacket
50 Ohm High-Temperature Coax	RG-400 construction; 20 AWG 19 x 32 silver-plated copper centre conductor	FEP, nominal 0.966 mm	38 AWG double braid, silver-plated copper	None	Not stated	Natural E-CTFE, nominal 0.38 mm	Black polyurethane, nominal 1.27 mm
75 Ohm High-Temperature Coax	22 AWG 19 x 34 stranded tinned-copper centre conductor	FEP, nominal 1.78 mm	Tinned-copper braid	None	Not stated	Grey FEP, nominal 0.25 mm	Black polyurethane, nominal 1.27 mm
50 Ohm Coax + 6 x 20 AWG	RG-400 coaxial element, 4.95 mm diameter	FEP on six auxiliary conductors	Coaxial-element screen	6 x 0.50 mm² (20 AWG) stranded silver-plated copper	Not stated	Not separately stated	Black polyurethane; source wall-thickness unit requires confirmation
75 Ohm Coax + 6 x 20 AWG	75 Ω coaxial element	E-CTFE on six auxiliary conductors	Coaxial-element screen	6 x 0.50 mm² (20 AWG), 19-strand silver-plated copper	Not stated	Not separately stated	Black polyurethane; source wall-thickness unit requires confirmation
Water-Blocked 50 Ohm Compact Coax	RG-58 construction; 0.33 mm² (22 AWG), 7-strand bare-copper centre conductor	Polyolefin dielectric, 2.30 mm nominal OD	95% tinned-copper braid with elastomeric water-block compound and aluminium-foil contact layer	None	Flooded screen construction	Thermoplastic elastomer, nominal 0.53 mm	Ultramarine-blue polyurethane, 85A, nominal 0.81 mm
Water-Blocked 50 Ohm Coax + 6 x 20 AWG	0.36 mm² (22 AWG), 7-strand tinned-copper centre conductor	Polyolefin coax dielectric; polypropylene on auxiliary conductors	95% tinned-copper braid with elastomeric water-block compound and aluminium-foil contact layer	6 x 0.50 mm² (20 AWG) stranded tinned copper	Flooded screen plus elastomeric compound in the interstices	Thermoplastic elastomer, nominal 0.50 mm	Ultramarine-blue polyurethane, nominal 1.30 mm
Water-Blocked 75 Ohm Compact Coax	0.14 mm² (26 AWG) stranded bare-copper centre conductor	Polyolefin dielectric, 2.70 mm nominal OD	95% tinned-copper braid with elastomeric water-block compound and aluminium-foil contact layer	None	Flooded screen construction	Thermoplastic elastomer, nominal 0.40 mm	Ultramarine-blue polyurethane, 85A, nominal 0.80 mm
Water-Blocked 75 Ohm Coax + 6 x 20 AWG	0.14 mm² (26 AWG), 7-strand bare-copper centre conductor	Polyolefin coax dielectric; polypropylene on auxiliary conductors	95% tinned-copper braid with elastomeric water-block compound and aluminium-foil contact layer	6 x 0.50 mm² (20 AWG) stranded tinned copper	Flooded screen plus elastomeric compound in the interstices	Thermoplastic elastomer, nominal 0.40 mm	Ultramarine-blue polyurethane, 85A, nominal 1.20 mm

What the construction changes in service

The 50 Ω route is intended for equipment built around a 50 Ω RF interface; the 75 Ω route is intended for a matching 75 Ω video or data interface.
The flooded braid and interstitial compound reduce longitudinal water migration only on the configurations where those layers are stated.
The six auxiliary conductors can consolidate electrical functions, but their voltage drop and heating must be calculated for the actual current and length.
No supplied option includes armour or a declared tensile member. Towing, suspension, free-swimming tether and repeated-reeling duty require another construction or separate mechanical evidence.

Applications

Applications for 50 and 75 Ohm Underwater Coaxial Cable

Use these compact PUR-jacketed cables where an underwater connector or equipment interface needs one controlled-impedance transmission path. The coax-plus-six-conductor versions can combine that path with low-voltage power, control or sensor circuits after the complete electrical and thermal schedule is checked.

50 Ω options: RF, telemetry, test or communication circuits built around a verified 50 Ω source, connector and load.
75 Ω options: underwater camera, video and data circuits built around a verified 75 Ω interface.
Six-conductor options: combined signal plus auxiliary power, lighting, control or instrumentation where one cable and connector envelope is preferred.
Water-blocked options: assemblies that require the documented flooded-screen or interstitial water-block construction.

Selection checks that prevent the wrong order

State the operating frequency, allowable end-to-end loss and cable length; attenuation rises with frequency and cannot be judged from impedance alone. Match the cable and connector impedance. Check OD and bend radius against the mould, gland, backshell and available routing space. For submerged service, define fresh or sea water, depth, pressure, duration, temperature and whether the cable is static, handled or repeatedly deployed.

Use a related construction when mechanical duty changes

Choose a hybrid coaxial power and signal tow cable when mixed circuits must also carry deployment load.
Choose a 50 ohm coaxial armoured tow cable for a load-bearing 50 Ω route.
Choose a screened underwater PUR cable when the project needs multiple copper circuits but no coaxial element.

Specifications

Underwater Coaxial Cable Specifications

All values are configuration-specific reference data for quotation.

Configuration	Impedance	Outside diameter	Operating voltage	Temperature	Bend radius	Maximum depth
50 Ohm High-Temperature Coax	50 Ω	7.38 mm nominal	300 V	-40°C to +150°C	10 x cable OD	Not stated
75 Ohm High-Temperature Coax	75 Ω	7.75 mm nominal	300 V	-80°C to +200°C	10 x cable OD	Not stated
50 Ohm Coax + 6 x 20 AWG	50 Ω	9.80 mm nominal	Not stated	Not stated	Not stated	Not stated
75 Ohm Coax + 6 x 20 AWG	75 Ω	9.80 mm nominal	Not stated	Not stated	Not stated	Not stated
Water-Blocked 50 Ohm Compact Coax	Approximately 50 Ω	5.59 ± 0.30 mm	≤1000 VDC	-20°C to +70°C	64 mm	Not stated
Water-Blocked 50 Ohm Coax + 6 x 20 AWG	50 Ω	9.70 ± 0.40 mm	≤600 VDC	-20°C to +70°C	100 mm minimum	7000 m maximum
Water-Blocked 75 Ohm Compact Coax	75 Ω	5.60 ± 0.30 mm	≤600 VDC	-20°C to +80°C	64 mm minimum	7000 m maximum
Water-Blocked 75 Ohm Coax + 6 x 20 AWG	75 Ω	9.80 ± 0.40 mm	≤600 VDC	-20°C to +80°C	102 mm minimum	7000 m maximum

Electrical and physical reference data

Configuration	Capacitance	Attenuation	DC resistance	Weight
50 Ohm High-Temperature Coax	29.4 pF/ft nominal	Not stated	Not stated	Not stated
75 Ohm High-Temperature Coax	20.1 pF/ft nominal	Not stated	Not stated	Not stated
50 Ohm Coax + 6 x 20 AWG	32.0 pF/ft	4.50 dB @ 100 MHz; 10.5 dB @ 400 MHz; 17.0 dB @ 1000 MHz; test length not stated	Not stated	Not stated
75 Ohm Coax + 6 x 20 AWG	Not stated	Not stated	Not stated	Not stated
Water-Blocked 50 Ohm Compact Coax	30 ± 3 pF/ft	0.5 dB/100 ft @ 1 MHz; 2 dB/100 ft @ 10 MHz; 5 dB/100 ft @ 50 MHz; 7 dB/100 ft @ 100 MHz; 30 dB/100 ft @ 1 GHz	Centre conductor ≤54.5 Ω/km; screen ≤21 Ω/km at 20°C	39 kg/km in air; 13 kg/km in seawater
Water-Blocked 50 Ohm Coax + 6 x 20 AWG	30 ± 10 pF/m, conductor to screen	6.50 dB/100 m @ 10 MHz; 23 dB/100 m @ 100 MHz; 98.4 dB/100 m @ 1 GHz	Coax centre conductor ≤54.5 Ω/km; screen ≤21 Ω/km at 20°C	119 kg/km in air; 45 kg/km in seawater
Water-Blocked 75 Ohm Compact Coax	65 ± 10 pF/m, conductor to screen	5.25 dB/100 m @ 10 MHz; 16.7 dB/100 m @ 100 MHz; 45.9 dB/100 m @ 750 MHz; 65.6 dB/100 m @ 1.5 GHz	Centre conductor ≤128 Ω/km; screen ≤18 Ω/km at 20°C	37 kg/km in air; 12 kg/km in seawater
Water-Blocked 75 Ohm Coax + 6 x 20 AWG	65 ± 10 pF/m, conductor to screen	5.25 dB/100 m @ 10 MHz; 16.7 dB/100 m @ 100 MHz; 45.9 dB/100 m @ 750 MHz; 1.5 GHz source line requires confirmation	Coax centre conductor ≤128 Ω/km; screen ≤18 Ω/km; auxiliary conductor ≤33 Ω/km at 20°C	122 kg/km in air; 45 kg/km in seawater

Specification boundaries

The 7000 m value belongs only to the two 75 Ω water-blocked options and the 50 Ω water-blocked six-conductor option.
No depth rating is stated for the compact water-blocked 50 Ω option or the four black-jacketed options.
The attenuation test length is not stated for the 50 Ω high-temperature six-conductor option; confirm it before using those values in a link budget.
Two legacy construction sheets record the PUR wall-thickness unit incorrectly. Final wall thickness requires an approved drawing.

Standards

Standards and Project Test References

General coaxial reference	IEC 61196-1 provides general definitions, requirements and design/test-method framework for coaxial communication cables. Use only when it is named in the agreed project specification.
Electrical verification	Agree impedance, capacitance, conductor and screen resistance, voltage test, attenuation frequencies, sample length and connectorised assembly acceptance.
Submerged-system verification	Where applicable, define depth, hydrostatic pressure, immersion duration, water migration, temperature, bend geometry and the moulded connector or penetrator interface.
Supply documentation	Confirm the approved drawing, marking, inspection plan, test report format, packaging and any project-specific certificate requirements before production.
