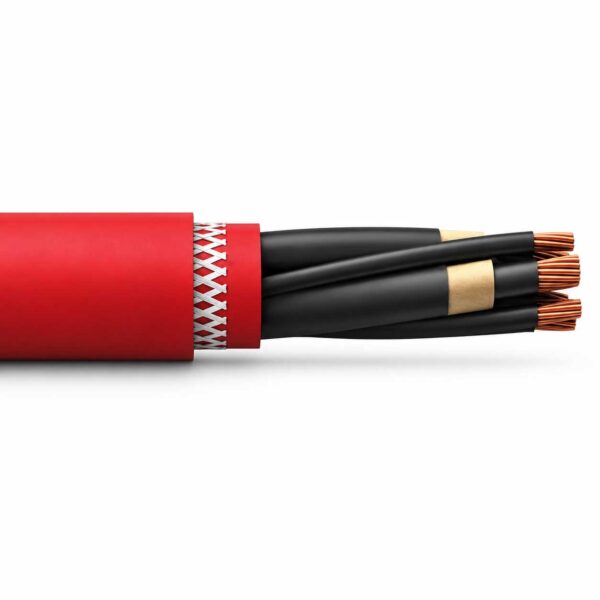

R-(N)TSCGEWÖU Medium Voltage Reeling Cable for Mining and Heavy Mobile Equipment

R-(N)TSCGEWÖU is a medium voltage rubber reeling cable designed for mobile mining machines, large material-handling equipment and cable reel systems operating under repeated movement, bending and mechanical stress. It is commonly used where the power cable must travel with the equipment while maintaining reliable electrical performance in harsh outdoor environments.

This cable is suitable for applications such as excavators, electric shovels, mobile crushers, stackers, reclaimers, spreaders and other heavy-duty machines used in open-pit mining, quarrying, tunnelling and industrial handling sites. Its flexible rubber construction, reinforced sheath and medium voltage design make it a practical choice for demanding reeling and trailing operations.

Designed for Dynamic Reeling Applications

Unlike fixed installation power cables, the R-(N)TSCGEWOU cable is built for movement. During operation, the cable may be exposed to drum winding, roller contact, bending cycles, tensile load, torsion, abrasion, moisture, oil and outdoor weather conditions. The construction is developed to support stable power transmission while helping reduce the risk of cable damage during daily machine movement.

Suitable for medium voltage cable reel systems
Designed for repeated bending and dynamic operation
Applicable for mining excavators, shovels and mobile crushers
Reinforced rubber sheath for abrasion and outdoor resistance
Available for project-based cable lengths and drum packing

Typical Applications

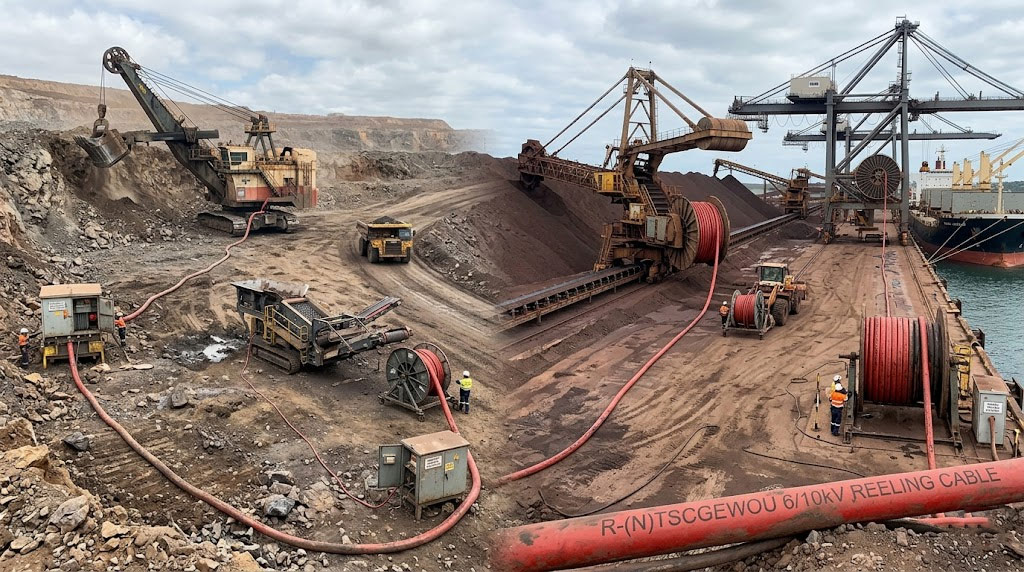

Open-pit mining excavators and electric shovels
Mobile crushers and screening equipment
Stackers, reclaimers and spreaders
Gantry cranes and large mobile handling machines
Medium voltage trailing and reeling power supply systems
Heavy-duty industrial equipment working with cable drums

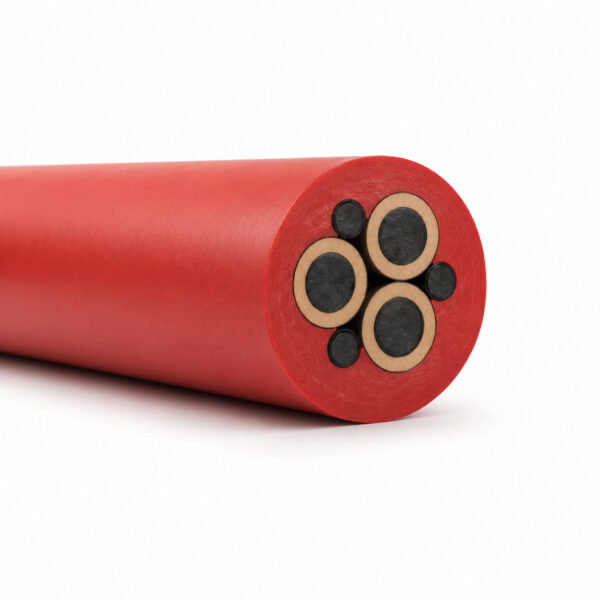

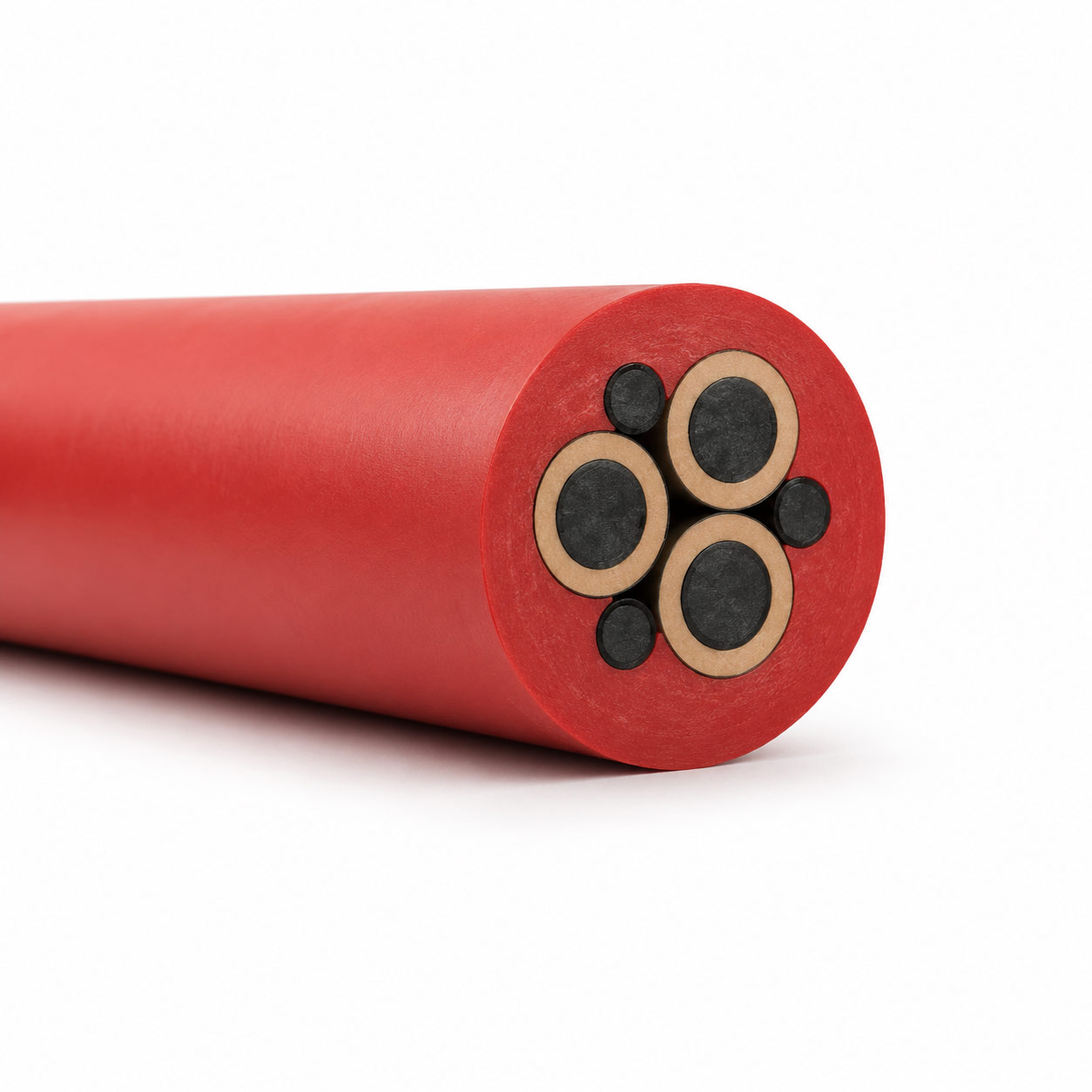

Cable Construction

Component	Description
Conductor	Flexible copper conductor for mobile and reeling operation
Conductor Screen	Semi-conductive layer for electrical field control
Insulation	EPR-based rubber insulation for medium voltage performance
Insulation Screen	Semi-conductive rubber screen around insulated cores
Earth Conductors	Protective earth conductors arranged within the cable structure
Inner Sheath	Rubber compound layer supporting core stability and flexibility
Reinforcement	Anti-torsion braid to improve mechanical resistance during reeling
Outer Sheath	Heavy-duty red rubber sheath with resistance to abrasion, oil, ozone, UV and weathering

Voltage Ratings and Size Options

The R-(N)TSCGEWÖU medium voltage reeling cable is available in several voltage classes to match different mining and industrial equipment requirements. Common rated voltage options include:

3.6/6 kV
6/10 kV
8.7/15 kV
12/20 kV
14/25 kV
18/30 kV

Common conductor configurations include three power cores with divided earth conductors, such as 3×25 + 3×25/3 mm², 3×50 + 3×25/3 mm², 3×70 + 3×50/3 mm², 3×120 + 3×70/3 mm², 3×185 + 3×95/3 mm² and larger cross-sections depending on voltage grade and project requirements.

Key Performance Features

Medium voltage design for heavy mobile equipment power supply
Flexible copper conductors suitable for repeated movement
EPR rubber insulation for reliable electrical performance
Reinforced construction for bending, torsion and tensile stress
Outer sheath resistant to abrasion, oil, ozone, UV and moisture
Suitable for indoor and outdoor heavy-duty environments
Maximum conductor operating temperature up to 90°C
Short-circuit conductor temperature up to 250°C
Custom cable length, marking and drum packing available on request

Standards and Reference Design

This R-(N)TSCGEWOU cable is designed with reference to recognized medium voltage rubber cable requirements, including DIN VDE 0250-813 and related installation guidance such as DIN VDE 0298. Flame-retardant, oil-resistant, weather-resistant and project-specific testing documentation can be provided according to order requirements.

For international buyers, the cable may also be searched as R-(N)TSCGEWOU cable, R-(N)TSCGEWOEU cable, medium voltage reeling cable, mining reeling cable or DIN VDE 0250-813 cable. These naming variations are commonly used when procurement teams search without German characters.

How to Select the Right R-(N)TSCGEWÖU Cable

To recommend the correct cable size and construction, please provide the following information when sending an inquiry:

Required voltage rating
Conductor cross-section
Total cable length
Equipment type and application
Cable reel or drum type
Minimum bending radius
Operating speed and movement frequency
Ambient temperature and site conditions
Required standards, test reports or project documentation

Why Choose This Cable for Mining Reeling Systems?

Cable failure on mining and material-handling equipment can cause costly downtime. The R-(N)TSCGEWÖU reeling cable is built for applications where the cable must withstand movement, outdoor exposure and mechanical load over long service periods. For mining contractors, equipment manufacturers and cable distributors, it offers a reliable solution for medium voltage power supply in demanding mobile equipment systems.

We support project-based supply, including customized cable length, sheath marking, drum packing, technical datasheets and selection assistance based on your operating conditions.

FAQ

What is R-(N)TSCGEWÖU cable used for?

R-(N)TSCGEWÖU cable is used for medium voltage power supply on mobile mining and material-handling equipment, especially machines working with cable reels, repeated bending and high mechanical stress.

Is R-(N)TSCGEWOU the same as R-(N)TSCGEWÖU?

Yes. In international search and technical communication, R-(N)TSCGEWÖU is often written as R-(N)TSCGEWOU or R-(N)TSCGEWOEU because some users do not type the German character “Ö”.

Which voltage ratings are available?

Common voltage ratings include 3.6/6 kV, 6/10 kV, 8.7/15 kV, 12/20 kV, 14/25 kV and 18/30 kV. The final selection depends on the equipment voltage and project requirements.

Can this cable be used on reeling drums?

Yes. This cable is designed for reeling and trailing applications where the cable must tolerate bending, pulling, torsion and outdoor exposure.

What information is needed for a quotation?

Please provide voltage rating, conductor size, cable length, equipment type, reel type, bending radius, operating speed, ambient temperature and any required standards or certificates.
