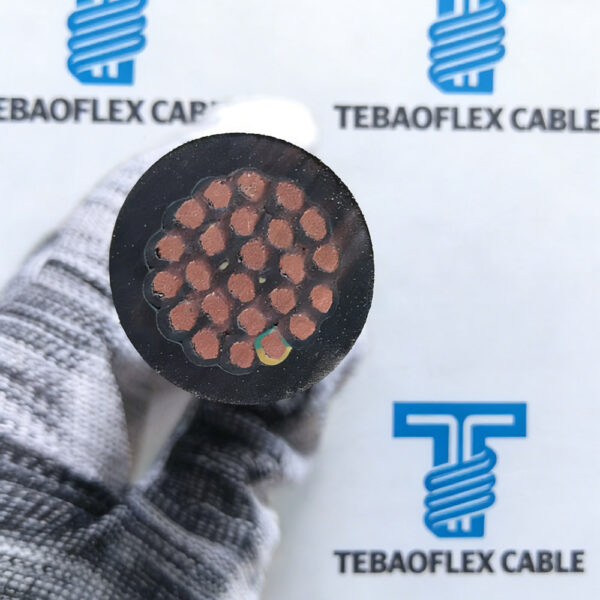

600V RE(V)-2PNCT-RF Vertical Reeling Rubber Cable
600V RE(V)-2PNCT-RF reinforced vertical reeling cable for reel and dancer-roll systems, with EP rubber insulation, reinforced chloroprene sheath and steel-wire tension elements. Confirm the exact core and size schedule at RFQ.
600V RE(V)-2PNCT-RF vertical reeling rubber cable is a reinforced EP-rubber and chloroprene-sheathed cable for vertical reel and dancer-roll systems. Its reinforced sheath is designed for lateral pressure, while steel-wire elements in the conductor improve tension resistance during repeated winding. The product is intended for moving power or control circuits where a standard 2PNCT festoon cable is not the correct mechanical construction.
The public type data identifies AC 600 V, an 80 °C conductor rating and a 3 kV test for one minute. Reference configurations include 7, 10 and 13 cores in 3.5 or 5.5 mm², but the offered size, conductor construction, diameter, mass and minimum bending radius must be confirmed against the order drawing. For repeated winding, follow the manufacturer installation guidance on twist control, lubrication and reduced working tension. Send core count, conductor size, reel diameter, lift height, travel cycle, speed, environment and required documents for a technical quotation.
The RF construction is not a generic 2PNCT size-only variant: its reinforcement, conductor tension design and vertical-reel installation inputs control suitability. Confirm the actual winding direction, repeated-cycle duty and safety factor with the technical quotation.

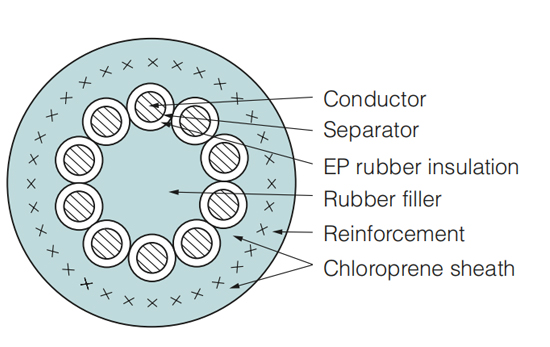

Construction
- Flexible copper conductor with steel-wire elements available in the reinforced vertical-reel construction.
- EP rubber insulation and rubber filler/separator.
- Reinforcement layer beneath a robust chloroprene sheath.
- Colour or tracer core identification according to the selected technical drawing.
Applications
- Vertical reel systems for cranes, hoists and mobile equipment.
- Dancer-roll and repeated winding routes where lateral pressure is significant.
- Landfill, material-handling and other vertical lifting systems when the quoted construction is suitable.
Specifications
| Parameter | Reference data |
|---|---|
| Model | 600V RE(V)-2PNCT-RF |
| Rated voltage | AC 600 V |
| Rated temperature | 80 °C |
| Test voltage | 3,000 V / 1 minute |
| Reference core counts | 7, 10 or 13 cores |
| Reference conductor sizes | 3.5 or 5.5 mm² |
| Permissible lateral pressure | ≤ 4.9 kN/m reference |
| Permissible tension | Steel-wire conductor: 161 x core count N or less; without steel wire: 39 x total conductor area N or less |
| Reference minimum bending radius | Approx. 220 to 380 mm by core/size configuration |
Standards
- Japan Electrical Appliance and Material Safety Act and Technical Standards for Electrical Equipment are public reference bases for this type.
- SP03-31-1020 Rev.1 is identified as a public standard-specification reference for the vertical-reel construction.
- Request the order-specific routine test, inspection and marking documents with the quotation.
Related cable options
Compare these cable options by service combination, movement, load, voltage and transmission requirement.
600V 2TC Light (2PNCT) Cable for Mobile Equipment
A related cable option for a different application or duty profile.
View product
SYSLTOE FO Basket Spreader Cable 0.6/1 kV
A related cable option for a different application or duty profile.
View product

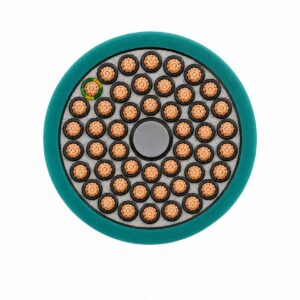

TRA Anti-Torsion PUR Reeling Cable 0.6/1 kV
