RV-K Cable 0.6/1kV XLPE PVC Flexible Power Cable

RV-K Cable for Low Voltage Power Distribution

RV-K Cable is a 0.6/1kV flexible low voltage power cable designed for industrial power distribution, building services, urban grids and permanent electrical installations. Its Class 5 flexible copper conductor makes routing easier in complex layouts, while XLPE insulation and a PVC outer sheath provide reliable electrical and mechanical performance for demanding low voltage projects.

This cable is suitable for use in cable ducts, conduits, trays, outdoor installations and direct burial where local installation rules allow. It is a practical choice for contractors, distributors and project buyers who need a flexible IEC 60502-1 style power cable for fixed low voltage installations.

Key Features

• Flexible conductor design: Class 5 copper conductors support easier handling and installation in complex cable routes.
• 0.6/1kV power rating: Suitable for low voltage power distribution in industrial, commercial and infrastructure projects.
• XLPE insulation: Cross-linked polyethylene insulation provides stable electrical performance and 90°C operating capability.
• PVC outer sheath: The black PVC jacket protects the cable during fixed installation in ducts, trays, conduits and outdoor routes.
• Installation versatility: Suitable for indoor and outdoor use, buried installation and damp environments when installed according to project requirements.
• Standards-based construction: Designed with reference to IEC 60502-1 and UNE 21123-2 for low voltage power cable applications.
• Wide size range: Available in single-core and multicore constructions for different power distribution needs.
• Project supply support: Cable size, length, packing, marking and technical documentation can be supplied according to order requirements.

Technical Specifications

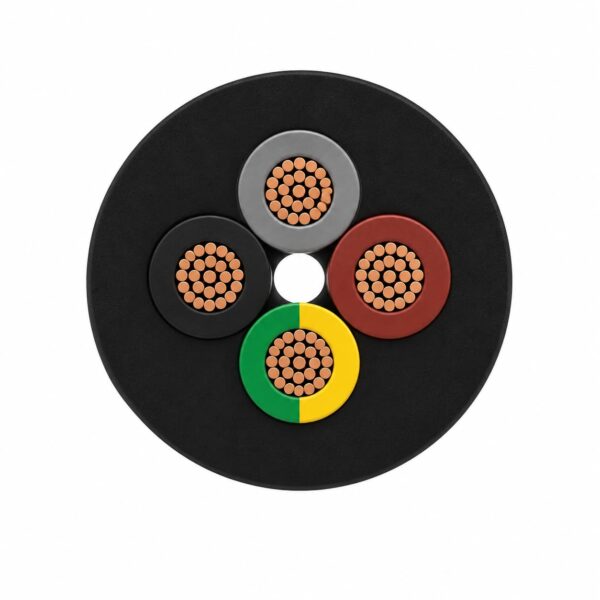

Cable Construction

1. Conductor: Class 5 flexible copper conductor designed to make installation easier in confined or complex routes.
2. Insulation: XLPE insulation provides electrical stability, thermal performance and long-term service reliability.
3. Core identification: Core colours can be supplied according to the selected number of cores and project specification.
4. Outer sheath: Black PVC sheath provides mechanical protection and supports installation in common low voltage power distribution environments.

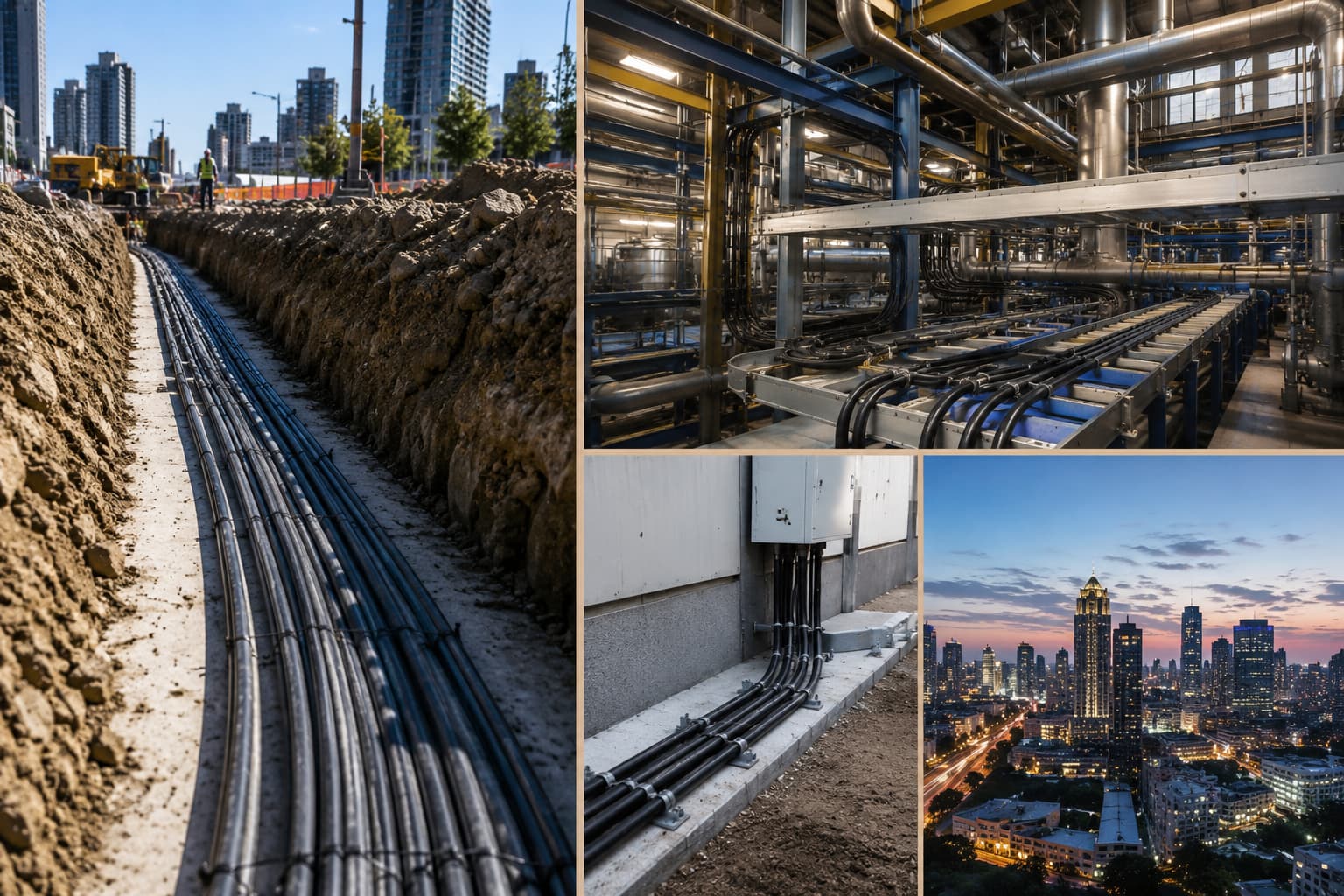

Applications

• Low voltage industrial power distribution
• Building services and fixed electrical installations
• Urban power grids and infrastructure connections
• Renewable energy and utility-related installations
• Data centres and complex cable routing environments
• Installation in ducts, conduits, cable trays and cable ladders
• Outdoor routes and direct burial where local rules and project conditions permit

Available Core and Size Options

RV-K flexible power cable can be supplied in single-core and multicore constructions. Common project configurations include 1-core, 2-core, 3-core, 4-core and 5-core options, with conductor sizes selected according to current load, installation method, voltage drop requirement and site conditions.

The final outer diameter, cable weight and electrical characteristics depend on the selected number of cores and cross-sectional area. For accurate selection, please provide the required core count, conductor size, cable length, installation method, ambient conditions and any compliance documentation required by the project.

Standards and Compliance

This RV-K XLPE PVC cable is designed with reference to IEC 60502-1 and UNE 21123-2. Depending on order requirements, documentation can be provided for flame retardance, water resistance, RoHS, REACH, CPR or other project-related compliance needs.

If the cable will be installed outdoors, buried underground or exposed to damp conditions, the installation method should be reviewed according to local regulations and the final engineering design.

Why Choose TEBAOFLEX

TEBAOFLEX supplies low voltage power cables, flexible industrial cables and project-based electrical cable solutions for contractors, OEMs, distributors and engineering buyers. We support cable selection, size confirmation, custom length, sheath marking, packing and technical documentation.

For RV-K Cable inquiries, please send the required voltage, core number, cross-section, cable length, installation method and destination market. Our team can help confirm the suitable specification and prepare a quotation.

FAQ

What is RV-K Cable used for?

RV-K Cable is used for low voltage power distribution in industrial connections, building installations, urban grids, ducts, trays, outdoor routes and direct burial applications where permitted by local installation rules.

What voltage rating does RV-K Cable have?

The standard voltage rating is 0.6/1 kV AC. Some specifications also list a maximum DC operating voltage of 0.9/1.8 kV.

What materials are used in RV-K Cable?

RV-K Cable uses a Class 5 flexible copper conductor, XLPE insulation and a PVC outer sheath. The standard sheath colour is black.

Is RV-K Cable flexible?

Yes. RV-K uses Class 5 flexible copper conductors, which makes it easier to install in difficult routes compared with more rigid fixed power cables.

Can RV-K Cable be buried directly?

RV-K Cable can be used for direct burial where the project design and local installation rules allow it. Installation conditions should always be confirmed before selection.

Which standards apply to RV-K Cable?

RV-K Cable is commonly designed with reference to IEC 60502-1 and UNE 21123-2. Project-specific compliance documents can be supplied according to order requirements.

What information is needed for a quotation?

Please provide the required core number, conductor cross-section, cable length, voltage rating, installation method, destination market and any required certificates or inspection documents.

Can the cable length and marking be customized?

Yes. Cable length, sheath marking, packing and documentation can be customized according to procurement and project requirements.
