Submersible Pump Motor Cable 450/750V 0.6/1kV with Control Cores
TEBAOFLEX submersible pump motor cable is a wet-duty power and control cable for pump motors, mixers and dewatering equipment where one robust cable must carry motor power and, when required, sensor or monitoring signals.
- Voltage rating: 450/750 V for selected small sizes; 600/1000 V options for larger and screened constructions
- Construction options: power-only, with integrated control cores, or screened versions for VFD pump systems
- Insulation: HEPR or EPR rubber insulation with 90°C conductor insulation rating basis
- Outer sheath: CPE rubber compound for wet-duty, abrasion, oil and ozone exposure
- Typical use: submersible pumps, mixers, mine dewatering, quarry pumps, wastewater pumps and industrial wet wells
- Selection note: confirm cable OD, pump entry sleeve, water depth, water temperature, VFD use and control-core wiring before ordering
Submersible Pump Motor Cable for Pump Power, Control and VFD Duty
TEBAOFLEX submersible pump motor cable is the main product page for wet-duty pump power cables used on submersible pump motors, mixers, mine dewatering pumps, quarry pumps, wastewater pumps and VFD-driven pump systems. It is built around the practical selection points buyers normally need to confirm: voltage rating, conductor size, outer diameter, cable-entry sleeve fit, water depth, water temperature, control-core layout and screened construction for drive systems.
The cable can be supplied as a power-only pump cable, a pump cable with integrated monitoring cores, or a screened submersible pump cable for VFD operation. For large composite SUBCAB-style layouts with fiber-optic or more complex supervision elements, use the related composite pump cable page in the Resources tab.
Submersible pump cables fail for different reasons than ordinary workshop rubber cables. The weak points are normally the cable entry seal, repeated wet handling, chemical or oil exposure, conductor insulation stress, and the routing of small auxiliary sensor cables. TF-SUB addresses these points with a wet-duty CPE sheath, rubber insulation, optional integrated monitoring cores and screened versions for VFD-driven equipment.

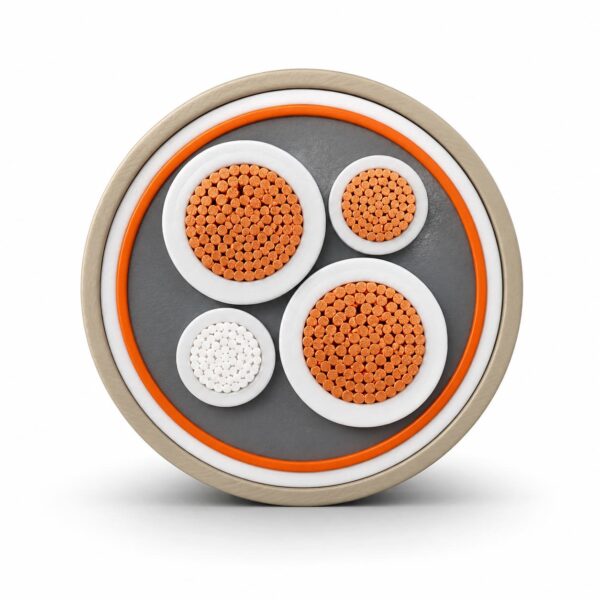

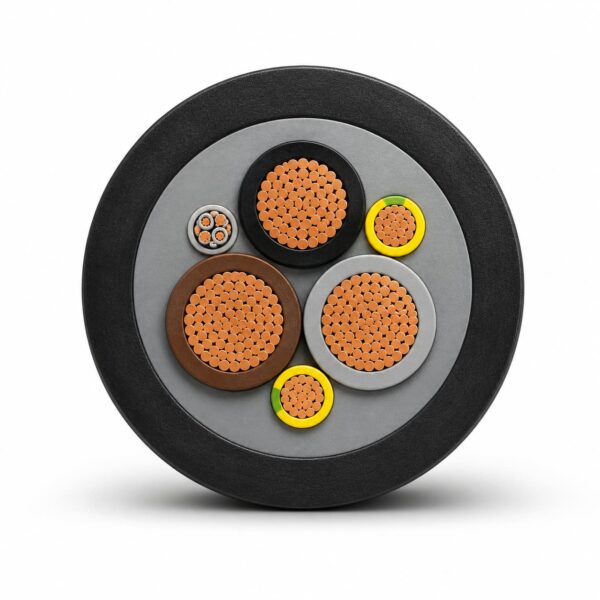

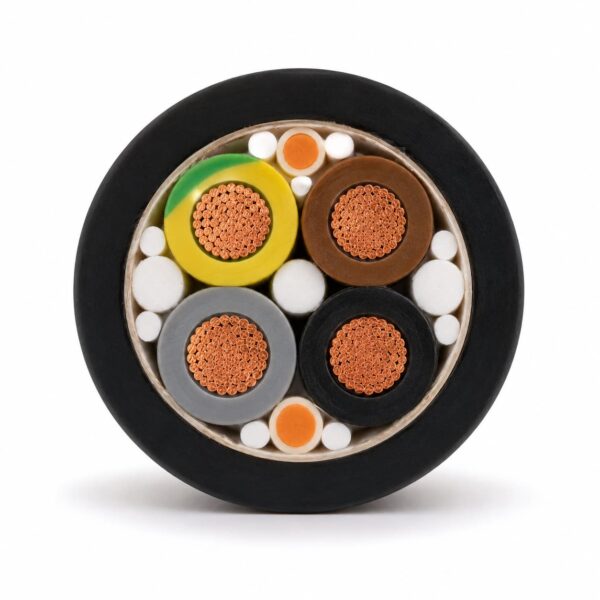

Construction
- Power conductors: flexible copper stranded conductors sized according to motor load and voltage-drop requirements.
- Conductor insulation: HEPR or EPR rubber insulation selected for wet-duty service and conductor temperature performance.

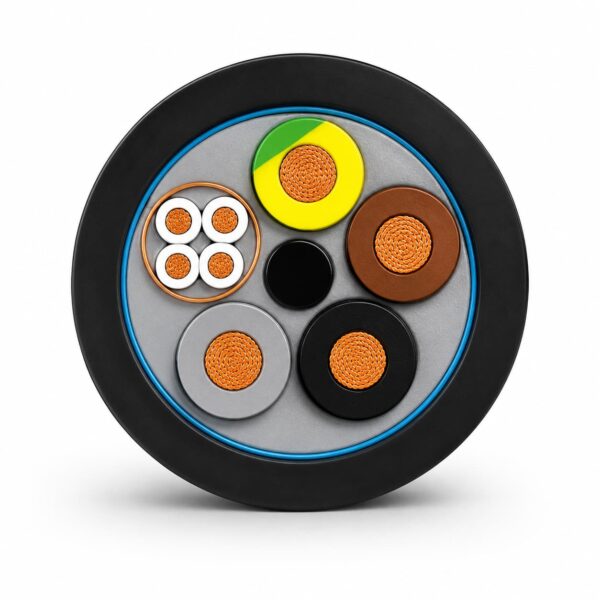

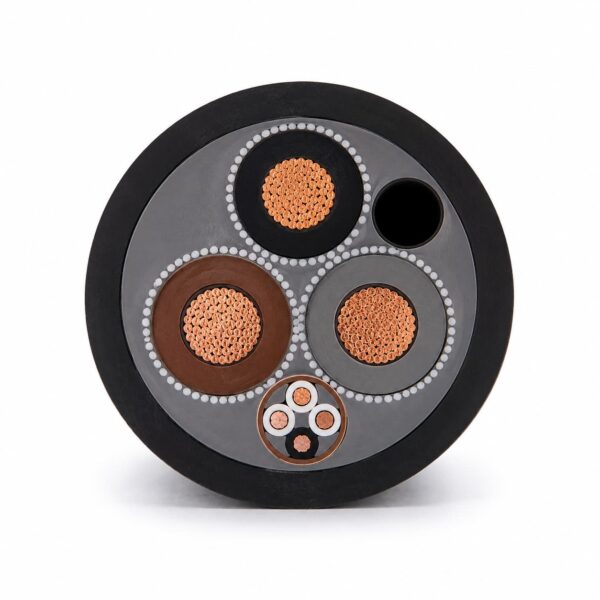

- Optional control cores: integrated monitoring cores or screened pairs can be included for pump sensors, thermal monitoring or supervision systems.

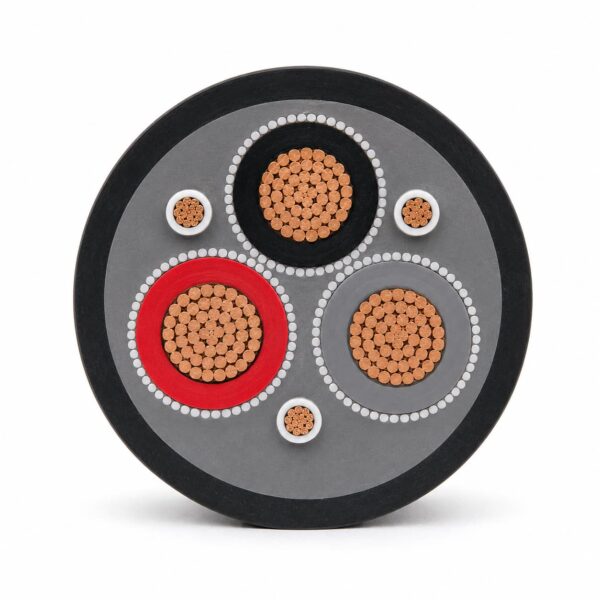

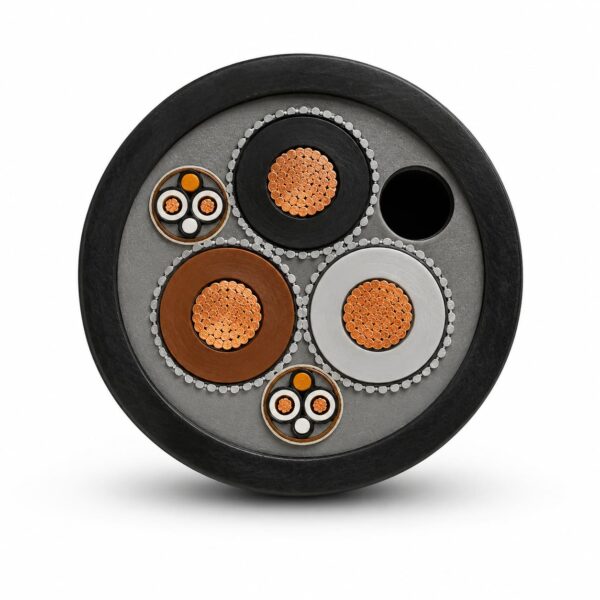

- Optional screen: screened power/control constructions are available for VFD pump drives and EMC-sensitive signal circuits.
- Outer sheath: CPE rubber outer sheath provides the mechanical, oil, ozone and water-exposure protection required for pump installations.
Applications
- Submersible pump motors for water, wastewater and industrial process systems
- Mine and quarry dewatering pumps where abrasion, wet handling and long service runs are common
- Mixers and pump units requiring integrated sensor or monitoring cores

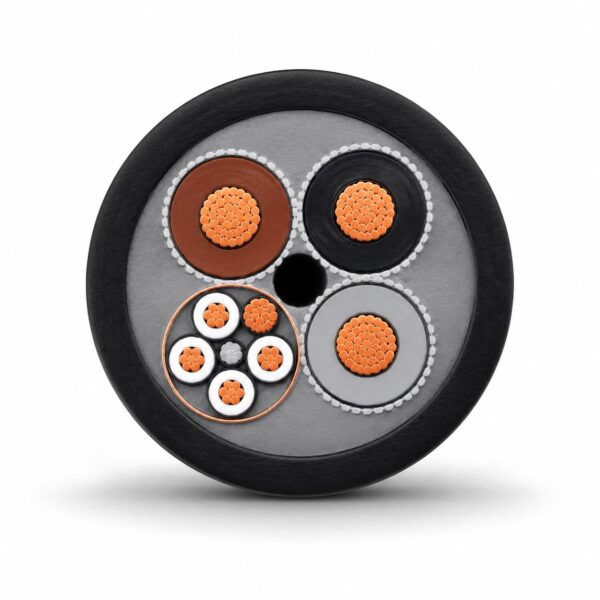

- VFD-driven pumps where screened cable construction is required to control electromagnetic emissions
- Industrial wet wells, pump stations and water treatment facilities
Specifications
| Product Type | Submersible pump motor power cable with optional control and screened versions |
|---|---|
| Model | TF-SUB Pump Cable |
| Voltage Rating | 450/750 V for selected small sizes; 600/1000 V available for larger and screened constructions |
| Conductor | Flexible copper strands; screened versions may include screened/tinned copper control conductors |
| Insulation | HEPR or EPR rubber insulation, 90°C conductor insulation rating basis |
| Control / Monitoring Cores | Optional 2 x 1.5 mm² control cores, screened pairs such as S(2 x 0.5) or S(4 x 0.5), and multi-core control cable versions |
| Screened Version | Available for VFD pump operation and sensor communication protection |
| Outer Sheath | CPE rubber compound, type 5GM5 reference |
| Temperature Reference | Water temperature up to 70°C; fixed installation down to -40°C; flexible installation down to -25°C |
| Water Depth Reference | Up to 50 m according to supplied product data; confirm project pressure and sealing requirements |
| Chemical / Oil / Ozone | Oil, ozone and chemical resistance reference for pH 3-10 environments |
| Minimum Bending Radius | Use supplied table values; flexible operation reference is at least 10 x overall diameter |
| Primary Applications | Submersible pumps, mixers, mine dewatering, quarry pumps, wastewater pumps, industrial wet wells and VFD pump systems |
Product Range Overview
TF-SUB can be configured as a power-only pump cable, a pump cable with monitoring cores, a screened pump cable for VFD duty, or a separate control cable. Use the overview below for first-stage selection, then confirm the exact conductor size, OD, weight and bend radius from the detailed table or quotation drawing.
| Range | 3-Power-Core / 1-Phase Options | 4-Power-Core / 3-Phase Options | 7-Power-Core / Star-Delta Options |
|---|---|---|---|
| Power only | 3G1.5 - 3G2.5 | 4G1.5 - 4G120 | 7G2.5 |
| With monitoring/control cores | Project-specific | 4G1.5 + 2x1.5 to 4G35 + 2x1.5 | 7G2.5 + 2x1.5 to 7G6 + 2x1.5 |
| Screened, power only | Project-specific | Large-size screened constructions available; verify exact code before upload | Project-specific |
| Screened with monitoring/control cores | Project-specific | S3x2.5 + 3x2.5/3 + 4x1.5 to S3x120 + 3x70/3 + 4x1.5 reference range | Project-specific |
| AWG power-only reference | 14 AWG/3 | 14 AWG/4 - 8 AWG/4 | Project-specific |
| AWG with control-core reference | Project-specific | 10 AWG/3-2-1-GC to 1 AWG/3-2-1-GC | Project-specific |
Dimensions and Electrical Data
The table below is arranged for size selection, cable-entry planning, weight estimation and bending-radius checks. Current capacity should be verified against the actual installation method, water temperature, grouping, duty cycle and motor-starting conditions.
| Construction | Version | Nominal Current at 30°C (A) | Outer Diameter (mm) | Weight (kg/m) | Bending Radius (cm) |
|---|---|---|---|---|---|
| 3G1.5 | Power only | 23 | 10-11 | 0.16 | 10 |
| 3G2.5 | Power only | 32 | 11-12 | 0.24 | 11 |
| 4G1.5 | Power only | 23 | 10.5-11.5 | 0.20 | 10 |
| 4G2.5 | Power only | 32 | 12.5-13.5 | 0.28 | 12 |
| 4G4 | Power only | 42 | 16-17 | 0.44 | 16 |
| 4G6 | Power only | 54 | 18-19 | 0.57 | 18 |
| 4G1.5 + 2x1.5 | With control cores | 23 | 15-16 | 0.32 | 15 |
| 4G2.5 + 2x1.5 | With control cores | 32 | 17-18 | 0.43 | 17 |
| 4G4 + 2x1.5 | With control cores | 42 | 20-22 | 0.63 | 20 |
| 4G6 + 2x1.5 | With control cores | 54 | 24-26 | 0.83 | 24 |
| 4G10 + S(2x0.5) | With screened pair | 75 | 24-26 | 0.85 | 24 |
| 4G16 + S(2x0.5) | With screened pair | 100 | 26-28 | 1.30 | 26 |
| 4G25 + S(2x0.5) | With screened pair | 127 | 32-34 | 1.70 | 32 |
| 4G35 + S(2x0.5) | With screened pair | 157 | 35-37 | 2.24 | 35 |
| 3x50 + 2G35/2 + S(2x0.5) | With earth/control conductors | 192 | 35-37 | 2.60 | 35 |
| 3x70 + 2G35/2 + S(2x0.5) | With earth/control conductors | 246 | 38-41 | 3.30 | 38 |
| 3x95 + 2G50/2 + S(2x0.5) | With earth/control conductors | 298 | 47-50 | 4.50 | 47 |
| 3x120 + 2G70/2 + S(2x0.5) | With earth/control conductors | 346 | 54-56 | 5.70 | 54 |

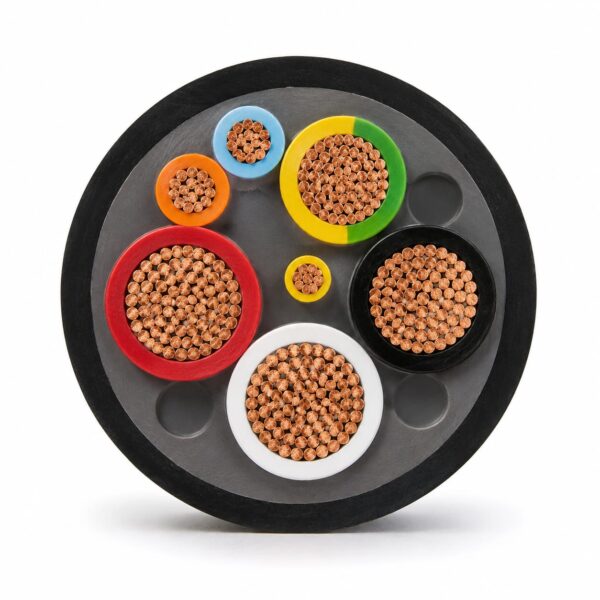

| 7G2.5 + 2x1.5 | Multi-core with control cores | 32 | 20-22 | 0.60 | 20 |
| 7G4 + 2x1.5 | Multi-core with control cores | 42 | 22-24 | 0.84 | 22 |
| 7G6 + S(2x0.5) | Multi-core with screened pair | 54 | 24-26 | 0.85 | 24 |
| S3x1.5 + 3x1.5/3 + S(2x0.5) | Screened with control cores | 23 | 16-17 | 0.50 | 16 |
| S3x2.5 + 3x2.5/3 + S(4x0.5) | Screened with control cores | 32 | 18-20 | 0.45 | 18 |
| S3x6 + 3x6/3 + S(4x0.5) | Screened with control cores | 54 | 20-22 | 0.55 | 20 |
| S3x10 + 3x10/3 + S(4x0.5) | Screened with control cores | 75 | 24-26 | 0.95 | 24 |
| S3x16 + 3x16/3 + S(4x0.5) | Screened with control cores | 100 | 24-26 | 1.10 | 24 |
| S3x25 + 3x16/3 + S(4x0.5) | Screened with control cores | 127 | 29-31 | 1.40 | 29 |
| S3x35 + 3x16/3 + S(4x0.5) | Screened with control cores | 157 | 32-34 | 2.00 | 32 |
| S3x50 + 3x25/3 + S(4x0.5) | Screened with control cores | 192 | 38-40 | 3.00 | 38 |
| S3x70 + 3x35/3 + 2S(2x0.5) | Screened with control cores | 246 | 42-44 | 3.50 | 42 |
| S3x95 + 3x50/3 + 2S(2x0.5) | Screened with control cores | 298 | 44-47 | 4.60 | 44 |
| S3x120 + 3x70/3 + 2S(2x0.5) | Screened with control cores | 346 | 50-52 | 5.50 | 50 |
| S6x95 + 95 + S(4x0.5) | Screened high-capacity version | 475 | 57-60 | 7.60 | 57 |
| 2x1.5 | Control cable | - | 10-11 | 0.14 | 10 |
| 7x1.5 | Control cable | - | 15-17 | 0.38 | 15 |
| 12x1.5 | Control cable | - | 18-21 | 0.53 | 18 |
| 24x1.5 | Control cable | - | 24-29 | 0.90 | 24 |
| S12x1.5 | Screened control cable | - | 29-31 | 0.78 | 29 |
| S24x1.5 | Screened control cable | - | 33-37 | 1.59 | 33 |
Standards
| Material Reference | CPE outer sheath type 5GM5; HEPR or EPR insulation type 3GI3 reference |
|---|---|
| Voltage Reference | 450/750 V, 600/1000 V and 600 V application references depending on construction and market requirement |
| Factory Testing | Routine electrical and dimensional checks can be supplied according to the agreed project test plan |
| Compliance Note | Do not assume explosion-proof, FM, UL, CSA or project-specific approval unless it is confirmed in the quotation and documentation package |
| Buyer Verification | Confirm pump cable entry sleeve, gland, water depth, ambient temperature, VFD drive, control-core wiring and current rating before final selection |
