Type P Signal OS Cable 600V 20, 18 and 16 AWG Unarmored
Type P Signal OS Cable 600V 20, 18 and 16 AWG Unarmored: procurement-ready Type P construction and project-selection data. Confirm size, voltage, screening, armor, route and certification requirements at RFQ.

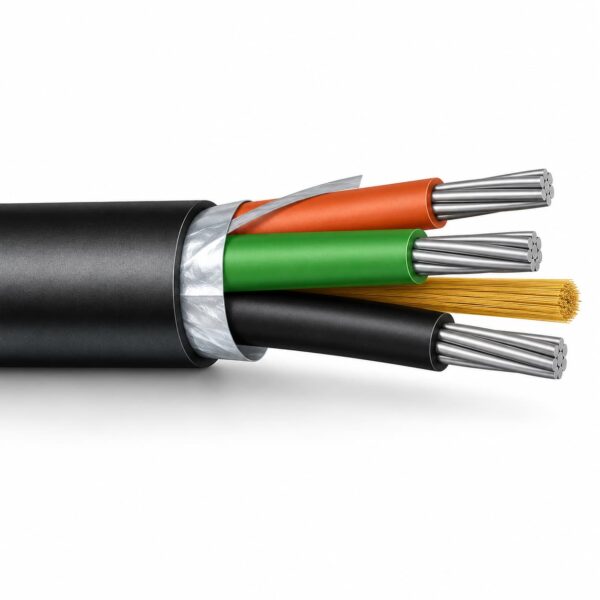

Type P signal cable 600 V for marine, offshore and drilling signal or instrumentation circuits. This OS reference covers 20, 18 and 16 AWG multi-conductor options with an overall shield and an unarmoured construction. The cable uses soft annealed stranded tinned copper, Type P XLPO insulation and a flame-retardant thermosetting CPE jacket. The current product data references 125°C continuous conductor operation, oil/abrasion/moisture/sunlight resistance and cold-bend performance for demanding fixed routes.
An overall shield is selected when the project needs a common EMC barrier around the cabled signal group. It is not the same as individually screened pairs: use the Type P Signal I/O pages when pair-by-pair isolation or an armored sheath is required. Confirm pair/triple layout, drain-wire termination, shield bonding, circuit segregation, core identification, capacitance and maximum loop length with the instrumentation engineer. Signal performance depends on loop length and screen bonding.
For an RFQ, state voltage, AWG, core or pair count, shield coverage, hazardous-area requirements, route, ambient temperature, bend radius and required certificates. Compare the Type P Signal I/O unarmoured cable, armored I/O cable and the Oil & Gas Cables range.
Construction
| Element | Reference construction | Buyer check |
|---|---|---|
| Conductors | Soft annealed stranded tinned copper signal conductors. | Confirm AWG, core count and colour code. |
| Insulation | Type P chemically cross-linked polyolefin (XLPO). | Confirm 600V insulation level and test voltage. |
| Shield | Overall shielded multi-conductor construction. | Confirm braid/tape type, coverage, drain wire and grounding end. |
| Jacket | Flame-retardant thermosetting CPE; unarmoured reference. | Confirm mechanical protection and environmental exposure. |
Applications
- Overall-shielded signal and instrumentation circuits on drilling rigs and offshore production units.
- Marine vessel monitoring, alarm and auxiliary signal routes.
- Fixed cable-tray or protected conduit installations where an unarmoured construction is approved.
- EMC-sensitive control systems requiring a common overall shield around the cable group.
Shielding note: the shield termination and bonding method are installation-specific. Confirm intrinsic-safety segregation, hazardous-area design, grounding and separation from VFD/power circuits with the project engineer.
Specifications
| Item | Reference value | RFQ confirmation |
|---|---|---|
| Voltage | 600 V | Confirm circuit voltage and test voltage. |
| Conductor size | 20, 18 and 16 AWG reference options | Confirm core/pair count and loop resistance. |
| Shield | Overall shielded multi-conductor | Confirm screen coverage, drain and bonding. |
| Temperature | 125°C continuous conductor reference | Apply ambient and grouping derating. |
| Electrical data | Capacitance, impedance, OD, weight and bend radius vary by layout. | Request the approved signal datasheet. |
Standards
- IEEE 1580 and IEEE 45 Type P marine/offshore cable references.
- UL 1309 and applicable CSA marine cable references for the ordered construction.
- IEEE 1202 and IEC 60332-3-22 Category A flame-propagation references where specified.
- IEC 60092 references may be included for shipboard and offshore project schedules.
Confirm model-specific shield, fire, classification and hazardous-area documentation at RFQ. The standards list is a selection aid, not a blanket approval statement.
