Type W Magnet Crane Cable 2000V
Type W magnet crane cable is a 2000V portable-power cable for lifting magnets, scrap yards and foundries where sharp metal, impact and repeated flexing increase the risk of jacket damage. The proposed range uses flexible bare-copper rope conductors, EPDM insulation and a double-layer aramid-reinforced thermoset jacket.
- Voltage: 2000V
- Configurations: 2 conductors, 8 AWG to 2/0 AWG; 4 conductors, 8 AWG to 2 AWG
- Conductor: Extra-flexible Class K soft-drawn bare copper
- Insulation: Colour-coded thermoset EPDM
- Jacket: Double-layer aramid-reinforced thermoset compound
- Temperature reference: -50°C to +105°C continuous dry operation
Send the conductor count, AWG size, cable length, movement pattern, bend path and required marking or test documents with the RFQ.
Type W Magnet Crane Cable for Scrap-Yard and Foundry Duty
Type W magnet crane cable is a 2000V portable-power construction for lifting magnets and crane routes exposed to sharp metal, repeated flexing and mechanical impact. The proposed TEBAOFLEX range combines extra-flexible bare-copper rope conductors, colour-coded EPDM insulation, non-wicking fillers and a double-layer aramid-reinforced thermoset jacket. It is positioned separately from a general Type W mining cable because buyers in scrap yards and foundries are primarily comparing cut-through resistance, conductor flexibility, cable visibility and the exact two- or four-conductor arrangement.
The proposed range covers two-conductor sizes from 8 AWG through 2/0 AWG and four-conductor sizes from 8 AWG through 2 AWG. Select the cable from circuit layout, load current, route length, minimum bend diameter, movement pattern, termination space and required jacket or approval documentation. The supplied reference lists a 2000V rating and a continuous dry-temperature range from -50°C to +105°C; final TEBAOFLEX drawings and test scope must be confirmed for the ordered size.
- Best fit: Lifting-magnet power on scrap-yard and foundry cranes with severe cut-through exposure.
- Choose carefully: Automatic reeling, high torsion or unsupported vertical travel requires a separate mechanical review.
- Related options: Compare the three-conductor round Type W cable and four-conductor Type W mining cable.
Browse the Port & Festoon Cables range or request a configuration-specific quotation.

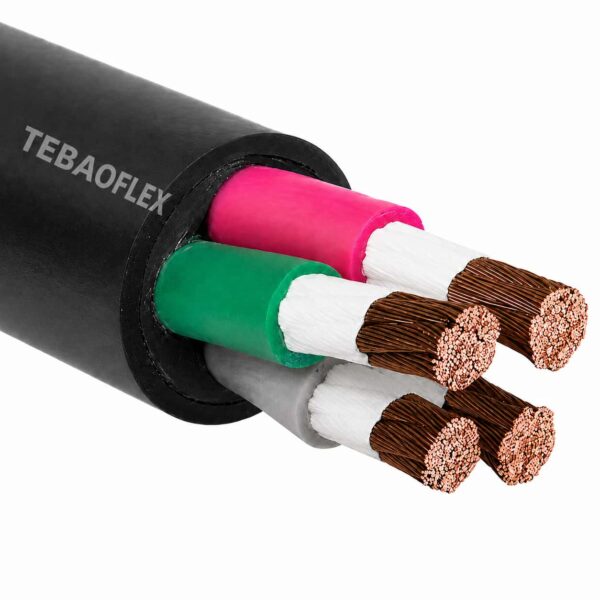

Type W Magnet Crane Cable Construction
The proposed construction is designed around flexibility and mechanical protection in areas where loose or sharp metal can contact the cable.| Component | Proposed construction | Selection purpose |
|---|---|---|
| Conductors | Extra-flexible Class K rope-stranded, soft-drawn uncoated copper | Supports repeated handling while reducing conductor fatigue risk |
| Separator | Paper separator over insulated elements where required | Supports clean stripping during termination |
| Insulation | Colour-coded thermoset EPDM | Provides electrical insulation and conductor identification |
| Core identification | 2/C: black and white; 4/C: black, white, red and green | Matches the supplied configuration schedule |
| Cabling and fillers | Insulated conductors cabled with non-wicking fillers and an overall binder | Maintains a round profile and improves impact support |
| Outer jacket | Double-layer aramid-reinforced thermoset jacket; high-visibility colour available by project | Designed to improve tensile, abrasion and metal cut-through resistance |
Magnet Crane Cable Applications and Selection Limits
This cable is intended for low-voltage lifting-magnet circuits and portable-power routes where sharp scrap, hot-work debris or repeated handling creates more severe mechanical exposure than a normal Type W route.- Scrap-yard magnet cranes and lifting electromagnets
- Foundry material-handling cranes
- Steel-processing and recycling equipment with metal cut-through risk
- Portable or mobile heavy equipment using a compatible two- or four-conductor circuit
- Crane routes requiring a visible, reinforced flexible cable
Type W Magnet Crane Cable Specifications
| Property | Draft product value |
|---|---|
| Product designation | Type W magnet crane portable-power cable |
| Voltage rating | 2000V |
| Conductor arrangements | 2/C and 4/C |
| Published size range | 2/C: 8 AWG to 2/0 AWG; 4/C: 8 AWG to 2 AWG |
| Continuous dry-temperature reference | -50°C to +105°C |
| Jacket flexibility statement in source detail | -40°C to +105°C; confirm the ordered design's lower flexible limit |
| Nominal outside-diameter range | 0.880 to 1.630 in (22.4 to 41.4 mm), depending on configuration |
| Minimum bend-diameter range | 7.0 to 13.0 in (177.8 to 330.2 mm), depending on configuration |
Configuration and Dimensional Data
| Configuration | Stranding | Insulation thickness | Jacket thickness | Nominal OD | Ampacity | Minimum bend diameter | Approx. weight |
|---|---|---|---|---|---|---|---|
| 2 × 8 AWG | 168/30 | 0.060 in (1.5 mm) | 0.125 in (3.2 mm) | 0.880 in (22.4 mm) | 81 A | 7.0 in (177.8 mm) | 455 lb/Mft (677 kg/km) |
| 4 × 8 AWG | 168/30 | 0.060 in (1.5 mm) | 0.140 in (3.6 mm) | 1.040 in (26.4 mm) | 56 A | 8.0 in (203.2 mm) | 612 lb/Mft (911 kg/km) |
| 2 × 6 AWG | 259/30 | 0.060 in (1.5 mm) | 0.125 in (3.2 mm) | 0.945 in (24.0 mm) | 107 A | 8.0 in (203.2 mm) | 574 lb/Mft (854 kg/km) |
| 4 × 6 AWG | 259/30 | 0.060 in (1.5 mm) | 0.140 in (3.6 mm) | 1.110 in (28.2 mm) | 75 A | 9.0 in (228.6 mm) | 834 lb/Mft (1241 kg/km) |
| 2 × 4 AWG | 420/30 | 0.060 in (1.5 mm) | 0.140 in (3.6 mm) | 1.075 in (27.3 mm) | 142 A | 9.0 in (228.6 mm) | 749 lb/Mft (1115 kg/km) |
| 4 × 4 AWG | 430/30 | 0.060 in (1.5 mm) | 0.175 in (4.4 mm) | 1.300 in (33.0 mm) | 98 A | 10.0 in (254.0 mm) | 1190 lb/Mft (1771 kg/km) |
| 2 × 2 AWG | 665/30 | 0.060 in (1.5 mm) | 0.155 in (3.9 mm) | 1.235 in (31.4 mm) | 189 A | 10.0 in (254.0 mm) | 1042 lb/Mft (1551 kg/km) |
| 4 × 2 AWG | 665/30 | 0.060 in (1.5 mm) | 0.190 in (4.8 mm) | 1.480 in (37.6 mm) | 132 A | 12.0 in (304.8 mm) | 1679 lb/Mft (2499 kg/km) |
| 2 × 1 AWG | 836/30 | 0.080 in (2.0 mm) | 0.170 in (4.3 mm) | 1.460 in (37.1 mm) | 221 A | 12.0 in (304.8 mm) | 1585 lb/Mft (2359 kg/km) |
| 2 × 1/0 AWG | 1045/30 | 0.080 in (2.0 mm) | 0.170 in (4.3 mm) | 1.608 in (40.6 mm) | 256 A | 13.0 in (330.2 mm) | 1868 lb/Mft (2780 kg/km) |
| 2 × 2/0 AWG | 1330/30 | 0.080 in (2.0 mm) | 0.170 in (4.3 mm) | 1.630 in (41.4 mm) | 296 A | 13.0 in (330.2 mm) | 1926 lb/Mft (2866 kg/km) |
Standards and Engineering References
| Reference | Relationship to this draft |
|---|---|
| ASTM B172 | Official ASTM specification for rope-lay-stranded copper conductors with bunch-stranded members, including Class K construction |
| ASTM B3 | Soft or annealed copper-wire material reference named in the supplied construction data |
| ICEA S-75-381 / NEMA WC 58 | Portable and power-feeder cable construction reference named in the supplied data; confirm the current project edition |
