MINING & TUNNELING CABLES
Type W Round 4/C 2000V Mining Cable
Type W 4 conductor cable is a round 2000V portable
mining power cable for mobile equipment where four insulated conductors
are required and bare grounding conductors are not specified. The cable
combines flexible tinned-copper conductors, 90°C EPR insulation and a
reinforced mold-cured CPE outer jacket.
- Voltage rating: 2000V
- Configuration: Four-conductor round Type W cable
- Conductor: Flexible tinned copper
- Insulation: 90°C ethylene-propylene rubber
- Outer jacket: Reinforced thermosetting CPE
- Available sizes: 8 AWG to 4/0 AWG
- Typical equipment: Continuous miners, drills, cutters, loaders, AC shuttle cars and pumps
- Standard jacket colour: Black; other CPE colours subject to confirmation
For quotation, provide the conductor size, cable length, equipment,
reel arrangement, operating environment and required mine-acceptance
documentation.
Product overview
Type W Round 4/C Cable for Mobile Mining Equipment
Type W Round 4/C is a 2000V portable power cable for mobile mining equipment that requires four insulated conductors in a compact round construction. It is intended for applications where bare grounding conductors are not required or where the equipment connection is designed around four separately insulated conductors.
The cable is commonly specified for continuous miners, blast-hole drills, cutters, loading machines, AC shuttle cars and portable pumps. Its flexible conductor construction supports equipment handling, while the EPR insulation and reinforced CPE jacket provide the electrical and mechanical structure needed for demanding mining routes.
- Suitable for: Portable 2000V mining power, dragging, handling and equipment connections designed for a round four-conductor cable.
- Confirm before ordering: AWG size, load current, cable length, reel layers, termination dimensions and required conductor identification.
- Choose another construction when: The protection system requires a ground-check conductor, phase shielding or an SHD-GC configuration.
- Movement boundary: Automatic reeling, high torsion or repeated high-speed cycling requires a separate mechanical review.
Compare this product with the
TEBAOFLEX mining cable range
or review the
SHD-GC, Type G-GC and Type W selection guide
before specifying a replacement.
Construction
Construction

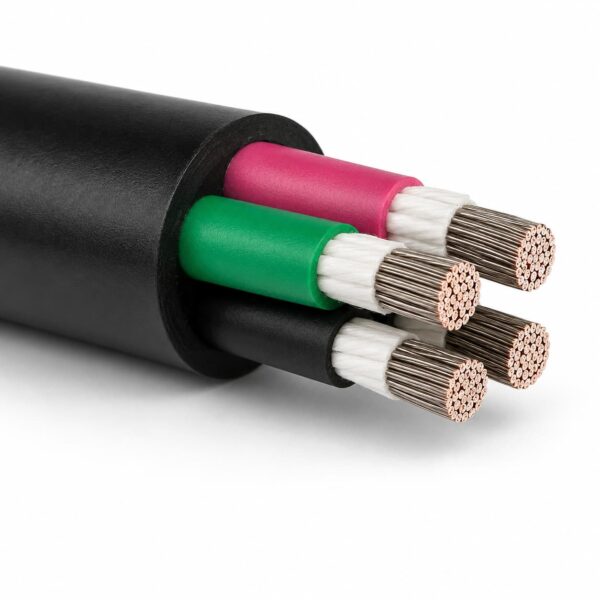

The Type W Round 4/C construction uses four flexible insulated conductors assembled into a round cable profile and protected by a reinforced thermosetting CPE outer jacket.| Layer | Confirmed construction | Function |
|---|---|---|
| Conductors | Four flexible tinned-copper conductors | Supports portable power transmission and cable handling |
| Separator | Non-conducting tape over each conductor | Separates the conductor from the insulation and supports preparation |
| Insulation | 90°C ethylene-propylene rubber | Provides electrical insulation for the 2000V construction |
| Core assembly | Four insulated conductors assembled in a round profile | Maintains the required four-conductor geometry |
| Outer jacket | Reinforced mold-cured thermosetting CPE | Provides the outer mechanical and environmental protection |
| Jacket colour | Black standard; coloured CPE subject to order confirmation | Supports project identification where a colour option is approved |
Applications
Applications

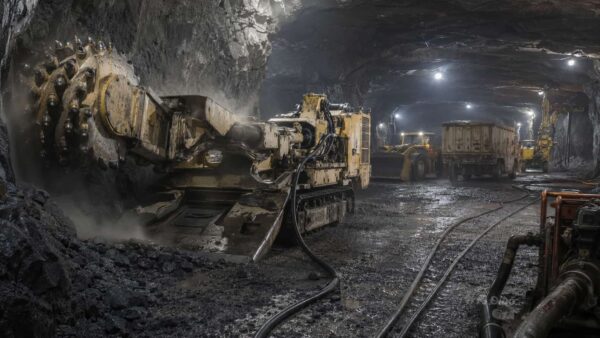

Type W Round 4/C cable is intended for mobile mining equipment operating
on circuits up to 2000V where a flexible four-conductor round cable is
required and the electrical design does not call for bare grounding
conductors.Typical Equipment
- Continuous miners
- Blast-hole drilling machines
- Underground and surface drills
- Mining cutters
- Loading machines
- AC shuttle cars
- Portable mining pumps
- Other mobile equipment designed for four-conductor Type W cable
Selection Boundaries
- Do not substitute this cable for Type G-GC when a ground-check conductor is required.
- Do not substitute it for SHD-GC when the circuit requires screened power conductors and ground-check monitoring.
- Confirm automatic reeling, high-speed cycling, repeated torsion and pulling load separately.
- Check cable outer diameter against reels, rollers, glands, couplers and equipment entry points.
- Apply the specified reel correction factor when one or more cable layers remain wound on a reel.
Information Needed for Selection
- Nominal and maximum system voltage
- Required AWG or metric conductor size
- Equipment model and circuit configuration
- Cable length and number of drums
- Dragging, coiling or reel arrangement
- Number of cable layers remaining on the reel
- Ambient temperature and operating duty
- Required mine acceptance, marking and test documentation
Specifications
Specifications
| Product type | Type W round portable mining power cable |
|---|---|
| Configuration | 4/C, four insulated conductors |
| Rated voltage | 2000V |
| Conductor | Flexible tinned copper |
| Separator | Non-conducting tape |
| Insulation | 90°C EPR |
| Outer jacket | Reinforced mold-cured thermosetting CPE |
| Standard jacket colour | Black |
| Available conductor sizes | 8 AWG to 4/0 AWG |
| Maximum continuous conductor temperature | 90°C |
| Ampacity reference ambient | 40°C |
Dimensions and Electrical Data
Imperial values are preserved from the supplied specification. Metric diameter and weight values are approximate mathematical conversions and must not replace the final manufacturing datasheet.| Size | Nearest metric size | Conductor wires | Insulation thickness | Nominal O.D. | Approx. weight | Ampacity at 40°C |
|---|---|---|---|---|---|---|
| 8 AWG | 10 mm² | 133 | 60 mil / 1.524 mm | 0.99 in / 25.1 mm | 670 lb/1000 ft / approx. 997 kg/km | 54 A |
| 6 AWG | 16 mm² | 133 | 60 mil / 1.524 mm | 1.10 in / 27.9 mm | 890 lb/1000 ft / approx. 1324 kg/km | 72 A |
| 4 AWG | 25 mm² | 259 | 60 mil / 1.524 mm | 1.27 in / 32.3 mm | 1250 lb/1000 ft / approx. 1860 kg/km | 93 A |
| 2 AWG | 35 mm² | 259 | 60 mil / 1.524 mm | 1.48 in / 37.6 mm | 1800 lb/1000 ft / approx. 2679 kg/km | 122 A |
| 1 AWG | 50 mm² | 259 | 80 mil / 2.032 mm | 1.68 in / 42.7 mm | 2270 lb/1000 ft / approx. 3378 kg/km | 143 A |
| 1/0 AWG | 50 mm² | 266 | 80 mil / 2.032 mm | 1.79 in / 45.5 mm | 2680 lb/1000 ft / approx. 3988 kg/km | 165 A |
| 2/0 AWG | 70 mm² | 323 | 80 mil / 2.032 mm | 1.93 in / 49.0 mm | 3200 lb/1000 ft / approx. 4762 kg/km | 192 A |
| 3/0 AWG | 95 mm² | 418 | 80 mil / 2.032 mm | 2.07 in / 52.6 mm | 3627 lb/1000 ft / approx. 5398 kg/km | 221 A |
| 4/0 AWG | 120 mm² | 532 | 80 mil / 2.032 mm | 2.26 in / 57.4 mm | 4650 lb/1000 ft / approx. 6920 kg/km | 255 A |
Nominal Outside-Diameter Tolerances
| Conductor range | Supplied tolerance | Approx. metric equivalent |
|---|---|---|
| 8–1 AWG | ±0.030 in | ±0.762 mm |
| 1/0–2/0 AWG | ±0.040 in | ±1.016 mm |
| 3/0–4/0 AWG | ±0.050 in | ±1.270 mm |
Reel Ampacity Correction Factors
Use the relevant multiplying factor when cable remains wound in one or more layers on a reel. These factors reduce the reference free-cooling ampacity to account for heat retained within the wound cable.| Number of cable layers | Ampacity multiplying factor |
|---|---|
| 1 layer | 0.85 |
| 2 layers | 0.65 |
| 3 layers | 0.45 |
| 4 layers | 0.35 |
Standards
Standards
| Reference or document | Required verification before publication or supply |
|---|---|
| ICEA S-75-381 / NEMA WC-58 | Confirm that the offered TEBAOFLEX Type W 4/C construction complies with the required edition and scope. |
| ASTM B172 | Confirm applicability to the rope-lay-stranded conductor construction. |
| ASTM B33 | Confirm applicability to the tinned copper conductor wires. |
| Routine and type-test documentation | Confirm the reports supplied with the ordered size, voltage and jacket construction. |
